Milesight Light Sensor EM500-LGT
Milesight Light Sensor EM500-LGT
Milesight Light Sensor EM500-LGT
Milesight Light Sensor EM500-LGT
Milesight Light Sensor EM500-LGT
Milesight Light Sensor EM500-LGT

Milesight Light Sensor EM500-LGT

Regular price $ 210.00 $ 0.00

SKU: 123002983

In-Stock: 0

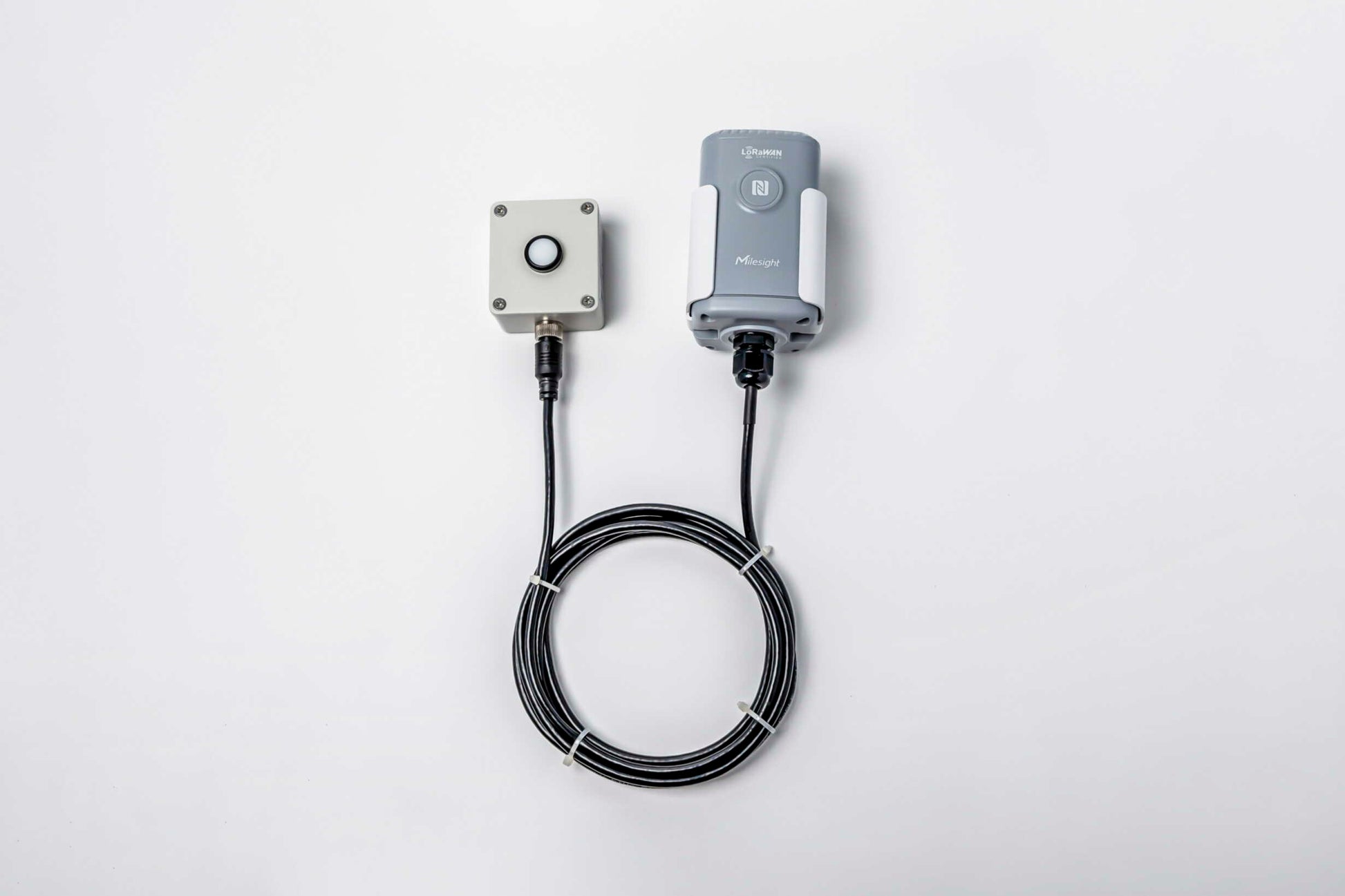

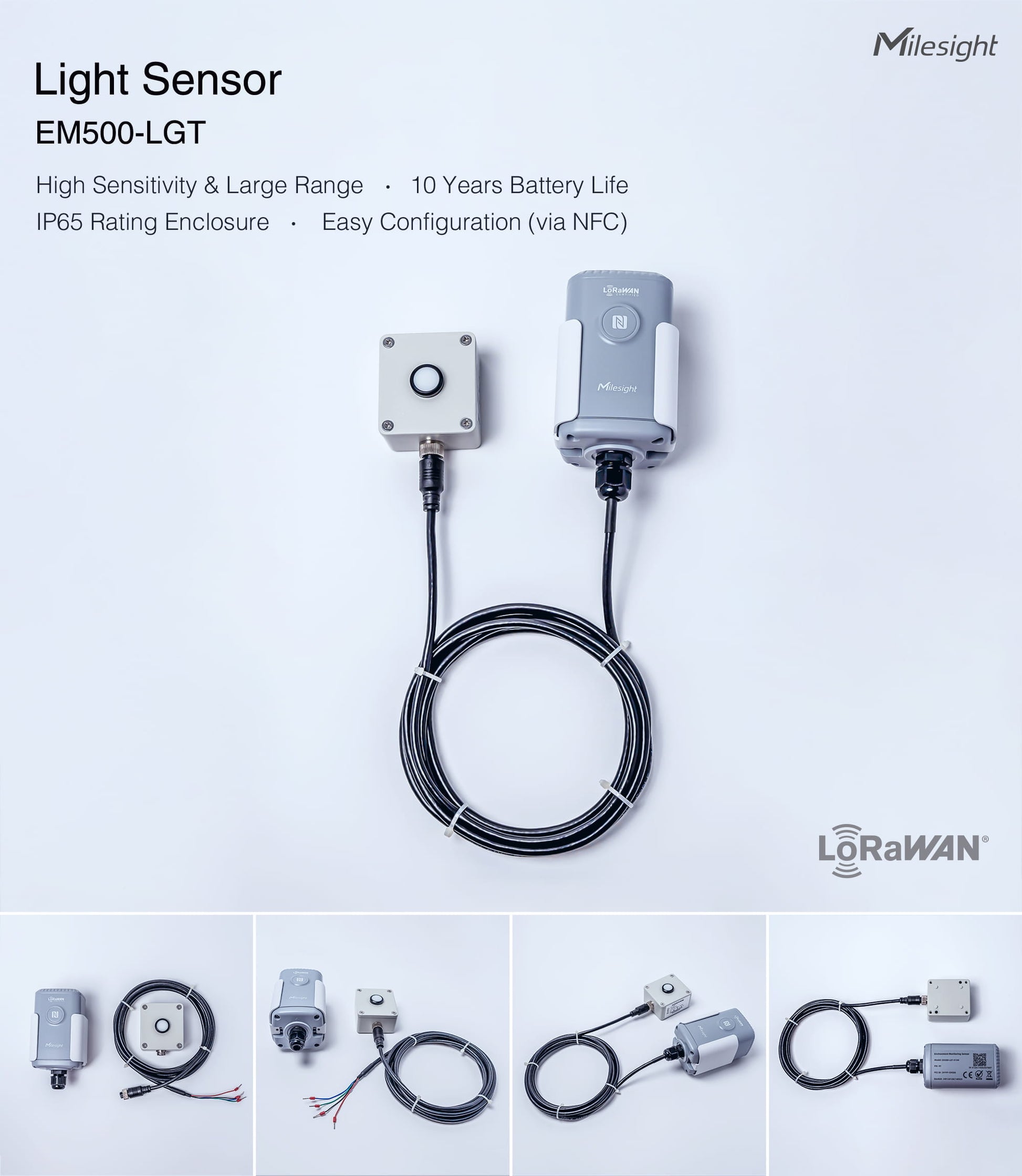

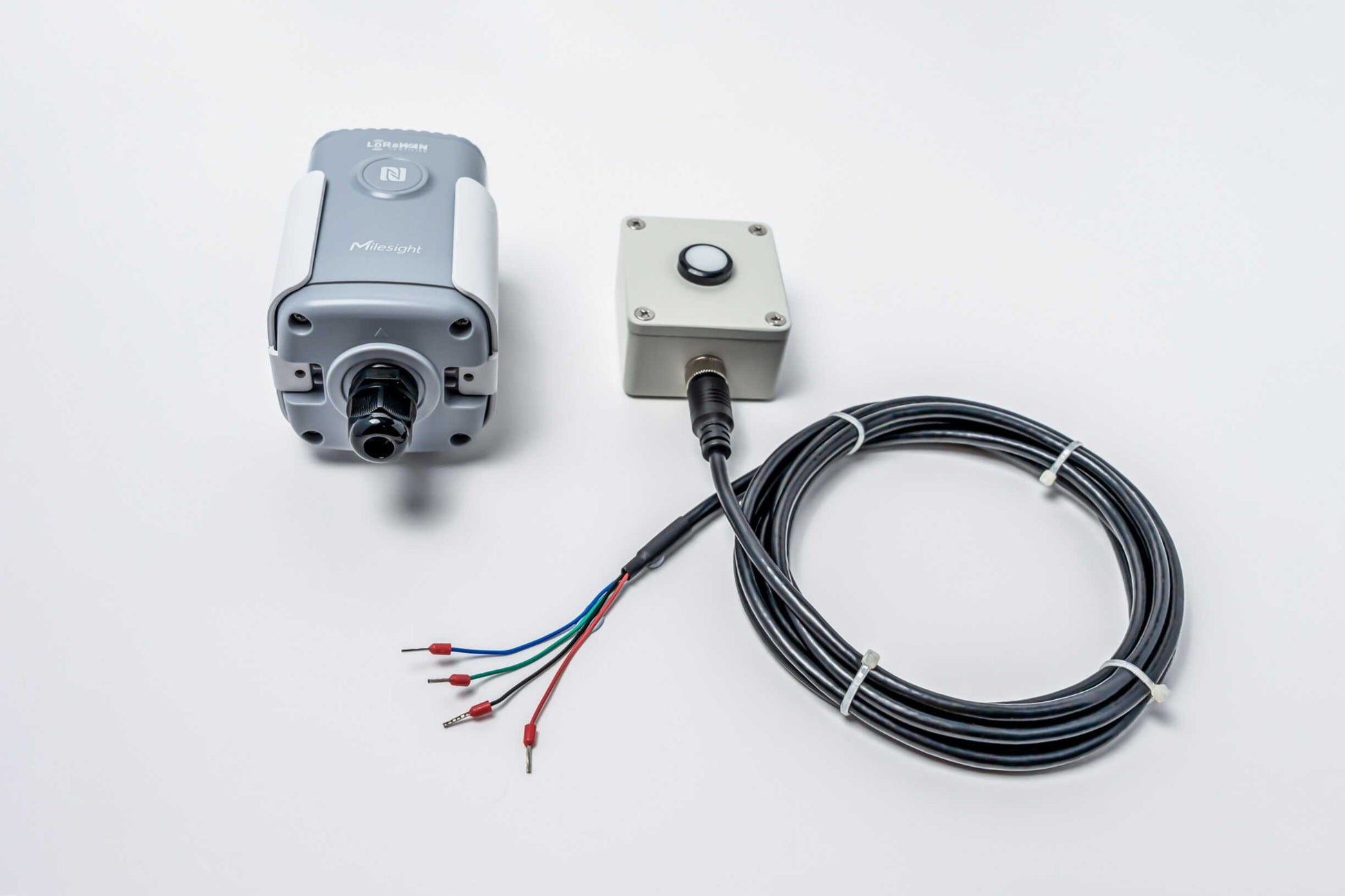

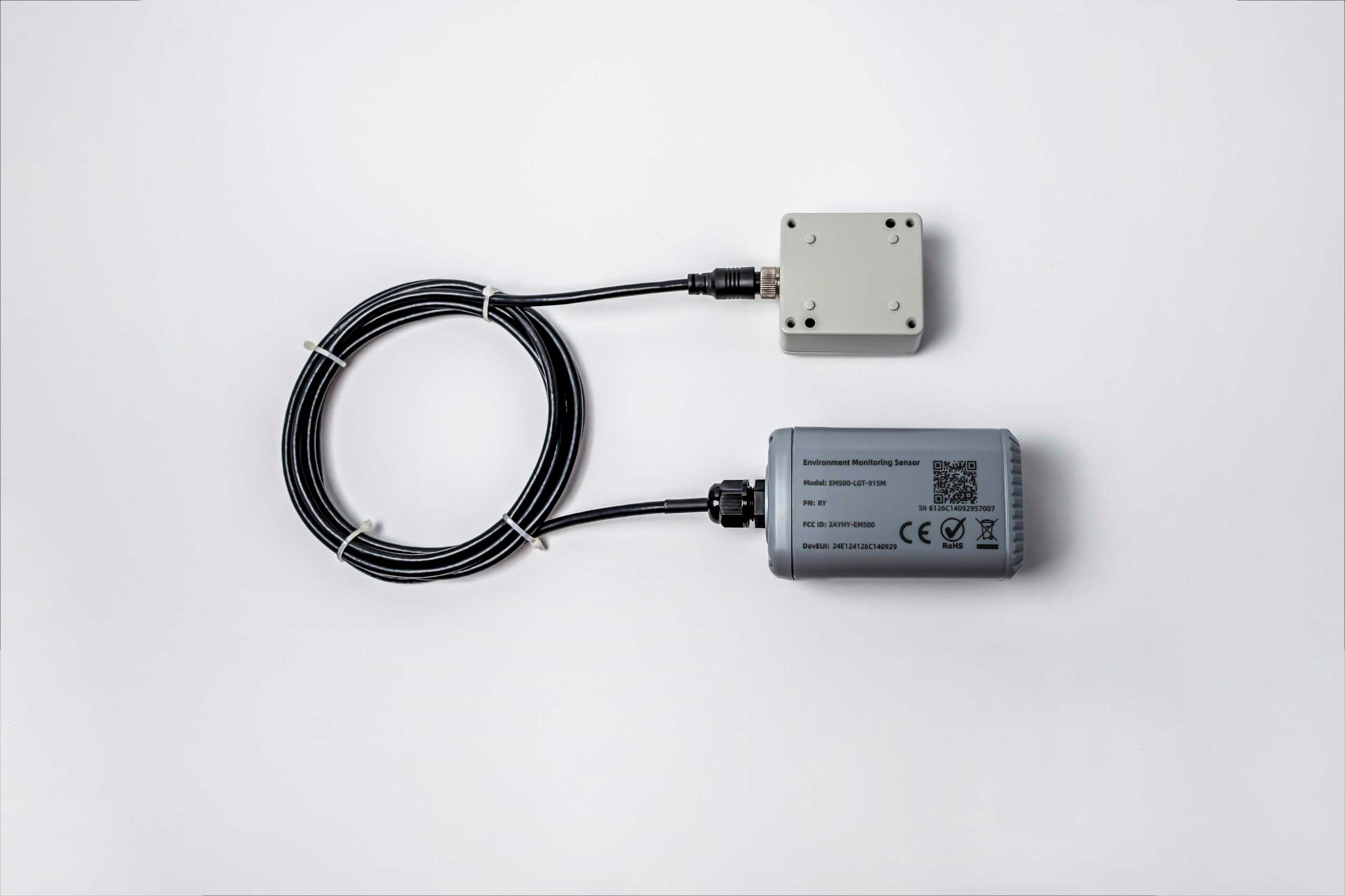

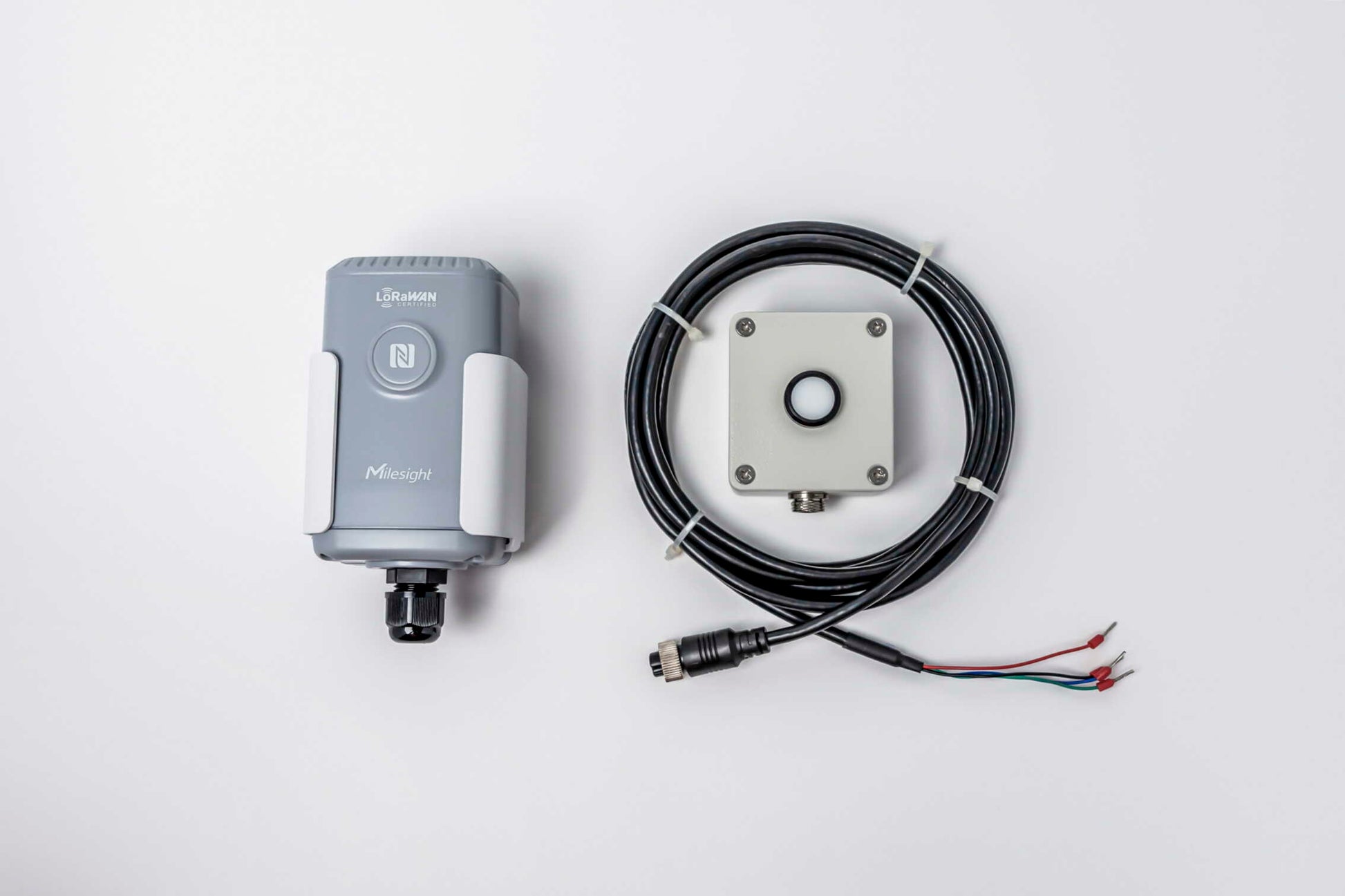

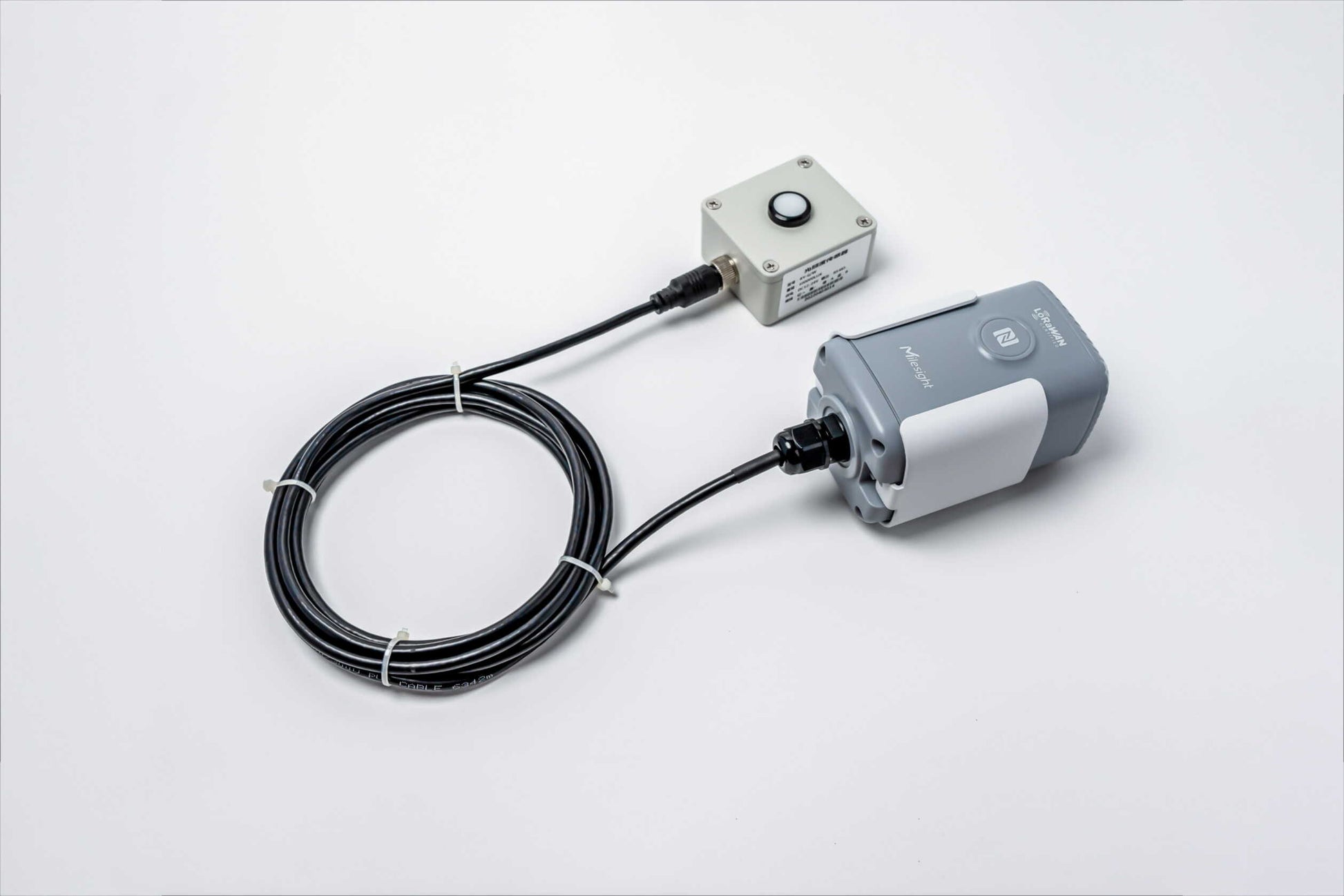

The EM500-LGT is designed for measuring light in harsh environments and transmitting data via LoRaWAN® technology. With low power consumption, it operates up to 10 years on a 19000 mAh battery. Integrated with Milesight LoRaWAN® gateway and IoT Cloud solution, users can manage sensor data remotely and visually.

Key Features:

  • Wide Measuring Range: High precision light measurement.
  • Ultra-Wide-Distance Transmission: Up to 10 km line of sight.
  • Durable Design: IP67 waterproof enclosure for harsh environments.
  • Long Battery Life: Built-in 19000 mAh replaceable battery, lasting up to 10 years.
  • Easy Configuration: Equipped with NFC.
  • LoRaWAN Compliance: Compatible with standard LoRaWAN gateways and network servers.
  • Efficient Management: Quick and easy integration with Milesight IoT Cloud solution.

Applications

  • Smart buildings
  • Urban lighting
  • Greenhouse control
  • Smart agriculture
  • Weather monitoring

Specifications

Wireless Transmission

Technology

LoRaWAN

Frequency

CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923

Tx Power

16dBm(868)/20dBm(915)/19dBm(470)

Sensitivity

-137dBm @300bps

Mode

OTAA/ABP Class A

Measurement

Range

0 - 100000 lux

Accuracy

±3%

Resolution

1 lux

Operation

Power On & Off

NFC, Power Button (Internal)

Configuration

Mobile APP(via NFC) or PC software(via USB Type-C)

Physical Characteristics

Cable Length

3 m

Power Supply

19000 mAh Li-SOCL2 battery (ER34615)

Battery Life*

10 years (10 min interval)

Operating Temperature

-30°C to +60°C

Relative Humidity

0% to 100% (non-condensing)

Ingress Protection

IP67(Transceiver)/IP65(Light Sensor)



Dimension

Transceiver: 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in)

Light Sensor: 64 × 58 × 34 mm (2.5 × 2.3 × 1.3 in)

Installation

Pole, wall or DIN Rail Mounting

Approvals

Regulatory

CE, FCC, RoHS



Technical Documents

LoRaWAN is a registered trademark of the LoRa Alliance. LoRa is a registered trademark of Semtech Corporation. MCCI is a trademark of MCCI Corporation. All other trademarks are the property of their respective owners.
