MCCI U.FL whip antenna
MCCI P/N
123001717
MCCI P/N
—
$ 5.80
—

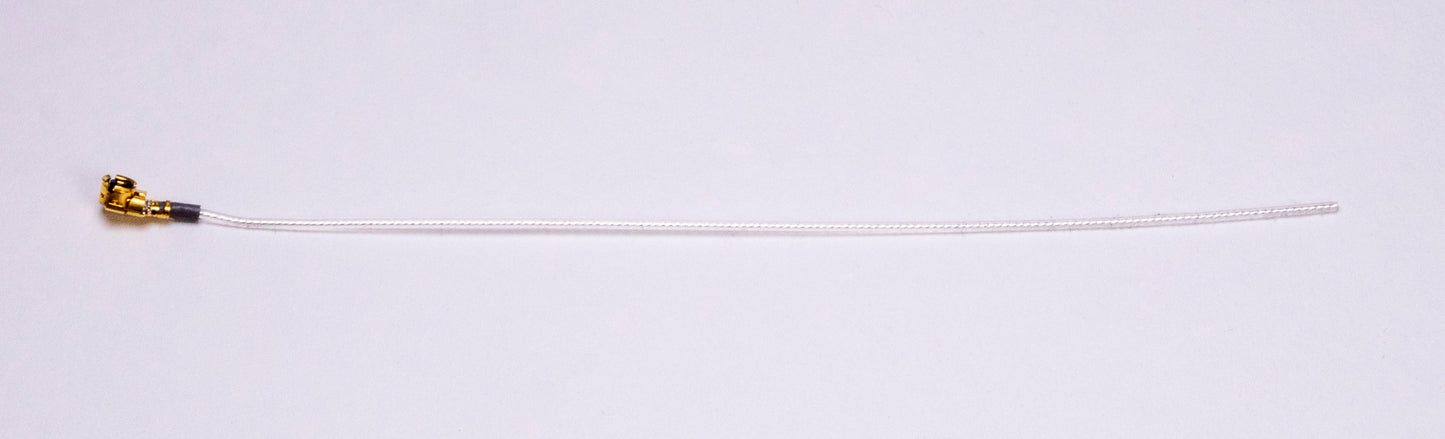

This is the antenna we ship with our U.FL Catena boards. We've had great experience in our field trials. Available in two lengths, 82mm for 915 MHz bands (US, AU, AS923), and 86mm for 866 MHz bands (EU, IN, etc.)
Specs:
| Impedance | 50 ohms |
| Gain | 3 dBi |
| VSWR | 1.7 max |
| Radiation pattern | Omni directional, polarized per antenna orientation. |

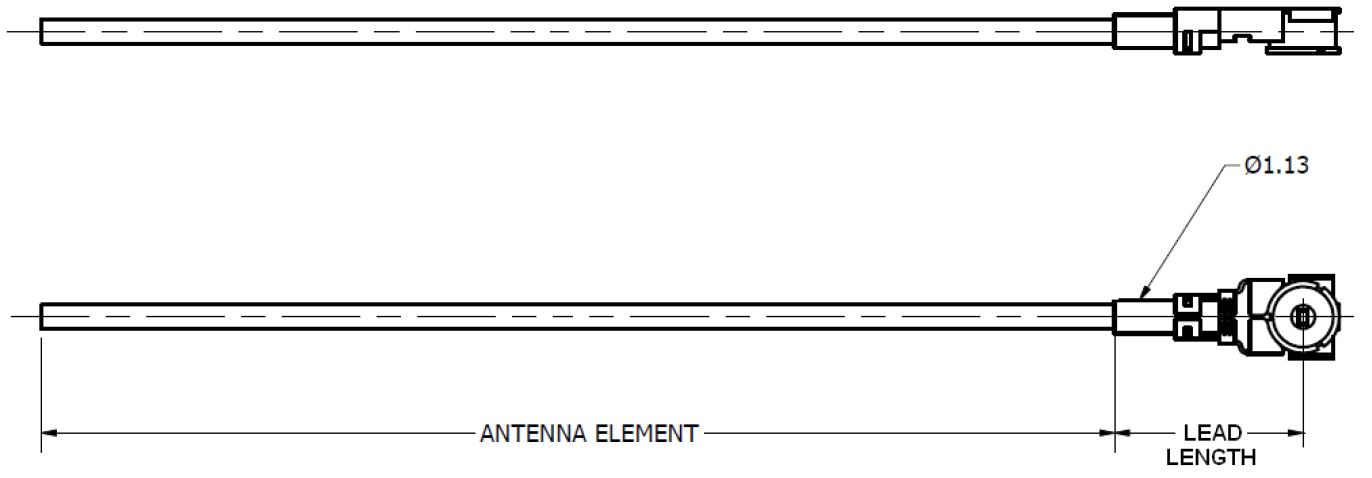

| Length | 82±1 mm | 86±1 mm |
| Center Frequency | 915 MHz | 866 MHz |
