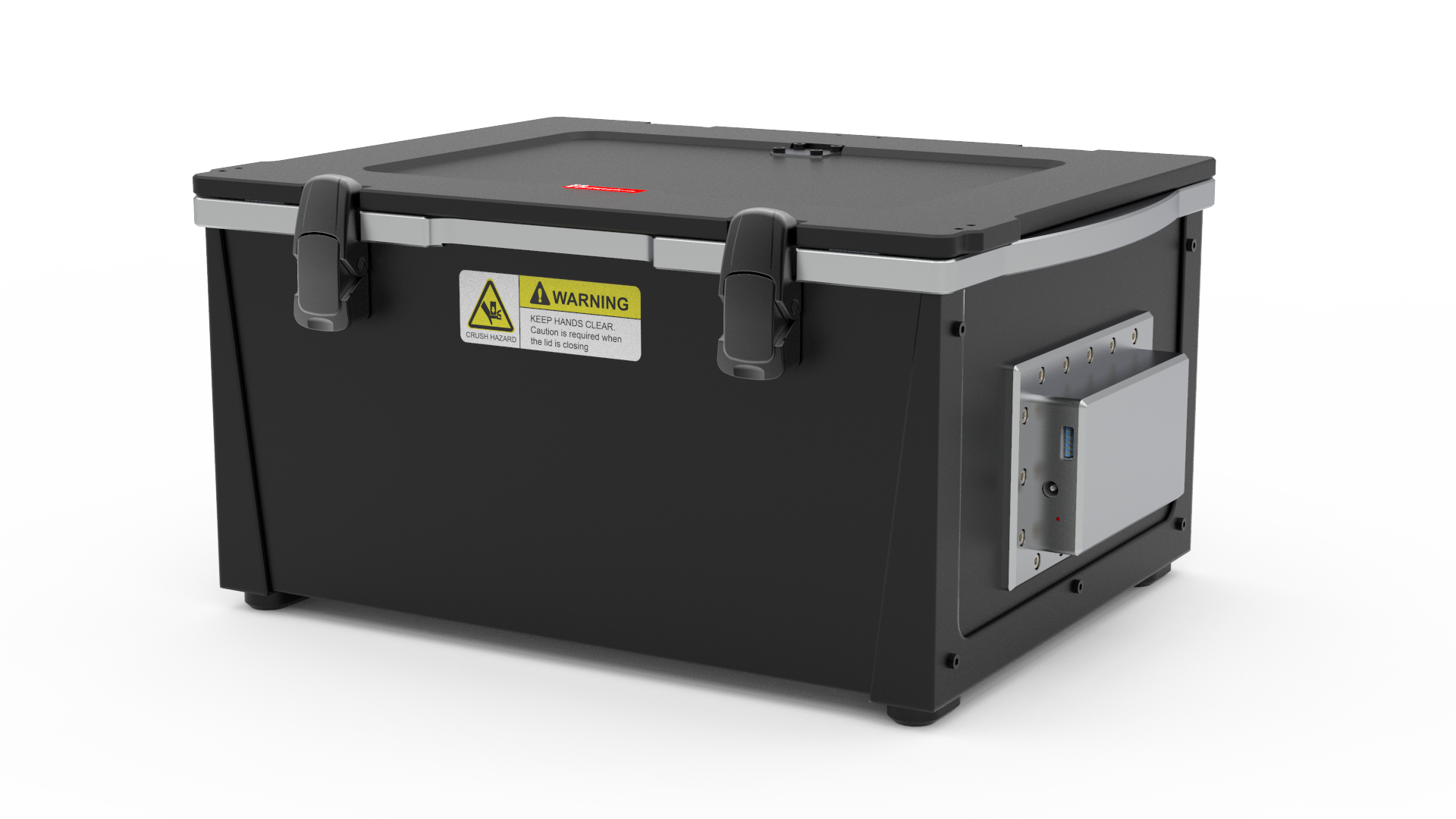

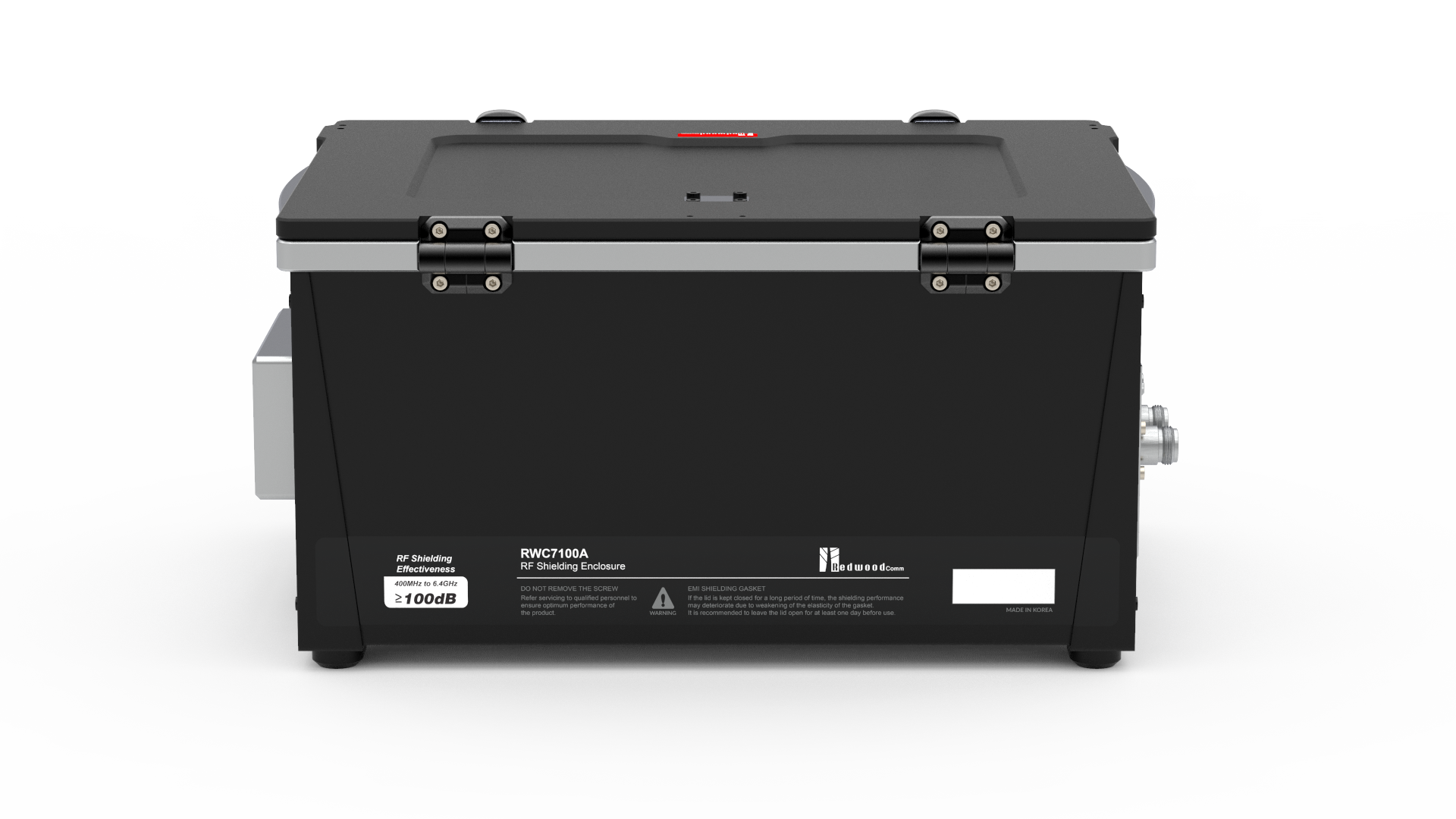

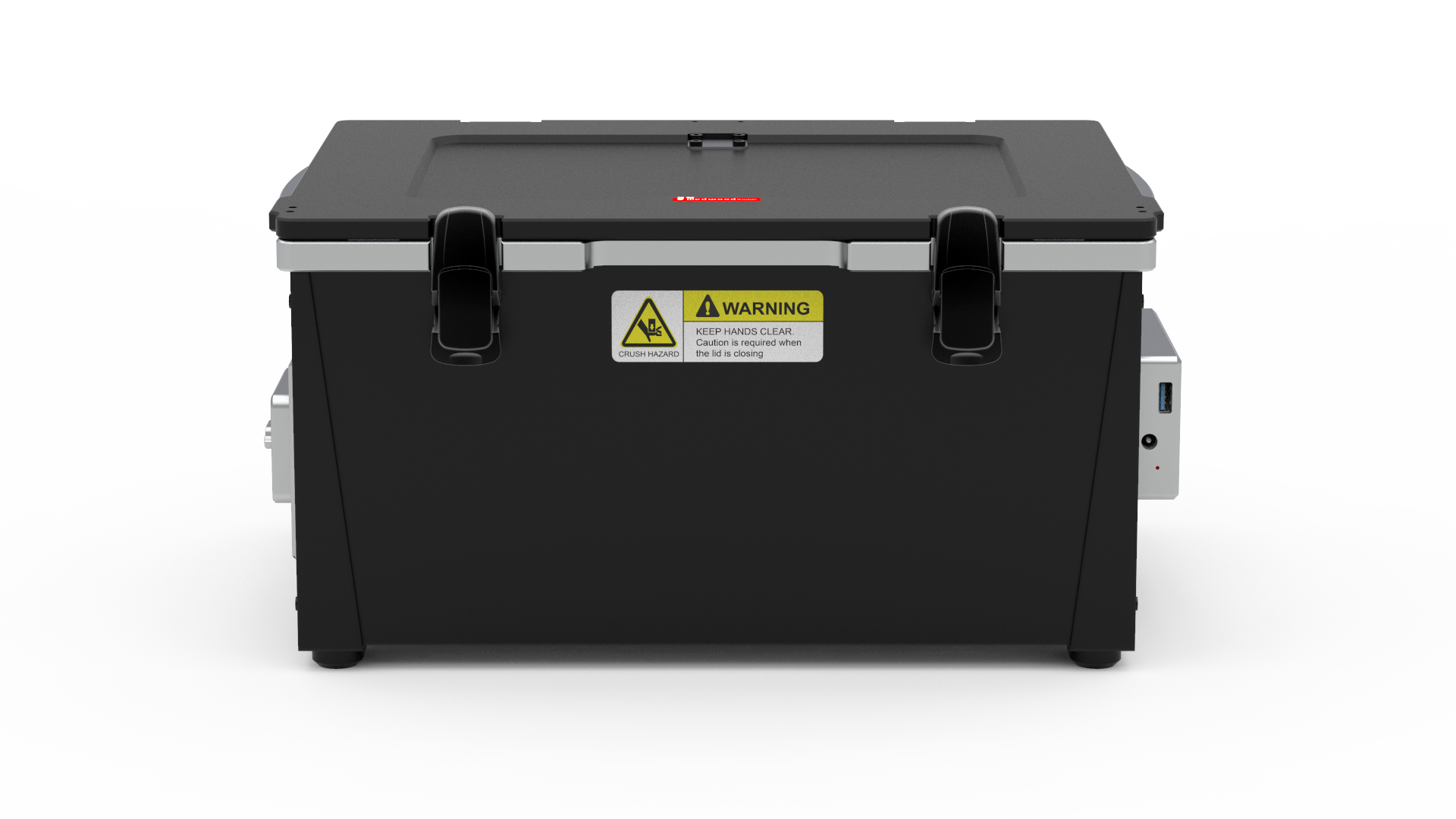

RWC7001A RF Shielding Enclosure
RF shielding enclosure for testing wireless devices gives 100 dB isolation from 400 MHz to 6.4 GHz. High and reliable shielding performance obtained by a triple-contact structure makes it easy to test and measure radiated performance of wireless devices. Suitable for LTE, NB-IoT, LoRa®, Sigfox, Wi-Fi, Bluetooth, GPS, GNSS, ISM-band FSK, GFSK, MSK, OOK, and more.
For technical details and specifications, see our RWC7001A page.
MCCI offers three pre-configured versions.
- Option -80, with two SMA(female) pass-through connections and a DB9 pass-through.
- Option -81, with a USB 3.0 fiber interface and two SMA(female) pass-through connections.
- Option -82, with a USB 3.0 fiber interface, a USB 3.0 to USB 2.0 hub, and a right-hand circularly polarized antenna integrated into the lid. (This configuration is ideal for testing propagation with an antenna rather than with a direct coax connection.)
