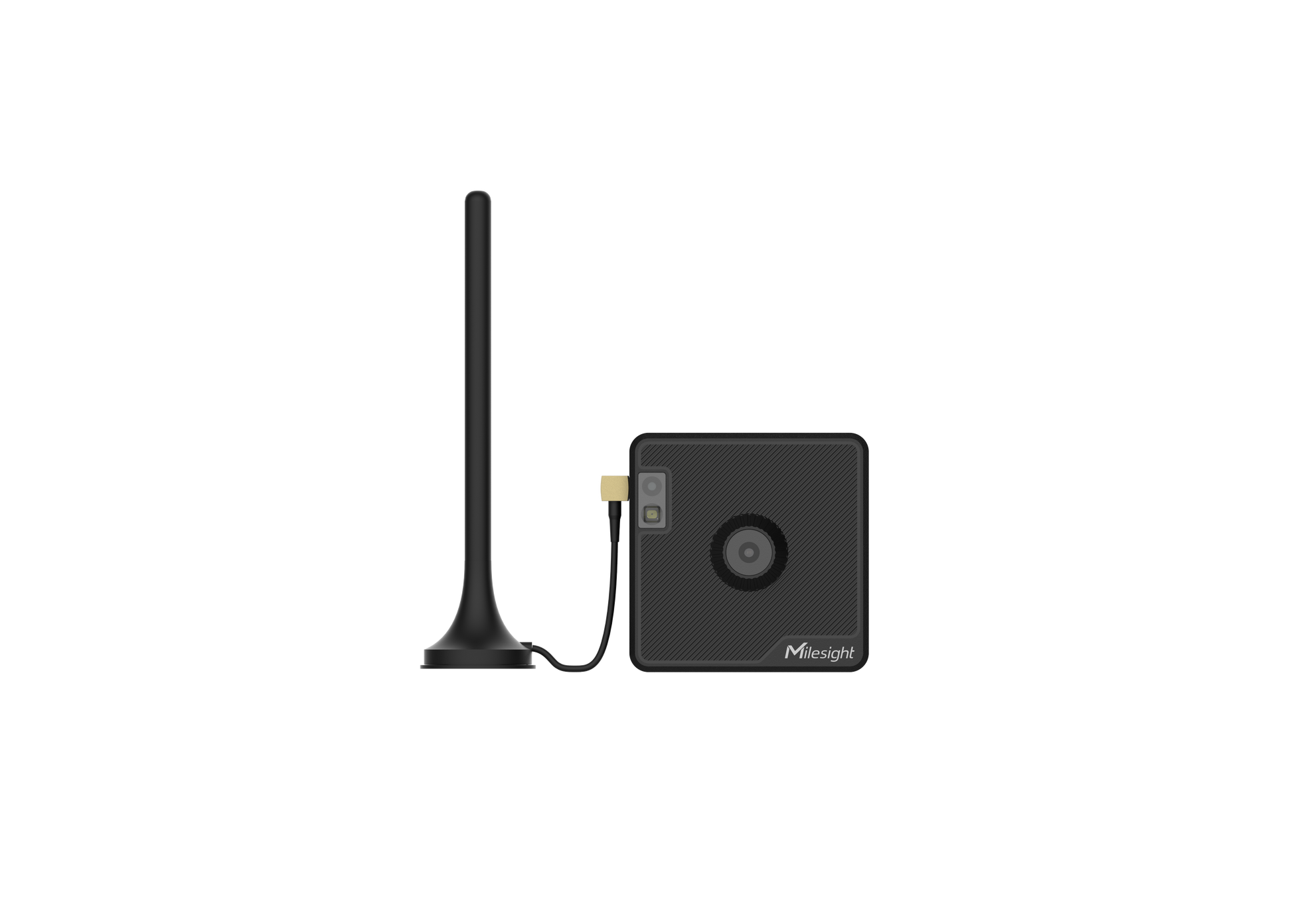

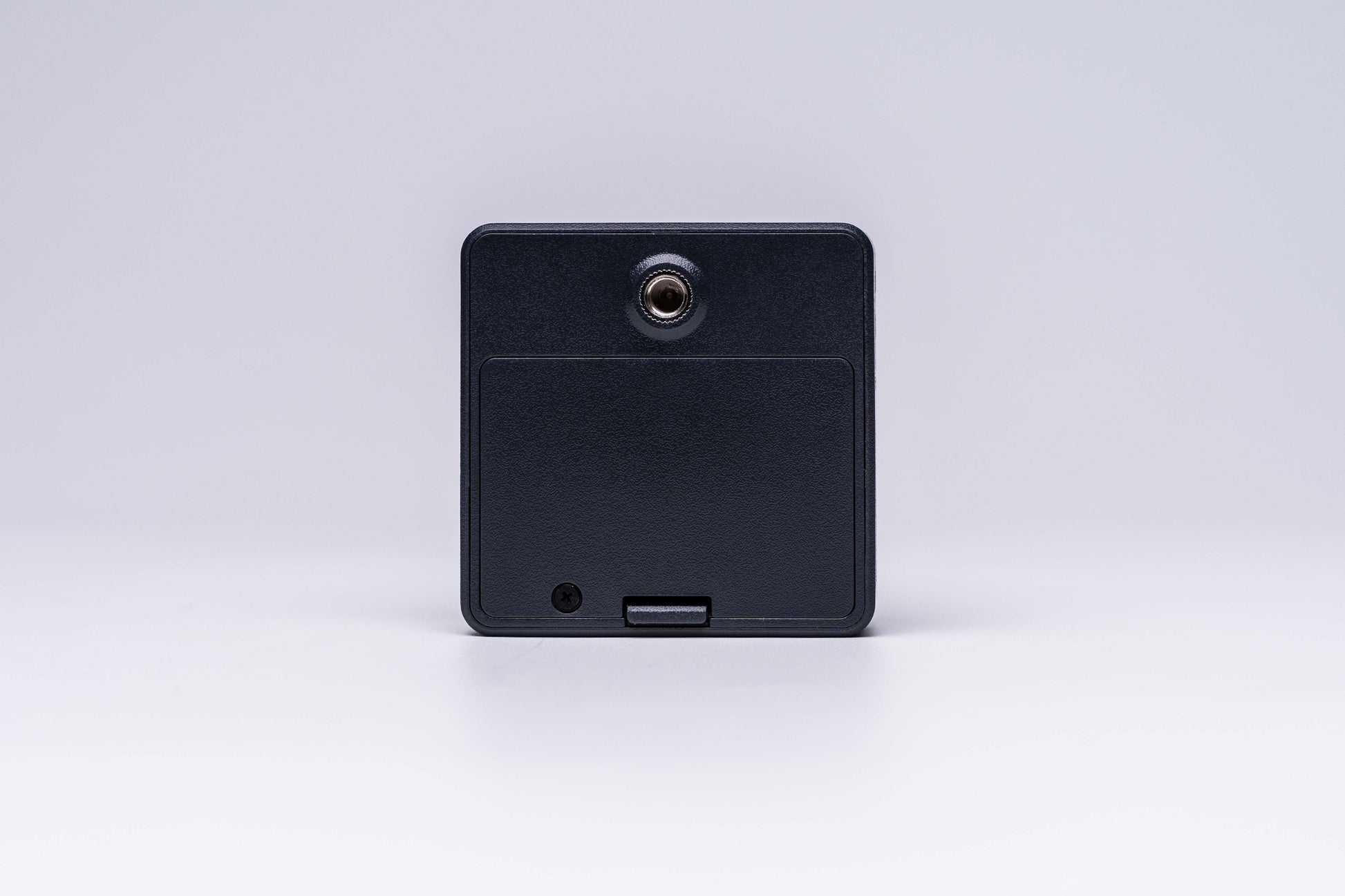

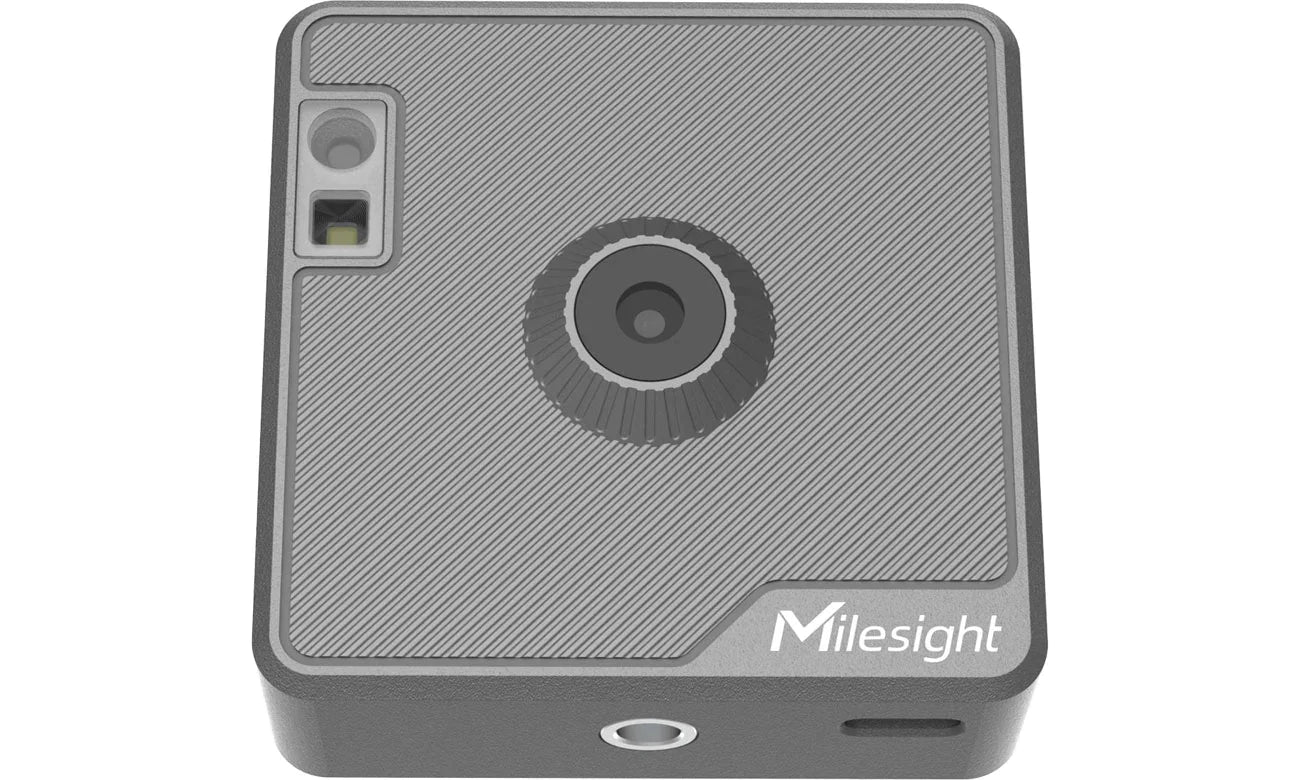

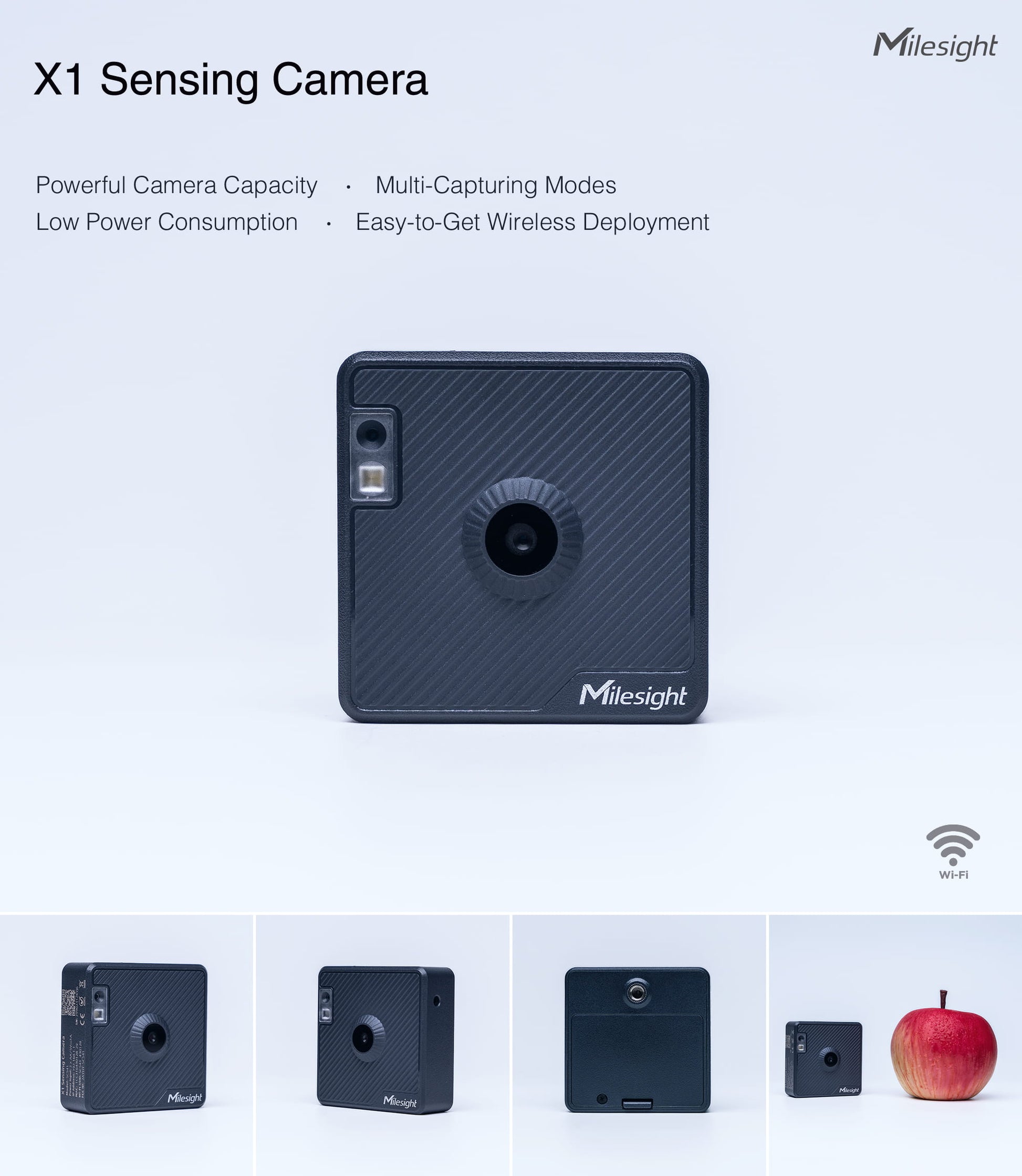

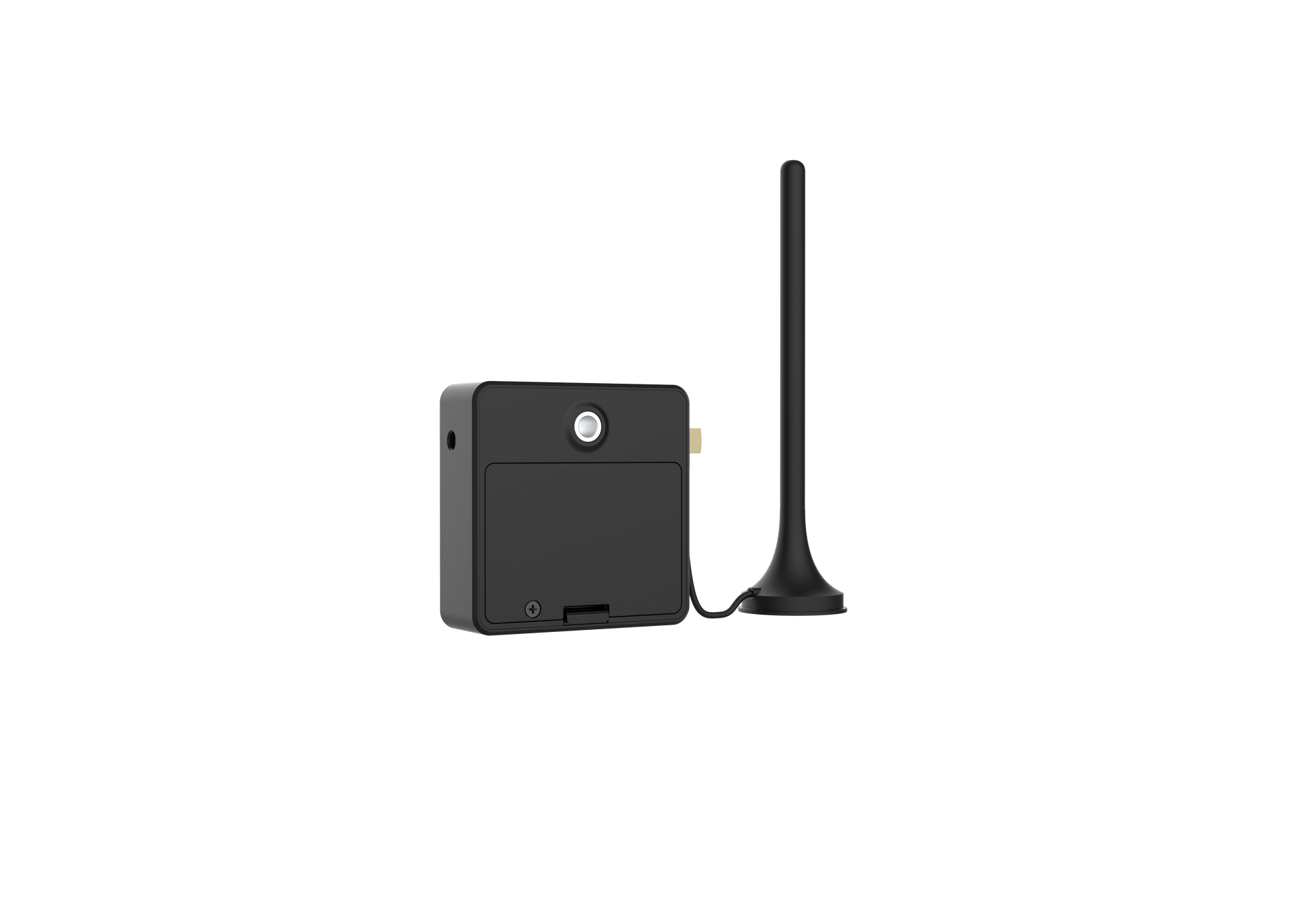

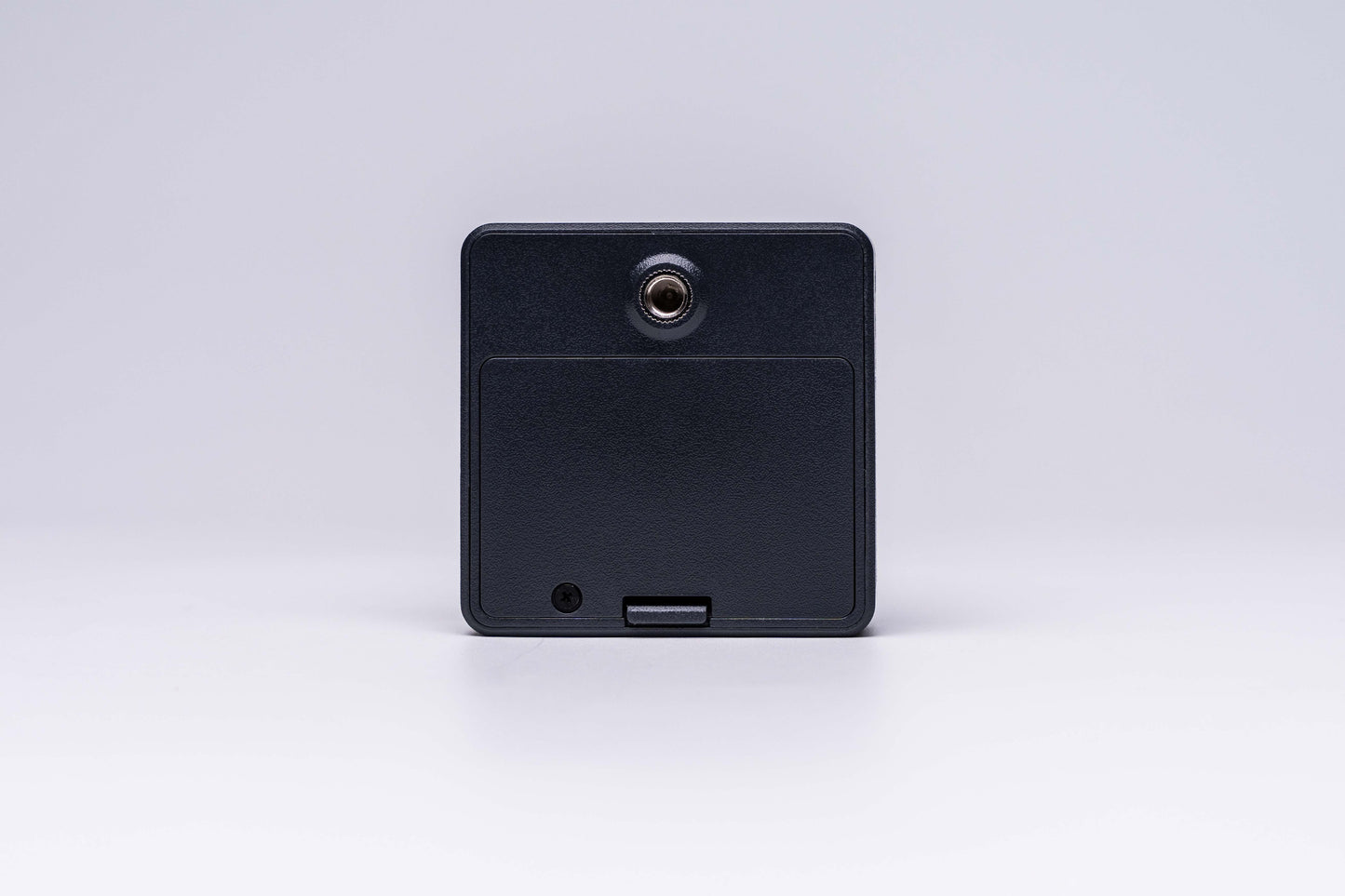

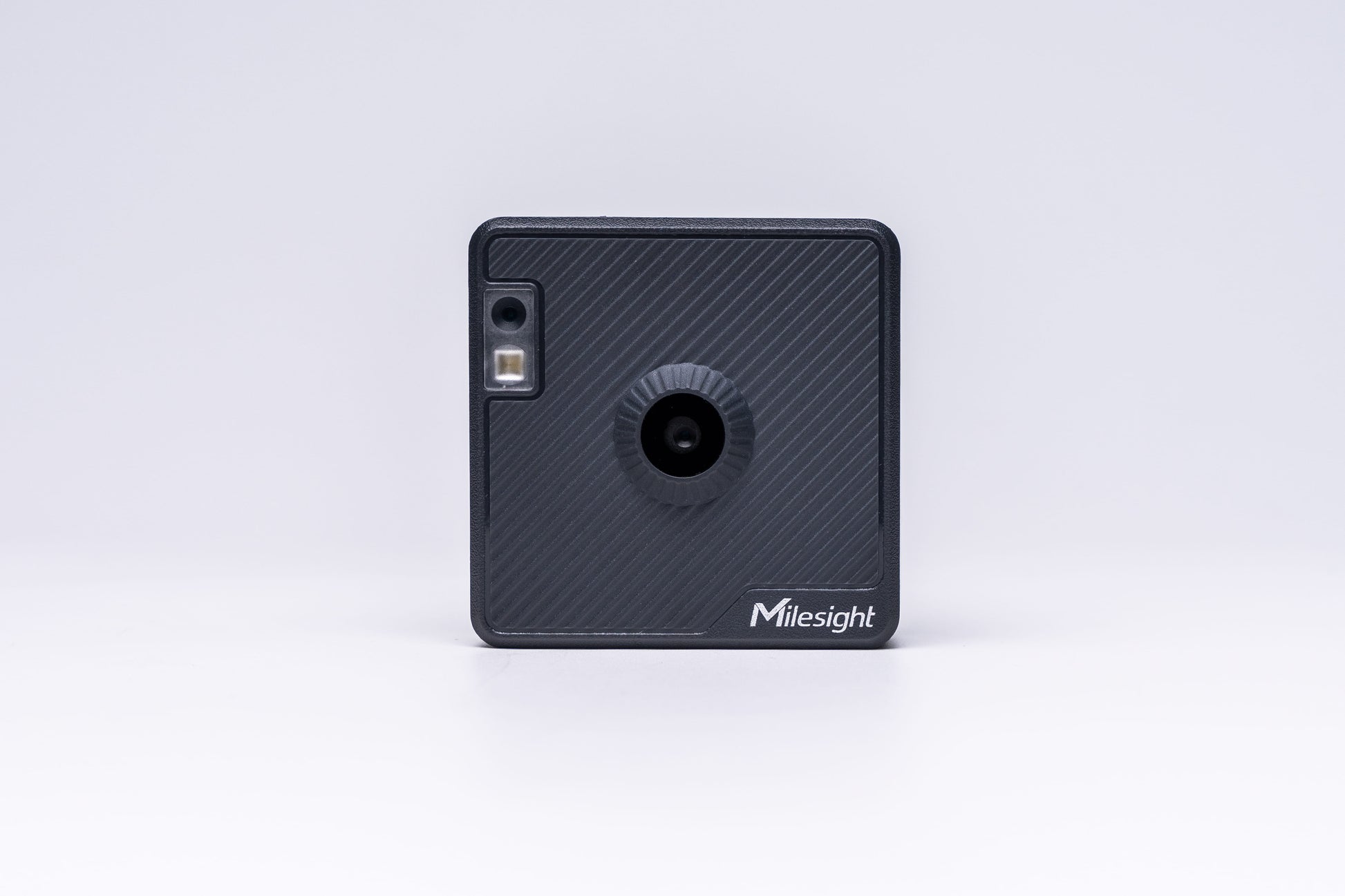

Milesight Sensing Camera X1
Milesight Sensing Camera X1
SKU:123002869
Low stock: 1 left
Couldn't load pickup availability
Battery-powered Wi-Fi® Camera: three HD captures per day for up to 2 years
By capturing pictures, the X1 Sensing camera can replace human inspection in multiple scenarios and economize on manpower. High-quality picture-capturing function and embedded supplemental light make it more competitive and useful under different environmental conditions.
The Milesight X1 Sensing Camera features low power consumption and allows for different power-supplying methods for extending its service life and maximizing its utilization.

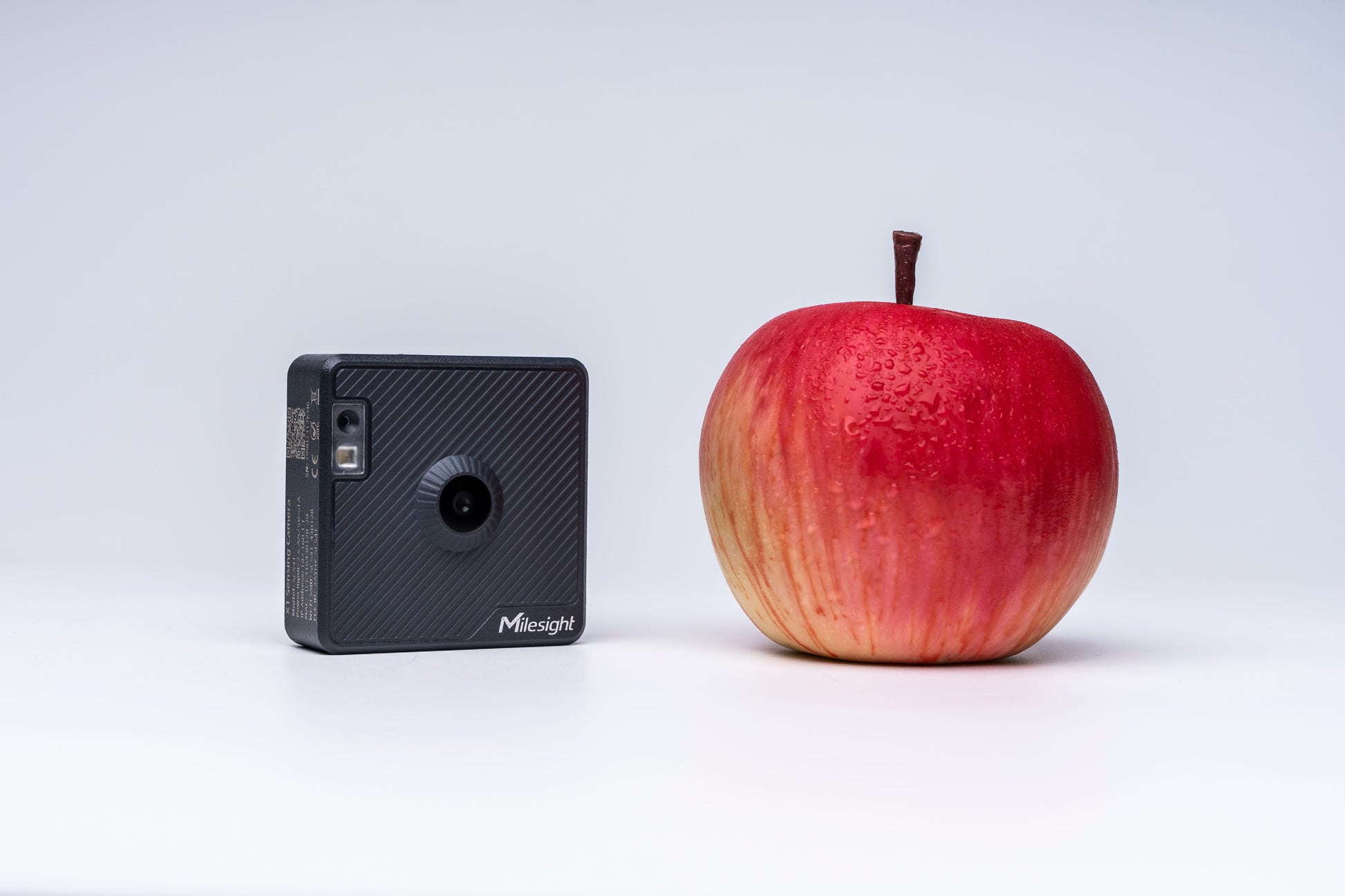

With a compact size, X1 Sensing Camera allows for easy deployment. It supports easy configuration via Wi-Fi and allows for remote management and data transmission via standard MQTT to Milesight AIoT Sensing Platform.
Features
High-quality Capturing System
- Full HD resolution 1920 x 1080 pixels
- Multi-type picture-capturing modes: time interval, scheduled time, alarm-in settings, and one external
- Includes advanced supplement light to increase light level under specific conditions
Specifications:
|
Lens |
|
|
Resolution |
1920 x 1080 Pixels |
|
Aperture |
F2.4 |
|
Focal Length |
4.8mm |
|
Field of View |
77° |
|
Picture Capture |
|
|
Capture Mode |
Scheduled Capture(Interval & Timed)/Alarm-in Capture/Button Capture |
|
Picture Format |
JPEG |
|
Storage |
Store up to 40 pictures (About 3MB Flash) |
|
Wireless Transmission |
|
|
Wi-Fi |
IEEE 802.11 b/g/n，2.4GHz (AP & STA); optional Wi-Fi HaLow™ support (868 or 915 MHz) |
|
Protocol |
MQTT |
|
Interface |
|
|
Type-C Interface |
1 x Type-C |
|
LED |
1 x Status(Blue) |
|
Button |
1 x External Button (Awake/Capture/Reset Device) |
|
Alarm-in Interface |
Logical Level: Low: <0.5V, High: 3V ~ 5V Trigger Condition: High Level lasted over 150us |
|
Physical Characteristics |
|
|
Power Supply |
1. 5V / 1A by Type-C Port 2. 2 x AA alkaline batteries |
|
Battery Life |
Up to 2 Years (3 Captures per Day, Supplement Light Off, 25°C) |
|
Installation |
Universal Camera Bracket Mounting |
|
Mounting Distance |
10 ~ 20 cm |
|
Operating Temperature |
0°C ~ +50°C |
|
Storage Temperature |
-20°C ~ +60°C |
|
Relative Humidity |
0 ~ 95% (Non-condensing) |
|
Color & Material |
Charcoal Grey, PC + ABS |
|
Ingress Protection |
IP30 |
|
Dimension |
62 x 62 x 25 mm |
|
Weight |
48g |
|
Warranty |
2 Years |
Technical Documents
Wi-Fi is a registered trademark of Wi-Fi Alliance. Wi-Fi HaLow is a trademark of the Wi-Fi Alliance.
