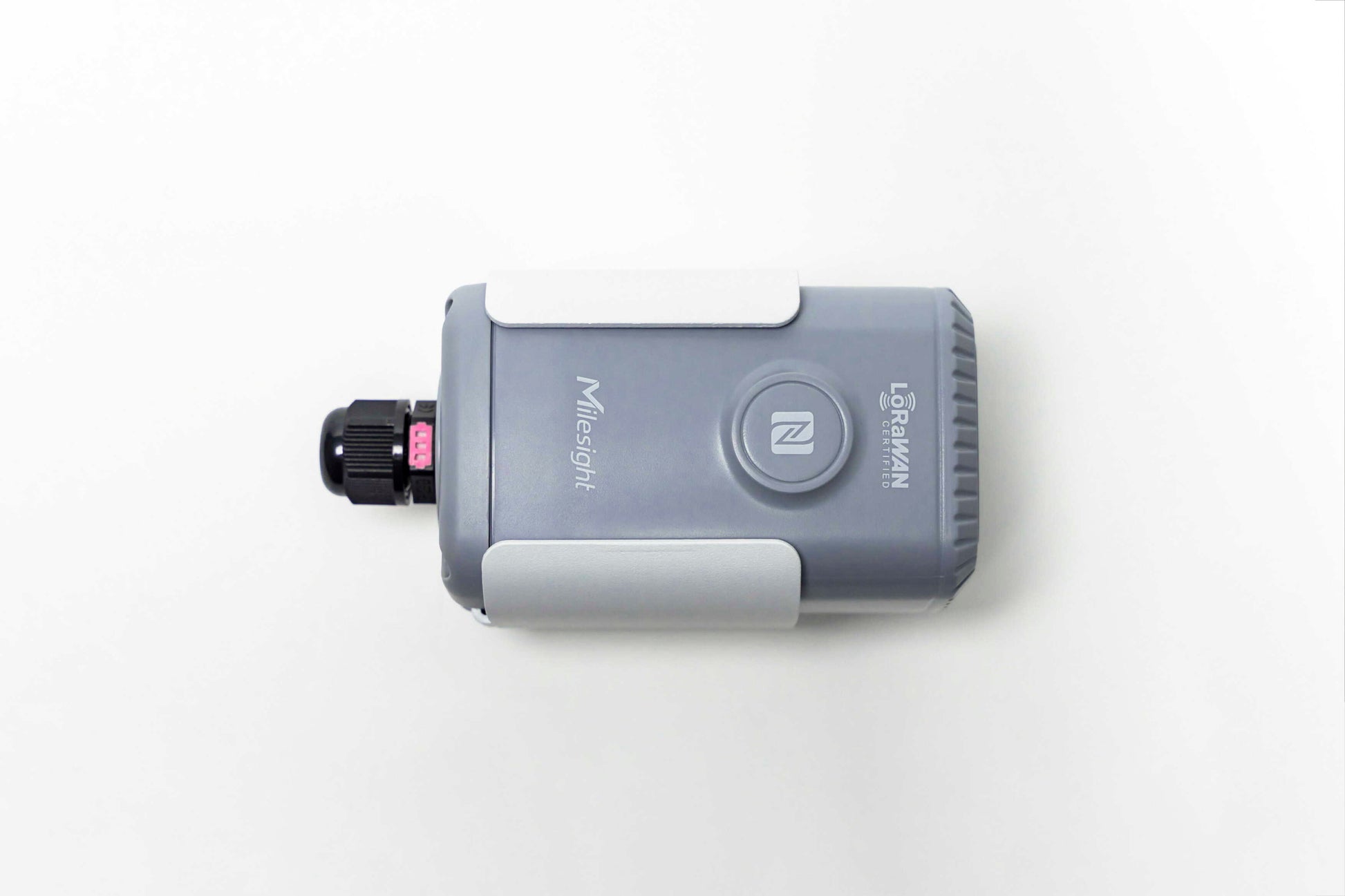

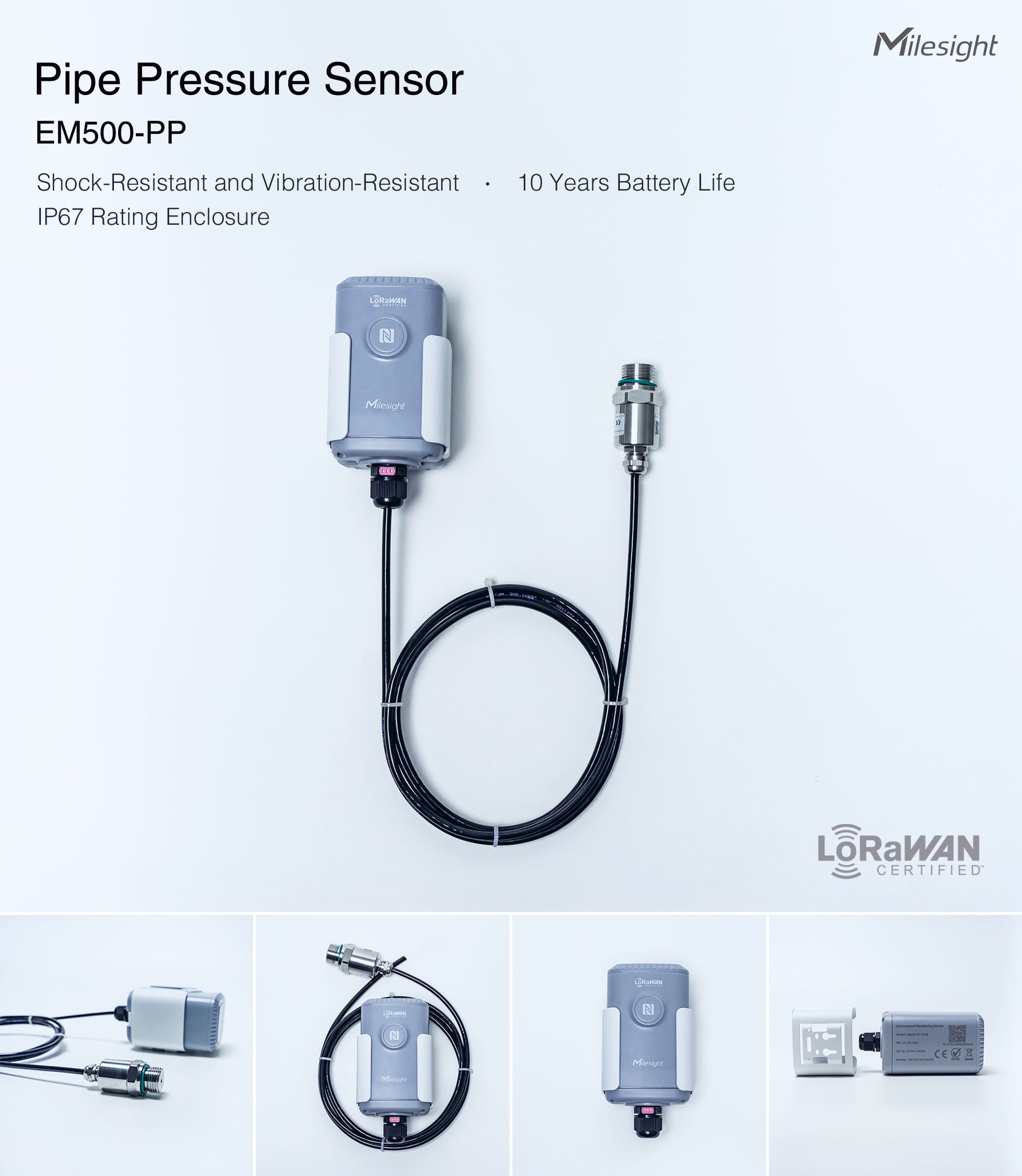

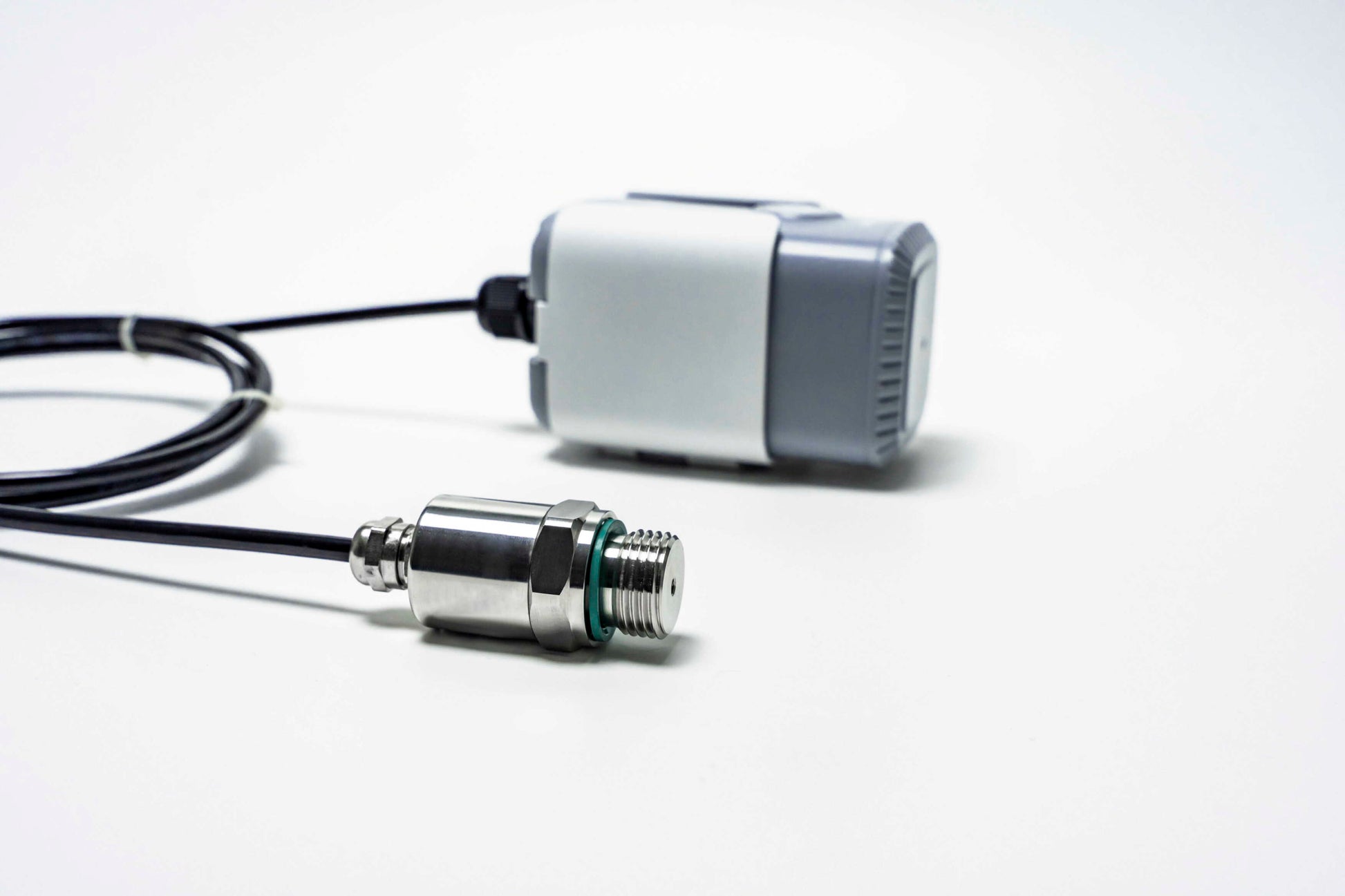

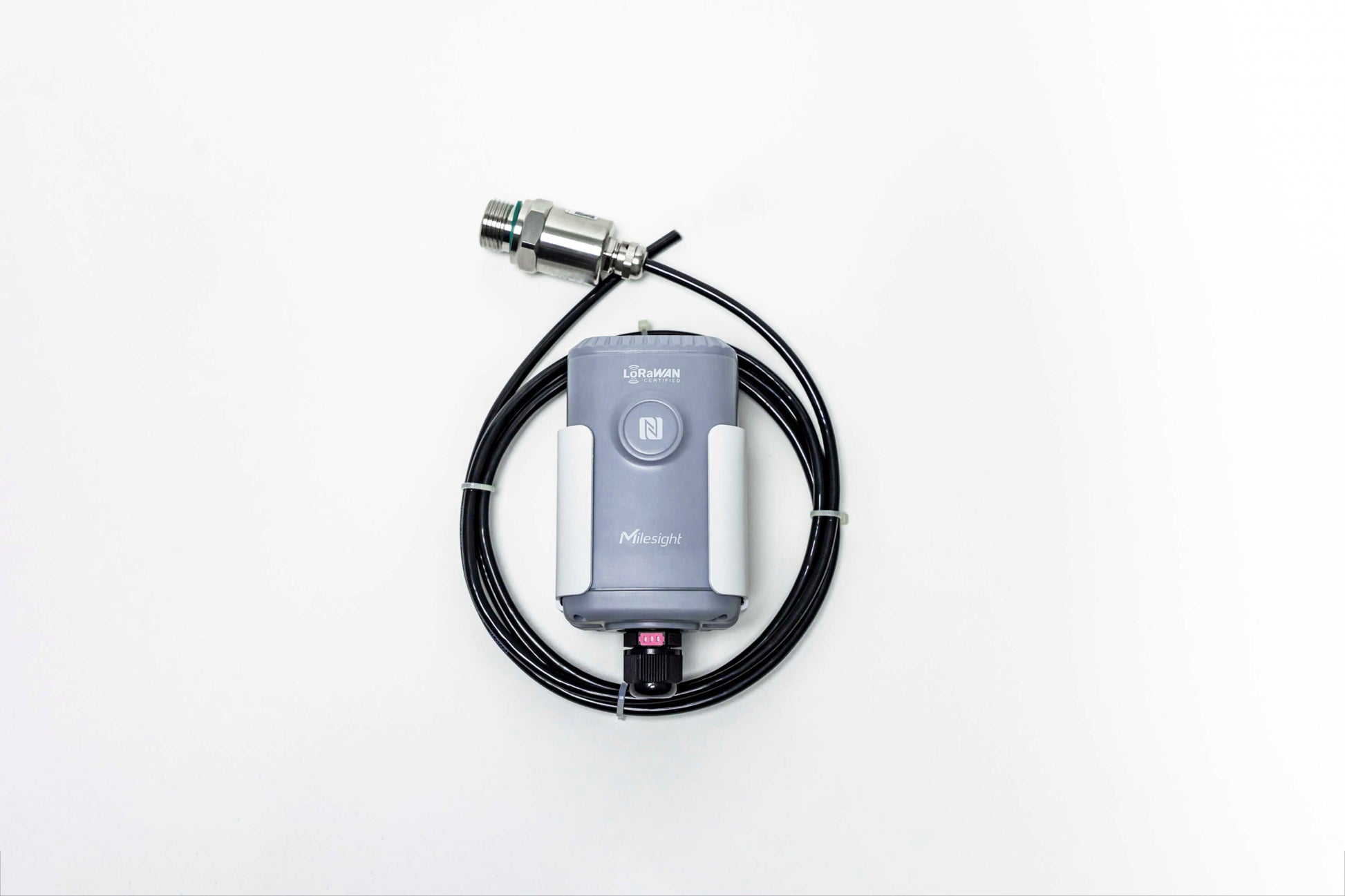

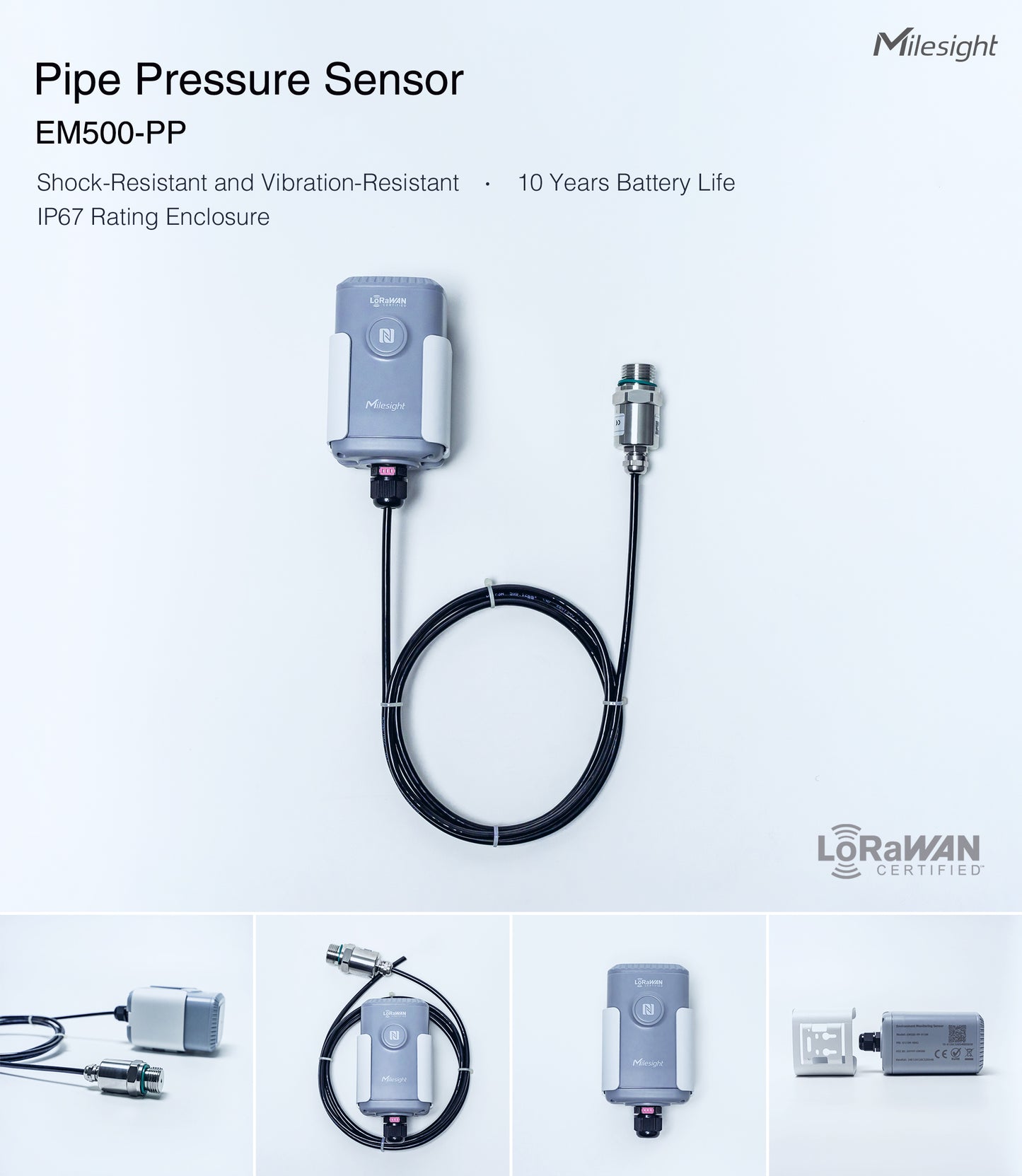

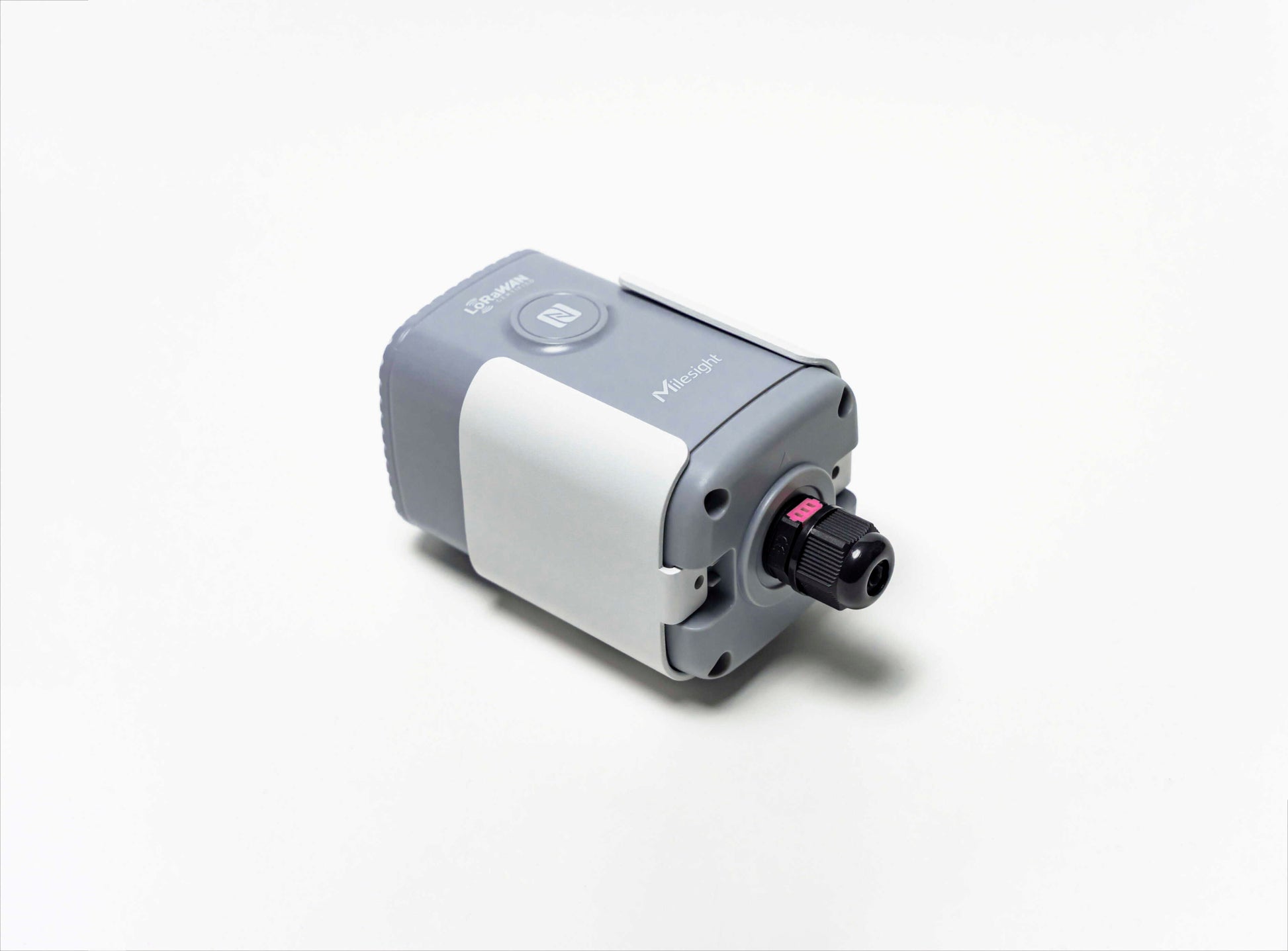

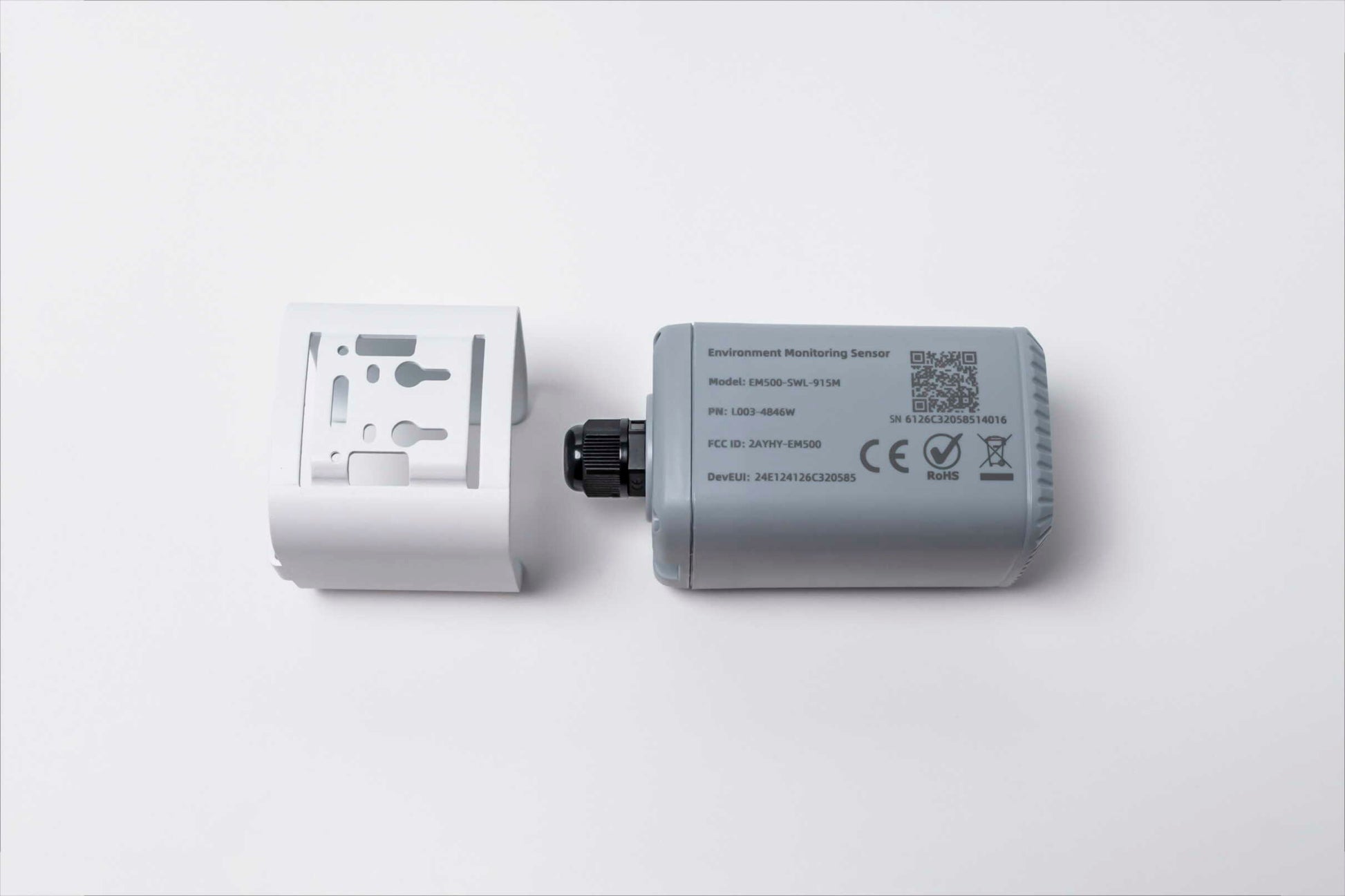

Milesight Pipe Pressure Sensor EM500-PP
Milesight Pipe Pressure Sensor EM500-PP
Milesight Pipe Pressure Sensor EM500-PP
Milesight Pipe Pressure Sensor EM500-PP
Milesight Pipe Pressure Sensor EM500-PP
Milesight Pipe Pressure Sensor EM500-PP

Milesight Pipe Pressure Sensor EM500-PP

Regular price $ 264.00 $ 0.00

SKU: 123002973

In-Stock: 3

EM500-PP is designed for measuring pipe pressure in harsh environments and transmitting data using LoRaWAN® technology. With this low power consumption technology, EM500-PP can work up to 10 years with 19000 mAh battery. Combining with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually.

EM500-PP is widely used for applications like smart buildings, pipeline and tank systems monitoring, etc.

Features

  • High precision and corrosion resistance
  • Ultra-wide-distance transmission up to line of sight of 10km
  • IP67 waterproof enclosure for harsh environment applications
  • Built-in 19000 mAh replaceable battery and work for 10 years without replacement
  • Equipped with NFC for easy configuration
  • Compliant with standard LoRaWAN gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution

Applications

  • Pipes and tanks pressure monitoring
  • Oil & Gas monitoring
  • Water leak detection
  • Pump monitoring

Specifications

Wireless Transmission

Technology

LoRaWAN®

Frequency

CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

16dBm(868)/20dBm(915)/19dBm(470)

Sensitivity

-137dBm @300bps

Mode

OTAA/ABP Class A

Measurement

Pressure Type

Gauge Pressure

Range

0 - 1600 kPa (16 Bar)

Accuracy

± 0.5% FS

Resolution

1 kPa (0.01 Bar)

Overload

150% FS

Long-term Stability

± 0.3% FS/year

Process Connection

G 1/2” Male

Operation

Power On & Off

NFC, Power Button (Internal)

Configuration

Mobile App (via NFC) or PC software(via USB Type-C)

Physical Characteristics

Cable Length

1.5 m

Power Supply

19000 mAh Li-SOCL2 battery (ER34615)

Battery Life*

10 years (10 min interval)

Operating Temperature

-30°C to +70°C (Transceiver)/-10°C to +70°C (Pipe Pressure Sensor)

Relative Humidity

0% to 100% (non-condensing)

Ingress Protection

IP67(Transceiver)/IP65(Pipe Pressure Sensor)



Dimension

Transceiver: 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in)

Pipe Sensor: 67.5 × ф27 mm (2.7 × ф1.1 in)

Installation

Pole, wall or DIN Rail Mounting

Approvals

Regulatory

CE, FCC, RoHS

Technical Documents
