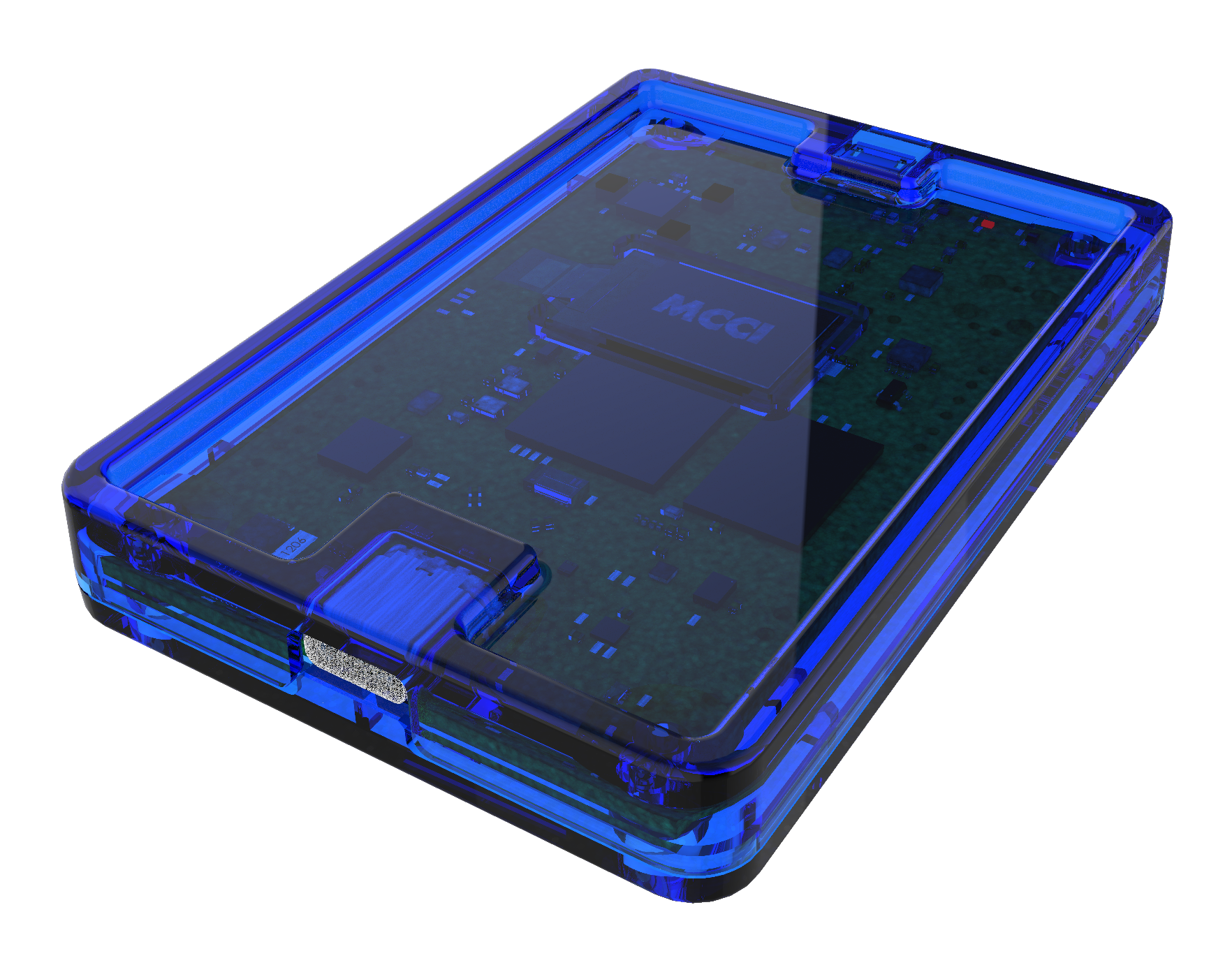

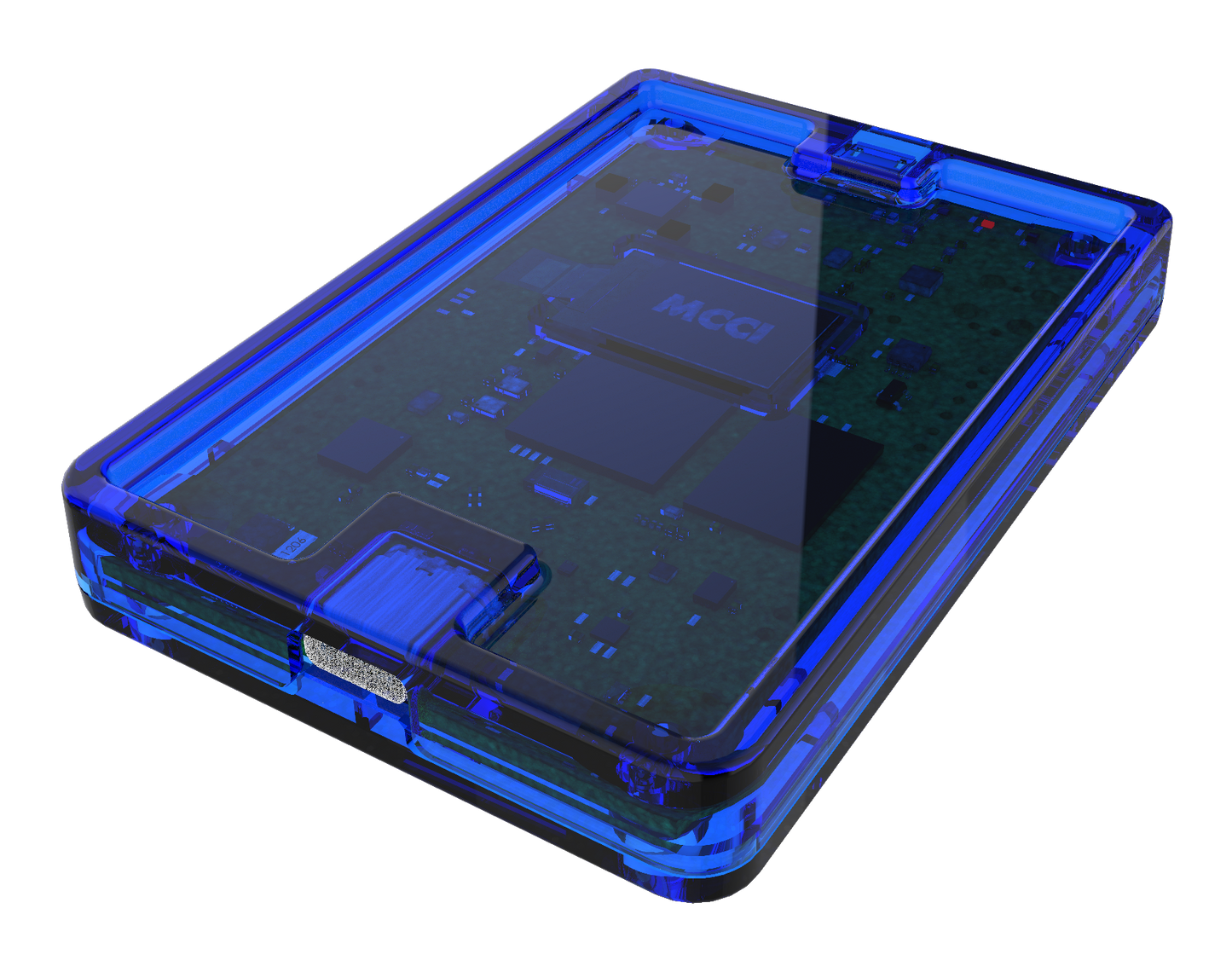

Model 3411 USB3.2 Gen2 Test Device
Model 3411 USB3.2 Gen2 Test Device

Model 3411 USB3.2 Gen2 Test Device

Regular price $ 1,118.75 $ 0.00

SKU: 123002552

In-Stock: 86

Compact Type-C USB test device with remote control port.

Features:

  • Type-C data port supports 8 Gbps IN and OUT concurrently, when tested with a suitable host controller and USB host stack.
  • Full speed, high speed, gen1 and gen 2 operation.
  • Control, bulk, interrupt and isochronous transfers.
  • Superspeed high-bandwidth isochronous supports 96k high bandwidth operating at gen2, 48k high bandwidth at gen1.
  • Supports USB-IF XHCI Compliance Test Device protocol.
  • Integrated 96x64 OLED display gives real-time feedback of enumeration speed and status.
  • Micro-B port provides remote control and power (via integrated USB UART).
  • Power from micro-B port takes precedence over power from Type C port.
  • Field-upgradable firmware.
  • 1 gigabyte of onboard RAM.
  • 16 megabyte onboard flash.
  • Attractive, rugged plastic enclosure.

Custom firmware variants available from MCCI.
