MCCI 5 dBi Antenna for 900 MHz Helium, Things Network, LoRaWAN® Technology Gateways

This high-quality external antenna can add substantial range to your gateway. When used with a Helium, Things Network, or other LoRaWAN®-technology gateway, and mounted outside at an elevated location, this antenna can improve the range dramatically. (MCCI testing has shown that the combination of a good antenna, low-loss cable, and elevation above ground level can change the gateway range from less than 1 km to more than 10 km. Performance in any given case will depend on installation and local conditions.)

• Length: 0.5 m (19.7")
• Gain: 5 dBi
• Vertical polarization
• Bandwidth: 55 MHz

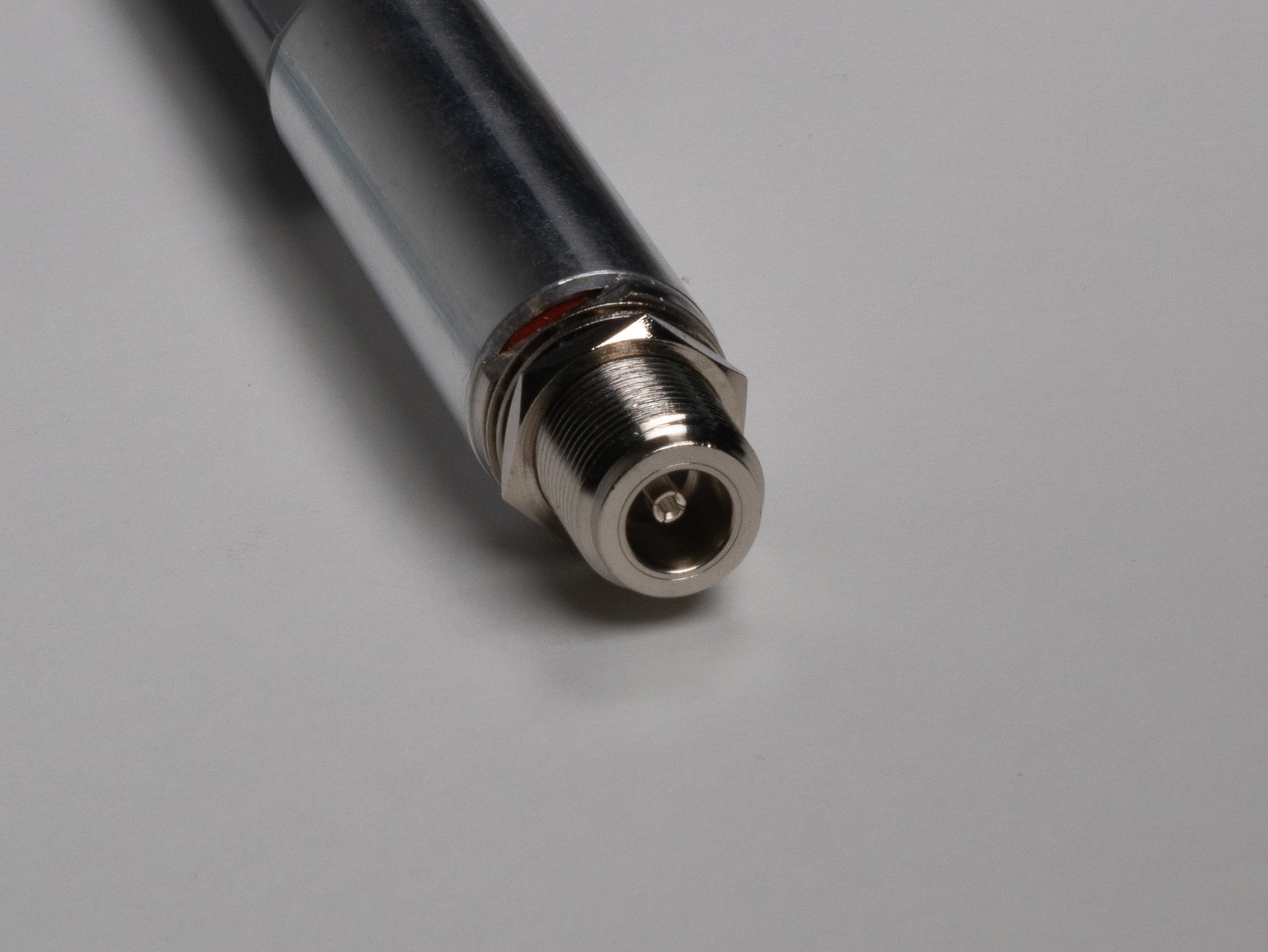

• RF feed input: N-type female, 50 ohm

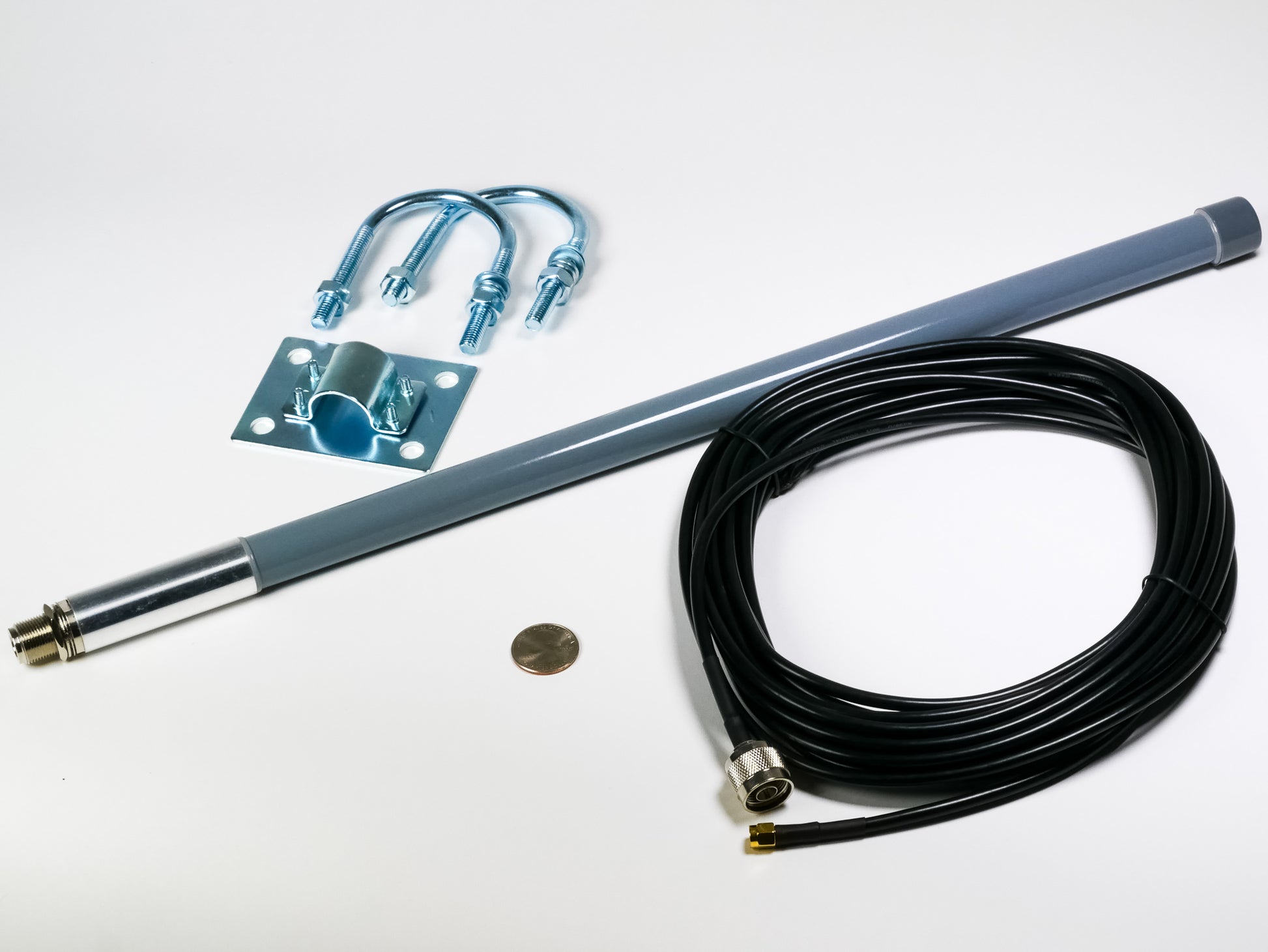

• Includes brackets for attaching to a pole or wall
• Includes lightning arrestor (N-type male / N-type female)

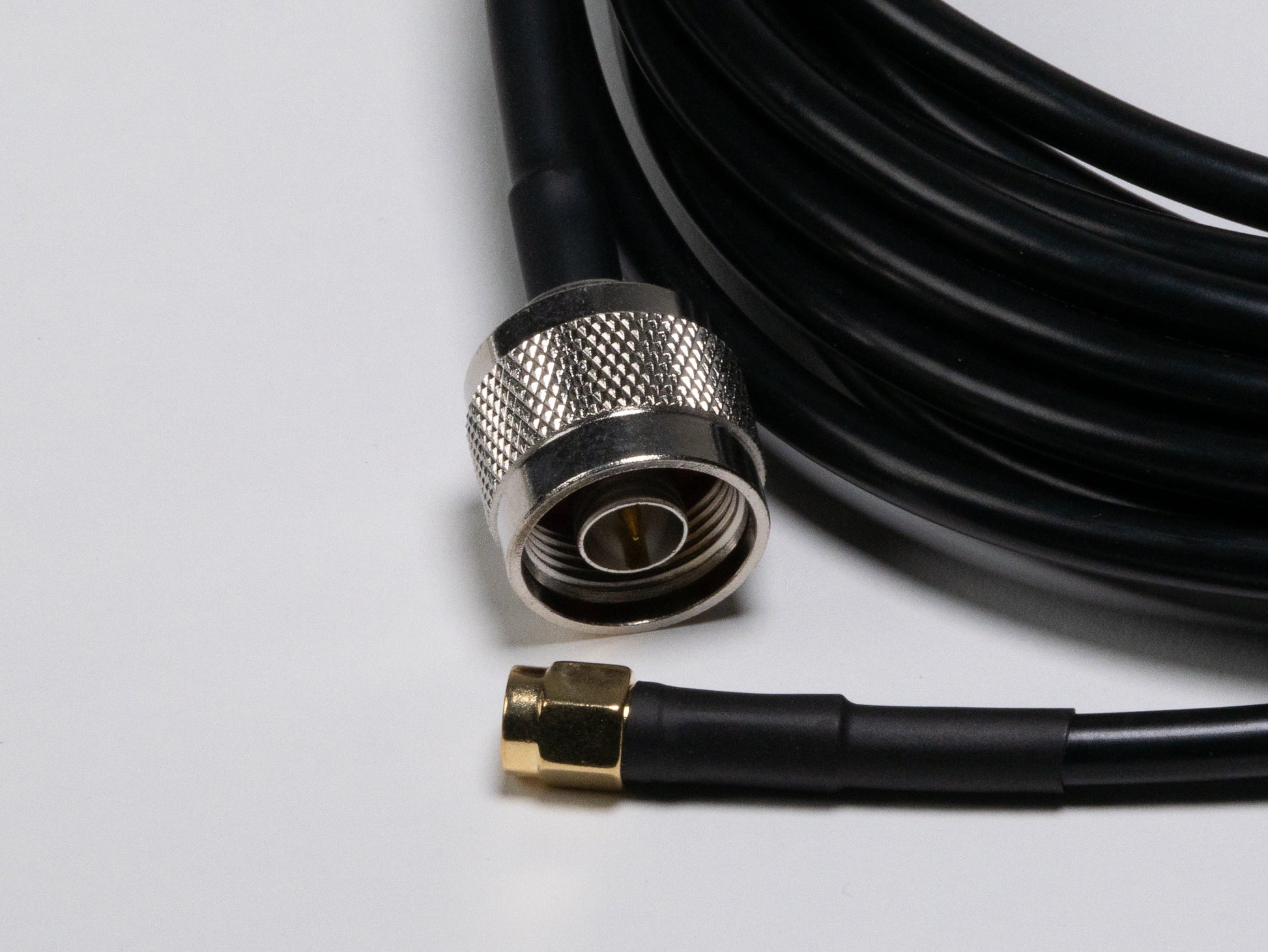

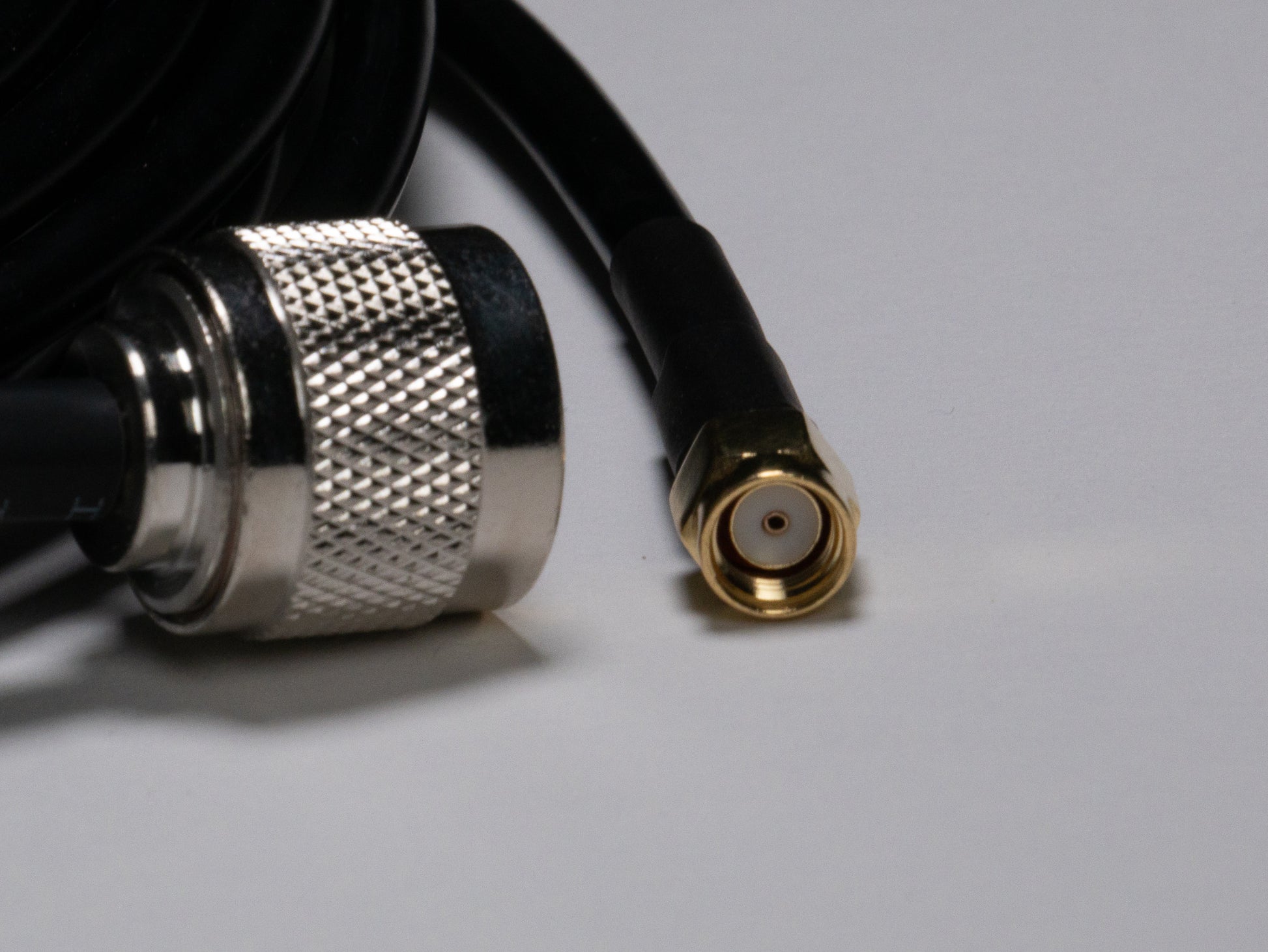

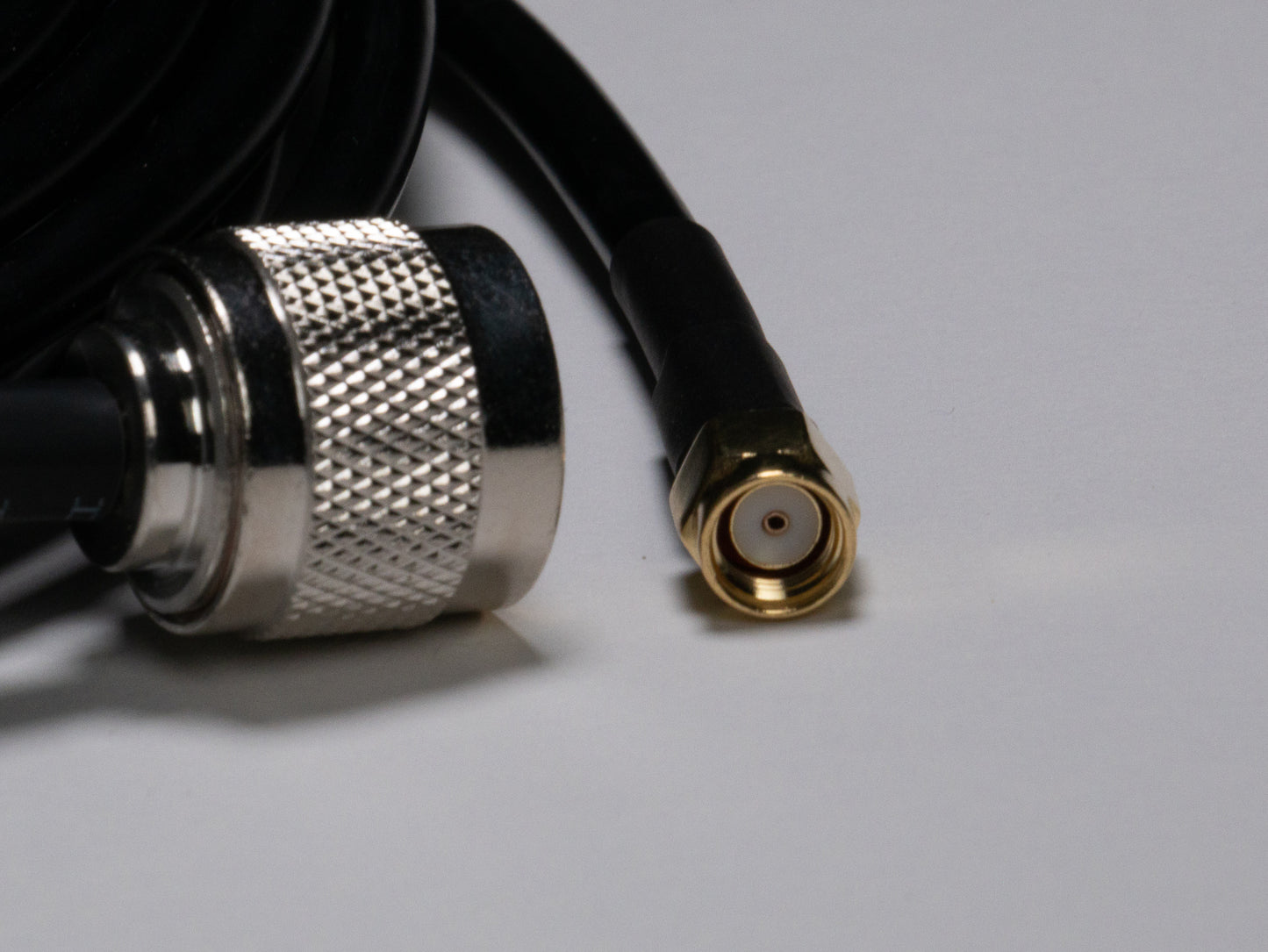

• Standard kit includes 8 meter low-loss cable (N-type male to RP-SMA male); can be ordered without cable.


Not compatible with gateways lacking external antenna connections.
