Advantech LoRaWAN Smart Vibration Sensor WISE-2410
Advantech LoRaWAN Smart Vibration Sensor WISE-2410
Regular price
$ 340.00 USD
Regular price
Sale price
$ 340.00 USD
Unit price
per
SKU:123004118
Out of stock — Available on backorder
Couldn't load pickup availability
Note: Batteries not included – order 2 × 1760002647-01 (3.6V Li-SOCl₂ cells)

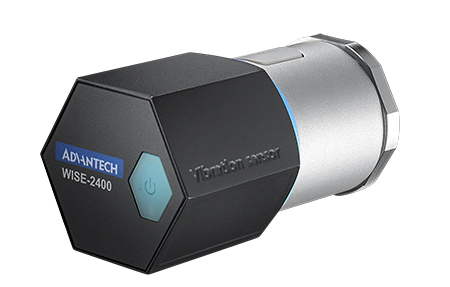

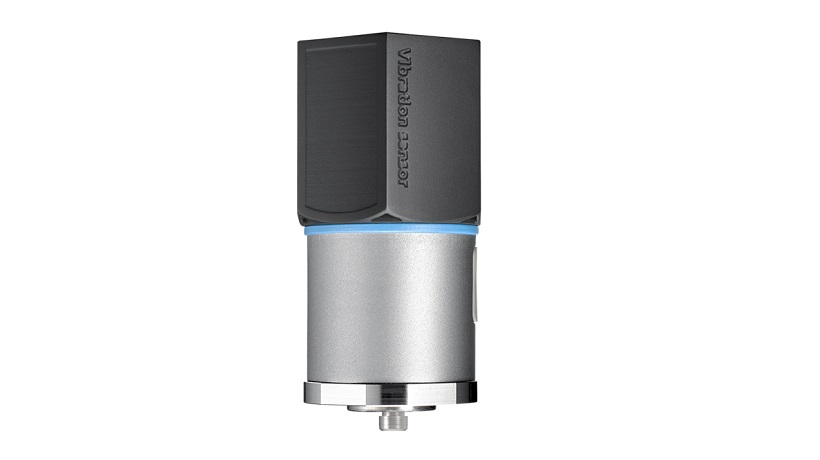

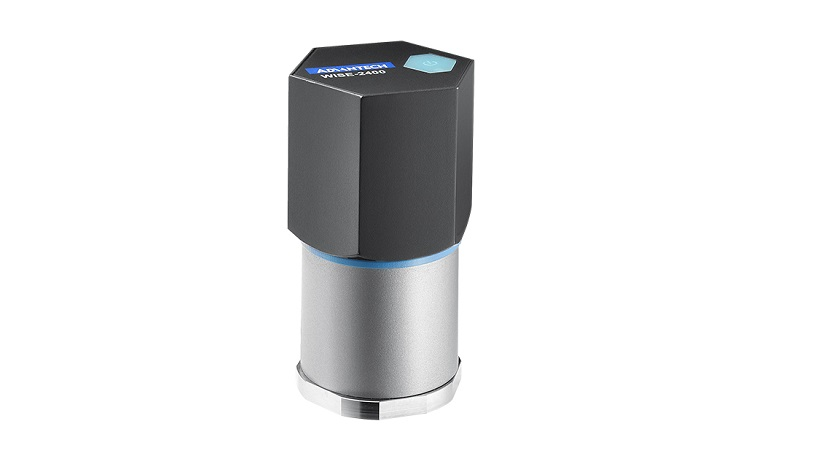

The Advantech WISE-2410 is an industrial-grade LoRaWAN wireless vibration sensor designed for condition monitoring and predictive maintenance. It integrates a 3-axis accelerometer, temperature sensor, and edge computing capabilities to deliver actionable insights directly from the device.
With its battery-powered, wire-free installation and IP66-rated enclosure, the WISE-2410 is ideal for monitoring motors, pumps, HVAC systems, and other industrial assets in harsh environments.
Key Features
- LoRaWAN wireless connectivity for long-range, low-power communication
- Built-in 3-axis accelerometer and temperature sensor
- On-board edge computing for vibration analysis
- Calculates key parameters:
- VRMS, ARMS, Peak
- Displacement, Kurtosis
- Crest factor, Skewness, Standard deviation
- Battery-powered (no wiring required)
- Up to 2-year battery life (typical usage)
- IP66 enclosure for harsh industrial environments
- ISO 10816/20816 compliant vibration monitoring
Technical Specifications
General
| Parameter | Details |
|---|---|
| Power Input | 3.6V Li-SOCl2 ER14505 *2pcs (Not included, sold separately – 1760002647-01) |
| Battery Life | 2 years (once per hour data update interval time) |
| IP Class | IP66 |
| Certification | CE (RED), FCC, NCC, TELEC, VCCI, BSMI, RCM, ANATEL |
Environment
| Parameter | Details |
|---|---|
| Operating Temperature | -20°C ~ 80°C (Battery powered) |
| Operating Humidity | 10% ~ 95% RH |
| Storage Temperature | -25°C ~ 90°C |
| Storage Humidity | 5% ~ 95% RH |
3-Axis Accelerometer Sensor
| Parameter | Details |
|---|---|
| Axis | X-Y-Z |
| Frequency Range | 10~1000Hz |
| Amplitude Range | ±16g |
| Output Data Rate | 6600 Hz |
| Resolution | 10 bit (all g range) |
| Accuracy (FC=100Hz) | Under 5% |
| Noise (MAX. TA = 25°C. 0g) | ±40mg |
| Nonlinearity | ±0.5 % |
| Cross-Axis Sensitivity | ±1 % |
Temperature Sensor
| Parameter | Details |
|---|---|
| Measurement Range | -20°C ~ 120°C |
|
Accuracy (TA = 27°C, Directly contact with heat source |
-2°C with 85°C
|
Applications
- Industrial motor and pump monitoring
- HVAC system condition monitoring
- Factory automation equipment
- Predictive maintenance systems
- Facility and asset monitoring
