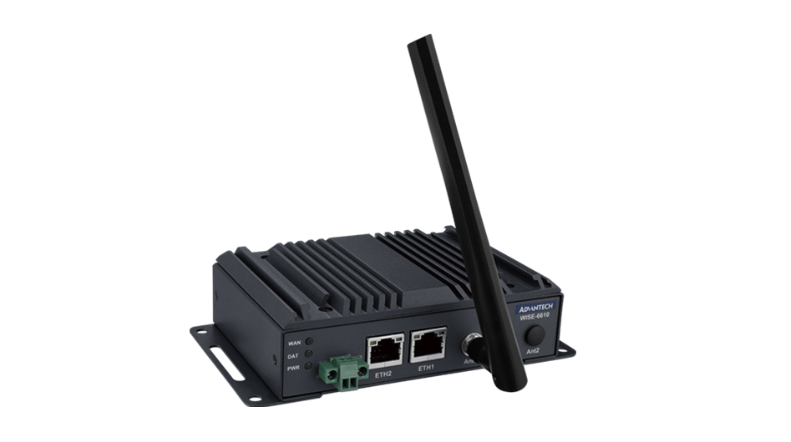

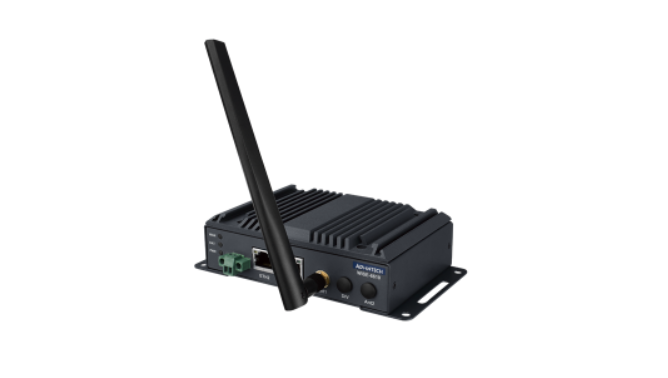

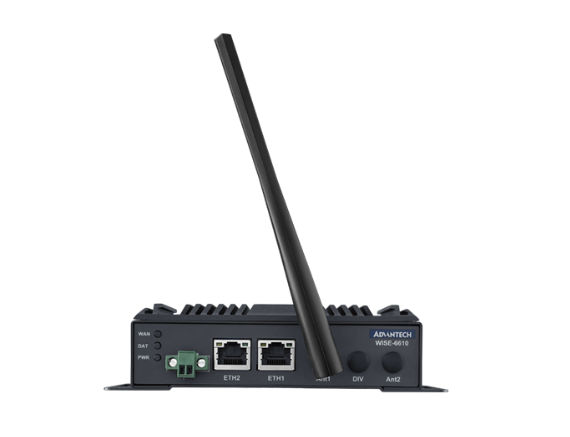

Advantech Industrial LoRaWAN Gateway WISE-6610
Advantech Industrial LoRaWAN Gateway WISE-6610
Regular price
$ 523.20 USD
Regular price
Sale price
$ 523.20 USD
Unit price
per
SKU:123004117
Out of stock — Available on backorder
Couldn't load pickup availability
The Advantech WISE-6610 is a next-generation industrial-grade LoRaWAN gateway designed for reliable and scalable IoT connectivity. Built with the advanced Semtech SX1302 chipset, it delivers high-performance packet processing and supports both private and public LoRaWAN network deployments.
This gateway integrates edge intelligence, networking, and security features, making it ideal for industrial IoT applications such as smart cities, energy management, and predictive maintenance systems.
Key Features
- High-performance SX1302 chipset with improved packet processing speed
- Embedded LoRaWAN Network Server (private & public deployment)
- Supports up to 500 LoRaWAN nodes
- Compatible with:
- The Things Network
- ChirpStack
- AWS
- Actility
- Supports industrial protocols:
- Modbus/TCP
- MQTT
- BACnet / OPC UA (-EL models only)
- Built-in Node-RED & EdgeLink software (-EL models only)
- Global LoRaWAN frequency plans (IN865, EU868, US915, etc.)
- DIN rail and wall mounting design
- Optional 4G cellular backhaul (adapter-based)
Technical Specifications
System
| Parameter | Details |
|---|---|
| CPU | ARM Cortex-A8, 1 GHz |
| Memory | 4GB DDR3 |
| Storage | 16GB eMMC |
| LoRa Chipset | Semtech SX1302 |
LoRaWAN
| Parameter | Details |
|---|---|
| Frequency Plans | US915, EU868 (additional regions available on request) |
| Max Node Capacity | Up to 500 nodes |
| Antenna Connector | RP-SMA |
Network & Interfaces
| Parameter | Details |
|---|---|
| Ethernet | 2 × RJ45 (10/100 Mbps) |
| Cellular Support | Optional 4G (adapter-based) |
| SIM Slot | 2 × Nano SIM (cellular models only) |
Mechanical
| Parameter | Details |
|---|---|
| Mounting | DIN Rail / Wall Mount |
| Dimensions | 150 × 37.5 × 83 mm |
| Enclosure | IP30 |
| Weight | ~500g |
Applications
- Smart city infrastructure
- Industrial automation & monitoring
- Energy management systems
- Environmental monitoring
- Agriculture IoT solutions
- Remote asset tracking
Technical Documents
