EDATEC Front Panel Mounting Kit for ED-HMI Series

The ED-ACCHMI-Front is a panel-mounting accessory kit that secures EDATEC ED-HMI series devices into a cutout from the front. The kit includes four buckles and two lengths of M4 screws to accommodate both 7-inch and 10.1-inch HMI models. For specific installation steps, refer to the User Manual of the HMI product being installed.

Key Features

• Compatible devices: EDATEC ED-HMI series products (7-inch and 10.1-inch)
• Purpose: Front panel mounting of ED-HMI devices into a cutout
• Buckles: 4x buckles for secure panel clamping
• Screws: 4x M4×10 screws and 4x M4×16 screws to suit different mounting depths
• Complete kit: All hardware needed for front installation in one package

Specifications

Installation Notes

The installation schematic in the datasheet shows the hardware layout for 7-inch and 10.1-inch HMI models. For step-by-step instructions, refer to the User Manual of the specific HMI product being installed.

• Insert the HMI device into the panel cutout from the front.
• Attach the four buckles to the rear of the HMI device, aligning them with the mounting slots.
• Insert the appropriate M4 screws through the buckles and tighten to clamp the device against the panel.

Note: The ED-HMI device and panel are not included. See the datasheet for buckle dimensions and installation schematic.

Ordering Information

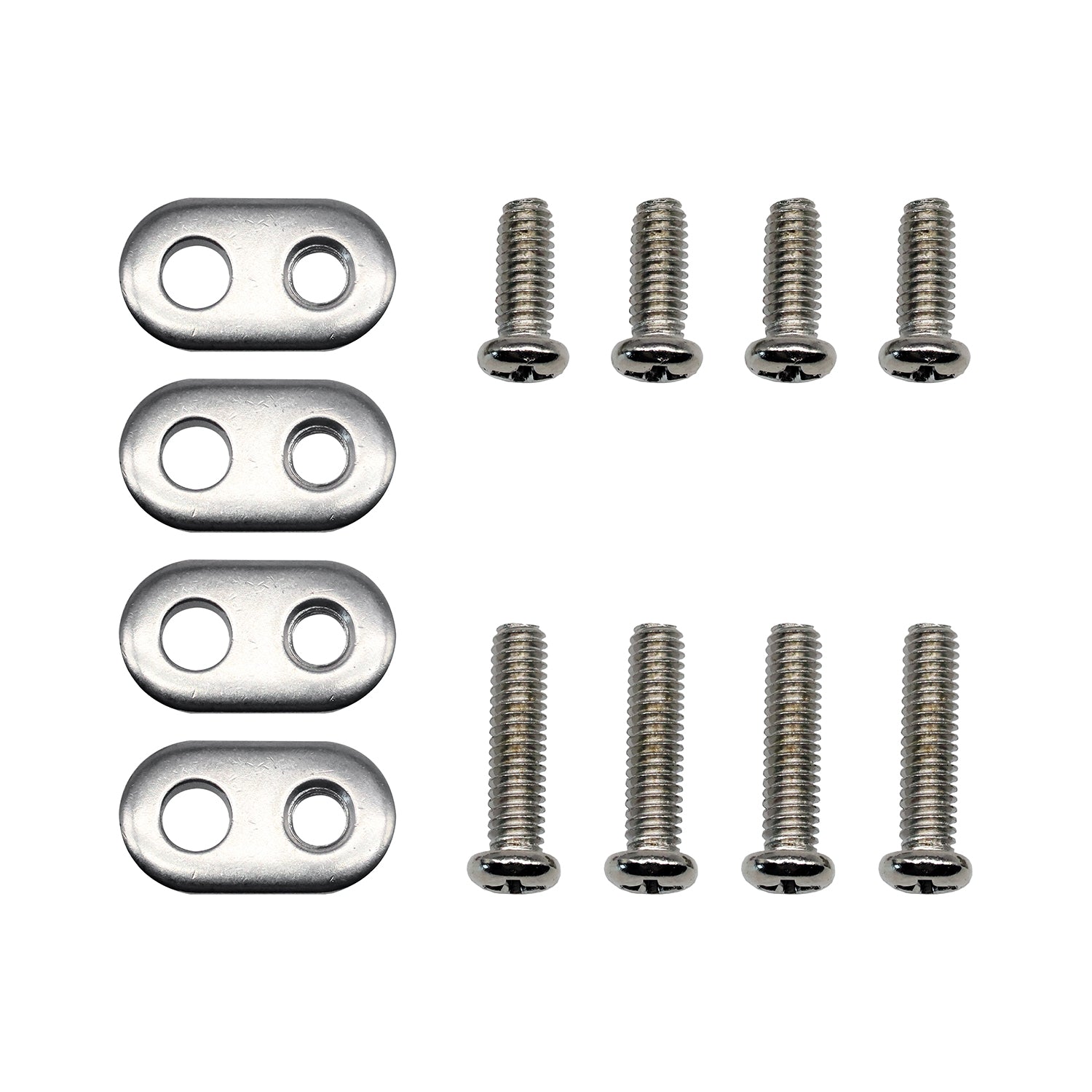

What's in the Box

• 4x buckles
• 4x M4×10 screws
• 4x M4×16 screws

Technical Documents

• DataSheet
