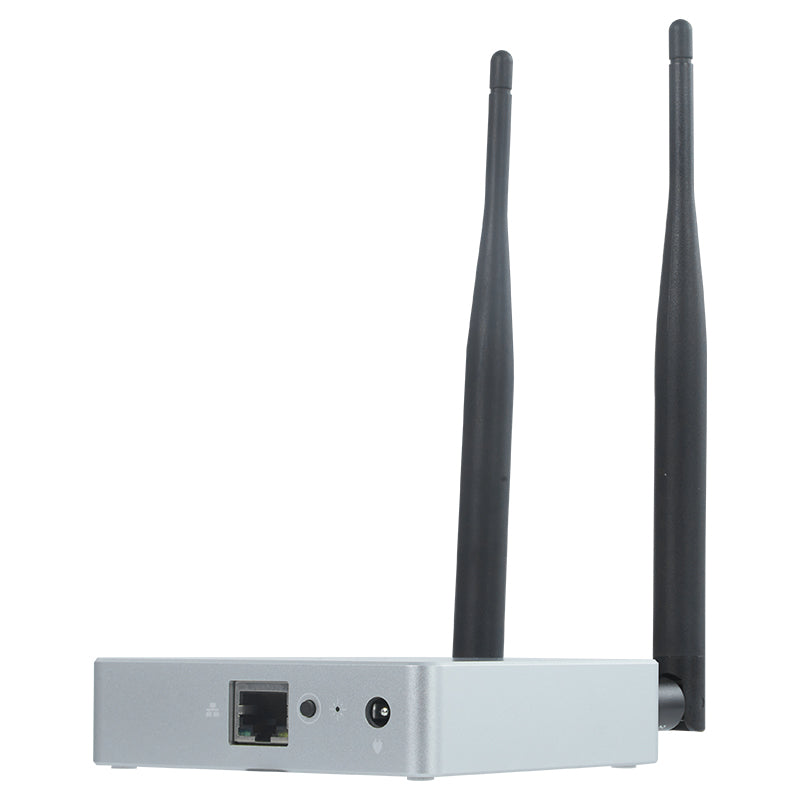

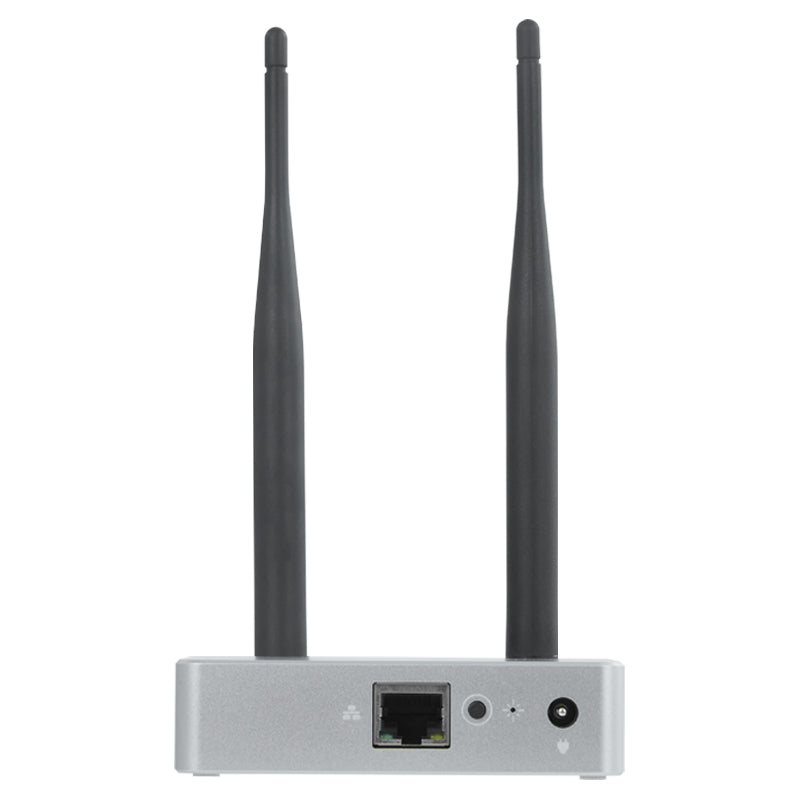

EDATEC Indoor LoRaWAN Gateway Based on Raspberry Pi 4 ED-GWL2010
EDATEC Indoor LoRaWAN Gateway Based on Raspberry Pi 4 ED-GWL2010
SKU:123004091
Low stock: 1 left
Couldn't load pickup availability
This listing is for the ED-GWL2010: Raspberry Pi 4-based indoor LoRaWAN gateway with Gigabit Ethernet, Wi-Fi/Bluetooth, and a choice of EU868, US915, or CN470 LoRa module. Contact us if you need a specific RAM, storage, or LoRa band configuration.

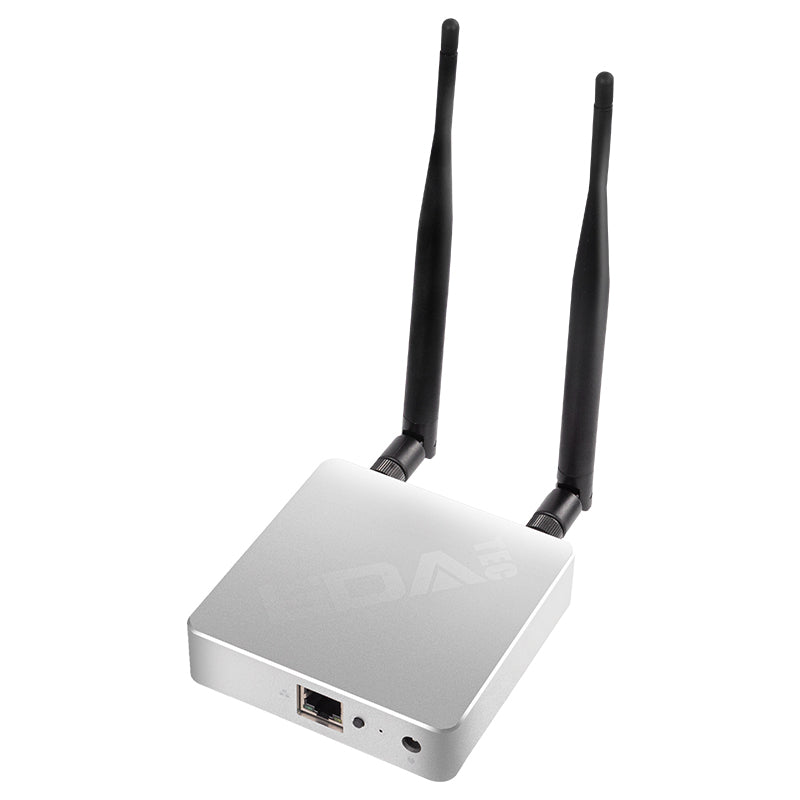

The ED-GWL2010 is a high-performance indoor LoRaWAN gateway built on the Raspberry Pi 4, combining the processing power of the Broadcom BCM2711 quad-core Arm Cortex-A72 processor with a professional-grade LoRa front-end powered by the Semtech SX1302 baseband processor and SX1250 TX/RX. Designed for smart city, smart agriculture, industrial IoT, and building automation deployments, it supports global license-free LoRa frequency bands -- EU868, US915, and CN470 -- and connects to the cloud via Gigabit Ethernet or dual-band Wi-Fi. With onboard RTC, Watchdog, EEPROM, crypto authentication, a wide operating temperature range, and a compact metal enclosure, the ED-GWL2010 is a reliable, ready-to-deploy LoRaWAN gateway for indoor and professional environments.
Key Features
- Processor: Broadcom BCM2711, quad-core Arm Cortex-A72 (ARMv8) 64-bit @ 1.5GHz
- Memory: 1GB, 2GB, 4GB, or 8GB LPDDR4-3200 SDRAM
- Storage: 32GB or 64GB Micro SD card
- LoRa Module: Semtech SX1302 baseband processor + SX1250 TX/RX front-end; SMA antenna port
- LoRa Frequency Bands: EU868 (868MHz), US915 (915MHz), CN470 (470MHz) -- global license-free bands
- Networking: 1x Gigabit Ethernet (10/100/1000M, RJ45)
- Wireless (Optional): 2.4GHz & 5GHz dual-band Wi-Fi (802.11 a/b/g/n/ac) + Bluetooth; external SMA antenna
- Power Input: 12V DC via DC jack connector
- RTC: Integrated RTC; optional SuperCAP backup
- Watchdog: Hardware reserved (software support in development)
- EEPROM: Onboard EEPROM storage
- Security: Onboard crypto authentication chip
- User Interface: 1x programmable USER button; 1x programmable USER LED
- Internal Expansion: 2x USB 2.0, 2x USB 3.0, 2x Micro HDMI (4K @ 60Hz) -- available for additional peripherals
- Cooling: Fanless metal case design
- Installation: Desktop placement
- Operating Temperature: -25°C to 60°C
- OS Support: Raspberry Pi OS Lite 64-bit
SKU Configuration Guide
The ED-GWL2010 ordering code breaks down as follows. This table is provided for reference when discussing other configurations with us.
| Field | Options |
|---|---|
| Model | GWL2010 |
| Wi-Fi & Bluetooth | 0 = without | 1 = with |
| RAM | 01 = 1GB | 02 = 2GB | 04 = 4GB | 08 = 8GB |
| SD Card | 32 = 32GB | 64 = 64GB |
| LoRa Band | EU868 = Europe 868MHz | US915 = North America / Australia 915MHz | CN470 = China 470MHz |
| Super Capacitor | blank = without | S = with |
Specifications
| Category | Details |
|---|---|
| CPU | Broadcom BCM2711, quad-core Arm Cortex-A72 (ARMv8) 64-bit @ 1.5GHz |
| VPU | H.265 (HEVC) up to 4Kp60 decode; H.264 up to 1080p60 decode / 1080p30 encode |
| GPU | OpenGL ES 3.1 & Vulkan 1.0 |
| Memory | 1GB / 2GB / 4GB / 8GB LPDDR4-3200 SDRAM |
| Storage | 32GB or 64GB Micro SD card |
| LoRa Chipset | Semtech SX1302 baseband processor + SX1250 TX/RX front-end |
| LoRa Bands | EU868 (868MHz) / US915 (915MHz) / CN470 (470MHz) |
| LoRa Antenna Port | 1x SMA port |
| Ethernet | 1x 10/100/1000M adaptive Gigabit Ethernet, RJ45 |
| Wi-Fi (Optional) | 2.4GHz (802.11 b/g/n) + 5GHz (802.11 a/n/ac), external SMA antenna |
| Bluetooth (Optional) | 2402MHz ~ 2480MHz, external SMA antenna |
| Wi-Fi/BT Antenna Port | 1x SMA port |
| USB 2.0 | 2x USB 2.0, Type-A, dual-layer connector (up to 480Mbps each) |
| USB 3.0 | 2x USB 3.0, Type-A, dual-layer connector (up to 5Gbps each) |
| HDMI | 2x Micro HDMI, 4K @ 60Hz |
| SD Card Slot | 1x Micro SD card slot; supports OS boot and user data storage |
| User Button | 1x USER button; function user-definable |
| User LED | 1x USER LED; color user-definable |
| RTC | Integrated RTC; optional 1F SuperCAP backup |
| Watchdog | Hardware reserved (software support in development) |
| EEPROM | Onboard EEPROM storage |
| Security | Onboard crypto authentication chip |
| Power Input | 12V DC, DC jack connector |
| Power Consumption | 18W (max) |
| Cooling | Fanless metal case |
| Dimensions | 95 x 95 x 24mm (W x D x H, antenna not included) |
| Weight | ~300g |
| Installation | Desktop placement |
| Operating Temperature | -25°C to 60°C |
| Storage Temperature | -25°C to 60°C |
| Humidity | 5% ~ 95% (non-condensing) |
| Operating System | Raspberry Pi OS Lite 64-bit |
LoRa Module Options
| Module | Frequency | Region |
|---|---|---|
| EU868 | 868 MHz | Europe |
| US915 | 915 MHz | North America / Australia |
| CN470 | 470 MHz | China |
Optional Accessories
Power Adapters:
| Model | Description |
|---|---|
| ED-PSU1202-US | 100~240VAC to 12VDC/2A Adapter, US plug, 5.5mm DC plug |
| ED-PSU1202-EU | 100~240VAC to 12VDC/2A Adapter, EU plug, 5.5mm DC plug |
| ED-PSU1202-UK | 100~240VAC to 12VDC/2A Adapter, UK plug, 5.5mm DC plug |
| ED-PSU1202-AU | 100~240VAC to 12VDC/2A Adapter, AU plug, 5.5mm DC plug |
Note: Each adapter model includes only one plug type. Power adapter sold separately.
What's in the Box
- 1x ED-GWL2010 Unit
- 1x LoRa Antenna
- 1x 2.4GHz/5GHz Wi-Fi/BT Antenna
