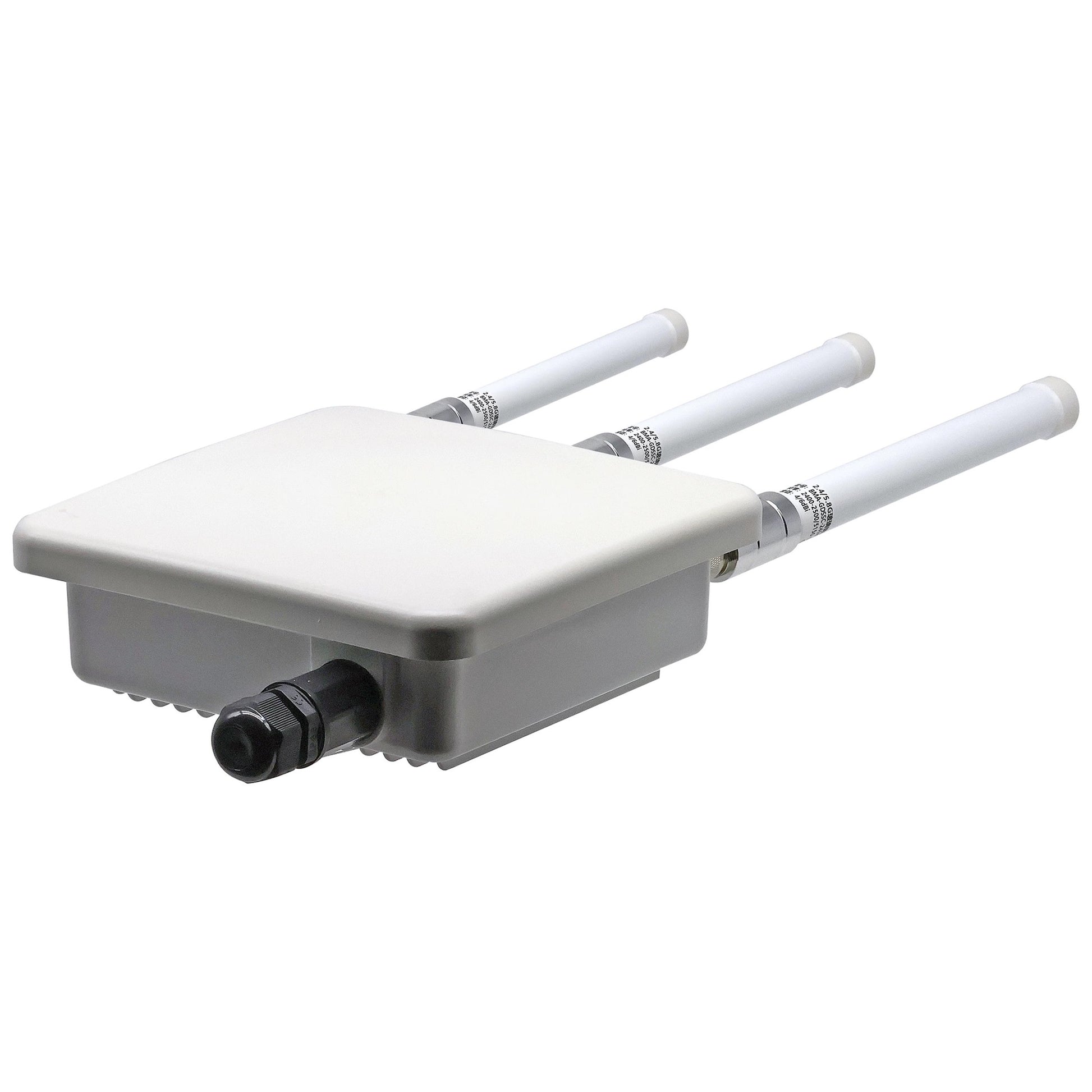

EDATEC Outdoor LoRaWAN Gateway Based on Raspberry Pi CM4 ED-GWL2110
EDATEC Outdoor LoRaWAN Gateway Based on Raspberry Pi CM4 ED-GWL2110
Regular price
$ 320.00 USD
Regular price
Sale price
$ 320.00 USD
Unit price
per
SKU:123004092
Out of stock — Available on backorder
Couldn't load pickup availability
This listing is for the ED-GWL2110: CM4-based outdoor LoRaWAN gateway with PoE Gigabit Ethernet, IP65 weatherproofing, and optional Wi-Fi/Bluetooth and 4G LTE. Contact us if you need a specific RAM, storage, LoRa band, or 4G region configuration.
The ED-GWL2110 is a professional-grade outdoor LoRaWAN gateway built on the Raspberry Pi Compute Module 4 (CM4), designed for permanent outdoor deployment in smart city, smart agriculture, industrial IoT, and wide-area sensor network applications. Powered by the Broadcom BCM2711 quad-core Arm Cortex-A72 processor at 1.5GHz and a Semtech SX1302 + SX1250 LoRa front-end, it supports global license-free frequency bands -- EU868, US915, and CN470 -- and connects via PoE-powered Gigabit Ethernet, optional dual-band Wi-Fi, and optional 4G LTE with GNSS. The IP65-rated waterproof enclosure, wall-mounting design, RTC with CR1220 battery base, hardware Watchdog (reserved), and onboard crypto authentication make the ED-GWL2110 a reliable, all-weather LoRaWAN gateway ready for real-world outdoor deployments. Certifications include FCC and CE.
Key Features
- Processor: Broadcom BCM2711, quad-core Arm Cortex-A72 (ARMv8) 64-bit @ 1.5GHz
- Memory: 1GB, 2GB, 4GB, or 8GB LPDDR4-3200 SDRAM
- Storage: 2x Micro SD card slots; 32GB or 64GB options; supports OS boot and user data storage
- LoRa Module: Semtech SX1302 baseband processor + SX1250 TX/RX front-end; SMA antenna port
- LoRa Frequency Bands: EU868 (868MHz), US915 (915MHz), CN470 (470MHz) -- global license-free bands
- Networking: 1x Gigabit Ethernet with PoE (802.3af) -- network access and power over a single cable
- Wireless (Optional): 2.4GHz & 5GHz dual-band Wi-Fi (802.11 a/b/g/n/ac) + Bluetooth; external SMA antenna
- 4G LTE (Optional): Mini PCIe 4G module with Nano SIM card slot and external SMA antenna; supports GNSS on most modules (CN / NA / AU / EU / SEA variants)
- Power Input: PoE (IEEE 802.3af standard) -- no separate power adapter required
- Weatherproofing: IP65 waterproof-rated enclosure for outdoor installation
- Installation: Wall mounting
- Security: Onboard crypto authentication chip
- RTC: CR1220 battery base included; CR1220 battery not included
- Watchdog: Hardware reserved (software support in development)
- User Interface: 1x programmable USER button; 1x programmable USER LED
- Operating Temperature: -25°C to 60°C
- Certifications: FCC, CE
- OS Support: Raspberry Pi OS Lite 64-bit
SKU Configuration Guide
The ED-GWL2110 ordering code breaks down as follows. This table is provided for reference when discussing other configurations with us.
| Field | Options |
|---|---|
| Model | GWL2110 |
| Wi-Fi & Bluetooth | 0 = without | 1 = with |
| RAM | 01 = 1GB | 02 = 2GB | 04 = 4GB | 08 = 8GB |
| SD Card | 32 = 32GB | 64 = 64GB |
| LoRa Band | EU868 = Europe 868MHz | US915 = North America / Australia 915MHz | CN470 = China 470MHz |
| 4G Module | blank = none | 4CN = EC20-CE (China/India) | 4US = EC25-AFX (North America + GNSS) | 4EU = EC25-EUX (Europe/MEA/Thailand + GNSS) | 4AU = EC25-AUX (Latin America/AU/NZ + GNSS) | 4EF = EC25-EFA (Europe/MEA/SE Asia + GNSS) |
Specifications
| Category | Details |
|---|---|
| CPU | Broadcom BCM2711, quad-core Arm Cortex-A72 (ARMv8) 64-bit @ 1.5GHz |
| VPU | H.265 (HEVC) up to 4Kp60 decode; H.264 up to 1080p60 decode / 1080p30 encode |
| GPU | OpenGL ES 3.1 & Vulkan 1.0 |
| Memory | 1GB / 2GB / 4GB / 8GB LPDDR4-3200 SDRAM |
| Storage | 2x Micro SD card slots; 32GB or 64GB options; supports OS boot and user data storage |
| LoRa Chipset | Semtech SX1302 baseband processor + SX1250 TX/RX front-end |
| LoRa Bands | EU868 (868MHz) / US915 (915MHz) / CN470 (470MHz) |
| LoRa Antenna Port | 1x SMA port |
| Ethernet | 1x 10/100/1000M adaptive Gigabit Ethernet with PoE (802.3af), RJ45 |
| Wi-Fi (Optional) | 2.4GHz (802.11 b/g/n) + 5GHz (802.11 a/n/ac), external SMA antenna |
| Bluetooth (Optional) | 2402MHz ~ 2480MHz, external SMA antenna |
| Wi-Fi/BT Antenna Port | 1x SMA port (optional, Wi-Fi/BT version only) |
| 4G LTE (Optional) | Mini PCIe 4G module, Nano SIM slot, external SMA antenna (CN / NA / AU / EU / SEA variants) |
| 4G Antenna Port | 1x SMA port (optional, 4G version only) |
| SIM Card Slot | 1x Nano SIM card slot (4G version only) |
| User Button | 1x USER button; function user-definable |
| User LED | 1x USER LED; color user-definable |
| Security | Onboard crypto authentication chip |
| RTC | CR1220 battery base included; CR1220 battery not included |
| Watchdog | Hardware reserved (software support in development) |
| Power Input | PoE, IEEE 802.3af standard |
| Power Consumption | 15W (max) |
| Weatherproofing | IP65 waterproof rated |
| Dimensions | 194.2 x 194.2 x 65.3mm (W x D x H, antenna not included) |
| Weight | ~1kg |
| Installation | Wall mounting |
| Operating Temperature | -25°C to 60°C |
| Storage Temperature | -25°C to 60°C |
| Humidity | 5% ~ 95% (non-condensing) |
| Certifications | FCC (47 CFR Part 15 Subpart B), CE (EN IEC 62368-1:2024 + A11:2024, EN IEC 62311:2020, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-3 V2.3.2, ETSI EN 301 489-17 V3.3.1, ETSI EN 301 489-52 V1.2.1, EN 55032:2015 + A1:2020 + A11:2020, EN 55035:2017 + A11:2020, ETSI EN 300 328 V2.2.2, ETSI EN 301 893 V2.1.1, ETSI EN 300 440 V2.2.1, ETSI EN 300 220-1 V3.1.1, ETSI EN 300 220-2 V3.2.1, ETSI EN 301 908-1 V15.2.1, ETSI EN 301 908-13 V13.2.1) |
| Operating System | Raspberry Pi OS Lite 64-bit |
LoRa Module Options
| Module | Frequency | Region |
|---|---|---|
| EU868 | 868 MHz | Europe |
| US915 | 915 MHz | North America / Australia |
| CN470 | 470 MHz | China |
4G LTE Module Options
Not included by default. Provided for reference if you need a 4G-enabled configuration -- contact us.
| Module | Region | Supported Bands | GNSS |
|---|---|---|---|
| EC20-CE | China / India | LTE FDD: B1/B3; LTE TDD: B38/B39/B40/B41; TD-SCDMA: B34/B39; WCDMA: B1; CDMA 1x/EVDO: BC0; GSM: 900/1800 MHz | Optional |
| EC25-AFX | North America | LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71; LTE TDD; WCDMA: B2/B4/B5; GSM/EDGE | GPS/GLONASS/BDS/Galileo/QZSS |
| EC25-AUX | Latin America / Australia / New Zealand | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28; LTE TDD: B40; WCDMA: B1/B2/B4/B5/B8; GSM/EDGE: B2/B3/B5/B8 | GPS/GLONASS/BDS/Galileo/QZSS |
| EC25-EUX | Europe / Middle East / Africa / Thailand | LTE FDD: B1/B3/B7/B8/B20/B28A; LTE TDD: B38/B40/B41; WCDMA: B1/B8; GSM/EDGE: B3/B8 | GPS/GLONASS/BDS/Galileo/QZSS |
| EC25-EFA | Europe / Middle East / Africa / South-East Asia | LTE FDD: B1/B3/B7/B8/B20/B28; LTE TDD: B38/B40/B41; WCDMA: B1/B5/B8; GSM/EDGE: B3/B8 | GPS/GLONASS/BDS/Galileo/QZSS |
What's in the Box
- 1x ED-GWL2110 Unit
- 1x LoRa Antenna
- 1x 4G/LTE Antenna (4G version only)
- 1x 2.4GHz/5GHz Wi-Fi/BT Antenna (Wi-Fi/BT version only)
