This listing is for the ED-HMI3010-215C: 21.5-inch industrial HMI based on the Raspberry Pi 5, with Full HD capacitive touch, dual-band Wi-Fi, Bluetooth, and Gigabit Ethernet. Contact us if you need a specific RAM or storage configuration.

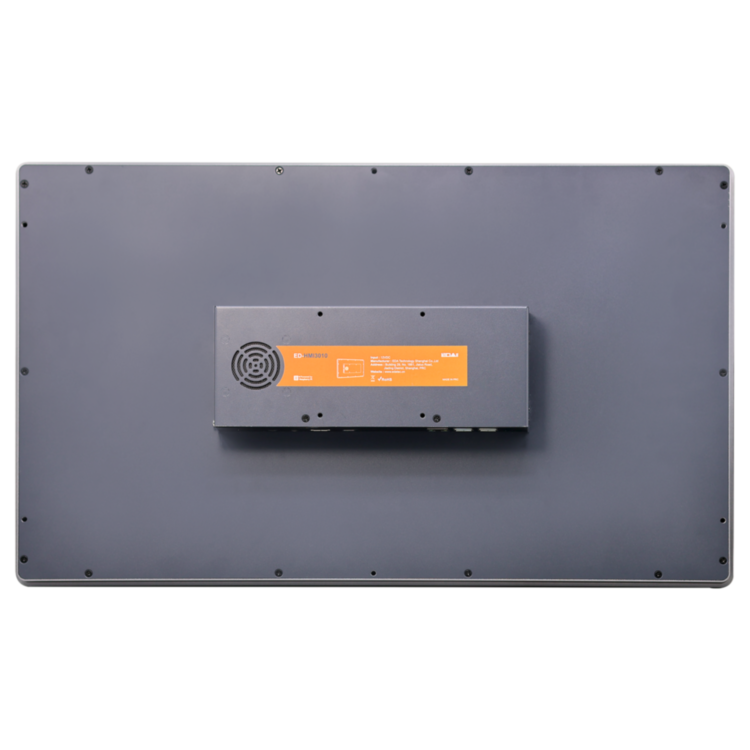

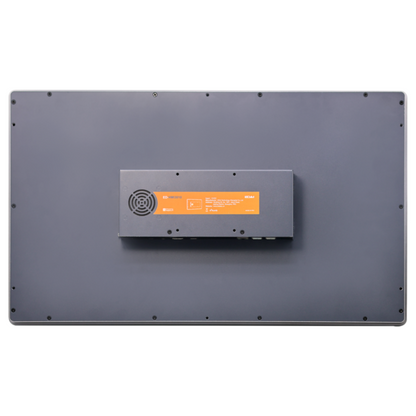

The ED-HMI3010-215C is a large-format industrial Human-Machine Interface (HMI) featuring a 21.5-inch Full HD TFT display with a 5-point capacitive touch screen, powered by the Raspberry Pi 5's Broadcom BCM2712 quad-core Arm Cortex-A76 processor at 2.4GHz. With a 1920x1080 resolution, 400 cd/m² brightness, 3000:1 contrast ratio, and 89° wide-angle viewing in all directions, it delivers crisp, vivid visuals ideal for industrial control rooms, machine interfaces, digital signage, and building automation panels. Supporting embedded front installation and VESA bracket mounting, with built-in stereo audio, onboard speaker, hardware brightness and volume controls, and dual-band Wi-Fi with Bluetooth, the ED-HMI3010-215C is a complete, ready-to-deploy industrial display computer in a single unit.
Key Features
- Display: 21.5" TFT, 1920x1080 Full HD, 400 cd/m² brightness, 3000:1 contrast ratio, 6.5ms response time
- Touch Screen: 5-point capacitive touch, ≥7H surface hardness, ≥82% transmittance, USB interface
- Viewing Angle: 89° left / 89° right / 89° up / 89° down (CR≥10)
- Processor: Broadcom BCM2712, quad-core Arm Cortex-A76 64-bit @ 2.4GHz
- Memory: 2GB, 4GB, 8GB, or 16GB LPDDR4X-4267
- Storage: 32GB or 64GB SD card
- Networking: 1x Gigabit Ethernet (10/100/1000M, RJ45)
- USB: 2x USB 3.0 (5Gbps) + 2x USB 2.0 (480Mbps)
- Audio: 1x 3.5mm stereo audio output jack + built-in 4Ω 5W speaker
- Wireless: Dual-band 802.11ac Wi-Fi + Bluetooth 5.0 / Bluetooth Low Energy (BLE)
- Backlight Control: Hardware brightness adjustment buttons + DDCUI software support
- Volume Control: Hardware volume adjustment buttons + mute button
- Power Input: 12V DC (±10%) via DC jack connector
- Installation: Embedded front installation and VESA bracket mounting
- OS Support: Raspberry Pi OS 64-bit (Desktop & Lite)
SKU Configuration Guide
The ED-HMI3010-215C ordering code breaks down as follows. This table is provided for reference when discussing other configurations with us.
| Field | Options |
|---|---|
| Model | HMI3010-215C |
| RAM | 02 = 2GB | 04 = 4GB | 08 = 8GB | 16 = 16GB |
| SD Card | 32 = 32GB | 64 = 64GB |
Specifications
System
| Category | Details |
|---|---|
| CPU | Broadcom BCM2712, quad-core Arm Cortex-A76 64-bit @ 2.4GHz |
| VPU | H.265 (HEVC) up to 4Kp60 decode |
| GPU | OpenGL ES 3.1 & Vulkan 1.2 |
| Memory | 2GB / 4GB / 8GB / 16GB LPDDR4X-4267 |
| Storage | 32GB or 64GB SD card (Micro SD slot) |
| Wi-Fi | Dual-band 802.11ac (2.4GHz & 5GHz) |
| Bluetooth | Bluetooth 5.0 / Bluetooth Low Energy (BLE) |
| Operating System | Raspberry Pi OS 64-bit (Desktop & Lite) |

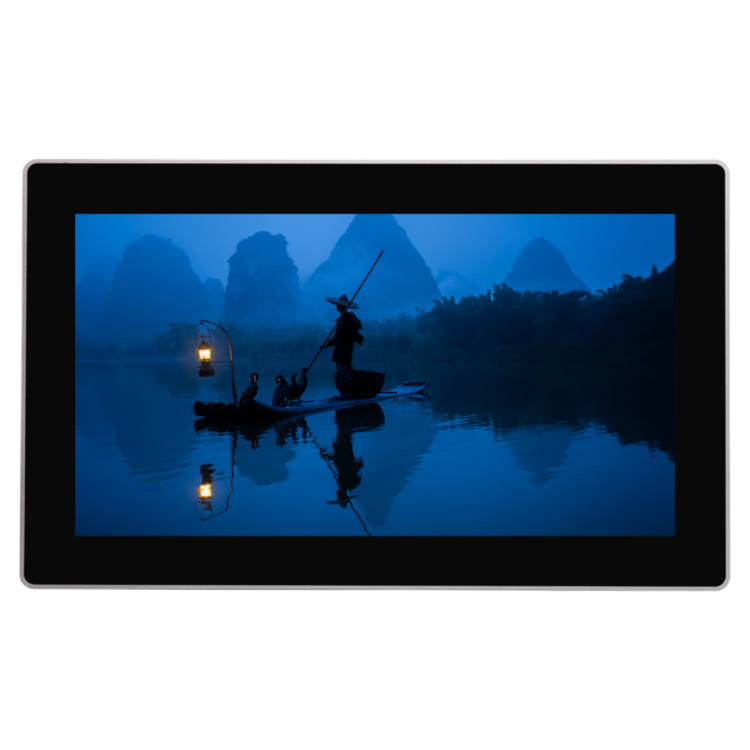

Display
| Category | Details |
|---|---|
| Panel Type | 21.5" TFT LCD |
| Resolution | 1920 x 1080 (Full HD) |
| Color Depth | 16.7M colors |
| Active Area | 478.656mm (H) x 260.28mm (V) |
| Backlight | LED |
| Luminance | 400 cd/m² |
| Contrast Ratio | 3000:1 |
| Response Time | 6.5ms |
| Viewing Angle (CR≥10) | 89° (L) / 89° (R) / 89° (U) / 89° (D) |
Touch Screen
| Category | Details |
|---|---|
| Type | Capacitive Touch Screen |
| Multi-Touch Points | Up to 5 points |
| Communication Method | USB |
| Transmittance | ≥82% |
| Surface Hardness | ≥7H |

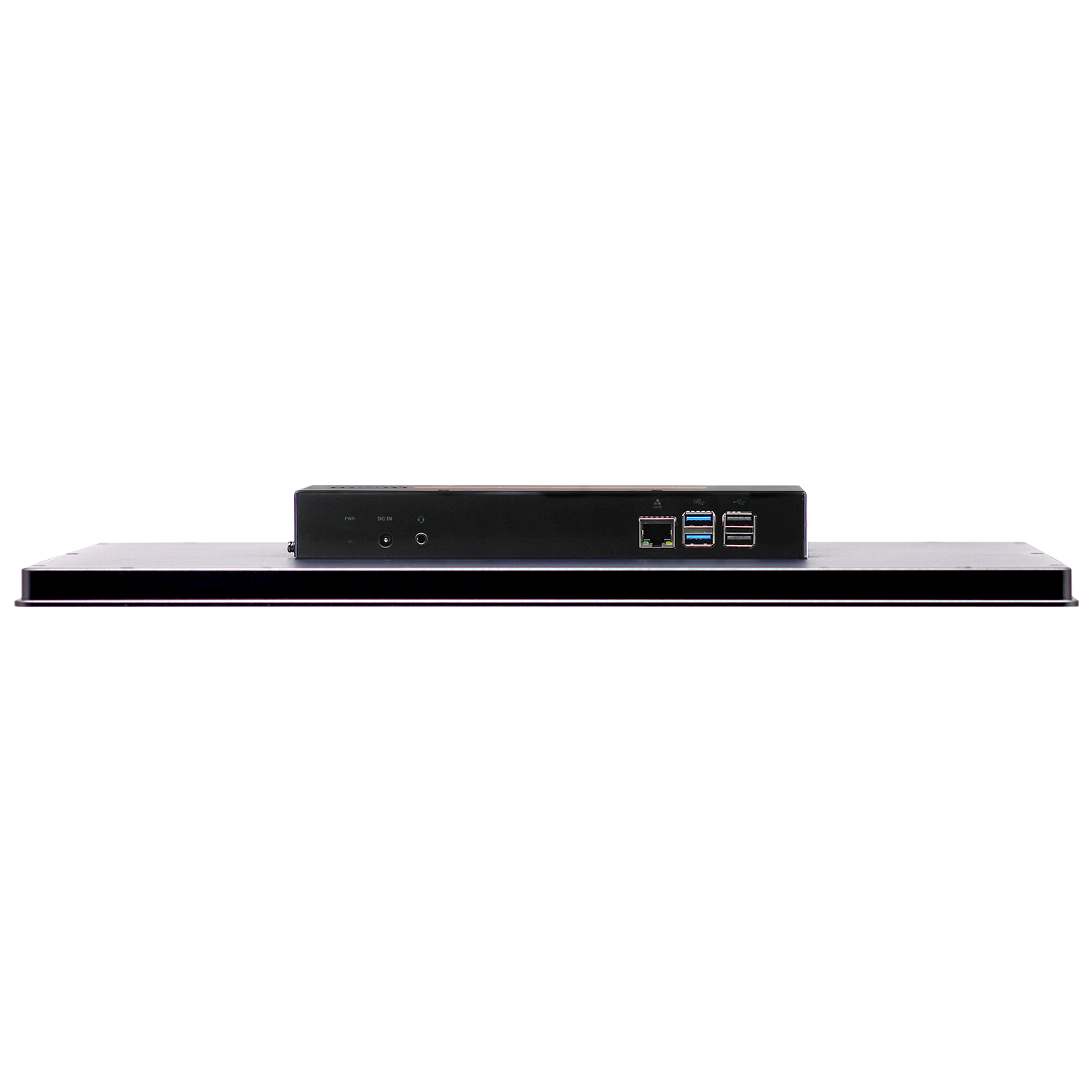

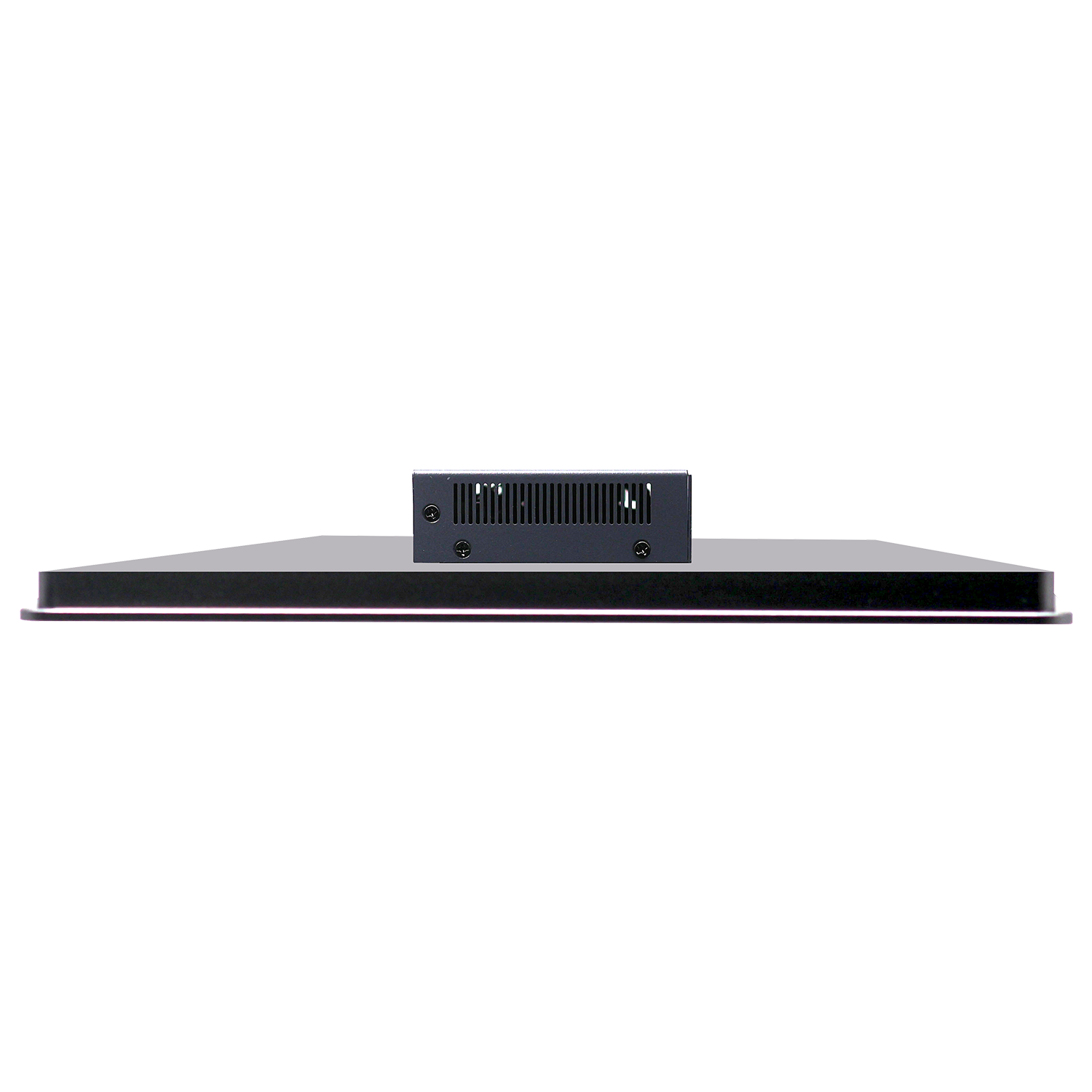

I/O & Connectivity
| Category | Details |
|---|---|
| Ethernet | 1x 10/100/1000M adaptive Gigabit Ethernet, RJ45 |
| USB 3.0 | 2x USB 3.0, Type-A, dual-layer connector (up to 5Gbps each) |
| USB 2.0 | 2x USB 2.0, Type-A, dual-layer connector (up to 480Mbps each) |
| Audio Out | 1x 3.5mm stereo audio jack |
| Speaker | Built-in 4Ω 5W speaker (PA output) |
| SD Card | 1x Micro SD card slot; supports OS boot from SD card |
| Power | 12V DC (±10%), DC jack connector |

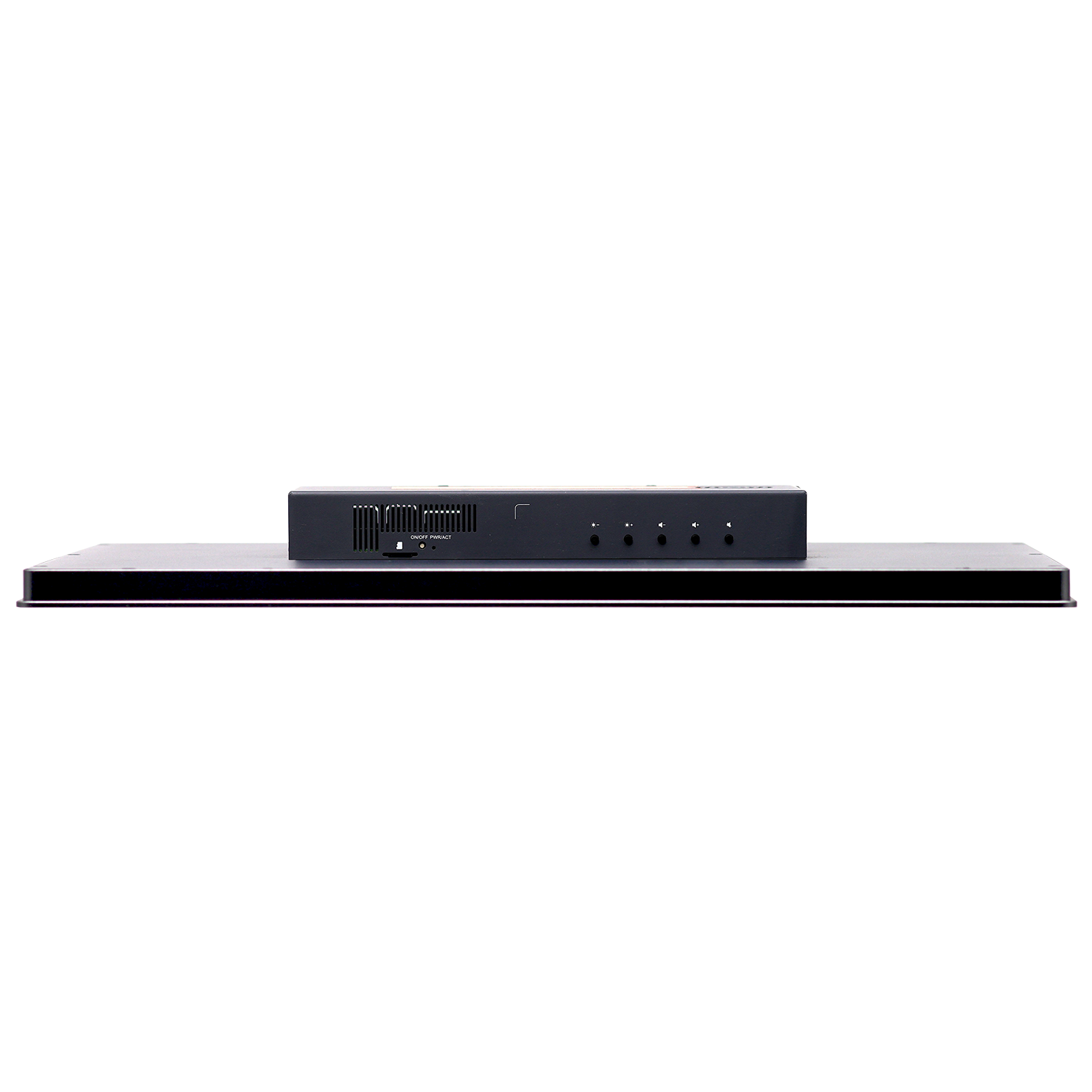

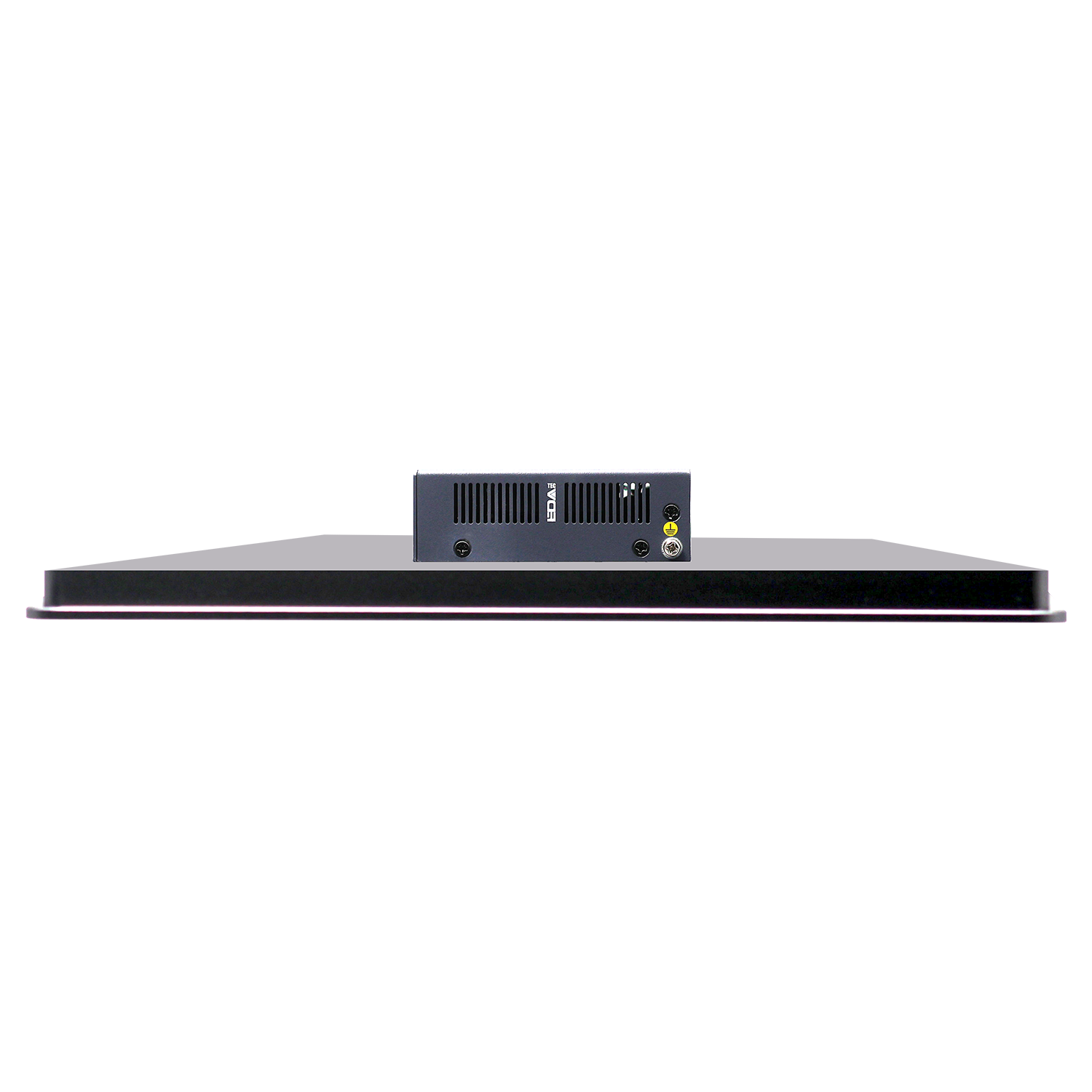

Buttons & Indicators
| Control | Details |
|---|---|
| PWR Indicator | 1x red power LED |
| PWR/ACT Indicator | 1x dual-color (red/green) power and system status LED |
| Brightness Buttons | 2x hardware buttons for brightness increase/decrease |
| Volume Buttons | 2x hardware buttons for volume increase/decrease |
| Mute Button | 1x mute/unmute button |
| ON/OFF Button | 1x power on/off button |
Mechanical & Environmental
| Category | Details |
|---|---|
| Input Voltage | 12V DC (±10%) |
| Power Consumption | 41.2W (max) |
| Dimensions | 531.3 x 317.8 x 46.5mm (W x D x H) |
| Weight | ~4.8kg |
| Installation | Embedded front installation and VESA bracket mounting |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -25°C to 60°C |
| Humidity | 5% ~ 95% (non-condensing) |
What's in the Box
- 1x ED-HMI3010-215C Unit
- 1x Mounting Kit (6x buckles, 6x M4×10 screws, 6x M4×16 screws)
