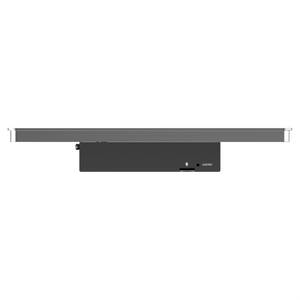

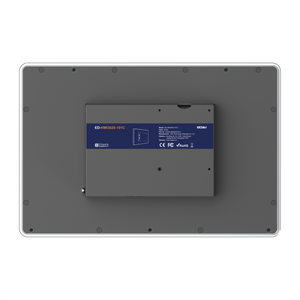

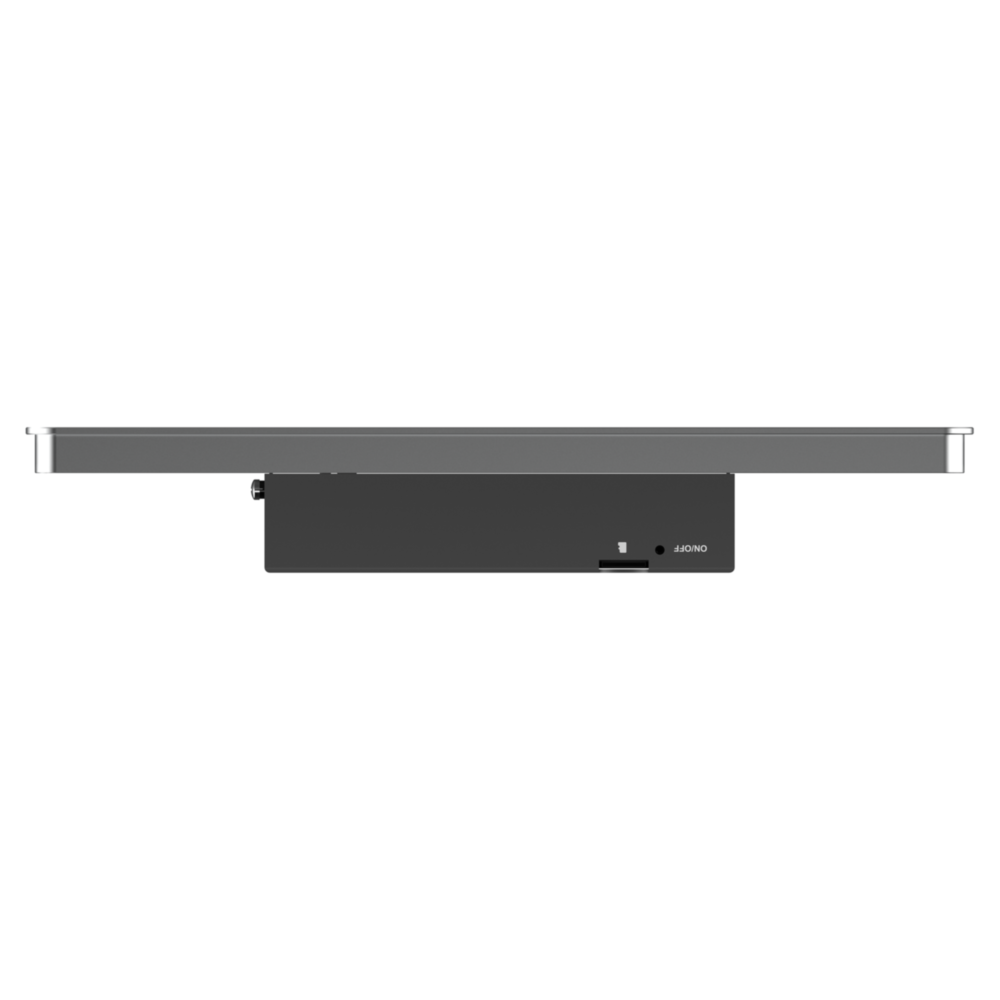

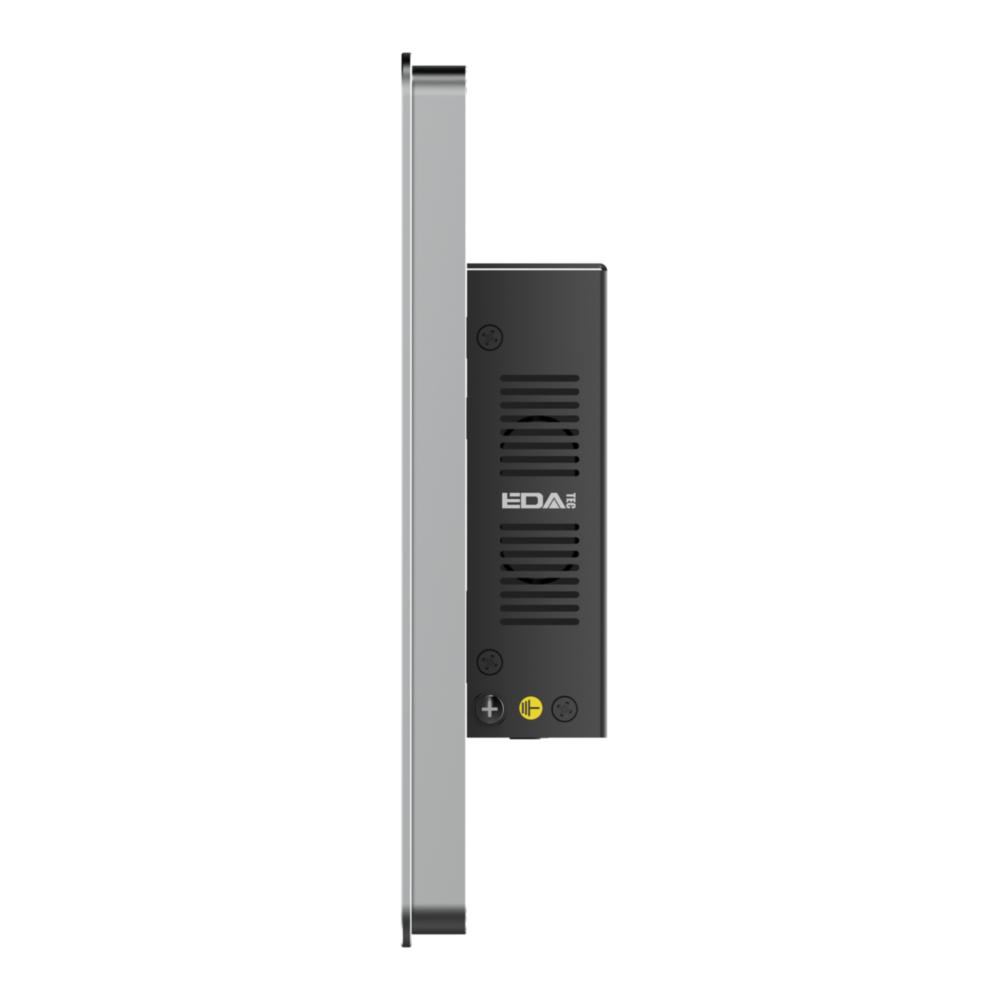

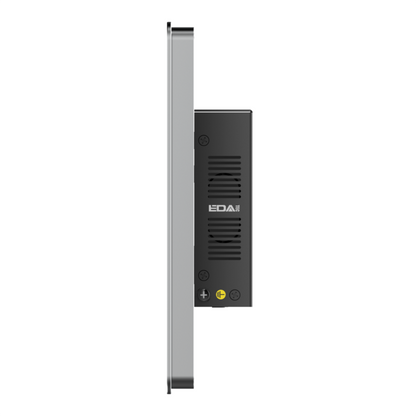

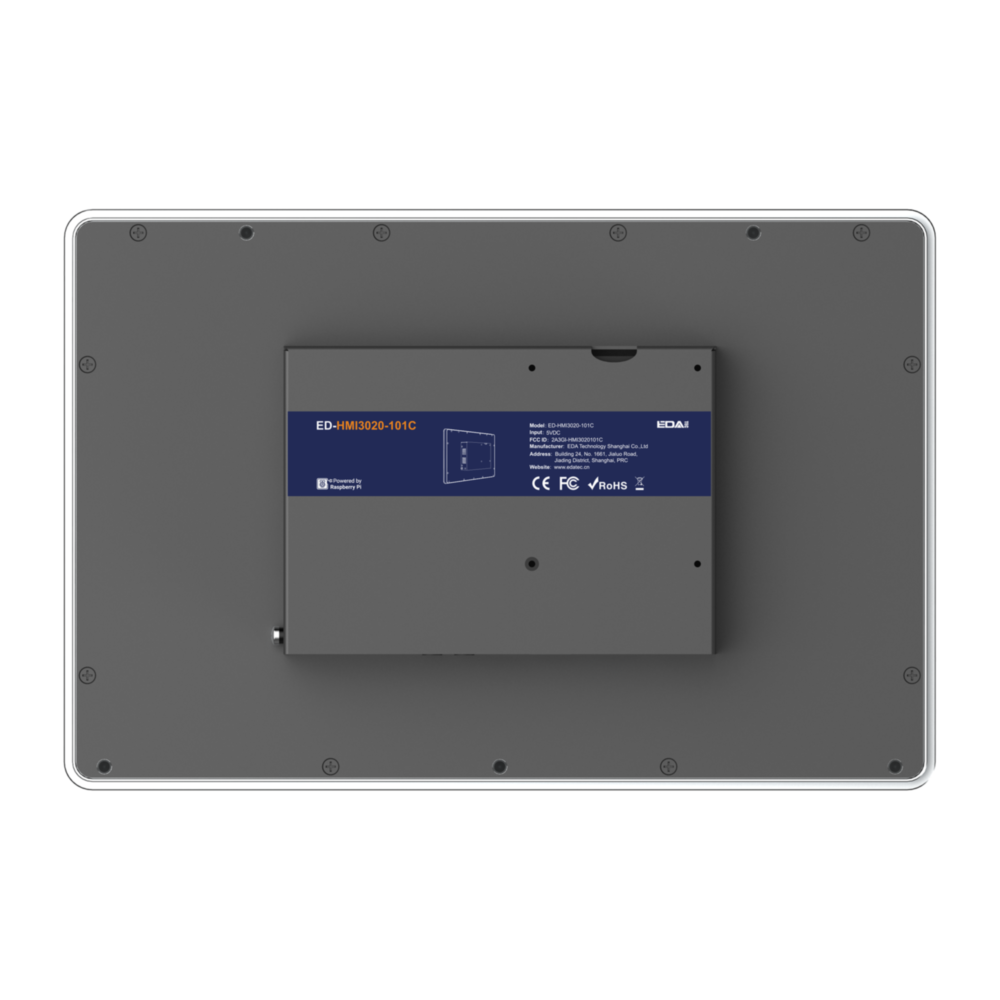

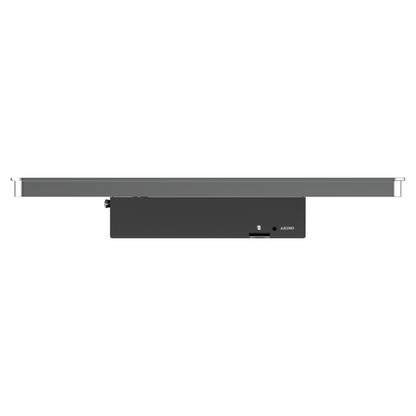

EDATEC 10.1" Industrial HMI Based on Raspberry Pi 5 ED-HMI3020

This listing is for the ED-HMI3020-101C: 10.1-inch industrial HMI based on the Raspberry Pi 5, with 1280x800 capacitive touch, RS232, RS485, M.2 NVMe SSD, dual 4K HDMI, and optional front camera. Contact us if you need a specific RAM, storage, or camera configuration.

The ED-HMI3020-101C is a compact yet fully featured 10.1-inch industrial Human-Machine Interface (HMI) built on the Raspberry Pi 5, powered by the Broadcom BCM2712 quad-core Arm Cortex-A76 processor at 2.4GHz. Combining a 1280x800 TFT display with a 10-point capacitive touch screen, dual 4K HDMI outputs, RS232, RS485, M.2 NVMe SSD support, built-in RTC, buzzer, stereo audio I/O, a built-in speaker, and an optional 8-megapixel front camera, the ED-HMI3020-101C is ideal for machine control panels, process monitoring stations, kiosks, and industrial automation interfaces. Powered via USB-C with an ON/OFF button, housed in a precision-machined Aluminum CNC and sheet metal fanless enclosure, and rated for -20°C to 60°C operation, it delivers the reliability and versatility demanded by industrial deployments. FCC and CE certified.

Key Features

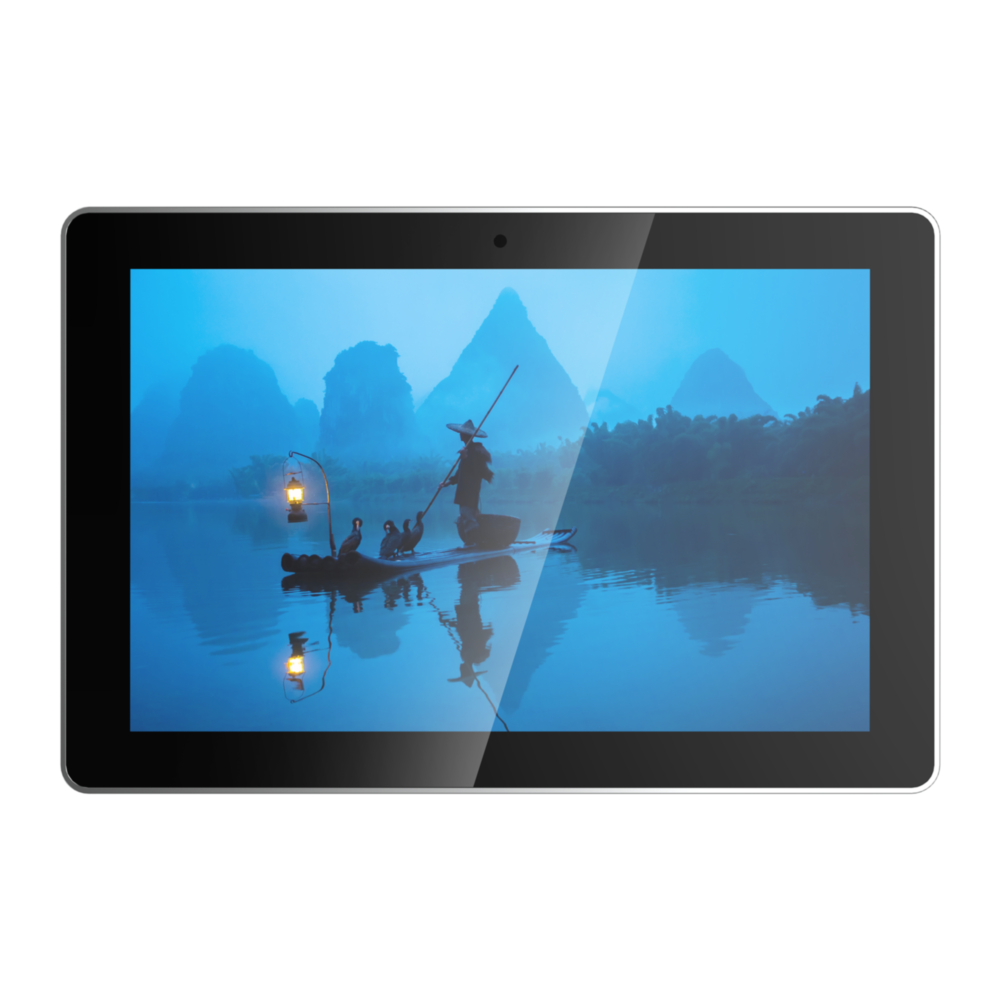

• Display: 10.1" TFT, 1280x800 resolution, 250 cd/m² brightness, 1000:1 contrast ratio, 30ms response time, LED backlight, MTBF >30,000h
• Touch Screen: 10-point capacitive touch, 6H surface hardness, ≥85% transmittance, I2C interface, Linux driver support
• Viewing Angle (CR≥10): 80° Left / 80° Right / 80° Up / 80° Down
• Processor: Broadcom BCM2712, quad-core Arm Cortex-A76 64-bit @ 2.4GHz
• Memory: 4GB, 8GB, or 16GB LPDDR4X-4267
• Storage: Micro SD card (no card / 32GB / 64GB) + M.2 NVMe SSD slot (no SSD / 128GB / 256GB, M.2 2230/2242/2260, supports OS boot)

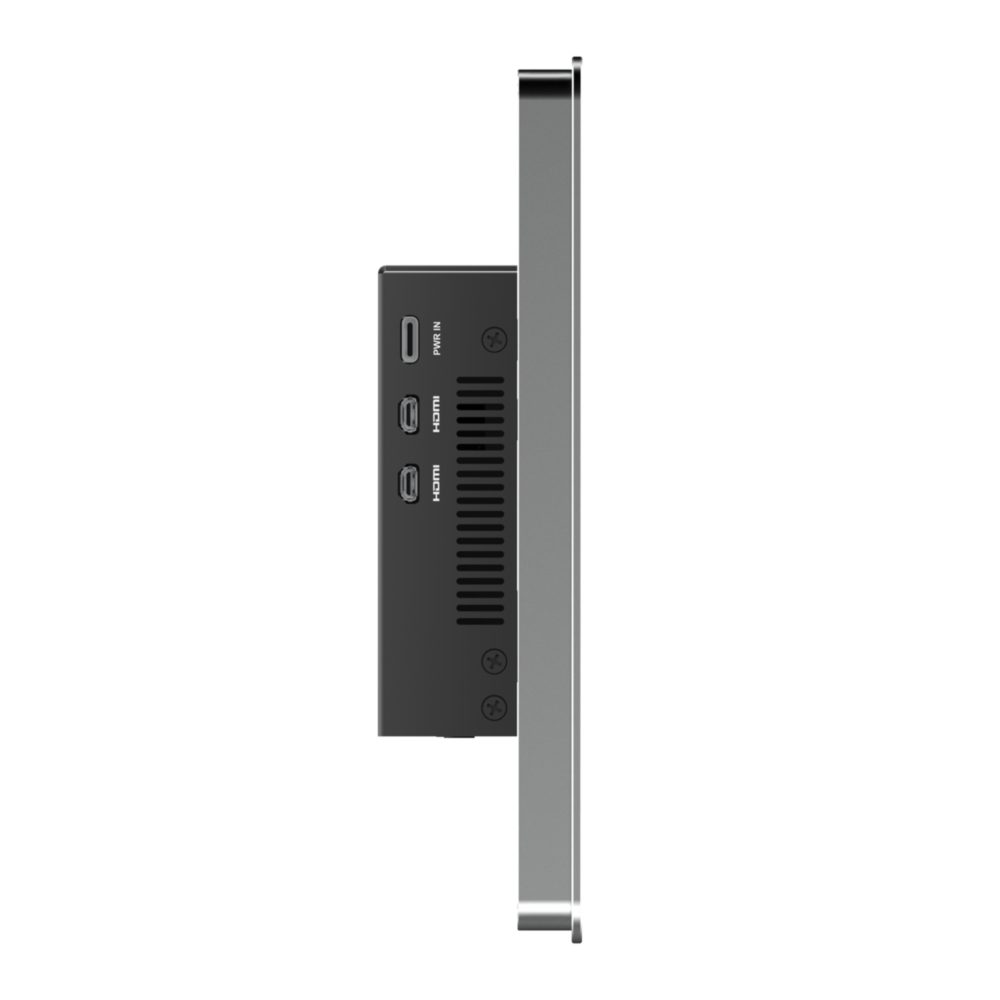

• HDMI: 2x Micro HDMI, 4K @ 60Hz each (dual display output)

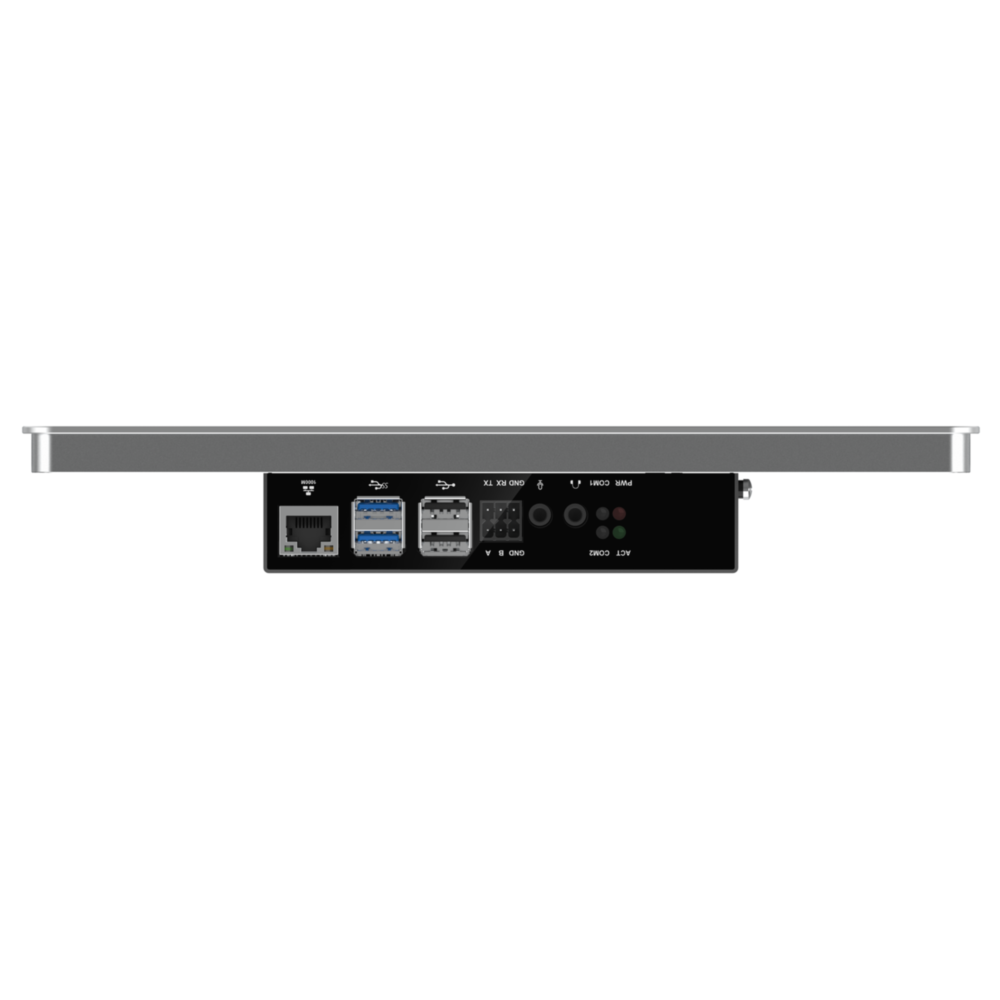

• Networking: 1x Gigabit Ethernet (10/100/1000M, RJ45); optional PoE via expansion module
• USB: 2x USB 3.0 (5Gbps) + 2x USB 2.0 (480Mbps)
• Serial: 1x RS485 + 1x RS232 (both 3-pin 3.5mm Phoenix terminals); RS485 includes 120Ω terminal resistor
• Audio: 1x 3.5mm stereo output (HPO, green) + 1x 3.5mm stereo input (LINE IN, red) + built-in 4Ω 3W speaker
• Camera (Optional): Built-in 8-megapixel front camera
• Wireless: Dual-band 802.11ac Wi-Fi + Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• Power: 5V DC via USB Type-C (5V/5A) with ON/OFF power button
• RTC: RTC with 1F SuperCAP backup; CR1220 battery base available separately
• Buzzer: Onboard buzzer for configurable alerts and alarms
• Enclosure: Aluminum CNC + sheet metal case, fanless design
• Installation: Embedded front installation
• Certifications: FCC, CE
• OS Support: Raspberry Pi OS 64-bit (Desktop & Lite)

SKU Configuration Guide

The ED-HMI3020-101C ordering code breaks down as follows. This table is provided for reference when discussing other configurations with us.

Specifications

System

Display

Touch Screen

I/O & Connectivity

Buttons & Indicators

Expansion & Reliability

Mechanical & Environmental

Optional Accessories

Power Adapters (Raspberry Pi 27W USB-C):

Note: Power adapter sold separately.

What's in the Box

• 1x ED-HMI3020-101C Unit
• 1x Mounting Kit (4x buckles, 4x M4×10 screws, 4x M4×16 screws)

Technical Documents

• DataSheet
• User Manual
