EDATEC Industrial Computer Based on Raspberry Pi CM0 ED-IPC1000

$ 80.00 USD

Sale Sold out

EDATEC P/N ED-IPC1000-10008

Quantity

SKU:123004083

Out of stock — Available on backorder

This listing is for the ED-IPC1000-10008: CM0-based industrial computer with Wi-Fi & Bluetooth and 8GB eMMC. Contact us if you need a different storage configuration.

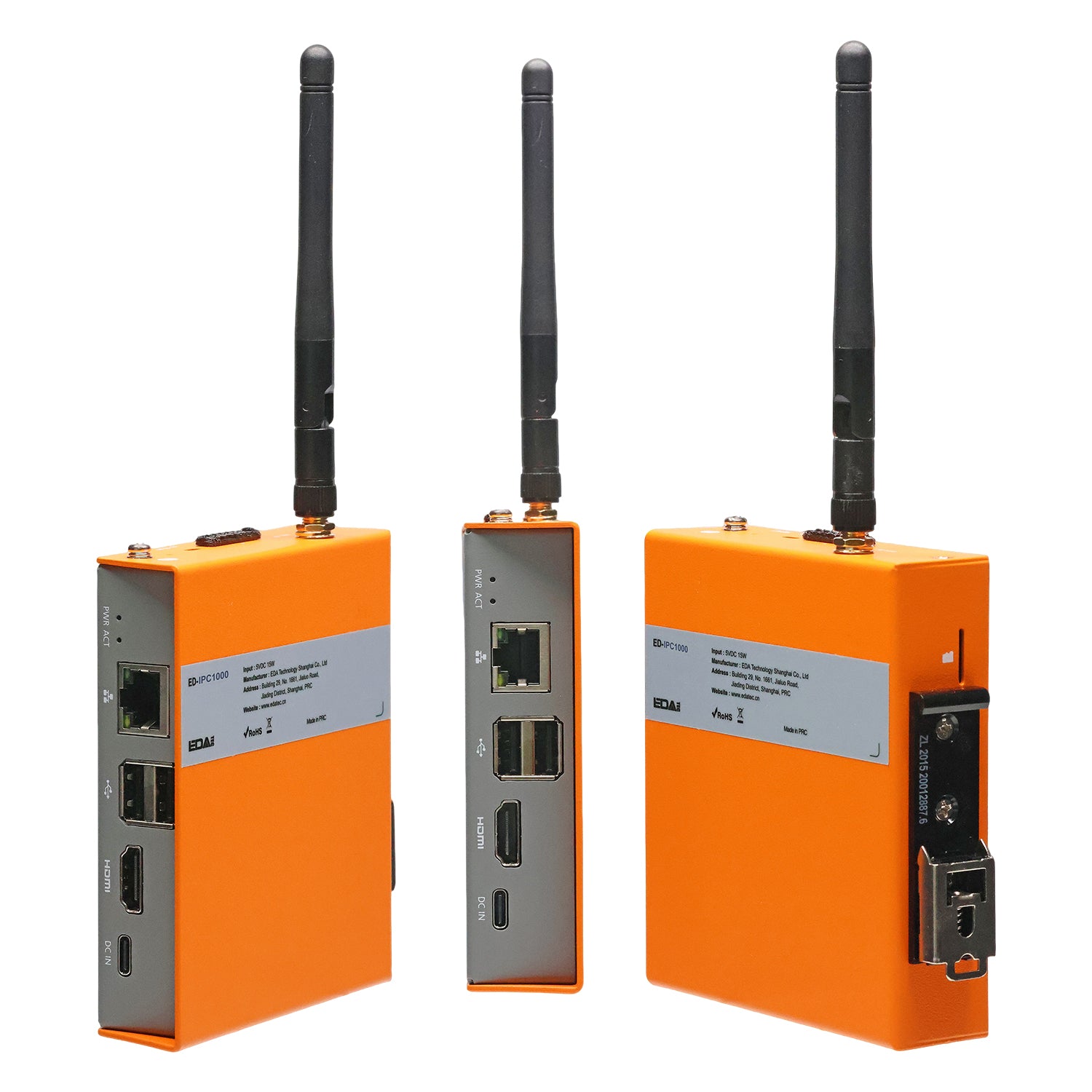

The ED-IPC1000 is a compact, cost-effective industrial computer built on the Raspberry Pi Compute Module 0 (CM0), designed for reliable deployment in industrial environments. Featuring a 1GHz quad-core 64-bit Arm Cortex-A53 processor with 512MB SDRAM, it delivers solid performance for edge computing, thin clients, multimedia endpoints, and IoT gateway applications -- all in a slim, fanless, all-metal DIN rail-mountable enclosure. Peak power draw is about 3.5W.

Key Features

Processor: 1GHz quad-core 64-bit Arm Cortex-A53
Memory & Storage: 512MB SDRAM; available with 8GB or 16GB eMMC, or 32GB Micro SD card (CM0Lite)
Display & Video: 1x HDMI (Type-A, HDMI 1.3a), supports 1080p @ 30Hz; H.264/MPEG-4 video decode & encode
Connectivity: 2x USB 2.0 (480Mbps), 1x 100M Ethernet (RJ45), USB Type-C (5V power input)
Wireless (Optional): 2.4GHz Wi-Fi (IEEE 802.11 b/g/n) and Bluetooth 5.0, with external SMA antenna
Reliability Features: Integrated RTC with CR2032 battery backup interface, built-in hardware Watchdog timer
Cooling: Pre-installed with thermal paste and passive cooler for fanless, silent operation at up to 60°C
Installation: DIN rail mounting
OS Support: Raspberry Pi OS (Desktop/Lite, 32-bit & 64-bit)

SKU Configuration Guide

The ED-IPC1000 ordering code breaks down as follows. This table is provided for reference when discussing other configurations with us.

Field	Options
Model	IPC1000
Wi-Fi & Bluetooth	1 = with Wi-Fi/BT
Storage	0008 = 8GB eMMC (standard stock) \| 0016 = 16GB eMMC (contact us) \| 0032 = 32GB SD Card, CM0Lite (standard stock)

Specifications

Category	Details
CPU	1GHz quad-core 64-bit Arm Cortex-A53
VPU	H.264/MPEG-4 decode 1080p@30fps; H.264 encode 1080p@30fps
GPU	OpenGL ES 1.1/2.0
Memory	512MB SDRAM
eMMC Storage	8GB or 16GB eMMC available (this SKU: 8GB)
SD Card	1x Micro SD card slot (rear); for system boot with CM0Lite module only

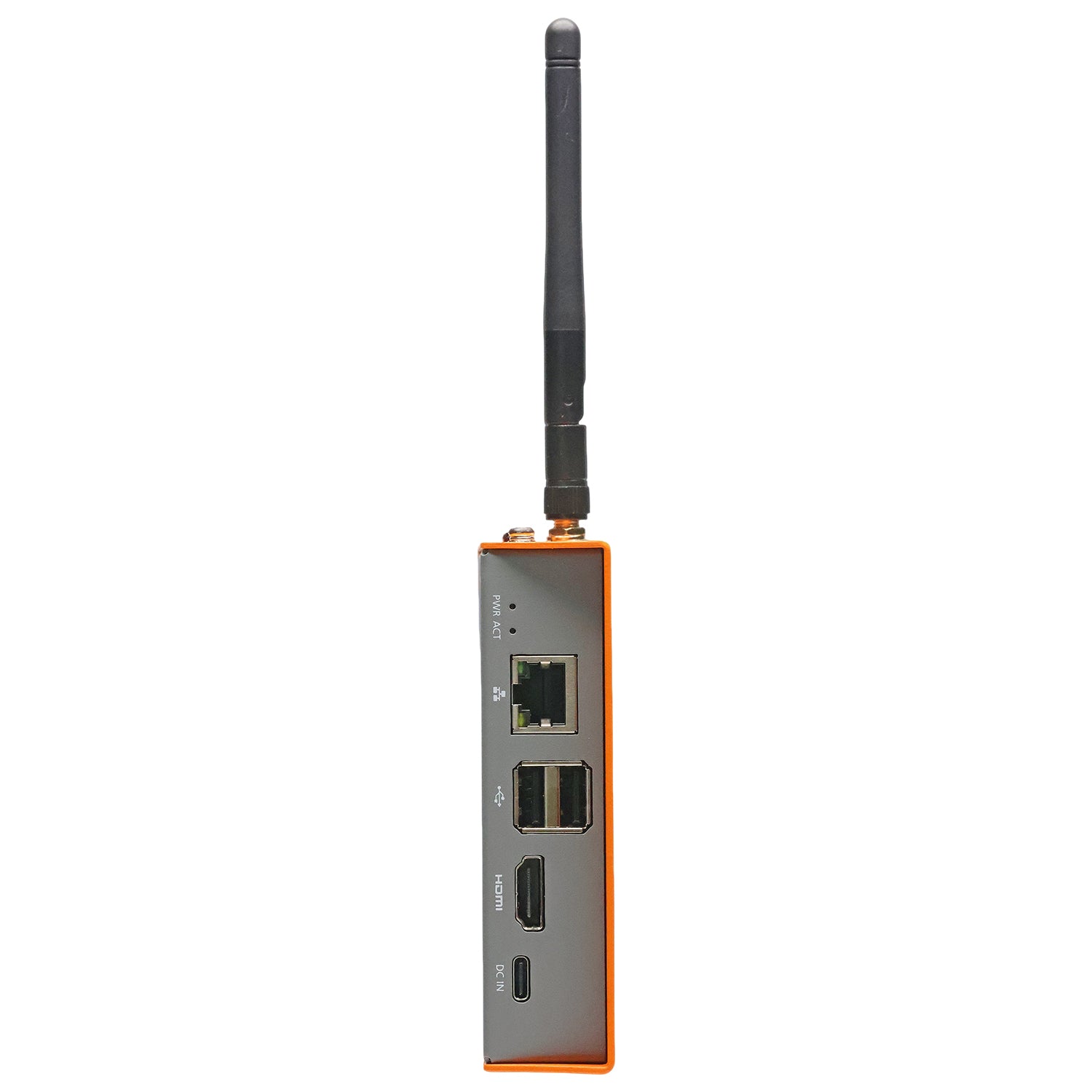

HDMI	1x HDMI Type-A, HDMI 1.3a, up to 1080p @ 30Hz
USB 2.0	2x USB 2.0, Type-A, stacked connector (480Mbps each)
Ethernet	1x 10/100M adaptive Ethernet, RJ45
Power Input	5V DC, USB Type-C connector
Power Consumption	~3.5W
Wi-Fi (Optional)	2.4GHz Wi-Fi, IEEE 802.11 b/g/n, external SMA antenna
Bluetooth (Optional)	Bluetooth 5.0 (2402MHz ~ 2480MHz), external SMA antenna

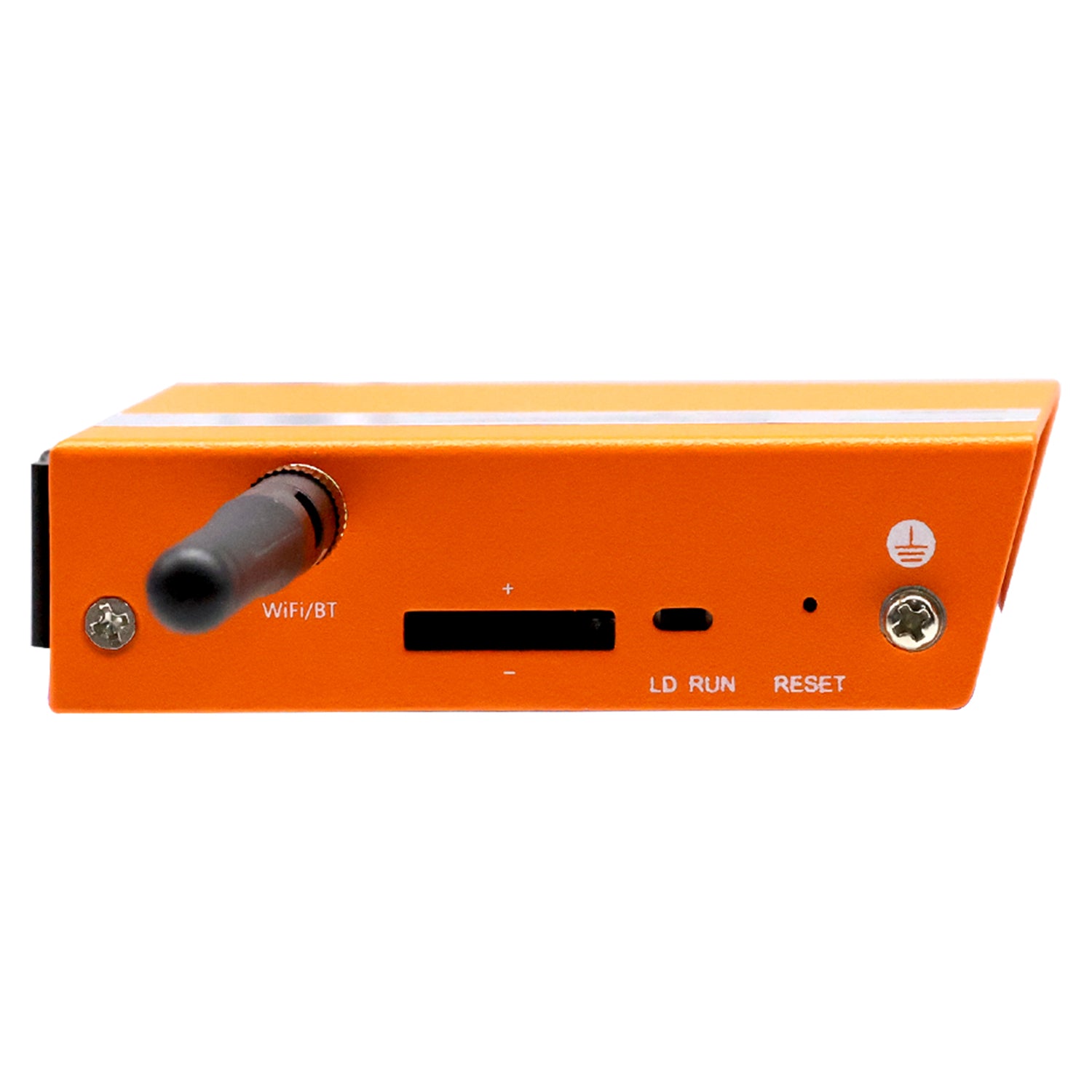

Antenna Interface	1x SMA connector (side), for Wi-Fi/BT antenna
RTC	Integrated RTC; 1x CR2032 battery backup interface (side)
Watchdog	Built-in hardware Watchdog
DIP Switch	1x DIP switch (side); RUN = normal operation mode (default), LD = eMMC flash mode
Reset	1x recessed reset button; press to restart the device
Indicators	PWR (red, power on/off status), ACT (green, system activity status)
Cooling	Passive cooler with pre-installed thermal paste (fanless)
Dimensions	107.5 x 94.5 x 26mm (W x D x H, DIN-rail bracket and antenna not included)
Weight	~320g

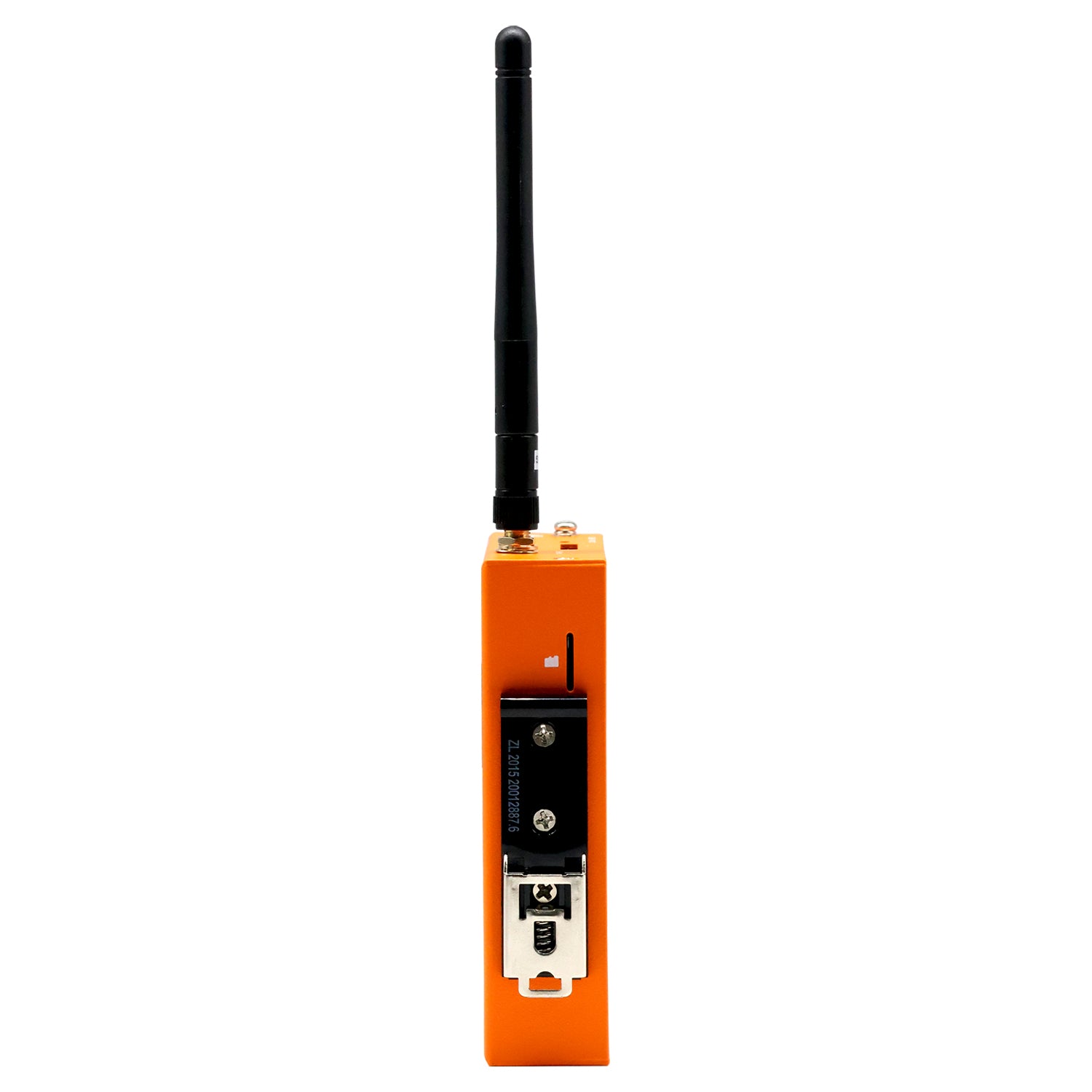

Installation	DIN rail mounting
Operating Temperature	-20°C to 60°C
Storage Temperature	-20°C to 60°C
Humidity	5% ~ 95% (non-condensing)
Operating System	Raspberry Pi OS (Desktop/Lite, 32-bit & 64-bit)
