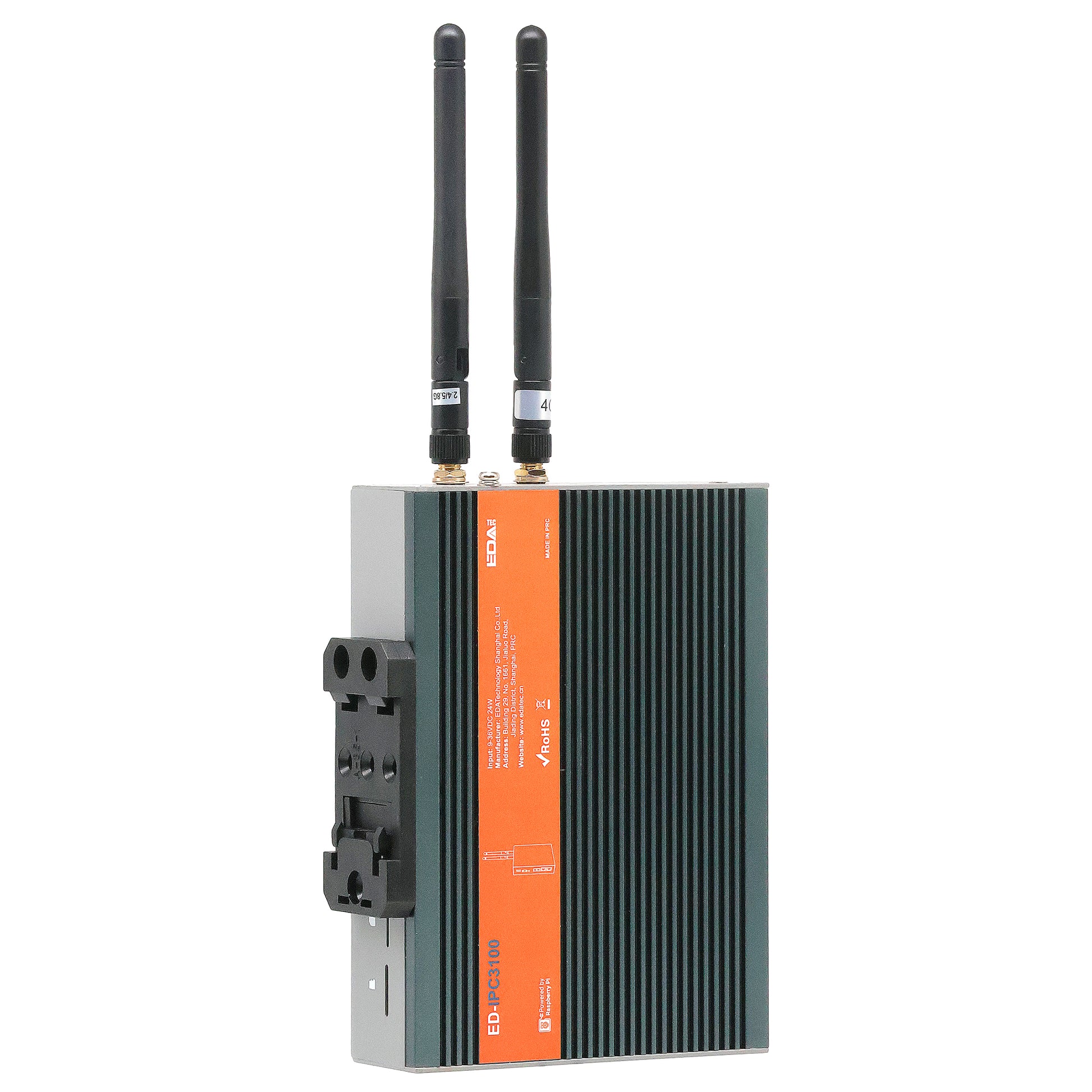

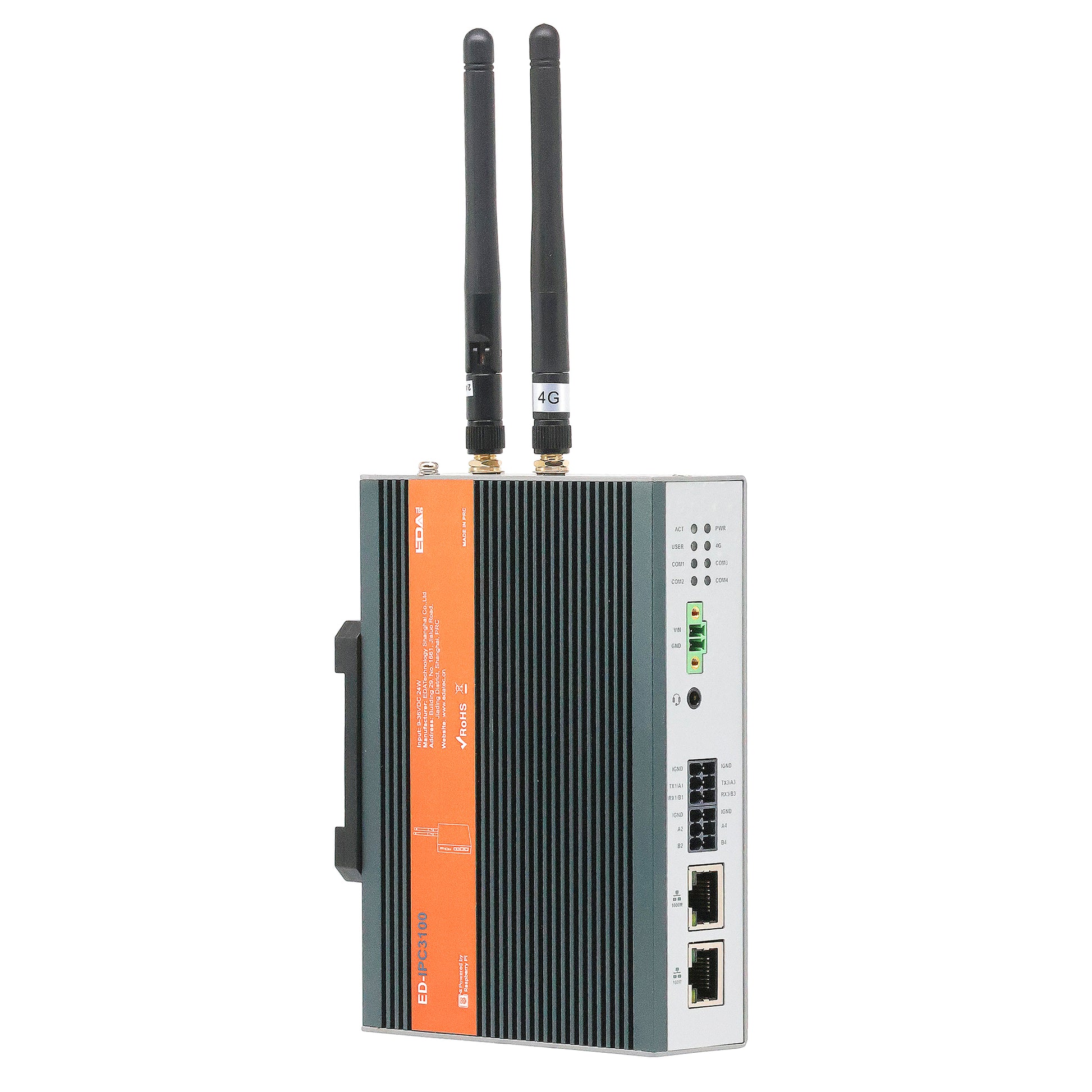

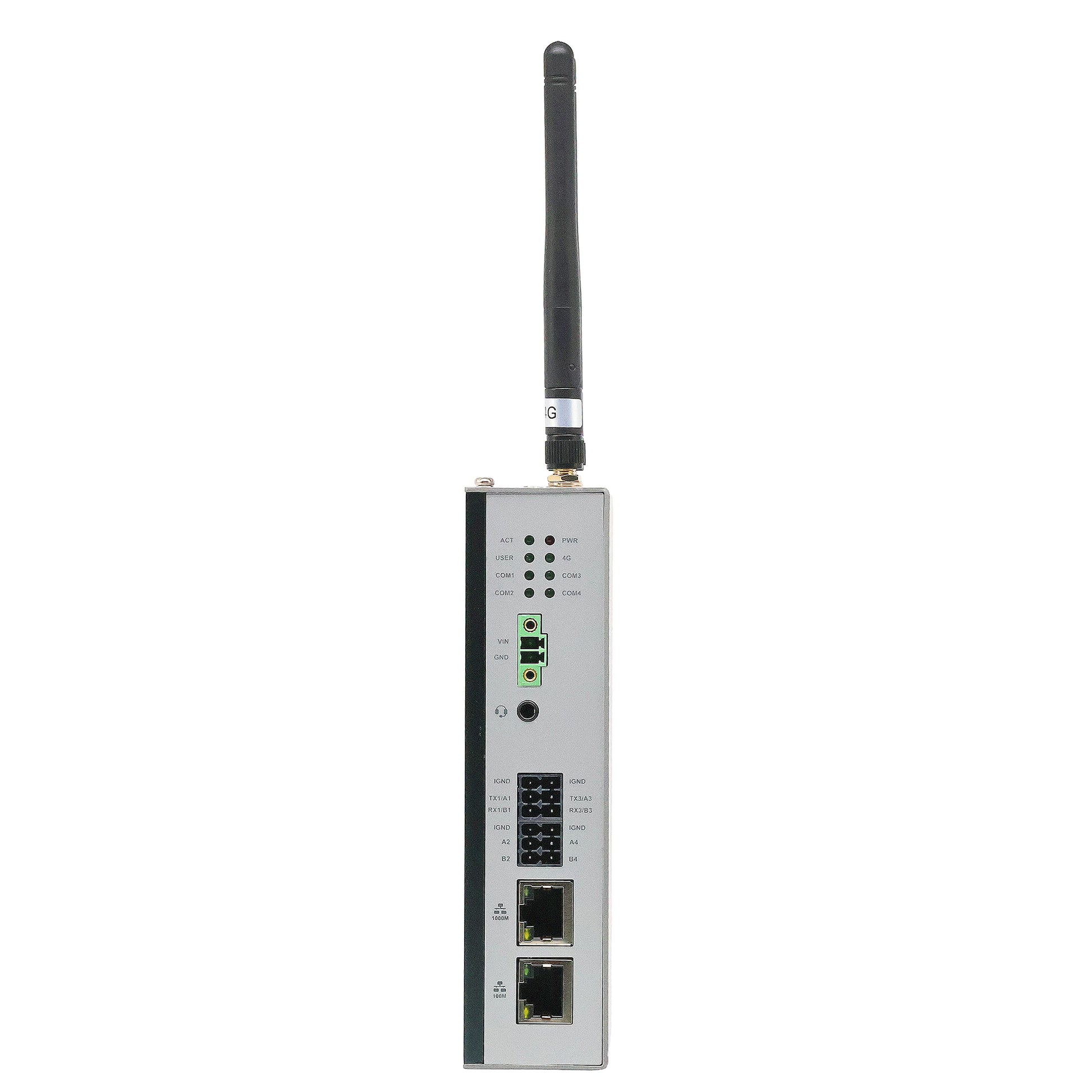

EDATEC Industrial Computer Based on Raspberry Pi CM5 ED-IPC3110

This listing is for the ED-IPC3110-10432-S: CM5-based industrial computer with Wi-Fi & Bluetooth, 4GB DDR4 RAM, 32GB eMMC, 2x RS485 + 2x RS232 serial ports, and Super Capacitor RTC backup. No 4G/LTE module. Contact us if you need a different RAM, storage, 4G region, or serial port configuration.

The ED-IPC3110 is a compact DIN rail industrial computer built on the Raspberry Pi Compute Module 5 (CM5), powered by the Broadcom BCM2712 quad-core Arm Cortex-A76 processor at 2.4GHz -- the same architecture as the Raspberry Pi 5. Designed for industrial automation, smart manufacturing, energy management, and IIoT edge applications, it combines modern compute performance with a comprehensive industrial I/O suite in a fanless metal enclosure rated for -25°C to 60°C.

This variant ships with dual-band Wi-Fi 5 and Bluetooth, dual Ethernet (1x GbE + 1x 100M), 4 isolated RS232/RS485 serial ports, USB 2.0, HDMI 2.0, a 40-pin GPIO header, M.2 NVMe SSD expansion, and a wide 9V-36V DC power input. The Super Capacitor module provides battery-free RTC backup, keeping the system clock accurate through power interruptions without a replaceable cell.

Key Features

• Processor: Broadcom BCM2712, quad-core Arm Cortex-A76 (ARMv8) 64-bit @ 2.4GHz
• Memory: 4GB LPDDR4-4267 SDRAM (this SKU)
• Storage: 32GB eMMC (this SKU); Micro SD card slot (user expansion); M.2 NVMe SSD slot (128GB / 256GB / 512GB optional)
• Display: 1x HDMI Type-A (HDMI 2.0), supports 4K @ 60Hz
• Networking: 1x Gigabit Ethernet (10/100/1000M) + 1x 100M Ethernet (10/100M)
• Serial Ports: 2x isolated RS485 + 2x isolated RS232, with electrostatic and surge protection
• USB: 2x USB 2.0 (Type-A, 480Mbps)
• Wireless: 2.4GHz & 5GHz dual-band Wi-Fi (802.11 a/b/g/n/ac) + Bluetooth (included in this SKU)
• 4G LTE: Not included (available in other SKUs -- contact us)
• Expansion: 40-pin GPIO header (2x20, 2.54mm pitch, GPIO1-GPIO27 / 3V3 / 5V / GND); M.2 B Key SSD slot
• Power Input: 9V-36V DC with reverse polarity, overvoltage, and overcurrent protection
• RTC: Super Capacitor backup (1F) -- no battery required (included in this SKU); optional CR1220 battery base available separately
• Reliability: Watchdog (hardware reserved, software in development), EEPROM (4K), hardware crypto authentication, buzzer
• Cooling: Fanless passive cooling via high-quality metal enclosure
• Installation: DIN rail mounting
• Operating Temperature: -25°C to 60°C
• Certifications: FCC, CE
• OS Support: Raspberry Pi OS 64-bit (Desktop & Lite)

Model Variants - Serial Port Configurations

All models share the same CM5 platform, dual Ethernet, USB, HDMI, GPIO, and power input. Contact us to order other serial port configurations.

SKU Configuration Guide

The ED-IPC3110-10432-S ordering code breaks down as follows. This table is provided for reference when discussing other configurations with us.

Specifications

4G LTE Module Options

Not included in this SKU. Provided for reference if you need a 4G-enabled configuration -- contact us.

Optional Accessories

Power Adapters:

Note: Each adapter model includes only one plug type. Power adapter sold separately.

What's in the Box

• 1x ED-IPC3110 unit (with DIN rail bracket)
• 1x 2.4GHz/5GHz Wi-Fi/BT antenna

Technical Documents

• DataSheet
• User Manual
