EDATEC 12V 2A Wall Mount Power Supply
EDATEC 12V 2A Wall Mount Power Supply
SKU:123004132
Out of stock — Available on backorder
Couldn't load pickup availability
12V 2A power supply for Raspberry Pi Compute Module IO Board and EDATEC 12V computers.

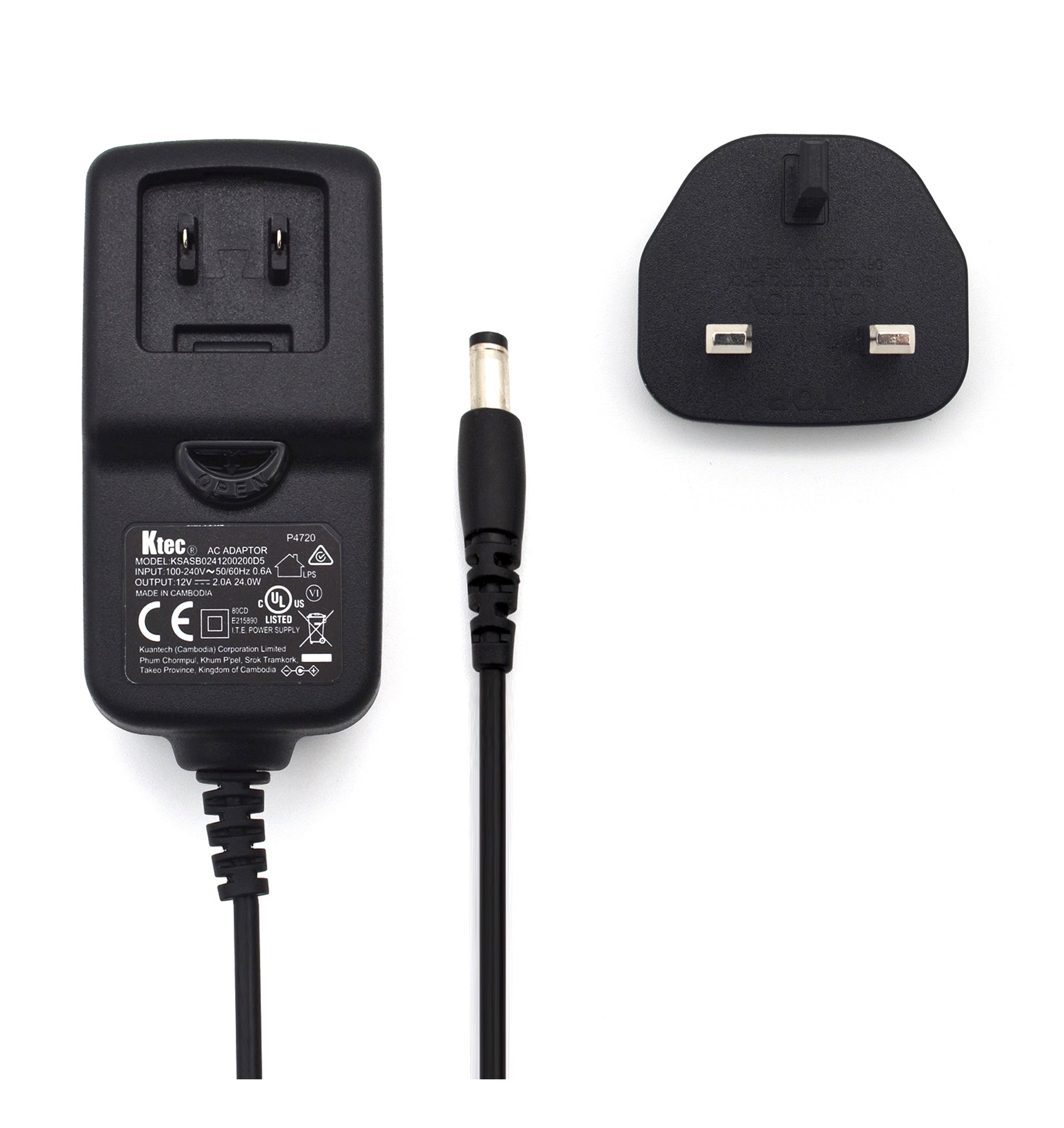

The ED-PSU1202 is a single-phase 24W, 12V 2A switching power supply designed by Kuantech and marketed by EDATEC. It supports the Raspberry Pi Compute Module IO Board and all EDATEC computers with a 12V DC input. The supply ships with one main body and four interchangeable plugs (UK, EU, AU, US), and is available with a 5.5mm/2.5mm DC barrel connector or a Phoenix terminal block in 2.5mm or 3.5mm pitch. Contact us if you need help selecting the right variant.
Key Features
- Compatible devices: Raspberry Pi Compute Module IO Board and all EDATEC 12V input computers
- Output: 12V DC, 2A, 24W rated
- Input: 90–264V AC, 50/60Hz - works worldwide
- Interchangeable plugs: UK, EU, AU, and US plugs included in one package
- Connector options: 5.5mm/2.5mm DC barrel, 2.5mm pitch Phoenix terminal, or 3.5mm pitch Phoenix terminal with lock
- Efficiency: 76.8–86.8% depending on load
- Protections: over-voltage, short-circuit, and over-current
- Reliability: 50K hours MTBF (BELLCORE SR-332); all electrolytic capacitors rated 5 years at 25°C
SKU Configuration Guide
The ED-PSU1202 ordering code breaks down as follows.
| Field | Options |
|---|---|
| Plug region | AU = Australia | EU = Europe | UK = United Kingdom | US = USA |
| Output connector | (blank) = 5.5mm/2.5mm DC barrel | 2.5PL = 2.5mm pitch Phoenix | 3.5PL = 3.5mm pitch Phoenix with lock |
Example: ED-PSU1202-UK-3.5PL = 12V 2A, UK plug, 3.5mm pitch Phoenix terminal with lock.
Specifications
| Parameter | Value |
|---|---|
| Rated input voltage | 100–240V AC |
| Operating input range | 90–264V AC |
| Input frequency | 50/60Hz ±3Hz |
| Rated input current | 0.6A max. |
| Max. input power | 29.1W |
| No-load input current | ≤25mA |
| No-load power consumption | ≤0.075W |
| DC output voltage | +12.0V |
| Rated output current | 2A |
| Rated output power | 24.0W |
| Line regulation | ±5% |
| Ripple and noise | 150mVp-p |
| Switching efficiency | 86.8% at 25–100% load; 76.8% at 10% load |
| Protections | Over-voltage, short-circuit, over-current |
| MTBF | 50K hours at 25°C (BELLCORE SR-332) |
| Capacitor life | 5 years at 25°C (115V/60Hz and 230V/50Hz) |
| Operating temperature | 0–40°C |
| Safety standard | IEC60950-1 SELV and Limited Power |
| HS code | 8504401400 (COO: CN) |
Ordering Information
| Model | Plug | Output connector |
|---|---|---|
| ED-PSU1202-AU | Australia | 5.5mm/2.5mm DC barrel |
| ED-PSU1202-AU-3.5PL | Australia | 3.5mm pitch Phoenix with lock |
| ED-PSU1202-EU | Europe | 5.5mm/2.5mm DC barrel |
| ED-PSU1202-EU-3.5PL | Europe | 3.5mm pitch Phoenix with lock |
| ED-PSU1202-UK | United Kingdom | 5.5mm/2.5mm DC barrel |
| ED-PSU1202-UK-3.5PL | United Kingdom | 3.5mm pitch Phoenix with lock |
| ED-PSU1202-US | USA | 5.5mm/2.5mm DC barrel |
| ED-PSU1202-US-3.5PL | USA | 3.5mm pitch Phoenix with lock |
What's in the Box
- 1x ED-PSU1202 power supply body
- 4x interchangeable AC plugs (UK, EU, AU, US)
FAQ
Is 12V/2A enough for my system?
24W total output is sufficient for most EDATEC computers, provided no high-power motors or magnetic switches are in the system. Account for the efficiency of any DC-DC converters in your design, and leave at least 20% headroom above peak load.
The power supply body says KTEC, not EDATEC — why?
The ED-PSU1202 was designed by Kuantech (KTEC). EDATEC sources, packages, and sells the product globally, and takes full ownership of technical support and after-sales service.
