Also in this family: the nRFLR1262 (adds nRF52840 MCU + BLE) and the LRCC68 (lower-cost alternative).

The LR1262 Long-Range LoRa Wireless Transceiver Module is a compact and high-performance wireless solution based on the Semtech SX1262 LoRa chip, designed for operation in the 868 MHz and 915 MHz ISM bands.

With its ultra-small 10 × 10 mm stamp-hole package, the module is easy to integrate into embedded systems and custom PCBs. It utilizes advanced LoRa modulation technology, offering significantly improved anti-interference capability and communication range compared to traditional FSK/GFSK systems.

The LR1262 delivers up to +22 dBm transmit power, supports a wide data rate range of 0.018–62.5 Kbps, and achieves exceptional sensitivity of -148 dBm, enabling communication over long distances. It covers the 850–930 MHz global LoRa & LoRaWAN ISM band, making it suitable for worldwide deployments.

Equipped with an industrial-grade TCXO, the module ensures stable performance across extreme temperatures. With an ultra-low sleep current of just 1.62 µA, it is ideal for battery-powered IoT applications.

Note: This module requires an external MCU driver or SPI debugging tool for operation.

Key Features

High Performance: Up to +22 dBm transmit power, 0.018–62.5 Kbps data rate, -148 dBm sensitivity (@SF12/BW=125 kHz), 170 dB link budget
Ultra-Low Power Consumption: Sleep current as low as 1.62 µA
Wide Frequency Support: 850–930 MHz LoRa & LoRaWAN ISM bands (868 MHz / 915 MHz)
Long-Range Communication: Enhanced range with strong anti-interference performance

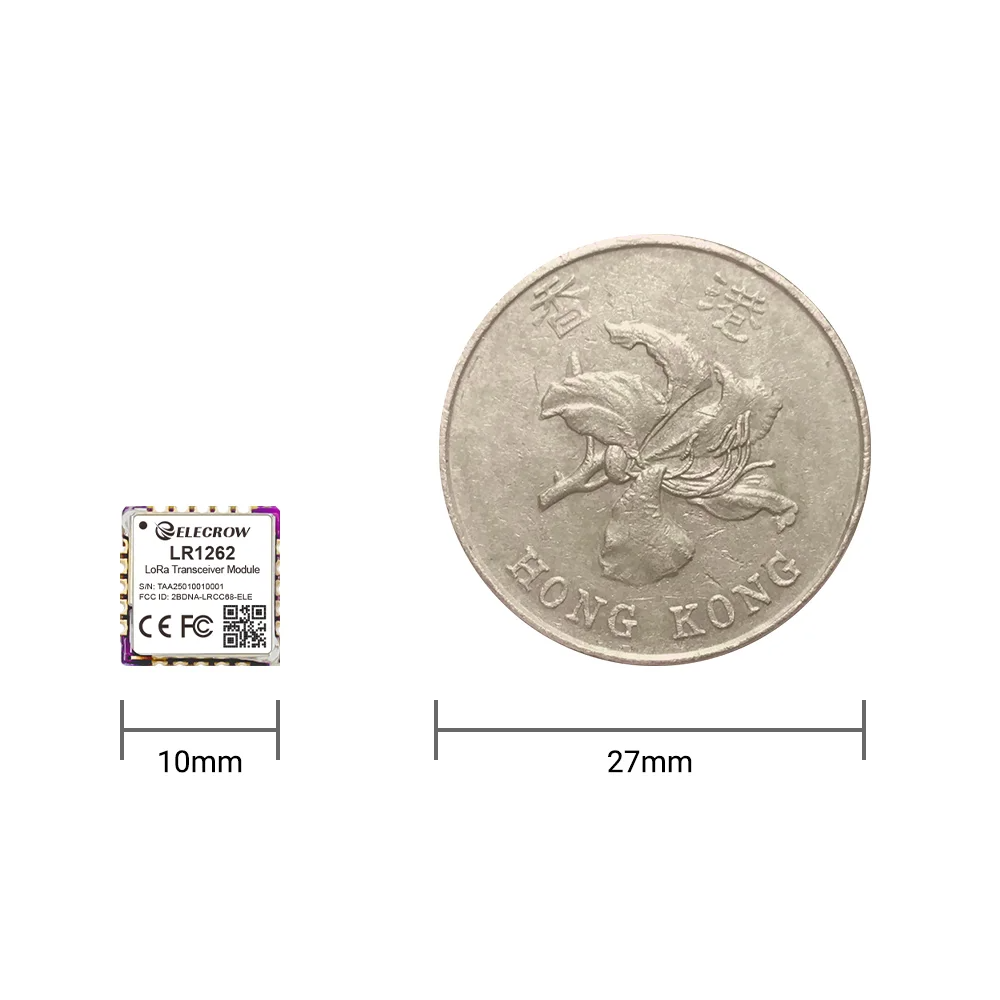

Compact Design: Ultra-small 10 × 10 × 3.5 mm package with stamp-hole edges for easy PCB integration
Stable Operation: Industrial-grade TCXO for reliable performance in harsh environments
Certifications: FCC and CE compliant

Applications

Smart City Infrastructure
Smart Agriculture
Industrial Automation
Environmental Monitoring
Smart Home Systems
Wireless Meter Reading
Logistics & Asset Tracking
Medical & Healthcare Devices
Medium & Long-Range IoT Communication

Technical Specifications

Category	Specification
Processor
CPU	None (requires external MCU)
RF Chip
Chipset	Semtech SX1262
LoRa Specification
Transmit Power (TX)	Up to +22 dBm
Receiving Sensitivity	-148 dBm
Link Budget	Up to 170 dB
Demodulator	Supports LoRa / (G)FSK / GMSK modulation; SF5 ~ SF12; configurable from 150 MHz to 960 MHz
Data Transfer Rate	0.018 – 62.5 kbps
Other
Frequency	850 ~ 930 MHz (supports 868 MHz and 915 MHz ISM bands)
Communication Interface	SPI (0 ~ 10 Mbps)

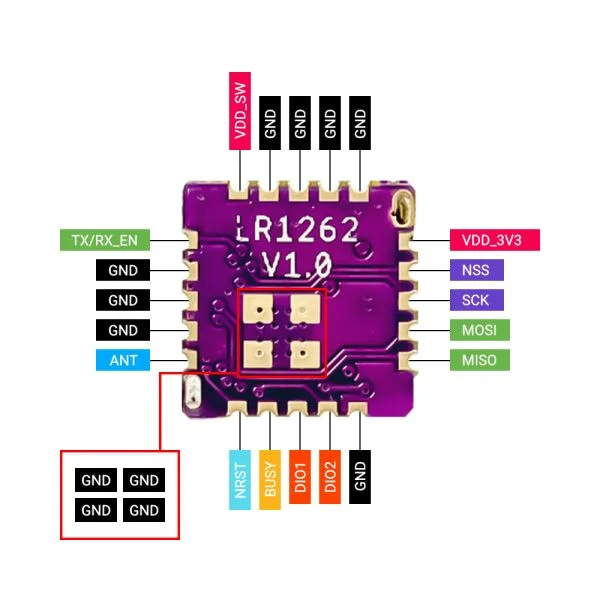

Lead Pin	SPI, VCC, multiple GND, NRST, ANT, TX/RX control, BUSY status, SWD debugging pins, etc.
Antenna	SMT pins, 50 Ω impedance
Power Consumption	1.62 µA (sleep), 119 mA (transmit + MCU), 6.8 mA (receive + MCU)
Communication Distance	Typical 6–7 km, up to 15 km
Crystal Type	Industrial-grade 32 MHz TCXO
Frequency Range	150 MHz to 960 MHz
Operating Voltage	1.8 ~ 3.7 V
Operating Temperature	-40°C to +85°C (industrial grade)

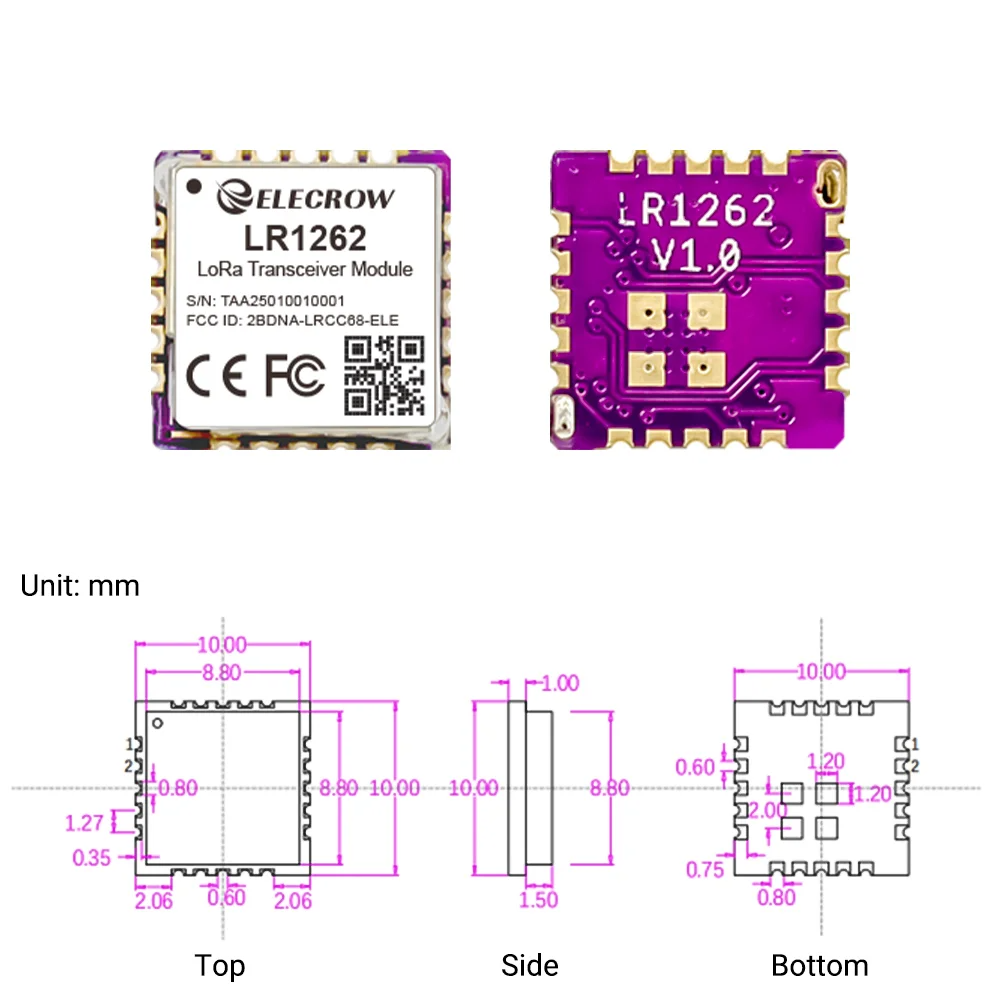

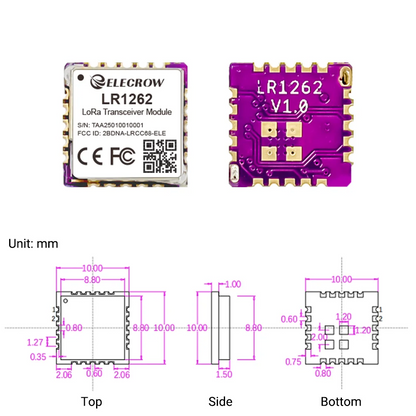

Package Size	10 × 10 × 3.5 mm, 20-pin stamp hole design
Net Weight	Approx. 1 g

Why Choose LR1262?

The LR1262 module is ideal for developers looking for a highly compact, ultra-low-power LoRa solution with excellent range and sensitivity. Its small footprint, high link budget, and robust performance make it perfect for scalable IoT deployments and industrial applications where space, power efficiency, and reliability are critical.
