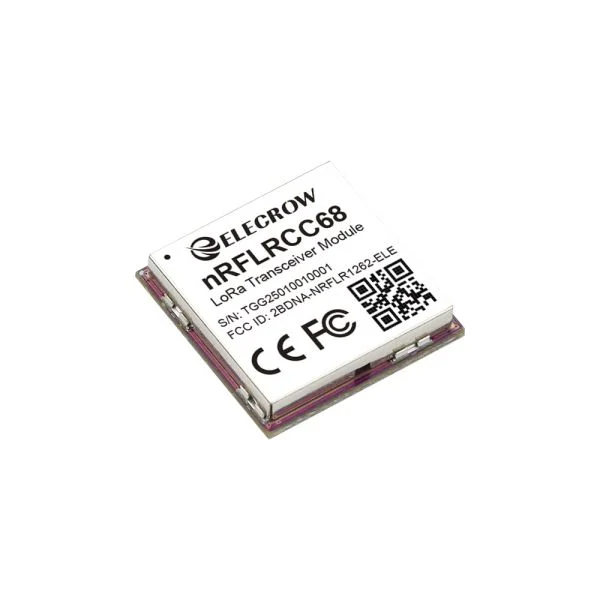

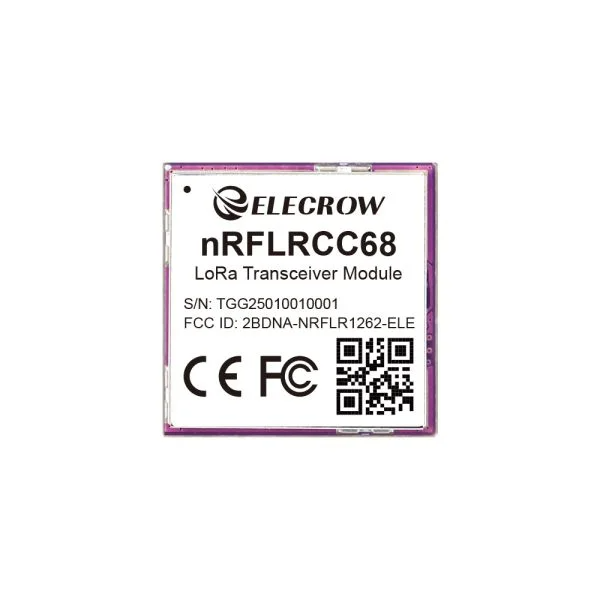

Elecrow nRFLRCC68 Wireless Transceiver Module

Name: Elecrow nRFLRCC68 Wireless Transceiver Module
Brand: Elecrow
SKU: 123004077
Price: 9.90 USD
Availability: InStock

$ 9.90 USD

Sale Sold out

Quantity

SKU:123004077

Out of stock — Available on backorder

Also in this family: nRFLR1262, nRFLR1110 , and nRFLR1121 .

The Elecrow nRFLRCC68 Wireless Transceiver Module integrates the powerful Nordic nRF52840 microcontroller with the Semtech LLCC68 LoRa transceiver, offering a cost-effective, high-performance, and low-power solution for medium- and long-range wireless communication.

It supports Bluetooth 5.3, LoRaWAN 1.0.3 (Class A/B/C), and LoRa point-to-point (P2P) communication, operating across the 850–930 MHz ISM band (including 868 MHz and 915 MHz). The module delivers up to +20 dBm transmit power, data rates from 1.76 to 62.5 Kbps, and communication distances up to 10 km.

Designed with cost optimization in mind, this module retains key advantages such as low power consumption and high transmit performance while removing less commonly used ultra-low-rate scenarios. This makes it especially suitable for smart home applications and medium-range indoor or indoor-to-outdoor communication systems.

With built-in AT command firmware, SDK support for customization, and rich peripheral interfaces, the nRFLRCC68 provides flexibility and ease of integration for a wide range of IoT applications.

Key Features

High Performance: Up to +20 dBm transmit power, 1.76–62.5 Kbps data rate, -125.5 dBm sensitivity (@SF12/BW=125 kHz), 151 dB link budget
Ultra-Low Power Consumption: Sleep current as low as 5 µA
Wide Wireless Support: 850–930 MHz LoRa & LoRaWAN ISM bands, LoRa P2P, Bluetooth 5.3, Bluetooth Mesh, NFC, Thread, Zigbee
Cost-Optimized Design: Maintains performance while reducing cost for broader applications
Flexible Development: Built-in AT command firmware with SDK support; easy UART interface integration
Long-Range Communication: Up to 10 km transmission distance
Rich Interfaces: GPIOs including UART, I2C, ADC, etc.
Compact Design: 20 × 20 × 3.5 mm form factor
Certified & Reliable: FCC, CE, RoHS compliant

Applications

Smart City Infrastructure
Smart Agriculture
Industrial Automation
Environmental Monitoring
Smart Home Systems
Logistics & Asset Management
Medical & Healthcare Devices
Indoor-to-Outdoor Wireless Communication
Cost-Sensitive IoT Deployments

Technical Specifications

Category	Specification
Processor
CPU	nRF52840 processor, dual-core 32-bit, 64 MHz main frequency
RF Chip
Chipset	Semtech LLCC68
LoRa Specification
Transmit Power (TX)	Up to +20 dBm
Receiving Sensitivity	-125.5 dBm
Link Budget	Up to 151 dB
Demodulator	Supports LoRa / (G)FSK modulation
LoRa Frequency Range	Configurable from 150 MHz to 960 MHz
Spreading Factor	SF5 ~ SF11
Data Transfer Rate	1.76 – 62.5 Kbps
Other
Frequency	850 ~ 930 MHz (supports 868 MHz and 915 MHz ISM bands)
Communication Interface	SPI (0 ~ 10 Mbps)

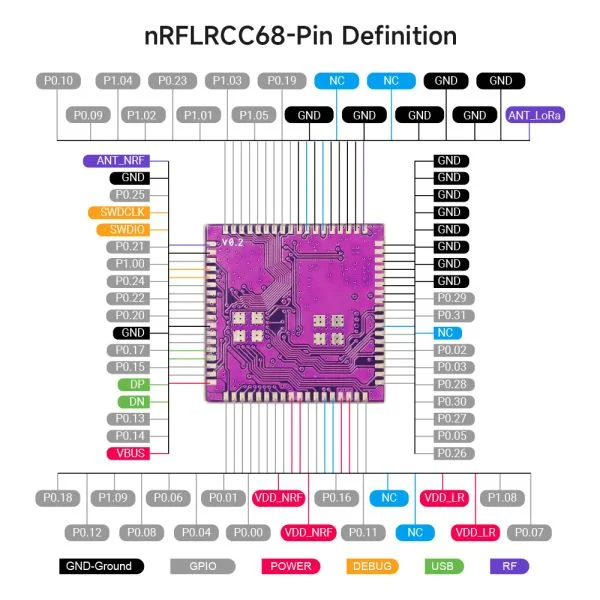

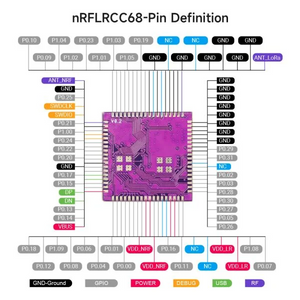

Lead Pin	SPI, VCC, multiple GND, NRST, ANT, TX/RX control, BUSY status, NFC, SWD debugging pins
Antenna	External antenna via RF pins (no onboard antenna)
Power Consumption	5 µA (sleep), 120 mA (transmit + MCU), 12 mA (receive + MCU)
Communication Distance	Typical 5–6 km, up to 10 km
Crystal Type	Industrial-grade 32 MHz TCXO
LoRaWAN Protocol	Class A / B / C (LoRaWAN 1.0.3 compliant)
Operating Voltage	1.8 ~ 3.7 V
Operating Temperature	-40°C to +85°C (industrial grade)

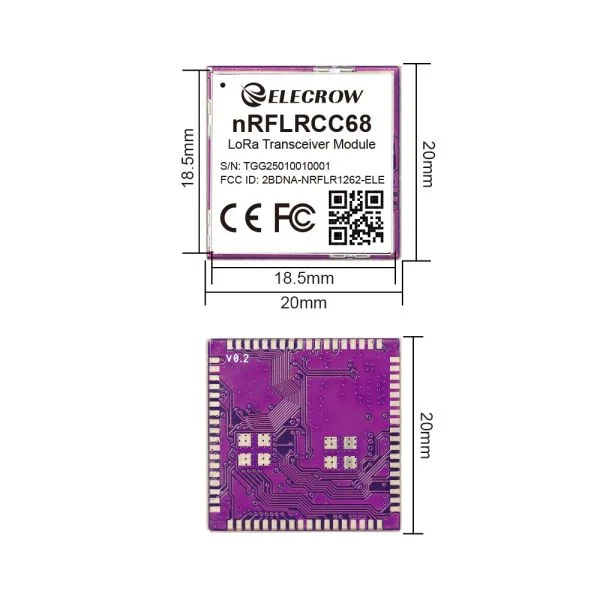

Package Size	20 × 20 × 3.5 mm, 80-pin SMT, LGA package
Weight	Approx. 3 g

Why Choose nRFLRCC68?

The nRFLRCC68 module is designed for developers who need a balance between performance and cost. It delivers reliable LoRa long-range communication combined with Bluetooth connectivity, making it ideal for scalable IoT deployments where efficiency, flexibility, and affordability are key.
