Also available: CrowPanel Advance 2.4" Meshtastic HMI Display and CrowPanel Advance 2.8" Meshtastic HMI Display.
The CrowPanel Advance 3.5" HMI ESP32 AI Display for Meshtastic is an upgraded intelligent display from the CrowPanel Advance Series, designed to deliver enhanced performance, rich features, and seamless connectivity.

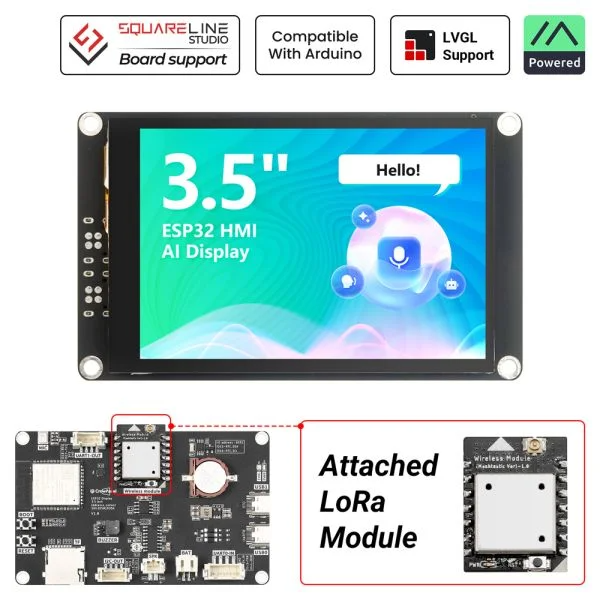

This Meshtastic-enabled version integrates the SX1262 LoRa module, allowing the display to connect directly to the Meshtastic mesh network and communicate with other devices in off-grid environments.
Powered by the ESP32-S3 processor, featuring a dual-core Xtensa LX7 CPU running up to 240MHz, along with 512KB SRAM, 8MB PSRAM, and 16MB Flash, the device provides powerful processing for complex applications. It also includes Wi-Fi and Bluetooth connectivity, ensuring reliable wireless communication.
The 3.5-inch IPS display (480×320 resolution) offers a wide 178° viewing angle and responsive capacitive touch, delivering an intuitive and immersive user experience.
A standout feature is its integrated AI functionality, supporting voice recognition and speech synthesis through a built-in microphone and speaker, enabling natural interaction with smart assistants.
With support for Arduino IDE, Espressif IDF, PlatformIO, and compatibility with the LVGL graphics library, developers can easily build custom UI applications. Combined with flexible wireless module support and extensive I/O, this display is ideal for modern IoT, HMI, and embedded systems.
Key Features
-
Meshtastic-Enabled Communication
- Built-in SX1262 LoRa module
- Direct access to Meshtastic mesh networks
- Enables off-grid messaging and device communication
-
High-Performance ESP32-S3 Platform
- Dual-core Xtensa LX7 processor up to 240MHz
- 512KB SRAM + 8MB PSRAM + 16MB Flash
- Powerful performance for embedded and AI applications
-
Advanced AI Voice Interaction
- Built-in microphone and speaker interface
- Supports voice recognition and speech synthesis
- Enables seamless interaction with smart assistants
-
Immersive Display Experience
- 3.5-inch IPS display (480×320 resolution)
- 178° wide viewing angle
- Smooth and responsive capacitive touch
-
Flexible Wireless Expansion
- Replaceable wireless module design
- Supports multiple protocols:
- LoRa
- Zigbee
- nRF24L01
- Matter
- Thread
- Wi-Fi 6
-
Developer-Friendly Ecosystem
- Supports Arduino IDE, Espressif IDF, PlatformIO
- Compatible with LVGL graphics library
- Supports C++ development
- Built-in demo UI and examples for quick start
-
Easy UI Design
- Fully compatible with SquareLine Studio
- Simplifies UI design and development
- Enables rapid prototyping of custom interfaces
-
Enhanced Hardware Design
- Built-in RTC (Real-Time Clock)
- Optimized vertical interface layout
- Compact and integrated design for embedded systems
-
Sensor Integration
- Compatible with 150+ Crowtail sensors
- Expandable for various IoT applications
Applications
- Industrial Automation
- Smart City Solutions
- Smart Home & Building Automation
- Agricultural Technology
- Environmental Monitoring
- Energy Management Systems
- Logistics & Supply Chain Management
- Retail & Hospitality
- Medical Equipment Interfaces
- Education & Research Projects
- Emergency & Disaster Response
Technical Specifications
| Category | Specification |
|---|---|
| Main Chip (ESP32-S3-WROOM-1-N16R8) | |
| CPU/SoC | Xtensa 32-bit LX7 dual-core processor, up to 240MHz |
| System Memory | 512KB SRAM, 8MB PSRAM |
| Flash / ROM | 16MB Flash, 384KB ROM |
| Development Language | C/C++ |
| Development Environment | ESP-IDF, Arduino IDE, PlatformIO, LVGL |
| Display | |
| Size | 3.5 inch |
| Driver IC | ILI9488 |
| Resolution | 480 × 320 |
| Panel Type | IPS Panel |
| Touch Panel | Capacitive Single Touch |
| Viewing Angle | 178° |
| Brightness | 400 cd/m² (Typical) |
| Color Depth | 16-bit |
| Wireless Communication (Onboard Antenna) | |
| Wi-Fi | 2.4GHz, 802.11 a/b/g/n |
| Bluetooth | Bluetooth 5.0 and BLE |
| LoRa | Supported via SX1262 module |
| Interface & Functions | |
| Interfaces | USB port, UART, I2C, SD card slot, battery socket, speaker port, microphone |
| Functions | RTC clock, audio amplifier, volume control, battery charge management, USB-to-UART |
| Buttons & Indicators | |
| Reset Button | Yes, press to reset the device |
| Boot Button | Press and hold to enter programming mode |
| PWR | Power indicator |
| CHG | Battery charging status indicator |
| Power | |
| Input | 5V / 2A via USB or UART terminal |
| Environment | |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
| Mechanical | |
| Installation Method | Back hanging, fixed hole |
| Dimensions | 101.4 × 63.3 × 15.8 mm |
| SX1262 LoRa Module (Pin Definition) | |
| Interface | DIO1, DIO2, DIO3 (GPIO) SCK, MISO, MOSI (SPI) NSS (Chip Select) BUSY (Status) NRESET (Reset) 3V3, GND |
| Antenna Performance | |
| Gain | 3.5 dBi |
| VSWR | ≤ 1.9 |
| Impedance | 50 Ω |
| Polarization | Vertical |
| Lightning Protection | DC Ground |
| Antenna Mechanical Specification | |
| Wire Spec | RF1.13 |
| Wire Length | 10 cm |
| Connector Type | IPEX-1 |
| Weight | 0.01 kg |
| Operating Temperature | -40°C to 85°C |

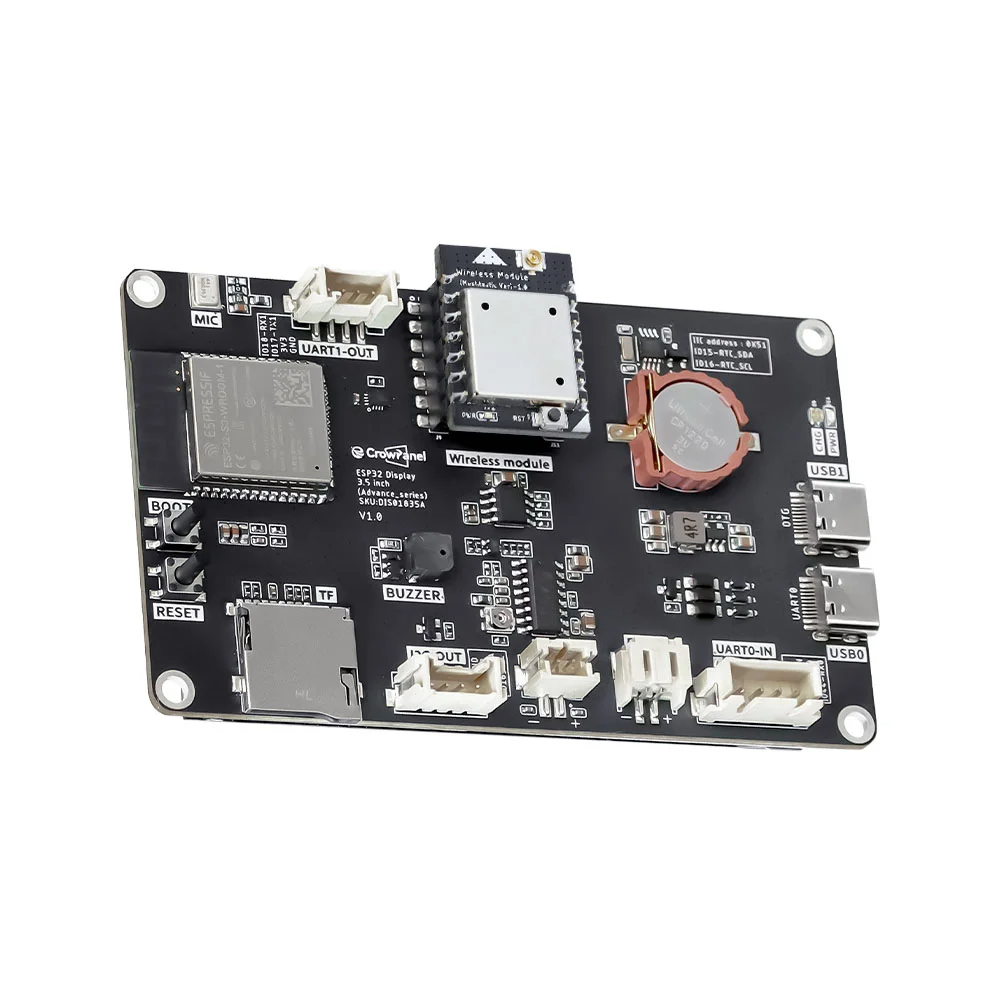

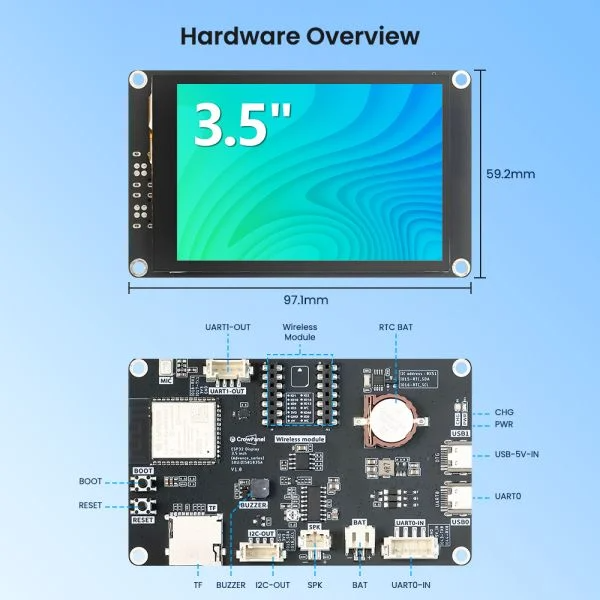

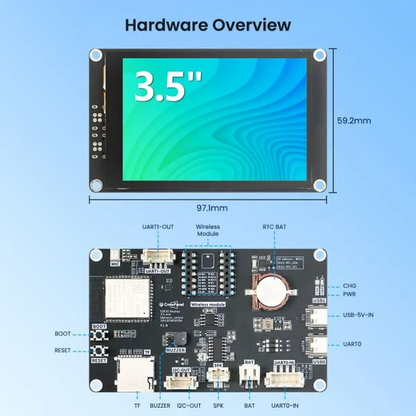

| Display Pin Definition | |
| SPK | Audio output (PH2.0-2P) |
| PWR | Power LED |
| RST | Reset button |
| BOOT | Boot configuration |
| UART0-OUT | Serial communication output (HY2.0-4P) |
| UART0-IN | Serial communication input (XH2.54-4P) |
| I2C-OUT | Peripheral communication (HY2.0-4P) |
| BAT | Battery connection (PH2.0-2P) |
