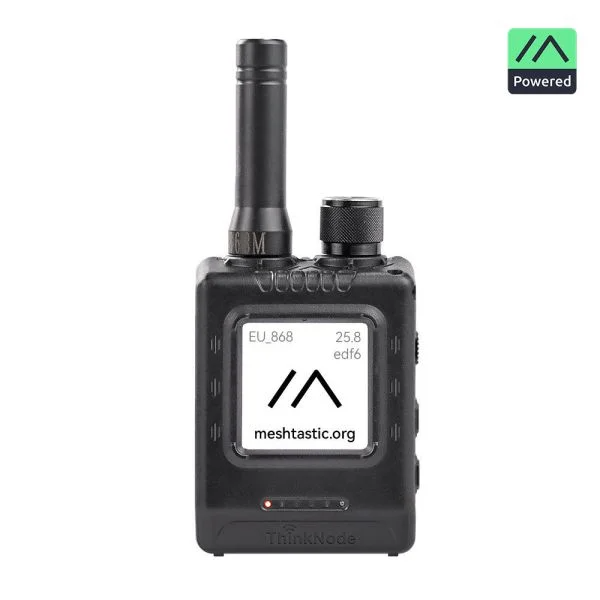

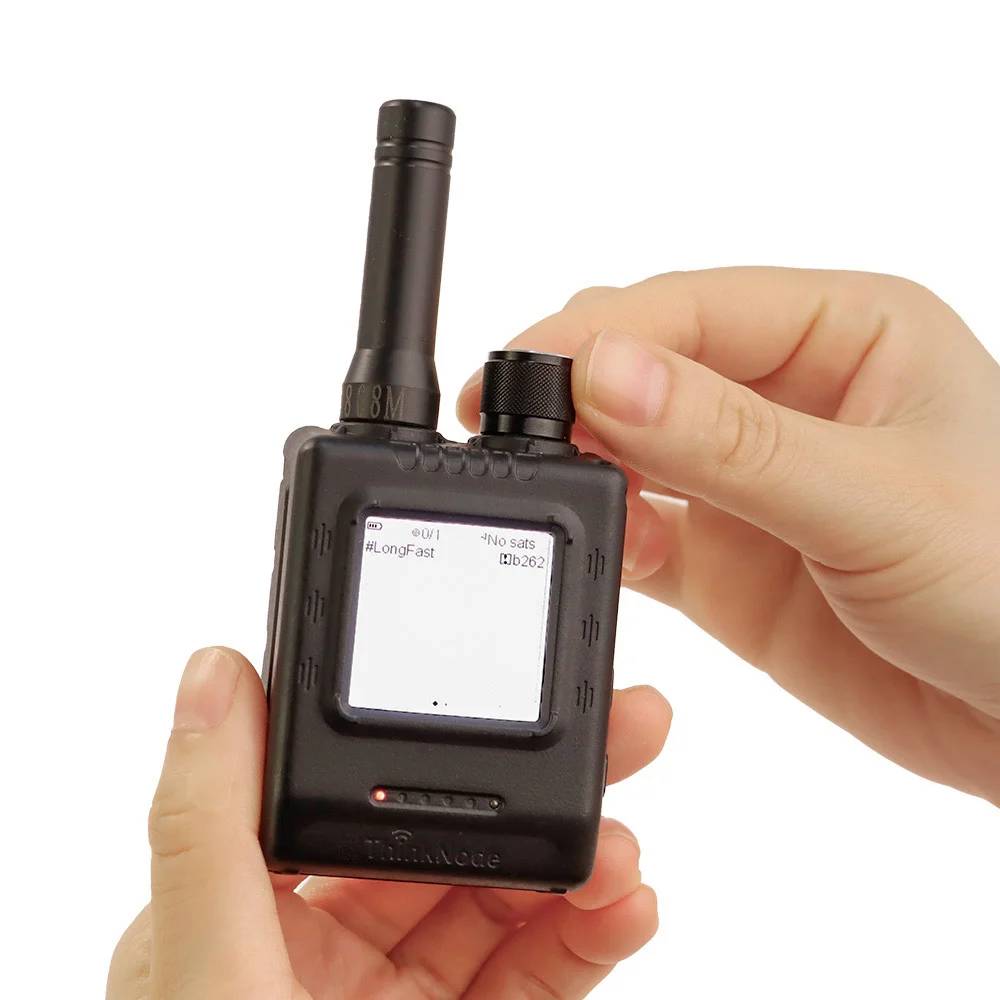

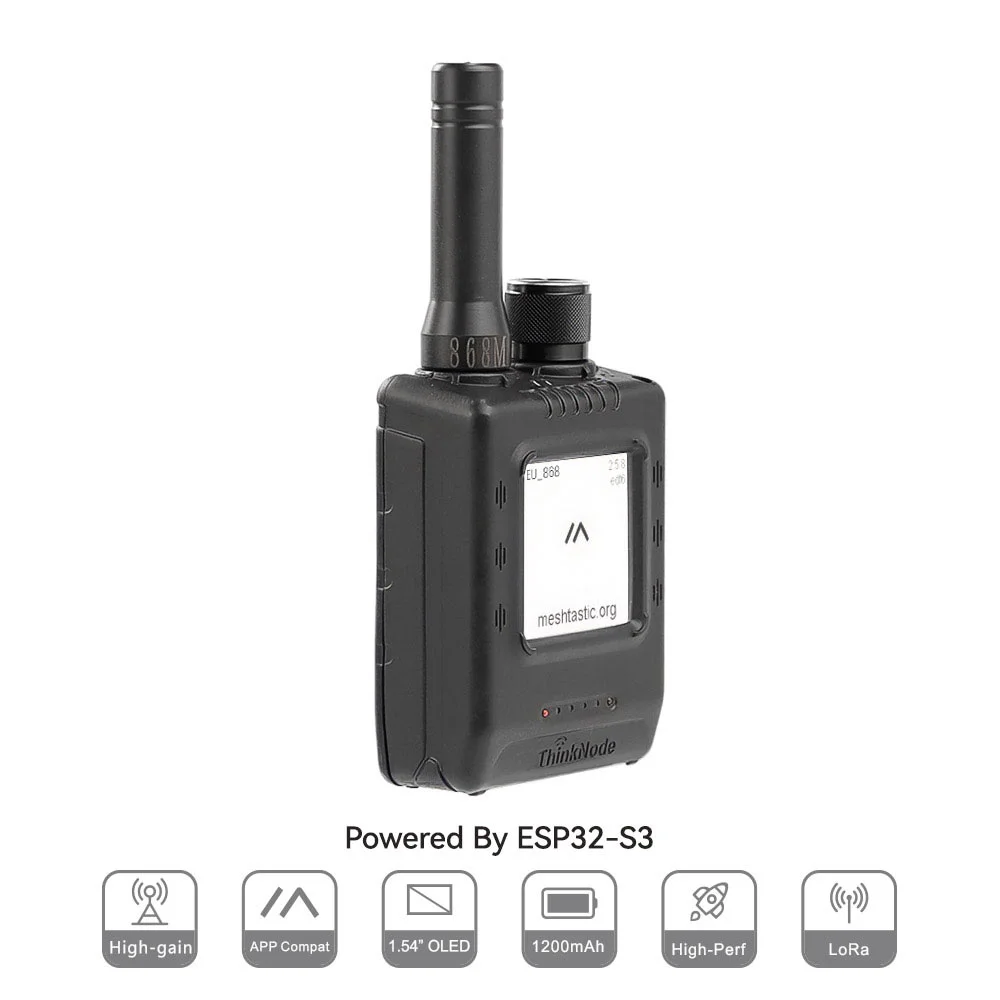

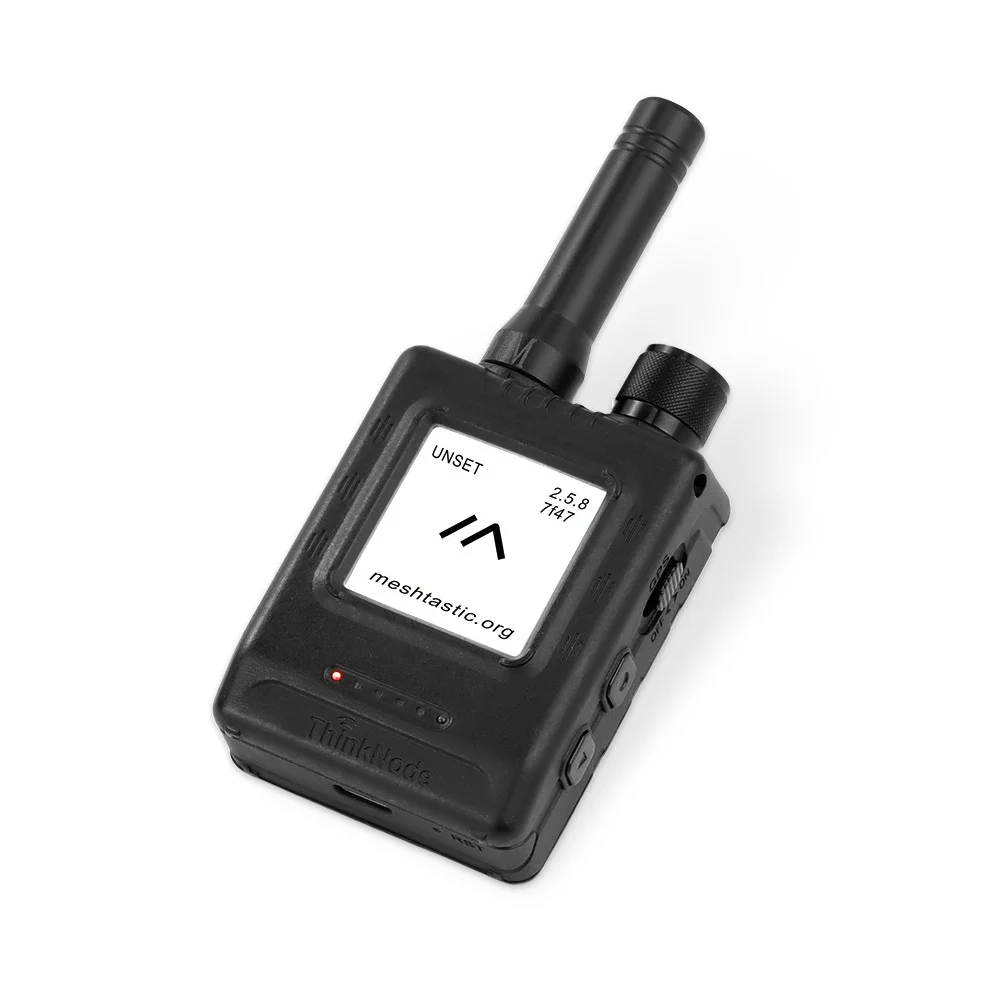

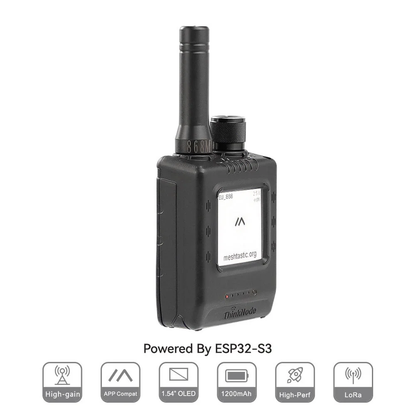

Elecrow ThinkNode M5 Pro Meshtastic Walkie-Talkie

$ 53.90 USD

Sale Sold out

Frequency Type 915 MHz 868 MHz

Quantity

SKU:123004031

Out of stock — Available on backorder

The Elecrow ThinkNode-M5 is a high-performance, multi-function device designed for long-range communication, outdoor use, and emergency scenarios. It integrates advanced wireless technologies and multiple sensors into a compact, portable design.

Powered by the ESP32-S3 processor, the device supports Bluetooth connectivity, allowing users to easily configure and monitor it through their mobile phones. Pre-installed with Meshtastic firmware and combined with the SX1262 LoRa transceiver, the ThinkNode-M5 enables efficient and reliable long-distance communication.

The device is fully compatible with the Meshtastic official app, enabling:

Device configuration and parameter management
Message communication
Map and location sharing
Network monitoring
Data logging and export
Custom settings

A 1.54-inch EPD (E-Ink) display provides real-time status updates with ultra-low power consumption. The built-in 1200mAh rechargeable battery ensures extended outdoor operation.

With integrated multi-constellation GPS, external LoRa antenna, and a rugged compact enclosure, the ThinkNode-M5 serves as a reliable standalone communication tool in off-grid or emergency environments.

Key Highlights

High-performance ESP32-S3 processor
Long-range LoRa communication
Meshtastic firmware (out-of-the-box ready)
1.54" E-Ink display
Built-in GPS (multi-constellation)
1200mAh rechargeable battery
Mobile app compatibility
Compact and durable design

Key Features

Meshtastic Protocol Support
Optimized firmware for stable and efficient LoRa communication.
Multi-Constellation GPS
Supports GPS, GLONASS, BeiDou, and QZSS for accurate positioning.
RTC Clock Function
Maintains accurate time even when powered off and supports fast wake-up.
1.54-inch EPD Display
Real-time viewing of device data with ultra-low power usage.
Long Battery Life
Built-in 1200mAh lithium battery for continuous outdoor operation.
Ultra-Low Power Design
- Max current: ~340mA
- Sleep current: ~34µA
Meshtastic App Compatibility
Enables messaging, mapping, monitoring, and customization.
Compact & Rugged Enclosure
Portable and durable for outdoor environments.
External LoRa Antenna
Ensures stable and efficient signal transmission.

Applications

Outdoor adventure
Emergency communications
Community networking
Fleet management
Technology enthusiasts

Technical Specifications

Category	Specification
Main Processor (ESP32-S3)
CPU/SoC	High-performance Xtensa 32-bit LX7 dual-core processor, clocked at up to 240MHz
System Memory	512KB SRAM, 8MB PSRAM
Storage	4MB Flash, 384KB ROM
Firmware	Meshtastic firmware is fully compatible, and the signal is transmitted in LoRa mode
EPD Display (Electronic Paper Display)
Size	1.54 inch EPD (monochrome ink screen)
Display Materials	E-Ink (Electronic Ink)
Resolution	200 × 200 or more
Driver Chip	SSD1681 (via SPI or I2C interface)
Refresh Time	2s
Wireless Communication
Bluetooth	Bluetooth Low Energy and Bluetooth 5.0
LoRa	SX1262 LoRa Transceiver, US915 / EU868 (external antenna)
Hardware
Interface	Type-C Interface, RP-SMA Interface
Function	GPS (GPS, GLONASS, BeiDou, QZSS), EPD Display, RTC, USB2.0, PMU power management (built-in 1200mAh lithium battery), buzzer
Button	Knob switch, function button, page turn button, GPS switch, reset button
LED Indicator	Power supply, GPS / LoRa indication
Other
Power Input	5V / 1A, supports USB or lithium battery power supply
Power Consumption	Max ~340mA (CPU + LoRa), low power ~34µA
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Relative Humidity	10%–95% @ 40°C (non-condensing)

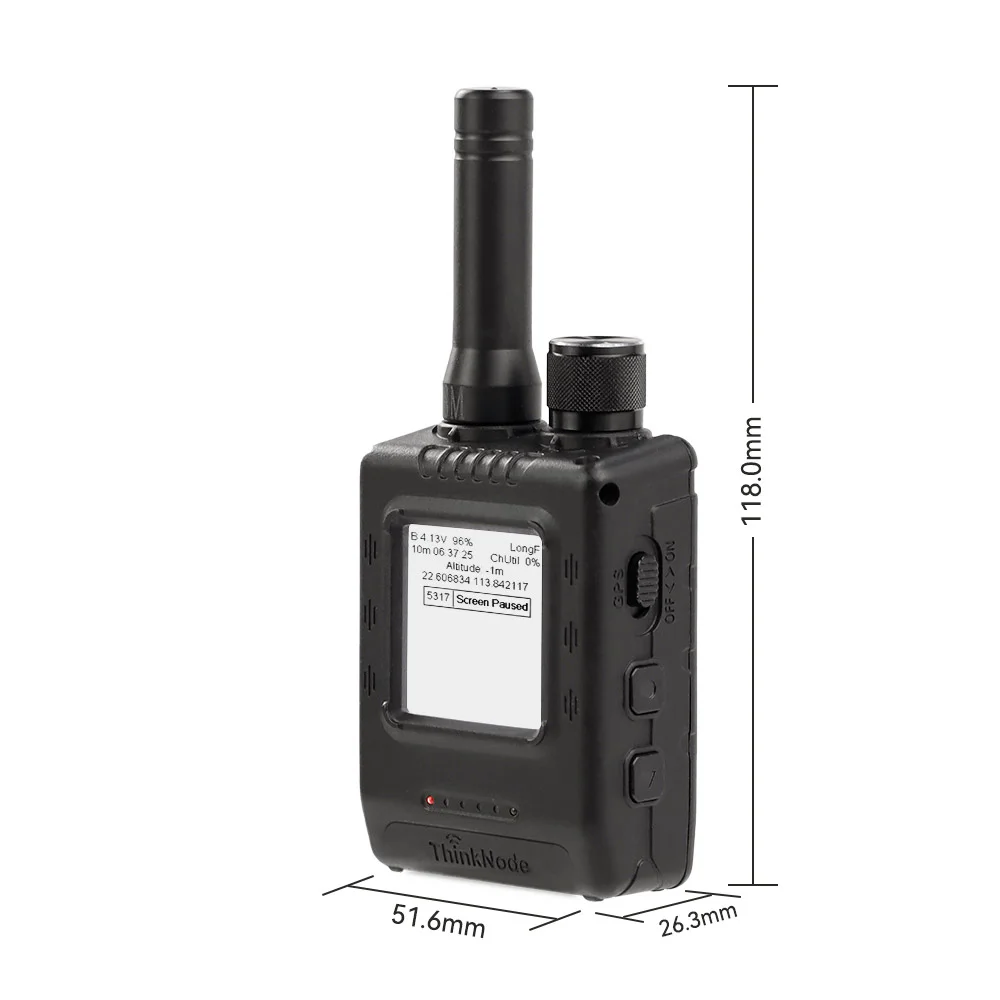

Size	82 × 51.6 × 26.3 mm
Enclosure	ABS Plastic
Net Weight	81g

Why Choose ThinkNode-M5?

The ThinkNode-M5 combines powerful ESP32-S3 performance, LoRa communication, and GPS tracking in a compact, portable device. It is ideal for off-grid connectivity, ensuring reliable communication where traditional networks are unavailable.
