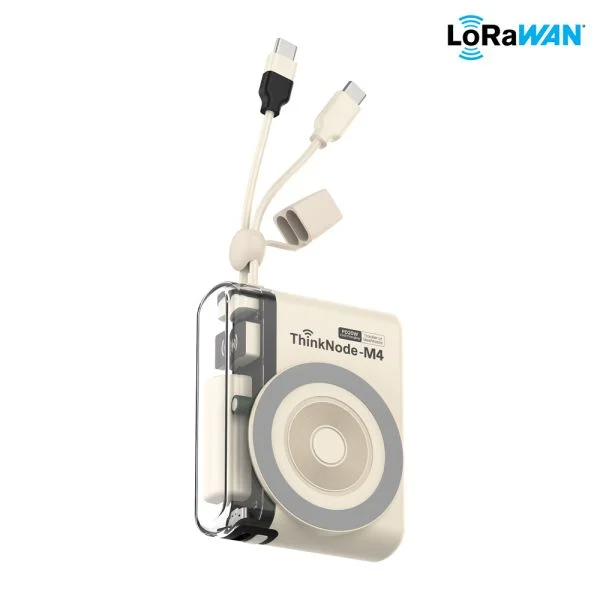

Elecrow ThinkNode M4 LoRaWAN Tracker Power Bank

Elecrow ThinkNode M4 LoRaWAN Tracker Power Bank

$ 59.90 USD
$ 59.90 USD
Sale Sold out

123004035

Out of stock — Available on backorder

Looking for the Meshtastic version? See the ThinkNode M4 Meshtastic Power Bank

The Elecrow ThinkNode-M4 is a groundbreaking multifunctional device that combines a high-capacity power bank with advanced LoRa long-range wireless communication and precision GPS tracking. Designed for decentralized communication and asset tracking, it enables reliable connectivity and positioning even in environments without cellular or internet coverage.

As a LoRaWAN tracker, the ThinkNode-M4 provides seamless indoor and outdoor positioning using LoRaWAN networks and GNSS systems. Its compact, portable design makes it ideal for tracking assets across cities, farms, and remote locations while ensuring real-time visibility, improved safety, and operational efficiency.

Key Highlights

  • LoRaWAN long-range communication
  • Integrated GPS, temperature & humidity sensing
  • 7000mAh rechargeable battery
  • Fast charging (PD, QC, PPS support)
  • Magnetic (MagSafe-compatible) charging
  • Built-in LED emergency lighting
  • CE & FCC certified
  • Frequency: 868–915 MHz

Key Features

  • Long-Range LoRa Communication
    Integrated LoRa module enables reliable, long-distance wireless communication for IoT and tracking applications.
  • Decentralized Networking
    Build independent mesh networks for seamless communication between multiple devices without relying on infrastructure.
  • Real-Time GPS Tracking
    High-sensitivity GNSS module supports GPS, BeiDou, GLONASS, and QZSS for accurate positioning and route tracking.
  • Location Sharing via LoRaWAN
    Share real-time location data across LoRaWAN networks for monitoring and safety applications.
  • High-Capacity Power Bank
    Built-in 7000mAh lithium battery supports fast charging and reverse charging for external devices.
  • Multi-Device Compatibility
    USB-C interface supports smartphones, tablets, cameras, GPS units, and more.
  • Smart Power Management
    Integrated protection against overcharge, over-discharge, and short circuits with real-time monitoring.
  • Integrated Sensors
    Includes temperature, humidity sensors, and a six-axis gyroscope for environmental and motion detection.
  • Rugged & Portable Design
    Durable, waterproof, dustproof, and shock-resistant enclosure for harsh environments.
  • Emergency Lighting & SOS Mode
    Built-in LED with multiple lighting modes including SOS flashing.

Applications

  • Outdoor Adventure (mountains, forests, deserts)
  • Emergency & Disaster Communication
  • Community Mesh Networking
  • Golf Courses & Resorts
  • Summer Camps & Group Activities
  • Ski Resorts & Remote Locations

Technical Specifications

Category Specification
Power Bank
Fast charging protocol PS output; QC2.0 output;
QC3+/QC3.0 output;
PD3.1 input/output;
SCP/FCP/AFC input/output
Integrated High-precision electricity meter, scene control management
Switch charging Support single-cell charging, including trickle current, constant current, constant voltage, charge cutoff, and recharge complete charging cycle management;
Support 4.2V/4.3V/4.35V/4.4V/4.45V ternary batteries and 3.6V/3.65V lithium iron phosphate batteries;
Support I2C to set charging current;
Support charging temperature loop control
Synchronous Boost Output power up to 22.5W;
Support I2C to set output voltage and output current limit;
Automatic load detection / light load detection;
Support discharge temperature loop control
LoRa Communication
CPU/SoC nRF52840-QIAA (Nordic)
System Memory 256 KB RAM
Storage 3 MB Flash memory (external 2M Flash chip)
Firmware Meshtastic firmware compatible, LoRaWAN Tracker function compatible(Optional)
LoRa Transceiver Semtech LR1110
LoRaWAN Class Class A
LoRaWAN Spec Version 1.0.3
Regional Plans EU868, US915
Activation OTAA only
Compatible Network Servers TTN, ChirpStack
Charge and discharge function Charge three units at the same time
Type-C port Input: 5V/3A, 9V/2A, 12V/1.5A
Type-C Cable Discharge function:
Output: 5V/3A, 9V/2A, 12V/1.5A
Wireless charging Discharge function:
Output: 5W, 7.5W, 10W, 15W
Charging time 3~4 Hour
Wireless Communication
Bluetooth Bluetooth Low Energy and Bluetooth 5.4, internal antenna (phone configuration)
LoRa LR1110 LoRa Transceiver, US 915MHz / EU 868MHz (Internal antenna)
Battery
Type 18650 Lithium-ion Battery
Nominal capacity 7000mAh (can be taken on airplanes)
Power 3.6V/25.2Wh
Rated capacity 3800mAh (5V/3A)
Conversion Rate More than 74%

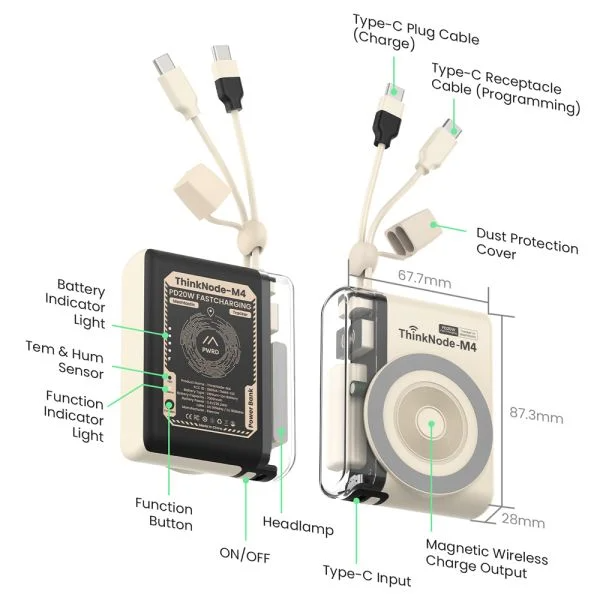

Hardware
Power button (power bank) Touch a button to wake up the device or turn on the light
LoRa function Button Touch a button to enable/disable LoRa function and Bluetooth configuration device parameters

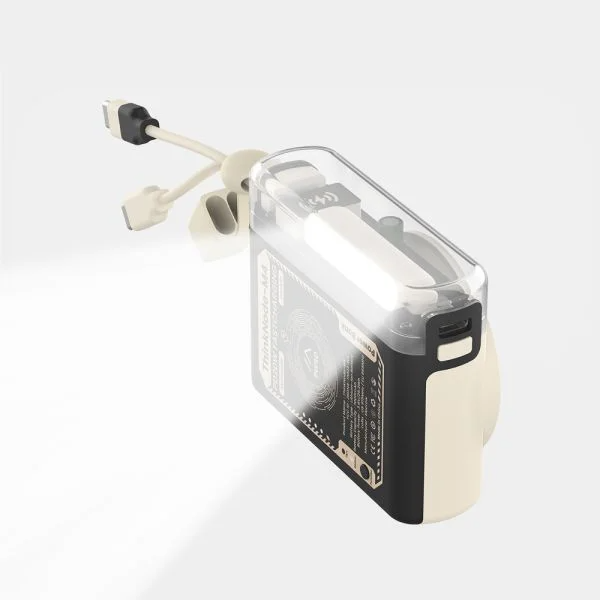

Emergency Lights Built-in LED strong light, three lighting effects (lighting, strong light, SOS flashing)
Charging cable Comes with dual cables (Type-C)

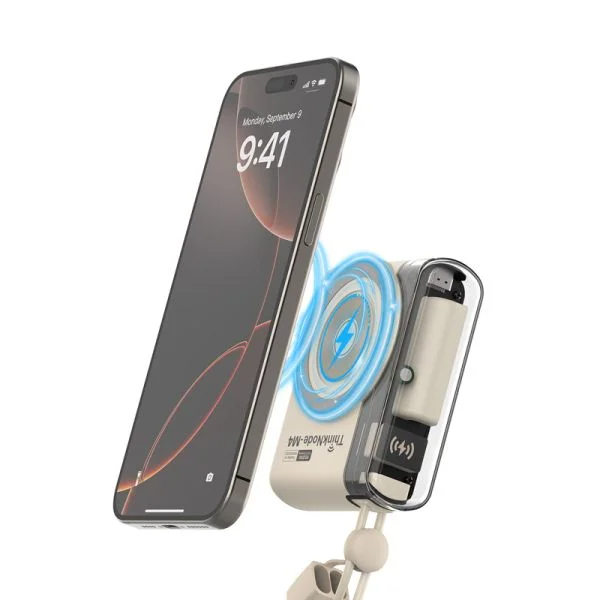

Magnetic function Comes with a magnetic ring, compatible with Apple's MagSafe charging structure
GPS positioning Support GPS, BeiDou, GLONASS, QZSS, built-in ceramic antenna
Protection/SOS function Yes
Other
Sensor Temperature and humidity sensors and a six-axis gyroscope
Power Input 5~12V, Type-C interface
Power consumption Working static power consumption: 45mA;
Sleep power consumption: 55uA (LORA module: 15.95uA, power bank module: 40uA);
Maximum working current: Send 175mA, receive 54mA
Storage Temperature -20~45 °C
Size 87.3*67.7*28mm
Enclosure ABS fireproof plastic + PC + TPE
Using Method Magnetic, handheld, lanyard
Weight 190g

Technical Documents

LoRa is a registered trademark of Semtech Corporation. LoRaWAN is a trademark of the LoRa Alliance. USB-C is a registered trademark of USB Implementers Forum. MCCI and MCCI Catena are registered trademarks of MCCI Corporation. All other trademarks are the property of their respective owners.
