Elecrow ThinkNode M6 Outdoor Solar Meshtastic Node
Elecrow ThinkNode M6 Outdoor Solar Meshtastic Node
SKU:123004036
Out of stock — Available on backorder
Couldn't load pickup availability
Looking for the standalone LoRa version? See the ThinkNode M6 Outdoor Solar LoRa Node
The ThinkNode M6 Outdoor Solar Power is a high-performance Meshtastic IoT device engineered for harsh outdoor and industrial environments. Designed for reliable, off-grid communication, it integrates advanced LoRa and Bluetooth technologies with a solar-powered system to deliver continuous operation.
Powered by the nRF52840 core processor and SX1262 LoRa transceiver, the device ensures stable long-range communication and efficient low-power performance. With a built-in 6W solar panel and dual 18650 lithium batteries, it supports all-weather operation.
Its rugged IP65 waterproof enclosure allows operation in extreme temperatures from -20°C to 60°C, making it ideal for remote deployments. The device supports multiple mounting options including wall, pole, bracket, and U-clamp installation, enabling flexible deployment across various environments.
Pre-installed with Meshtastic firmware, the ThinkNode M6 is ready for immediate use, making it ideal for mesh network expansion, remote monitoring, emergency communication, and off-grid IoT applications.
Key Features
-
All-Weather Solar Power System
- Integrated 6W high-efficiency solar panel
- MPPT smart charging for maximum energy harvesting
- Long-term operation with low power consumption and battery backup
-
High-Performance Hardware
- 64 MHz Arm Cortex-M4 processor with DSP support
- SX1262 LoRa chip (150–960 MHz) for long-range communication
- Bluetooth 5.4 (BLE) for fast configuration and connectivity
-

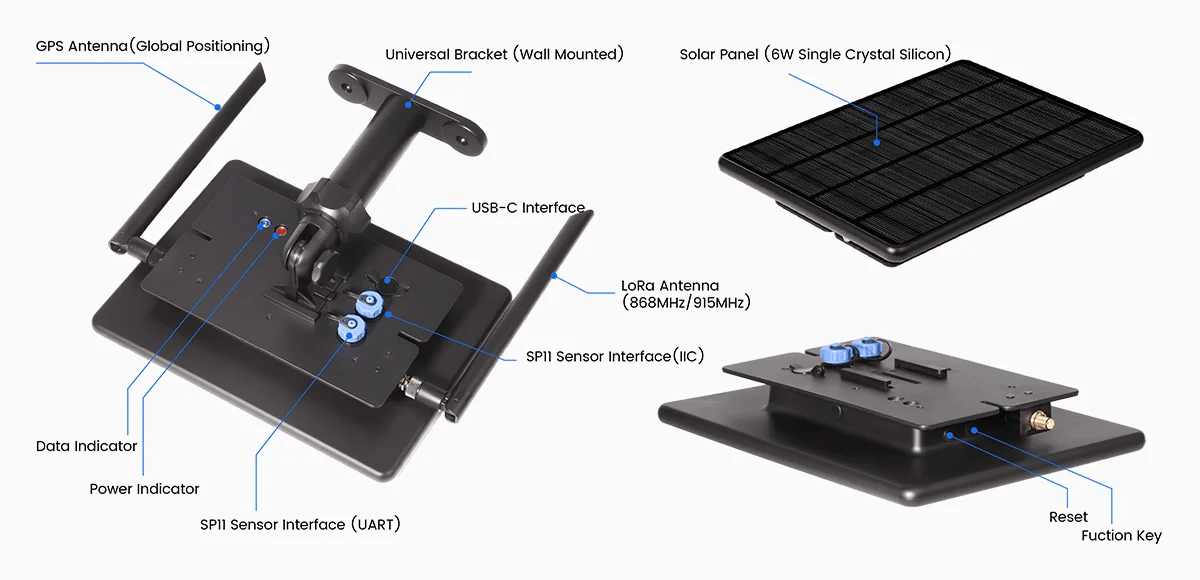

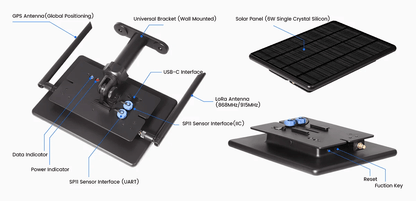

Flexible Expansion Interfaces
- Dual SP11 waterproof aviation connectors
- Supports IIC / UART interfaces
- Easy integration with sensors:
- Temperature
- Humidity
- Gas
- Soil monitoring
-
Edge Computing Capability
- Local data processing (filtering, compression, protocol conversion)
- Reduces cloud dependency
- Improves response time and data privacy
-
High-Precision GPS Positioning
- Built-in L76K GPS module
- Real-time location tracking and sharing via Meshtastic network
-
Rugged Industrial Design
- IP65 waterproof protection
- Operating temperature: -20°C to 60°C
- Durable enclosure for outdoor deployment
-
Easy Deployment
- Pre-installed Meshtastic firmware
- Compatible with Meshtastic App
- Plug-and-play setup for rapid deployment
-
Multiple Mounting Options
- Wall mounting
- Pole mounting
- Bracket installation
- U-shaped clamp mounting
Applications
- Smart City Infrastructure
- Emergency & Disaster Communication
- Intelligent Agriculture
- Remote Environmental Monitoring
- Asset Tracking
- Off-Grid Communication Networks
- Technology Enthusiasts & DIY Projects
Technical Specifications
| Category | Specification |
|---|---|
| Main Processor (Nordic nRF52840) | |
| CPU/SoC | 32-bit Arm® Cortex™-M4 CPU at 64 MHz with FPU (Floating Point Unit) |
| System Memory | 256 KB RAM |
| Storage | 1 MB Flash memory, 16M Flash |
| Development Language | C/C++, Python, JavaScript, etc. |
| Development Environment | nRF5 SDK, Keil, Segger Embedded Studio (SES), Visual Studio Code (VS Code), etc. |
| Firmware | Supports the Meshtastic protocol and comes pre-flashed with firmware |
| Configuration Interface | Official APP |
| LoRa Transceiver | |
| Description | The Semtech SX1262 sub-GHz wireless transceiver provides low-power, long-distance transmission, covering 150–960 MHz frequency range and supports SPI communication. |
| Wireless Communication | |
| Bluetooth | Bluetooth Low Energy and Bluetooth 5.4 |
| LoRa | SX1262 LoRa Transceiver, US 915 MHz / EU 868 MHz (External antenna) |
| Hardware | |
| USB Interface | Type-C, External, for power supply and burning |
| Sensor Interface 1 | UART sensor communication, External SP11 interface |
| Sensor Interface 2 | IIC sensor communication, External SP11 interface |
| LoRa Antenna Interface | External RP-SMA Interface |
| GPS Antenna Interface | External RP-SMA Interface |
| Button | Function Button, Reset Button |
| LED Indicator | Power supply, GPS / LoRa indication |
| RTC | Yes, supports interrupt / wake-up |
| Battery | |
| Type | 2× 18650 lithium-ion batteries (Panasonic) |
| Capacity | 7000mAh |
| Voltage | 3.7V ~ 4.2V |
| Protection | Explosion-proof design, all-steel housing, battery safety valve |
| Power | |
| Mainboard Input | 5V / 1A, Type-C |
| Solar Panel Output | 6W rated output |
| Power Consumption | OFF: 21uA TX/RX: 192mA (GPS ON), 147mA (GPS OFF) |
| Buttons | |
| On/Off | Supported |
| Other | |
| Installation Method | Wall mount, bracket, pole mount, U-clamp |
| Environmental Level | IP65 |
| Operating Temperature | -20 ~ 60°C |
| Storage Temperature | -30 ~ 70°C |
| Relative Humidity | 10% – 90% RH (non-condensing) |
| Size | 210 × 156 × 42 mm (excluding antenna and bracket) |
| Enclosure | Plastic |
| Net Weight | 530g |
Technical Documents
