Regular price $ 850.00 $ 0.00

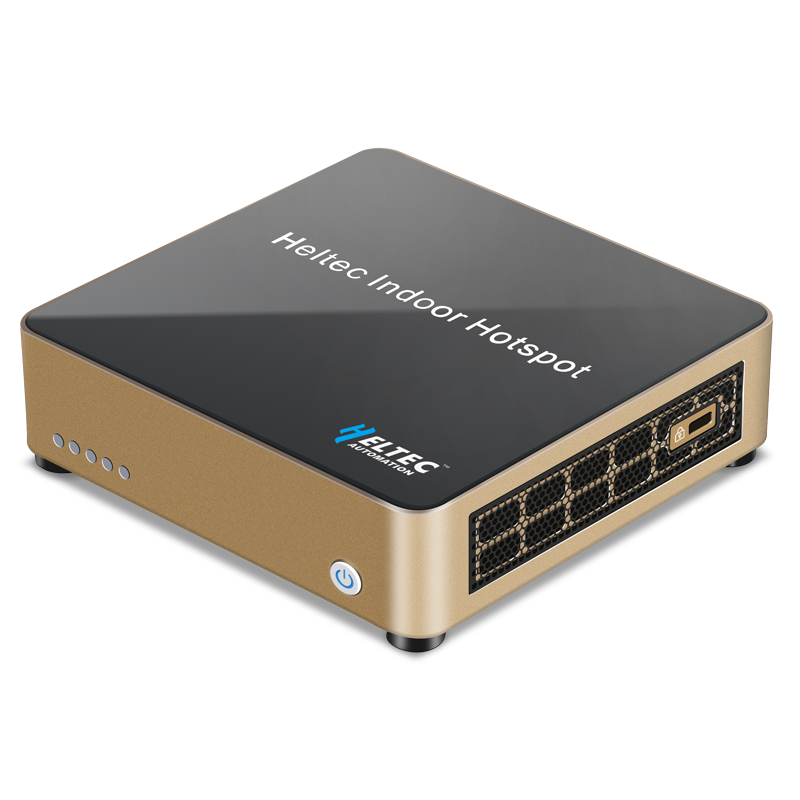

The HT-M2808 is a compact, low power, high quality Helium (HNT) cryptocurrency miner and LoRaWAN® hotspot/gateway for indoor use.  It's manufactured by Heltec, a LoRaWAN pioneer, and fully supported by MCCI 's LoRaWAN experts.

According to Heltec's request and Helium regulations, we are not accepting orders until we have units on hand. However, you click on the "email when back in stock" button above, and we'll let you know as soon as we receive units.

Connect it to your router via Ethernet or Wi-Fi, configure it using the Helium application on your smart phone, and you're ready to move traffic and participate in the Helium blockchain network. (Note: a public IP address is strongly recommended for best results.)

When you buy from MCCI, you not only get a quality product backed by expert support. You also support a company that has invested heavily in open source hardware and software, and in helping to build community networking via The Things Network New York. MCCI is an authorized distributor of Heltec.

Gateways will ship in early January 2022.

Specifications:

Connectivity LoRa baseband SX1308 + SX1255/7 chipset. Sensitivity -142.5 dBm @ 300 bps. Transmit power up to 27 dBm.
LoRa antenna Table-top external antenna with 1.5m (60") cable
Ethernet 10/100M
Wi-Fi IEEE 802.11a/b/g/n/ac 2.4 GHz/5 GHz double frequency with internal antenna
Bluetooth Bluetooth V5.0 EDR and BLE with internal antenna
Platform CPU Quad-core Cortex-A53 64-bit CPU 1.5 GHz
RAM 2 GB DDR4
ROM 32 GB eMMC 5.1
Power 12V DC, 500mA max, 160mA typical (2W). 120/220V external AC adapter included. Barrel connector, 5.5mm/2.1mm
Package Case Size 120 mm x 115 mm x 35 mm (4.72" x 4.53" x 1.38")
Footprint 120 mm x 122.5mm x 40mm (with feet, and including LoRa antenna connector)
Material Case: 6063 aluminum alloy; top: tempered glass
Antenna Connector RP-SMA female. (Mating is RP-SMA male, "inner hole, inner thread".)

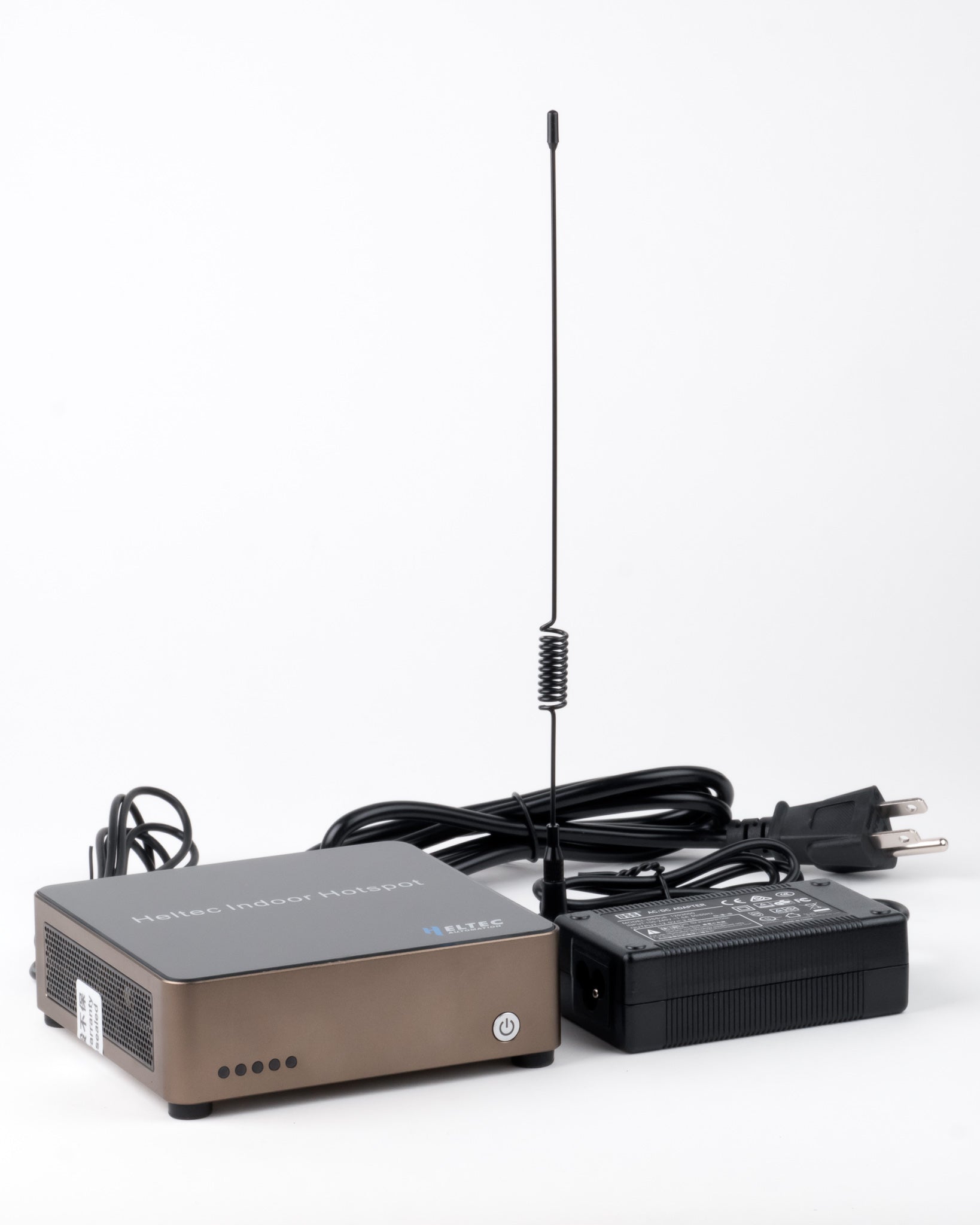

Kit contents:

  • Helium Miner Hotspot/Gateway
  • 12V AC adapter
  • Power cable
  • Indoor LoRa Antenna

Notes:

  • For PoE use, MCCI suggests a 12V, 2A Power-over-Ethernet splitter (not included)
  • Range is maximized by mounting an outdoor antenna, such as our 5dBi antenna kit
  • Volume discounts are available. Other regions are also available. Contact us via email for more information
