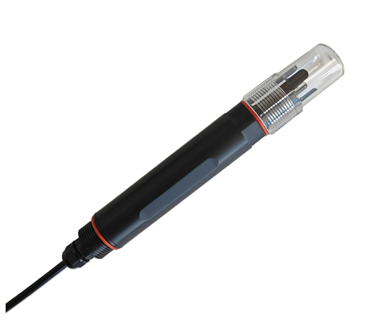

INFWIN DigiORP Digital ORP Sensor

INFWIN DigiORP Digital ORP Sensor

$ 129.00 USD
$ 129.00 USD
Sale Sold out
INFWIN P/N

123004235

Out of stock — Available on backorder

The INFWIN DigiORP is a digital ORP (oxidation-reduction potential) sensor with SDI-12 or RS485/Modbus-RTU output, integrating the ORP electrode and transmission circuit into a single compact IP68-rated probe. Output interface and cable length are configurable via ordering code - the default variant (DigiORP-ABCC002) ships with an ABS+PC shell, an ORP electrode with built-in temperature compensation, RS485/Modbus-RTU output, 4.5–28V DC supply, and a 2 m cable.

A 3/4" NPT thread makes the sensor easy to mount for submersible installation or fit directly into pipelines and tanks. Reverse power protection and built-in TVS/ESD protection are included.

Key Features

  • Integrated ORP measurement: ORP electrode and transmitter circuit combined in one compact, IP68-rated body
  • Built-in temperature compensation: Electrode includes a temperature sensor to compensate ORP readings
  • High precision and good interchangeability: Consistent readings across sensor units
  • Digital output: SDI-12 (V1.3) for universal datalogger compatibility and low-power use, or RS485/Modbus-RTU for long cable runs or multi-sensor networks, both with surge protection
  • 3/4" NPT threading: Convenient for submersible installation or mounting in pipelines and tanks
  • Low power consumption: Suited to battery-powered systems
  • Reverse power protection: Built-in TVS/ESD protection
  • Configuration utility: SensorOneSet software (RS485) or SensorOneSetSDI12 software (SDI-12) included for sensor configuration
  • ODM/OEM service available
  • Cable length: 2 m standard; custom lengths available

Applications

  • Industrial process monitoring
  • Water and wastewater treatment
  • Sewerage systems
  • Irrigation and smart agriculture
  • Aquaculture and hydroponics
  • LoRaWAN IoT deployments via the Catena-5310 or compatible RS485/Modbus-RTU/SDI-12 gateway

Important Notes

  • Operating temperature for the sensor body is 0°C to +80°C, narrower than the ORP electrode's own −40°C to +80°C measurement range.
  • Rated for operating humidity 0–100% and pressure up to 0.2 MPa; storage conditions are −5°C to +65°C, 0–90% humidity.
  • The ORP electrode is a wear item; periodic calibration and eventual electrode replacement should be expected as part of normal maintenance.
  • Response time (under 30 s) is slower than DigiPH's (under 10 s) - allow settling time before logging readings.
  • When using Active Output mode on RS485, only one sensor should be on the network to avoid data collision.

Specifications

ORP (Oxidation-Reduction Potential)
Range −2000.0 to +2000.0 mV
Resolution 0.1 mV
Accuracy ±20 mV
Response time <30 s
Temperature (compensation)
Range −40°C to +80°C
Resolution 0.1°C
Accuracy ±0.5°C
Electrical
Output interface RS485 (Modbus-RTU) or SDI-12, V1.3 (selectable via ordering code)
Power supply 4.5–28V DC
Quiescent current SDI-12: <10 µA @ 12V DC; RS485: <5 mA @ 12V DC
Measuring current <10 mA @ 12V DC
Mechanical
Dimensions 207 × 30 mm (length × diameter), 3/4" NPT threading
Shell material ABS + PC
IP rating IP68
Cable length 2 m standard; custom length available
Environmental
Operating conditions 0°C to +80°C; 0–100% humidity; pressure ≤0.2 MPa
Storage conditions −5°C to +65°C; 0–90% humidity

Ordering Code Guide

Code 1: Product Series DigiORP DigiORP Sensor
Code 2: Shell Material A ABS + PC
Code 3: Electrode Type B ORP Electrode (built-in temperature compensation sensor)
Code 4: Power Supply C 4.5–28V DC
Code 5: Output Interface C
F		 RS485, Modbus-RTU
SDI-12
Code 6: Cable Length 002
XXX		 2 meters
Custom (XXX = length in meters, e.g. 005 = 5 m)

Default Variant: DigiORP-ABCC002

Shell material ABS + PC
Electrode type ORP electrode with built-in temperature compensation
Power supply 4.5–28V DC
Output interface RS485, Modbus-RTU
Cable length 2 meters

Custom variants (output interface, cable length) are available - contact us to discuss your requirements.

Technical Documents

Modbus is a registered trademark of Schneider Electric. SDI-12 is a trademark of the SDI-12 Support Group. INFWIN is a registered trademark of Dalian Endeavour Technology Co., Ltd. MCCI and MCCI Catena are registered trademarks of MCCI Corporation. All other trademarks are the property of their respective owners.
