INFWIN DigiTHP-Gen2 Vapor Pressure, Air Temperature, Humidity and Barometric Sensor

INFWIN DigiTHP-Gen2 Vapor Pressure, Air Temperature, Humidity and Barometric Sensor

$ 49.00 USD
$ 49.00 USD
Sale Sold out
INFWIN P/N

123004232

Out of stock — Available on backorder

The INFWIN DigiTHP-GEN2 is an air humidity, temperature, and barometric pressure sensor with a digital SDI-12 or RS485/Modbus-RTU interface. Its sensing elements sit on a PCB in the sensor tip, with the acquisition circuit fully over-moulded and each unit individually factory-calibrated. At just 110 × 16 mm, it fits into most standard radiation shields and field enclosures. Accuracy grade, power supply, output interface, encapsulation, connector, and cable length are all configurable via ordering code - the default variant (DigiTHP-GEN2-AACAAB002) ships with RS485/Modbus-RTU output, SHT40/BMP280-grade accuracy, 4.5–18V DC supply, standard encapsulation, a cold-pressed terminal connector, and a 2 m cable.

Temperature and humidity are measured with a precision SENSIRION sensor, with barometric pressure measured by an additional BOSCH MEMS chip. From these, DigiTHP-GEN2 derives secondary values including dew point, frost point, vapor pressure, and vapor concentration. Reverse power protection and built-in TVS/ESD protection are included.

Key Features

  • Triple measurement: Air humidity, temperature, and barometric pressure in a single sensor
  • Secondary calculated values: Dew point, frost point, vapor pressure, and vapor concentration
  • Precision sensing elements: SENSIRION humidity/temperature sensor plus a BOSCH MEMS barometric sensor; each unit individually factory-calibrated
  • Selectable accuracy grade: SHT40 & BMP280 (±0.2°C, ±1.8% RH, ±1 hPa typical) or SHT45 & BMP280 (±0.1°C, ±1.0% RH, ±1 hPa typical)
  • Digital output: SDI-12 (V1.3) for universal datalogger compatibility and low-power use, or RS485/Modbus-RTU for long cable runs or multi-sensor networks
  • Compact size: 110 × 16 mm sensor body fits standard radiation shields

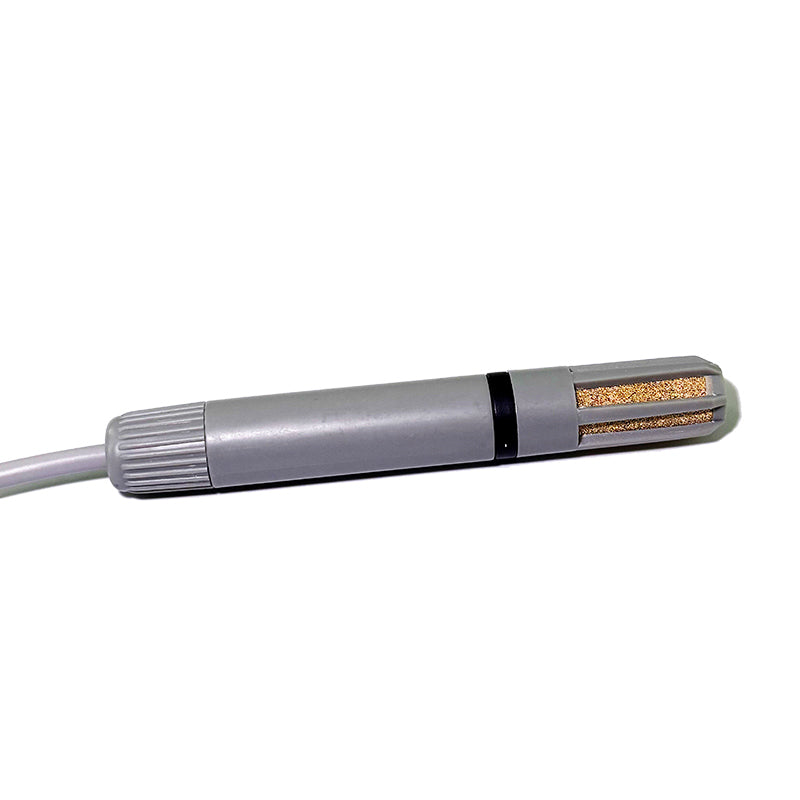

  • Cleanable filter cap: 10 µm copper sintering filter protects the sensing elements and can be cleaned in place

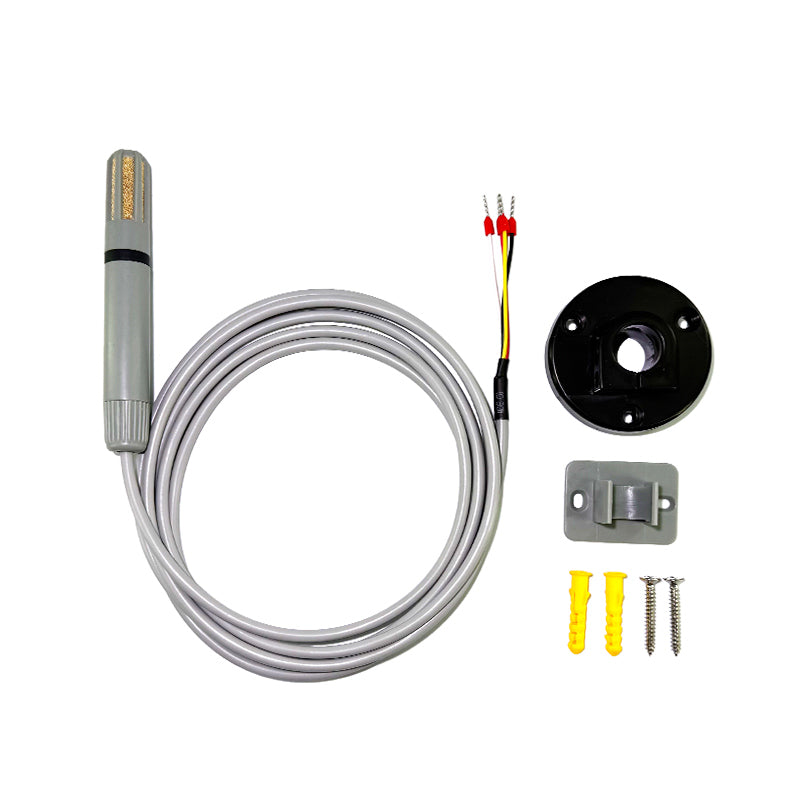

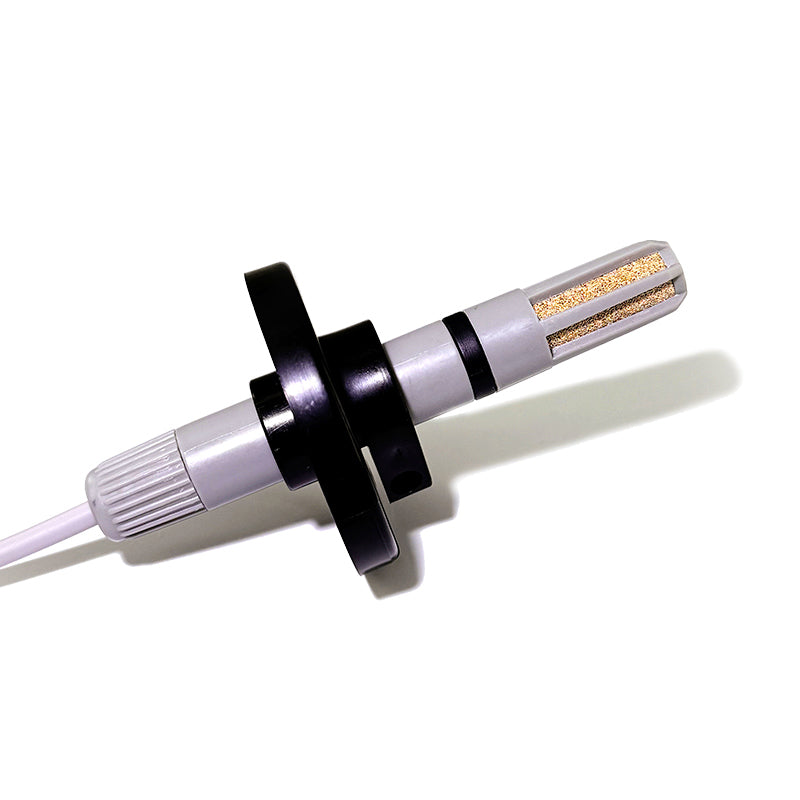

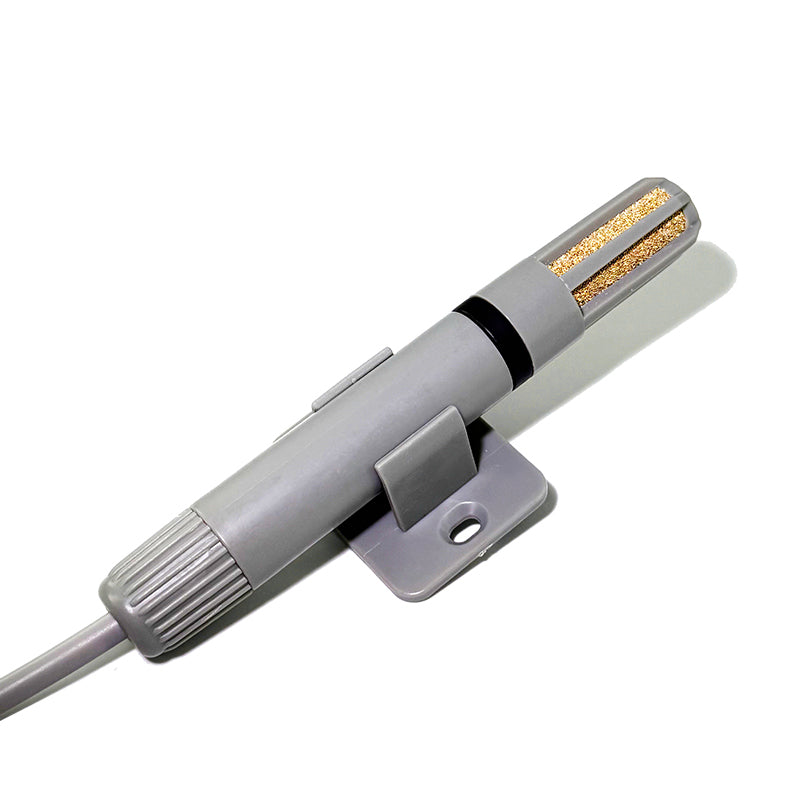

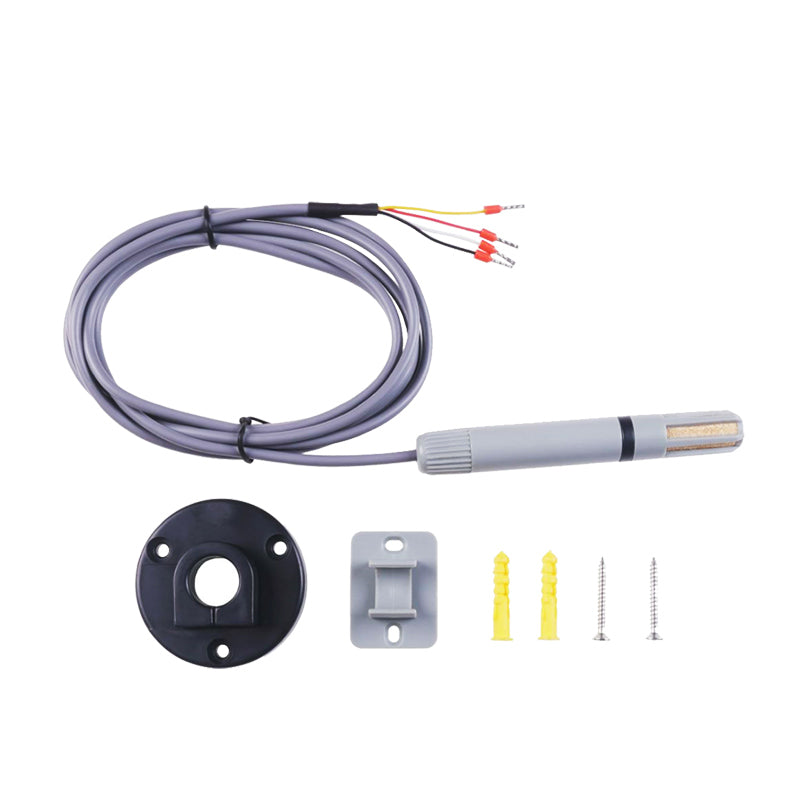

  • Flexible mounting: Wall mounting or pipe flange insertion
  • Reverse power protection: Built-in TVS/ESD protection
  • RS485 Modbus-RTU protocol: Standard Modbus register map; configurable slave address, baud rate, parity, and stop bits

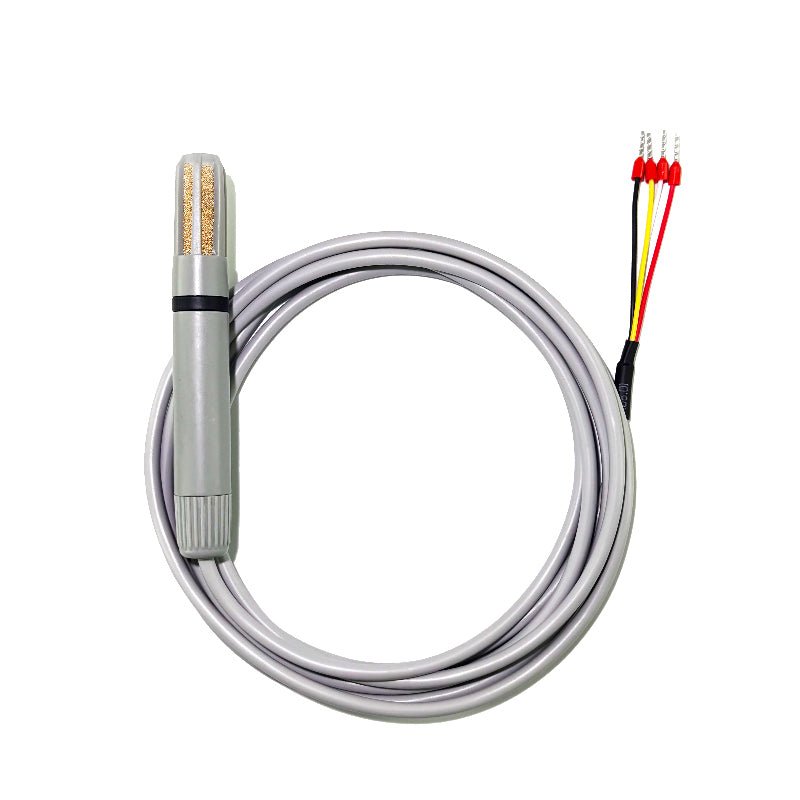

  • Connector options: Cold-pressed terminal or stripped & tinned lead wires
  • Configuration utility: SensorOneSet software included for sensor configuration via RS485
  • Cable length: 2 m standard; custom lengths available

Applications

  • Smart agriculture and greenhouse monitoring
  • Canopy monitoring
  • Reference evapotranspiration calculations
  • Routine weather monitoring
  • Building humidity monitoring and mold remediation
  • Modeling processes affected by vapor pressure or humidity
  • LoRaWAN IoT deployments via the Catena-5310 or compatible RS485/Modbus-RTU/SDI-12 gateway

Important Notes

  • The long-term operating temperature is −40°C to +80°C, even though the temperature sensing element itself is rated to +125°C.
  • IP56 rated - protected against dust ingress and water jets, but not rated for submersion or direct burial.
  • Operating environment is non-condensing.
  • The copper sintering filter cap can be cleaned in place; replace if damaged to maintain accuracy and IP rating.

Specifications

Humidity
Range 0–100%
Resolution 0.01%
Typical accuracy ±1.8% RH (SHT40); ±1.0% RH (SHT45)
Temperature
Range −40°C to +125°C (long-term operating range −40°C to +80°C)
Resolution 0.01°C
Accuracy ±0.2°C (SHT40); ±0.1°C (SHT45)
Barometric Pressure
Range 300–1100 mbar
Resolution 0.1 mbar
Accuracy ±0.15 mbar (relative); ±1 mbar (absolute)
Electrical
Output interface RS485 (Modbus-RTU) or SDI-12, V1.3 (selectable via ordering code)
Power supply 4.5–18V DC
Quiescent current RS485: <300 µA; SDI-12: <10 µA
Measuring current 10 mA during 50 ms measurement
Mechanical
Dimensions 110 × 16 mm (sensor body)
Encapsulation Standard: ABS body with 10 µm copper sintering filter cap
IP rating IP56
Connector Cold-pressed terminal or stripped & tinned lead wires (selectable via ordering code)
Cable length 2 m standard; custom length available
Installation Wall mounting or pipe flange insertion
Environmental
Operating temperature −40°C to +80°C, non-condensing

Ordering Code Guide

Code 1: Product Series DigiTHP-GEN2 DigiTHP-GEN2, 2nd generation DigiTHP sensor
Code 2: Measuring Parameters A Air Humidity, Temperature, Barometric measurement (with secondary dew point, frost point, vapor pressure, vapor concentration)
Code 3: Accuracy A
C		 ±0.2°C, ±1.8% RH, ±1 hPa (SHT40 & BMP280 typical)
±0.1°C, ±1.0% RH, ±1 hPa (SHT45 & BMP280 typical)
Code 4: Power Supply C
X		 4.5–18V DC
Customize
Code 5: Output Interface A
B
X		 RS485 (Modbus-RTU)
SDI-12
Customize
Code 6: Encapsulation A
X		 Standard (ABS + copper sintering filter)
Customize
Code 7: Connector B
C		 Cold-pressed terminal
Stripped & tinned lead wires
Code 8: Cable Length 002
XXX		 2 meters
Custom (XXX = length in meters, e.g. 005 = 5 m)

Default Variant: DigiTHP-GEN2-AACAAB002

Measuring parameters Air humidity, temperature, and barometric pressure
Accuracy ±0.2°C, ±1.8% RH, ±1 hPa (SHT40 & BMP280 typical)
Power supply 4.5–18V DC
Output interface RS485, Modbus-RTU
Encapsulation Standard (ABS + copper sintering filter)
Connector Cold-pressed terminal
Cable length 2 meters

Custom variants (power supply, output interface, encapsulation, connector, cable length) are available - contact us to discuss your requirements.
