INFWIN LWS10-Leaf Wetness Sensor
INFWIN LWS10-Leaf Wetness Sensor
Regular price
$ 89.00 USD
Regular price
Sale price
$ 89.00 USD
Unit price
per
SKU:123004231
Out of stock — Available on backorder
Couldn't load pickup availability

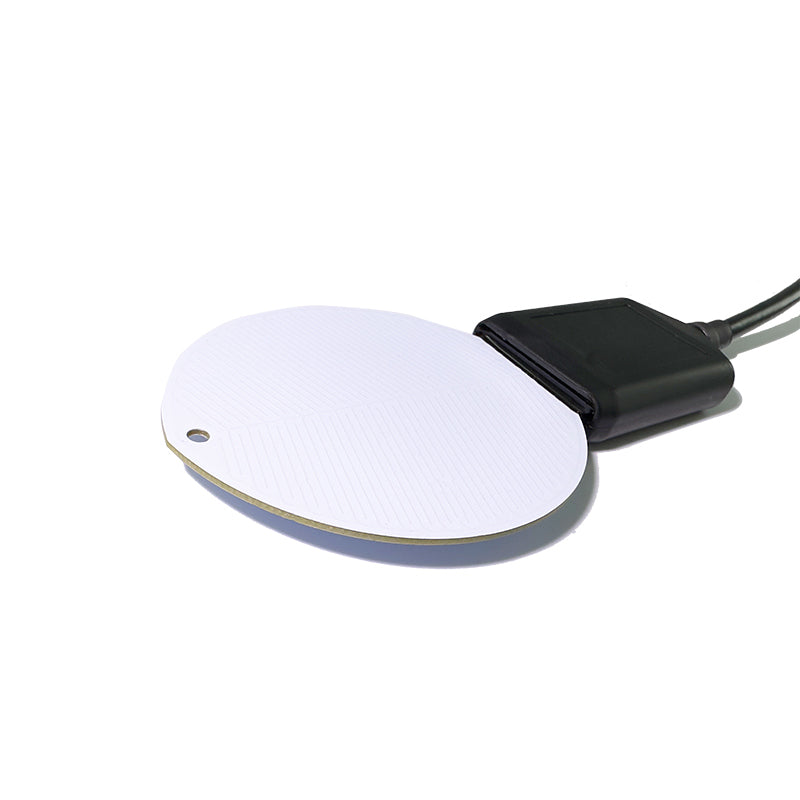

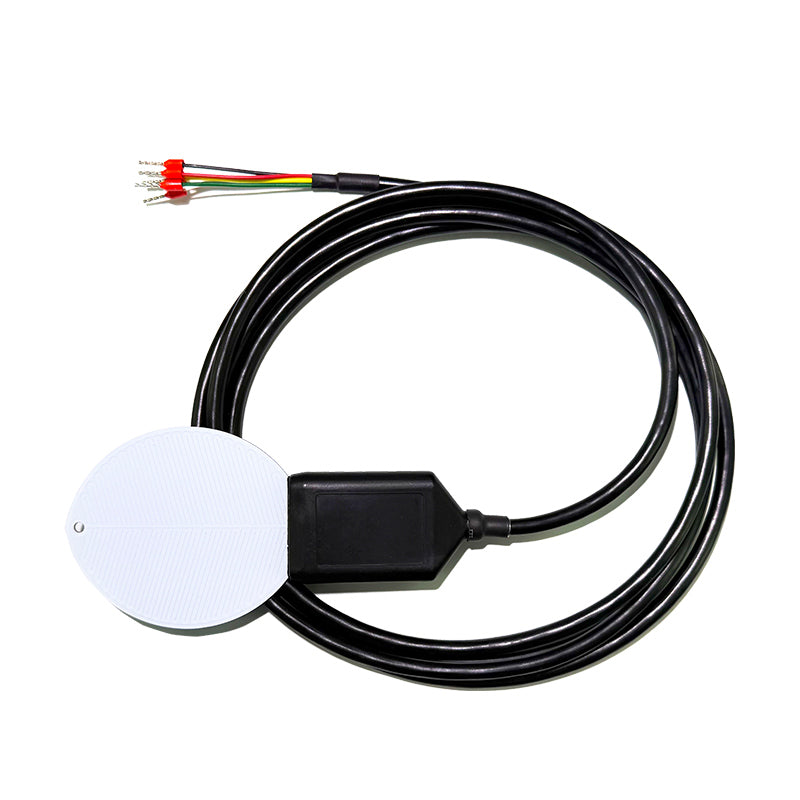

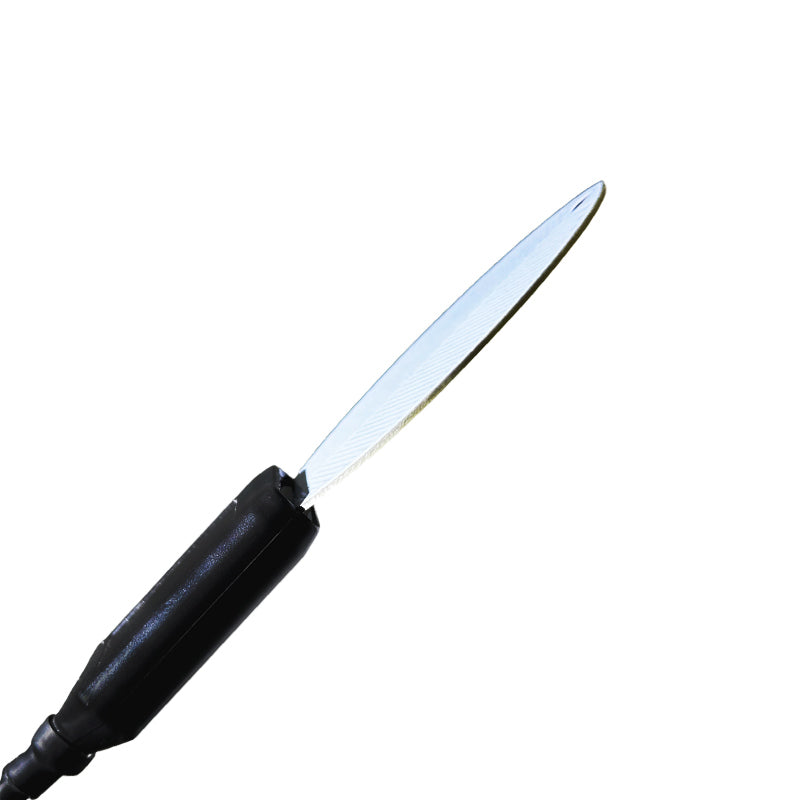

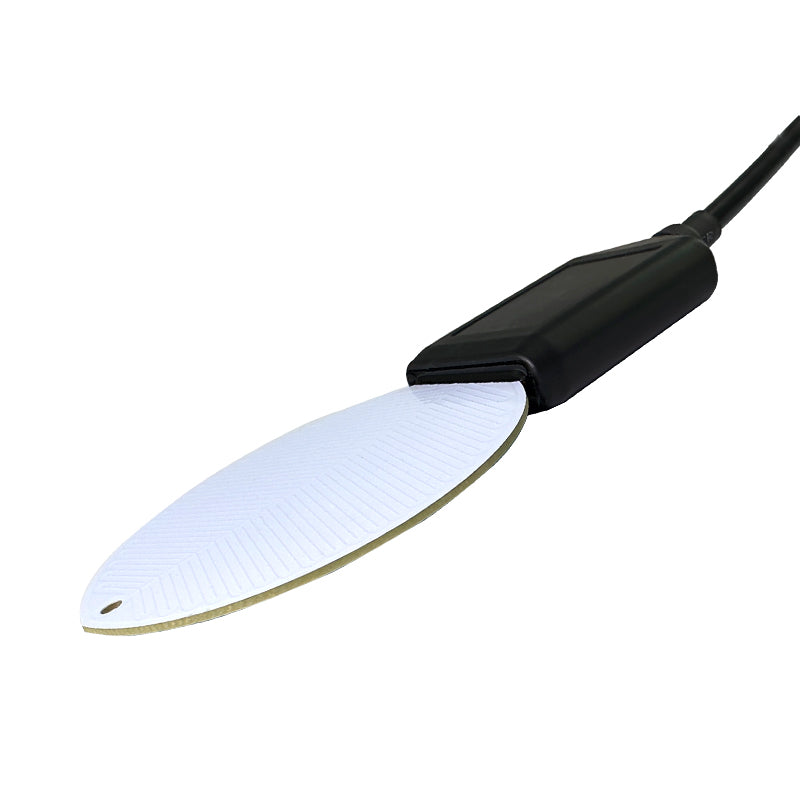

The INFWIN LWS10 is a leaf wetness sensor with RS485/Modbus-RTU output. Its resin-sealed plastic body mimics the thermal resistance, shape, and thickness of a real leaf, so wetness readings track how water, ice, or fog would actually collect on foliage. Output interface, power supply, and cable length are configurable via ordering code - the default variant (LWS10-CA002) ships with RS485/Modbus-RTU output, 3.6–30V DC supply, and a 2 m cable.
Wetness measurement value is proportional to the percentage of the sensing area covered with water. LWS10 also reports temperature for compensation. Reverse power protection and built-in TVS/ESD protection are included.
Key Features
- Leaf wetness measurement: Reports the percentage of sensing area covered with water, ice, or fog

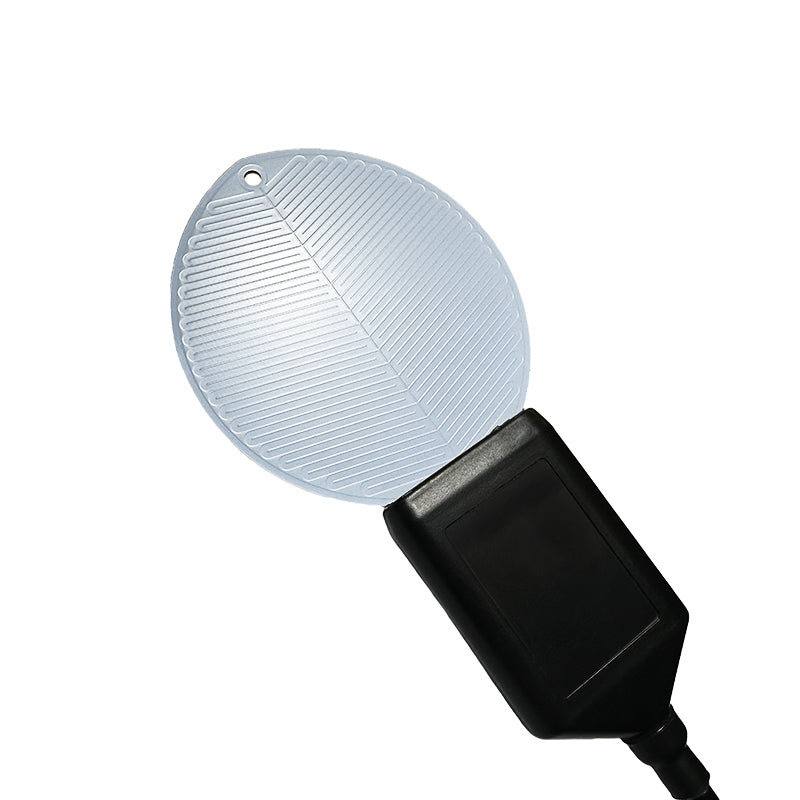

- Leaf-mimicking design: Sensing surface replicates the thermal resistance, shape, and thickness of a real leaf
- Temperature compensation: Onboard temperature sensor compensates wetness readings
- FDR measurement technique: Frequency Domain Reflectometry
- Flexible output interface: RS485/Modbus-RTU, RS485 + analog voltage, RS485 + analog current, analog voltage 0–2V, or analog current 4–20mA (see ordering code)
- IP68 waterproof: Fully sealed epoxy resin body
- Wide operating range: −40°C to +85°C operating temperature; suitable for outdoor and agricultural deployments
- Reverse power protection: Built-in TVS/ESD protection
- RS485 Modbus-RTU protocol: Standard Modbus register map; configurable slave address, baud rate, parity, and stop bits. Factory defaults: address 1, 9600 bps, 8N1.
- Configuration utility: SensorOneSet software included for sensor configuration via RS485
- Cable length: 2 m standard; custom lengths available
Applications
- Plant disease and bacteria prevention modeling
- Foliage dressing and spray timing
- Scientific research and plant pathology studies
- Greenhouse and nursery monitoring
- Smart agriculture and irrigation scheduling
- LoRaWAN IoT deployments via the Catena-5310 or compatible RS485/Modbus-RTU gateway
Important Notes
- LWS10 mounts using a mounting kit (canopy or stake mount, per installation guidance) rather than being inserted into soil.
- SDI-12 output is listed in the ordering code but is not currently available.
- 4–20mA output requires 12–30V DC supply; the 3.6–30V DC supply option (Code A) is not compatible with 4–20mA output.
- 2.7–16V DC and 2.0–5.5V DC power options are listed in the ordering code but are not currently available.
- When using Active Output mode on RS485, only one sensor should be on the RS485 network to avoid data collision.
Specifications
| Leaf Wetness | |
| Measurement technique | FDR (Frequency Domain Reflectometry) |
| Range | 0–100% |
| Resolution | 0.1% |
| Accuracy | ±5% |
| Temperature (compensation) | |
| Range | −40°C to +80°C |
| Resolution | 0.1°C |
| Accuracy | ±0.5°C |
| Output Interface (selectable) | |
| RS485 Modbus-RTU | Default for LWS10-CA002; 9600 bps, 8N1 factory default |
| Analog voltage | 0–2V (output resistance ~0 Ω) |
| Analog current | 4–20mA (load resistor <500 Ω) |
| Power Supply (per output type) | |
| RS485 / Analog voltage | 3.6–30V DC (6mA @ 24V DC) |
| Analog current 4–20mA | 12–30V DC (30mA @ 24V DC, with 20mA output signal) |
| Mechanical | |
| Dimensions | 65 × 13 × 145 mm |
| Sealing | Epoxy resin |
| IP rating | IP68 |
| Installation | Mounting kit |
| Cable length | 2 m standard; custom length available |
| Environmental | |
| Operating temperature | −40°C to +85°C |
Ordering Code Guide
| Code 1: Product Series | LWS10 | LWS10 Leaf Wetness & Temperature Sensor |
| Code 2: Output Interface | A B C D E F G |
Analog Voltage 0–2V Analog Current 4–20mA RS485, Modbus-RTU RS485, Modbus-RTU + Analog Voltage 0–2V RS485, Modbus-RTU + Analog Current 4–20mA SDI-12 (not currently available) Customize |
| Code 3: Power Supply | A B C D E |
3.6–30V DC (not for 4–20mA output) 12–30V DC 2.7–16V DC (not currently available) Customize 2.0–5.5V DC (not currently available) |
| Code 4: Cable Length | 002 XXX |
2 meters Custom (XXX = length in meters, e.g. 005 = 5 m) |
Default Variant: LWS10-CA002
| Measuring parameters | Leaf wetness and temperature |
| Output interface | RS485, Modbus-RTU |
| Power supply | 3.6–30V DC |
| Cable length | 2 meters |
Custom variants (output interface, power supply, cable length) are available - contact us to discuss your requirements.
Technical Documents
Modbus is a registered trademark of Schneider Electric. INFWIN is a registered trademark of Dalian Endeavour Technology Co., Ltd. MCCI and MCCI Catena are registered trademarks of MCCI Corporation. All other trademarks are the property of their respective owners.
