INFWIN MT10RA-Soil Moisture, EC and Temperature Sensor

$ 169.00 USD

Sale Sold out

INFWIN P/N MT10R-ABCAC002

Quantity

SKU:123004229

Out of stock — Available on backorder

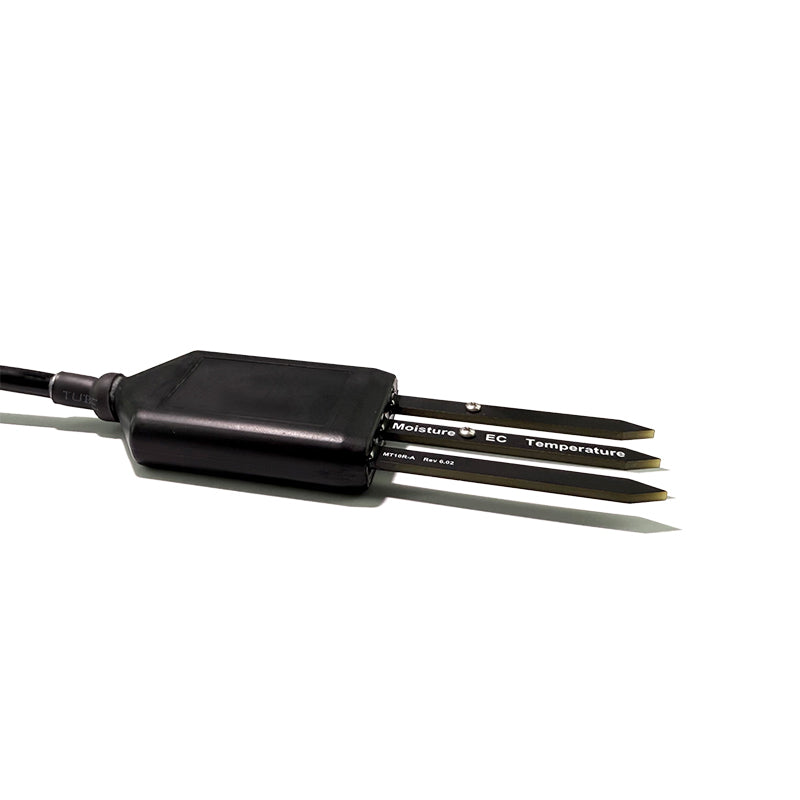

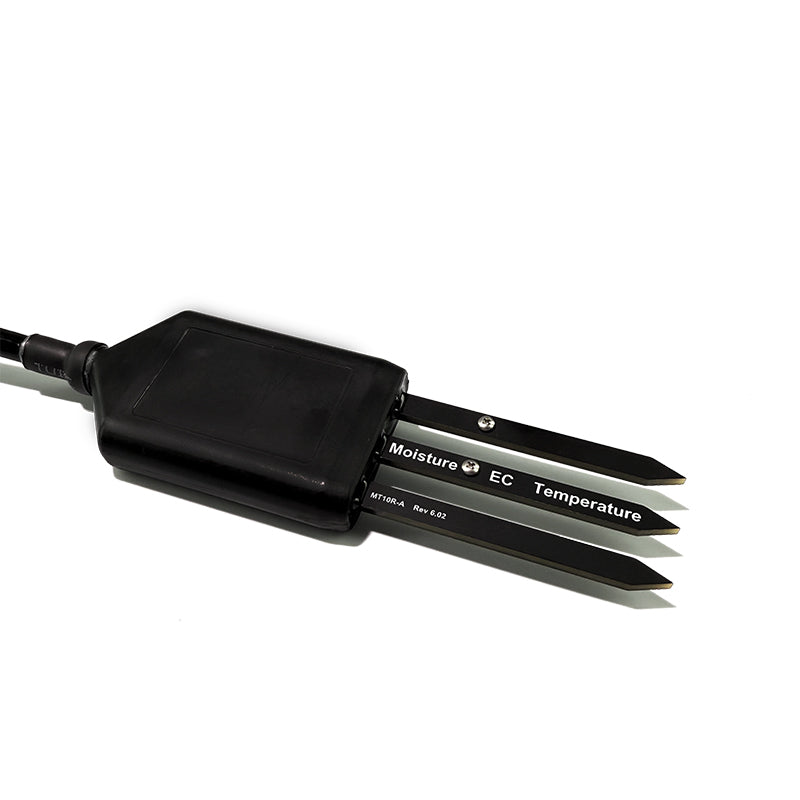

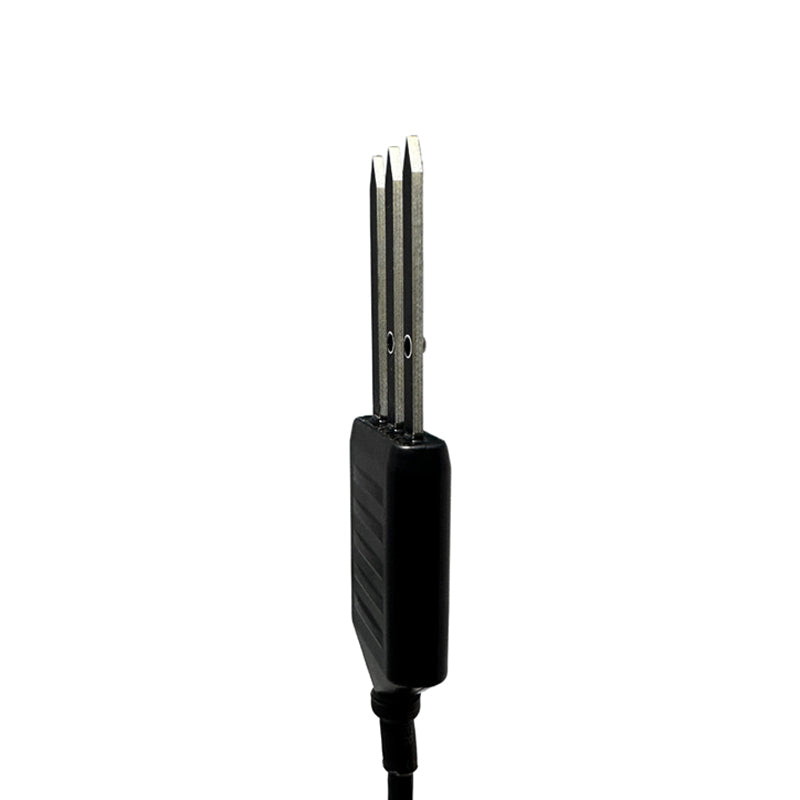

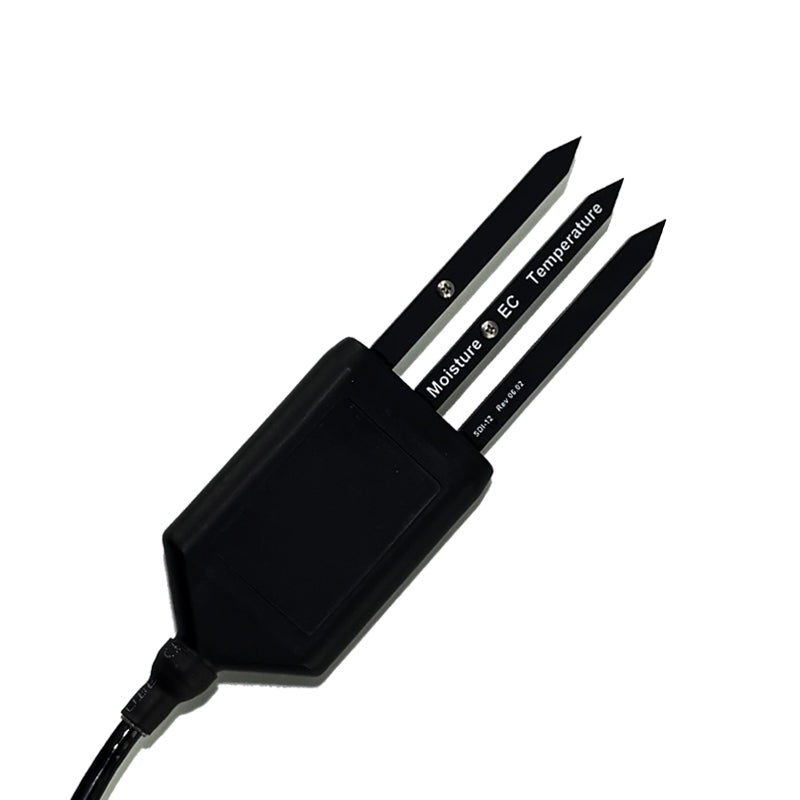

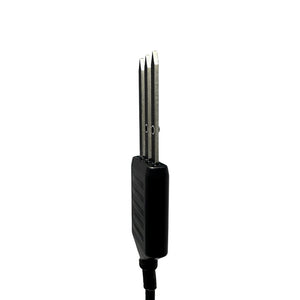

The INFWIN MT10RA is a soil moisture, EC (electrical conductivity), and temperature sensor with RS485/Modbus-RTU output. Its resin-sealed plastic body with PCB sensing rods inserts directly into soil for long-term in-situ measurement. Moisture range, EC range, power supply, output interface, and cable length are all configurable via ordering code - the default variant (MT10R-ABCAC002) ships with Soil Moisture, EC & Temperature measurement, 0–100% moisture range, 0–20000 µS/cm EC range, RS485/Modbus-RTU output, 3.9–30V DC supply, and a 2 m cable.

MT10RA measures soil moisture by FDR (Frequency Domain Reflectometry) and EC by AC excitation, giving three readings - moisture, conductivity, and temperature - from a single probe. It offers low salinity sensitivity, minimal soil disturbance, and IP68 waterproofing for direct burial. Reverse power protection and built-in TVS/ESD protection are included.

Key Features

Triple measurement: Soil volumetric water content (VWC), EC, and temperature in a single probe
FDR moisture sensing: Frequency Domain Reflectometry — low sensitivity to soil salinity, stable long-term readings
AC excitation EC sensing: Direct soil conductivity measurement with temperature compensation (0–50°C)
PCB sensing rods: Printed-circuit sensing element rather than solid stainless steel rods
Configurable moisture range: 0–100% or 0–50% VWC; higher resolution and accuracy in the 0–50% range
Configurable EC range: 0–5000, 0–10000, or 0–20000 µS/cm
Output interface: RS485/Modbus-RTU, RS485 + analog voltage, or analog voltage 0–2V (see ordering code)
IP68 waterproof: Fully sealed with epoxy resin body; suitable for direct soil burial
Wide operating range: −40°C to +85°C operating temperature; suitable for outdoor and agricultural deployments
Reverse power protection: Built-in TVS/ESD protection
RS485 Modbus-RTU protocol: Standard Modbus register map; configurable slave address, baud rate, parity, and stop bits. Factory defaults: address 1, 9600 bps, 8N1.
Configuration utility: SensorOneSet software included for sensor configuration via RS485

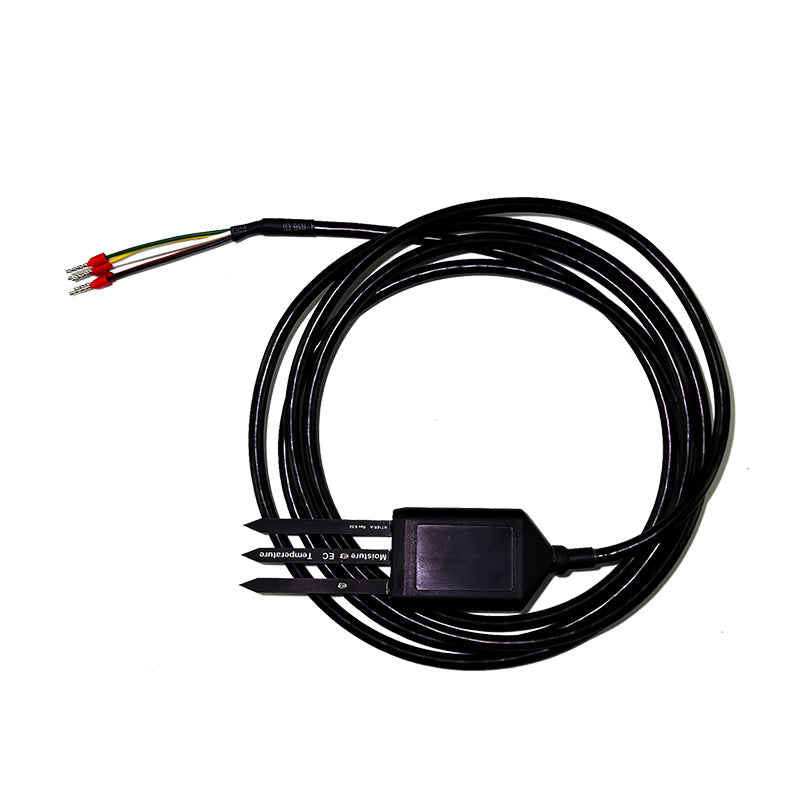

Cable length: 2 m standard; custom lengths available

Applications

Agricultural irrigation control and smart farming, including salinity-aware irrigation scheduling
Greenhouse and nursery soil monitoring
Scientific research and soil science experiments
Environmental monitoring and field data logging
Fertigation and soil salinity management
LoRaWAN IoT deployments via the Catena-5310 or compatible RS485/Modbus-RTU gateway

Important Notes

Unlike INFWIN's MS10/MS20/MEC10/MEC20 series, MT10RA does not offer a 4–20mA analog current or SDI-12 output option - only RS485/Modbus-RTU and 0–2V analog voltage (standalone or combined) are available.
The sensor rods are sharp for ease of insertion - handle with care and follow installation precautions.
Do not pull the sensor out of soil by its cable. If resistance is felt during insertion, stop and re-insert at a new location to avoid hitting stones.
When using Active Output mode on RS485, only one sensor should be on the RS485 network to avoid data collision.

Specifications

Soil Moisture (VWC)
Measurement technique	FDR (Frequency Domain Reflectometry)
Range	0–50% or 0–100% VWC (selectable via ordering code)
Resolution	0.03% (0–50% range); 1% (50–100% range)
Accuracy	±2% (0–50% range); ±3% (50–100% range)
Soil EC (Electrical Conductivity)
Measurement technique	AC excitation
Range	0–5000, 0–10000, or 0–20000 µS/cm (selectable via ordering code)
Resolution	10 µS/cm (0–10000 µS/cm range); 50 µS/cm (10000–20000 µS/cm range)
Accuracy	±3% (0–10000 µS/cm range); ±5% (10000–20000 µS/cm range)
Temperature compensation	0–50°C
Temperature
Range	−40°C to +80°C
Resolution	0.1°C
Accuracy	±0.5°C
Output Interface (selectable)
RS485 Modbus-RTU	Default for MT10R-ABCAC002; 9600 bps, 8N1 factory default
Analog voltage	0–2V (output resistance ~0 Ω)
Power Supply
RS485 / Analog voltage	3.9–30V DC (6mA @ 24V DC)
Low-power option	2.7–16V DC
Mechanical
Dimensions	35 × 11 × 114 mm
Sensor rod	PCB sensing
Sealing	Epoxy resin
IP rating	IP68
Cable length	2 m standard; custom length available
Installation	Surface or buried
Environmental
Operating temperature	−40°C to +85°C

Ordering Code Guide

Code 1: Product Series	MT10R	MT10R Sensor Series
Code 2: Measuring Parameters	A	Soil Moisture & EC & Temperature (MT10RA)
Code 3: Moisture Range	A B	0–50% VWC 0–100% VWC
Code 4: EC Range	A B C D	0–5000 µS/cm 0–10000 µS/cm 0–20000 µS/cm Customize
Code 5: Power Supply	A C D	3.9–30V DC 2.7–16V DC Customize
Code 6: Output Interface	A C D G	Analog Voltage 0–2V RS485, Modbus-RTU RS485, Modbus-RTU + Analog Voltage 0–2V Customize
Code 7: Cable Length	002 XXX	2 meters Custom (XXX = length in meters, e.g. 005 = 5 m)

Default Variant: MT10R-ABCAC002 (MT10RA)

Measuring parameters	Soil moisture (VWC), EC, and temperature
Moisture range	0–100% VWC
EC range	0–20000 µS/cm
Power supply	3.9–30V DC
Output interface	RS485, Modbus-RTU
Cable length	2 meters
