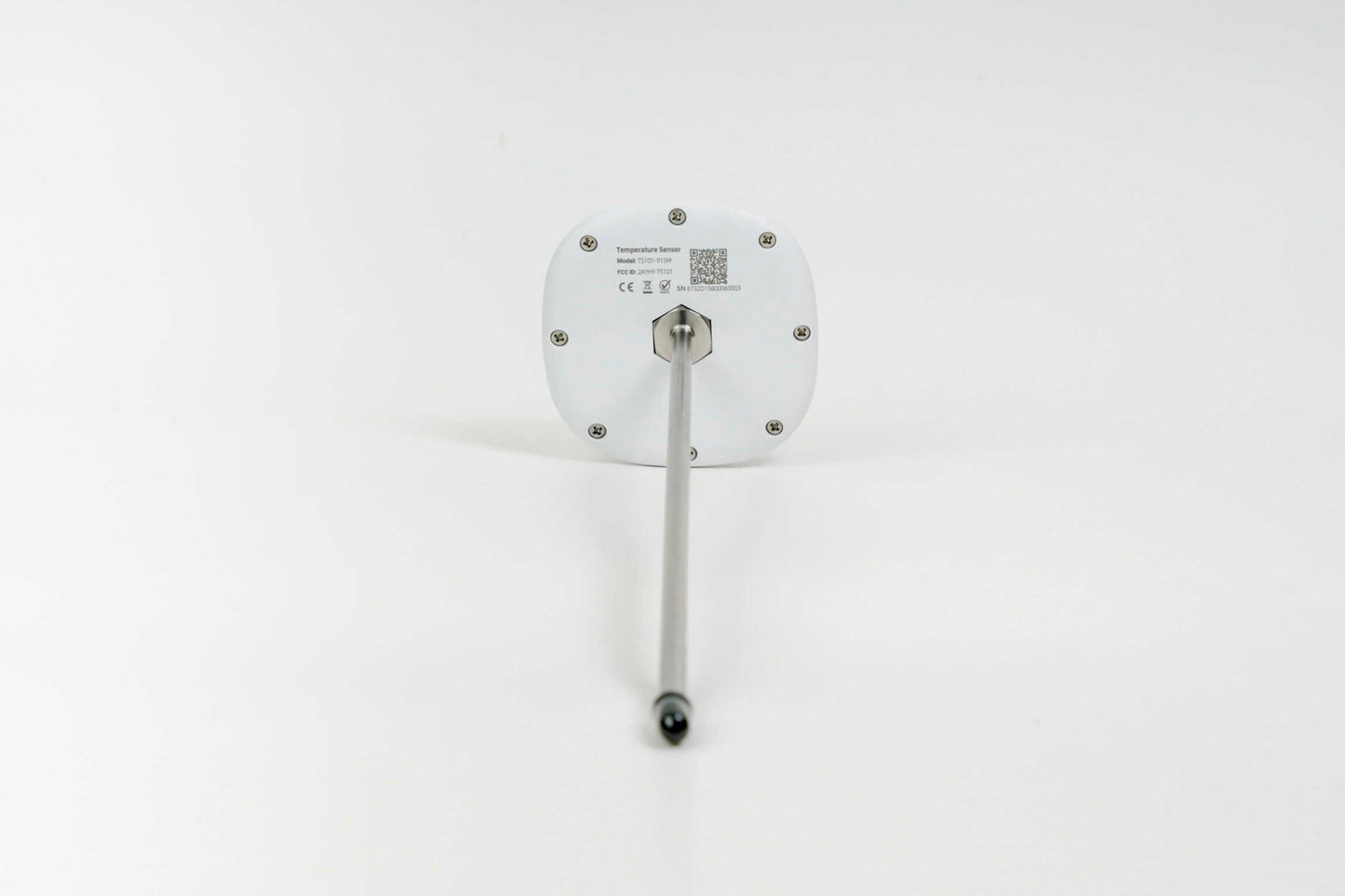

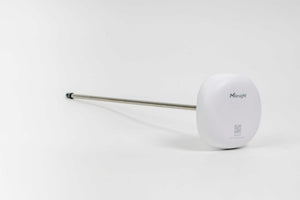

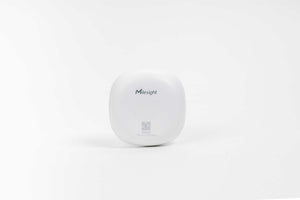

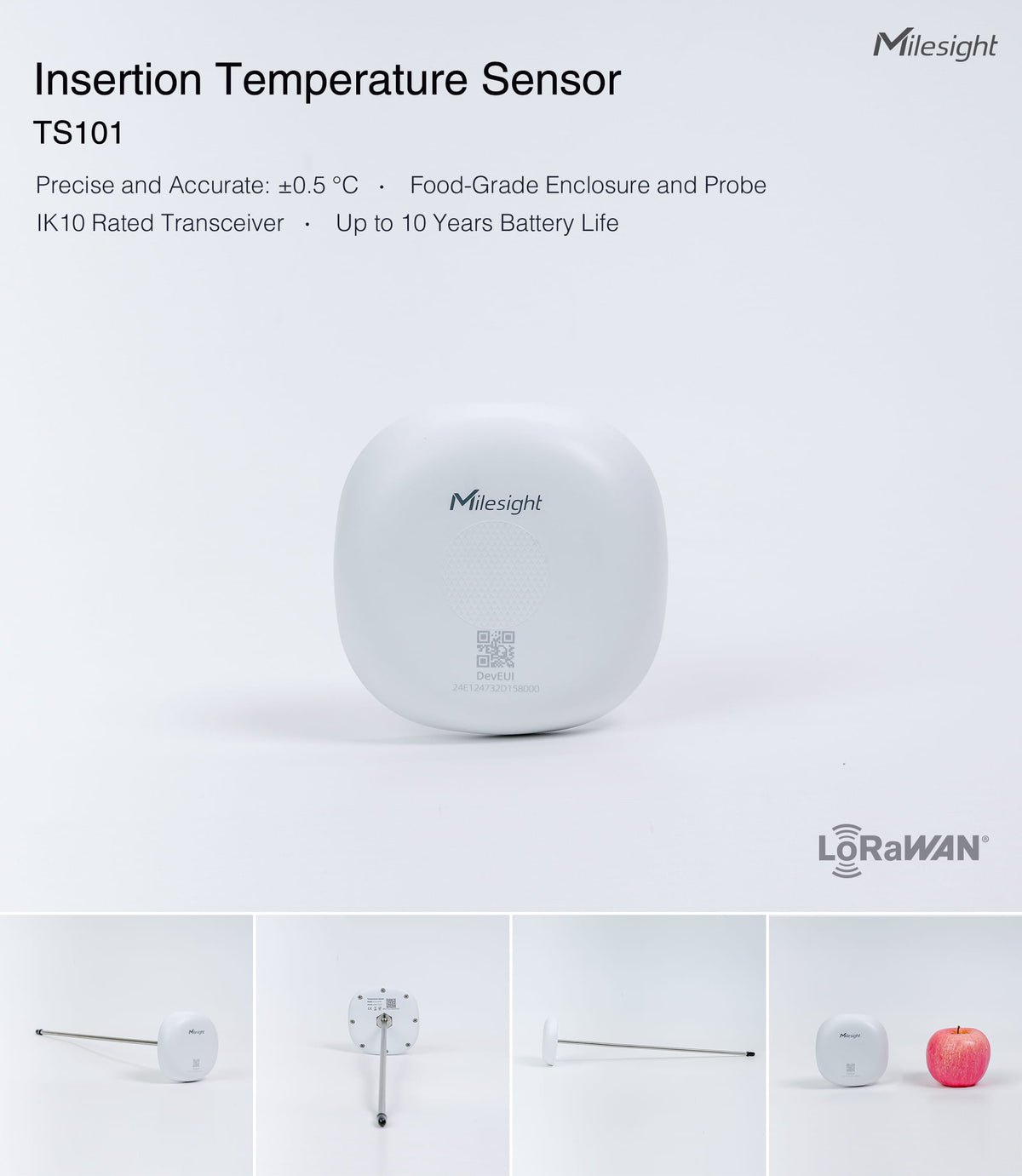

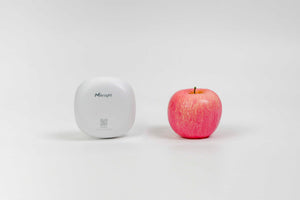

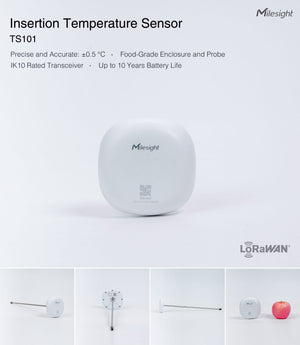

Insertion Temperature Sensor TS101
The Milesight TS101 is an all-in-one insertion temperature sensor with an integrated transmitter. Equipped with an advanced measuring unit, it provides a wide temperature measuring range. With IP67 and IK10 ratings, the TS101 is suitable for monitoring the inner temperature of tobacco or grain stacks, and other warehousing scenarios requiring high-efficiency inner temperature detection. The TS101 is compatible with Milesight LoRaWAN® gateways and mainstream LoRaWAN® network servers. Utilizing low-power technology, the TS101 can operate for up to 10 years on a 4,000mAh battery. Combined with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually.
Features:
- High Accuracy: Equipped with a highly accurate and stable DS18B20 temperature sensor chip with high resolution.
- Safe and Efficient: Made with food-grade stainless-steel probe and shell material for efficient and safe detection.
- Data Storage: Can store up to 1,200 sets of data locally and supports data retrievability and retransmission.
- Durability: IP67 and IK10 rated, and phosphine corrosion-resistant for harsh environments.
- Long Battery Life: Built-in 4,000mAh replaceable battery, with a lifespan of up to 10 years without replacement.
- Compact Design: Integrated and compact design for wireless deployment.
- Easy Configuration: Built-in NFC for easy configuration.
- Compatibility: Compatible with standard LoRaWAN® gateways and network servers.
- Remote Management: Quick and easy management with the Milesight IoT Cloud solution.
Specifications
|
Wireless Transmission |
|
|
Protocol |
LoRaWAN |
|
Frequency |
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
|
Tx Power |
16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz) |
|
Sensitivity |
-137 dBm @300bps |
|
Mode |
OTAA/ABP Class A |
|
Measurement |
|
|
Detecting Range |
-30°C ~ +70°C |
|
Accuracy |
± 0.5°C |
|
Resolution |
0.1°C |
|
Operation |
|
|
Power On & Off |
NFC, Power Button (Internal) |
|
Configuration |
NFC Configuration via Mobile App |
|
Advanced Feature |
Data Storage, Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm |
|
Physical Characteristics |
|
|
Power Supply |
1 × 4000 mAh ER18505 Li-SOCl2 Replaceable Battery |
|
Battery Life* |
10 Years (1 Hour Report Interval, 25°C) |
|
Operating Temperature |
-30°C ~ +70°C |
|
Relative Humidity |
0 ~ 95% (Non-condensing) |
|
Material & Color |
Transceiver: ABS+PC(Food-Grade, Phosphine Corrosion resistant), White Sensor Probe: 316 Stainless Steel (Food-Grade, Phosphine Corrosion Resistant) , Silver Grey |
|
Ingress Protection |
IP67 |
|
Impact Protection |
IK10 (Transceiver) |
|
Dimension |
Transceiver: Ф 92 × 92 × 26 mm (Ф 3.62 × 3.62 × 1.02 in) Sensor Probe: Ф 7 × 400 mm (Ф 0.28 × 15.75 in) |
|
Installation |
Insert Installation |
