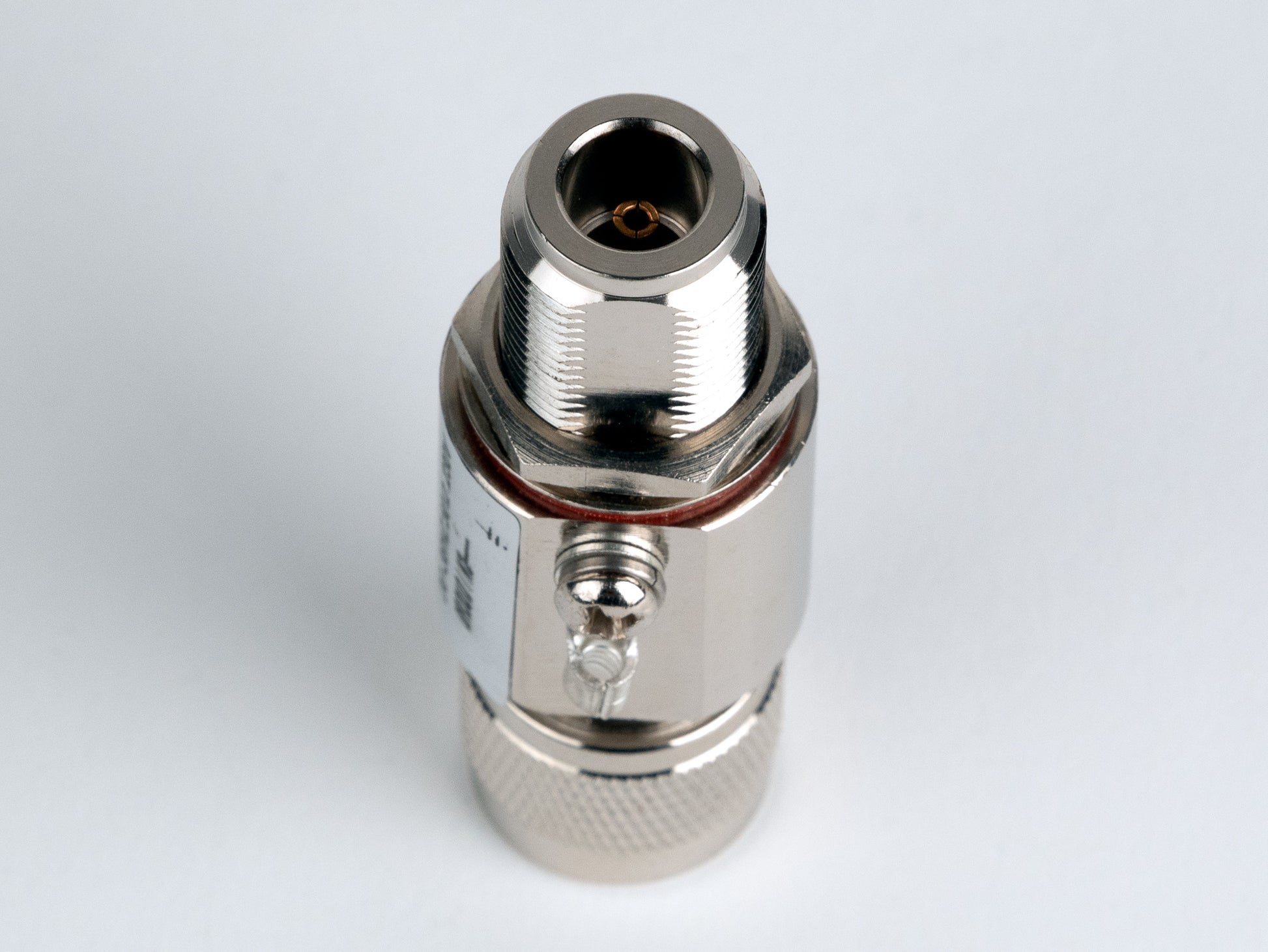

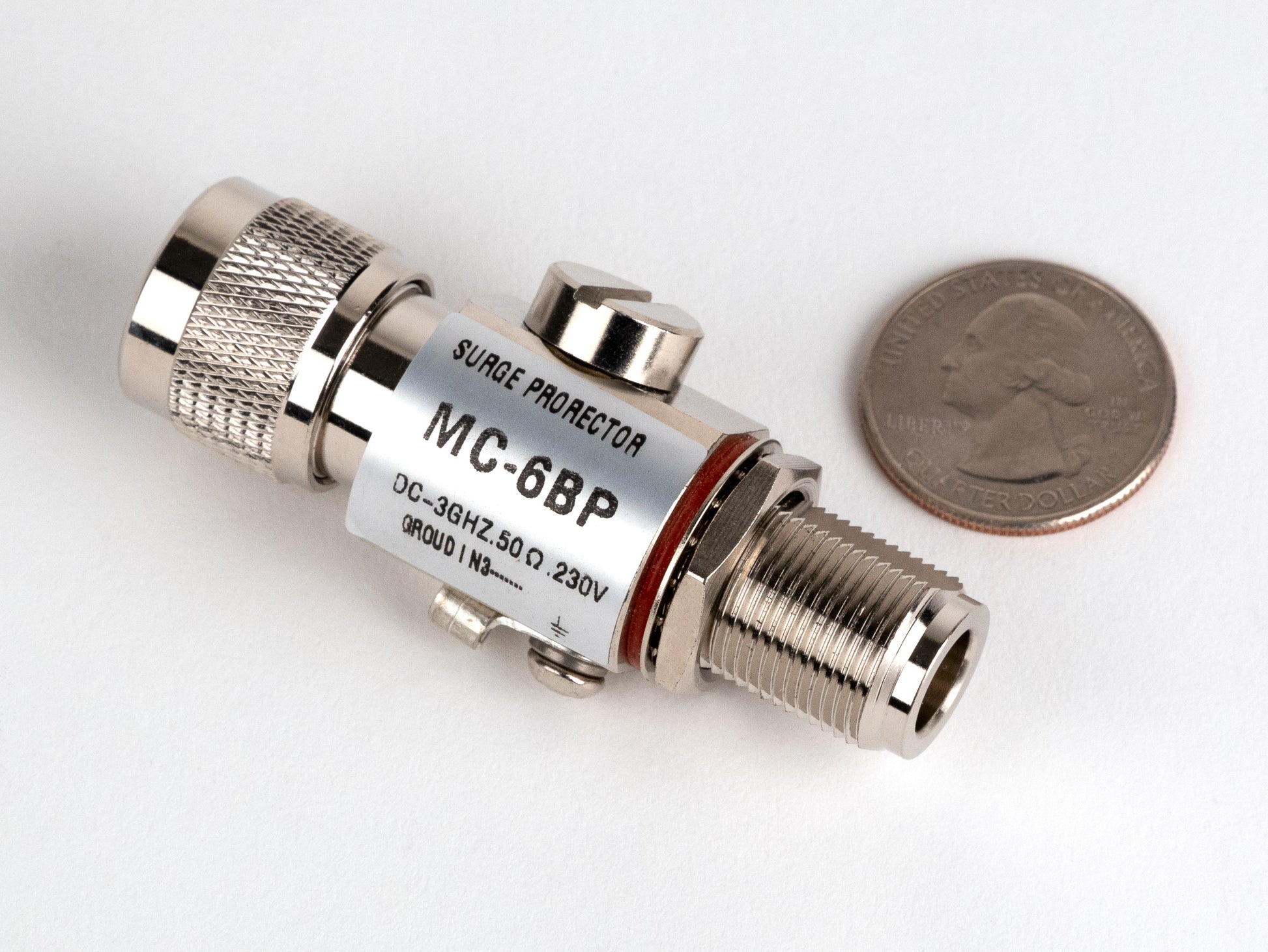

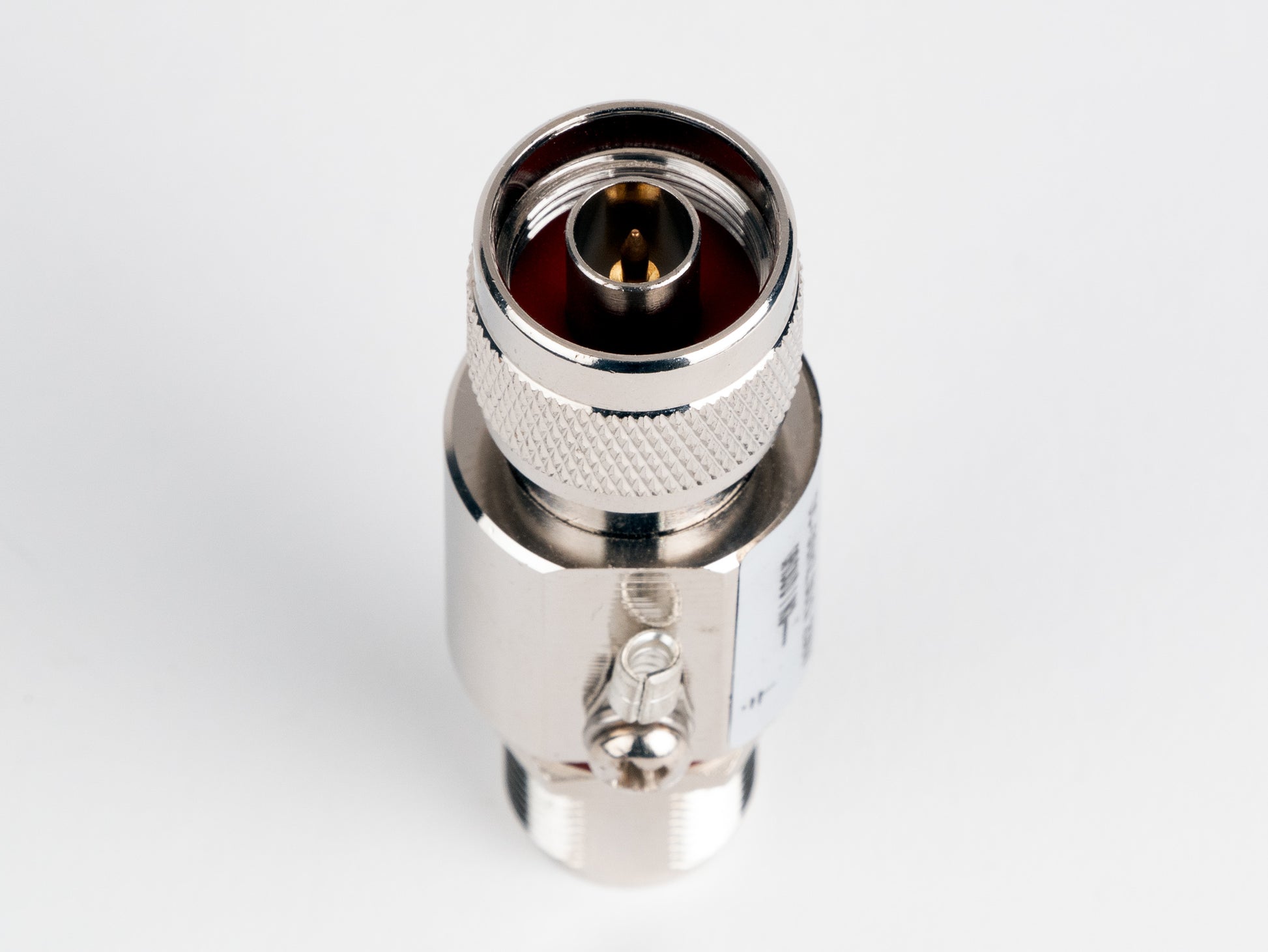

Lightning arrestor
Lightning arrestor
Lightning arrestor

Lightning arrestor

Regular price $ 9.00 $ 0.00

SKU: 123001371

In-Stock: 5

 Frequency range DC-3GHz
Connector N male / N female
Impedance 50 ohm
V.S.W.R ≤ 1.2:1
Insertion Loss ≤ 0.1dB/1GHz, 02.dB/2GHz, 0.4dB/3HGz
Maximum power (at 25 C) 300 MHz: 250W; 500 MHz 160W; 900 MHz 100W; 1.2 GHz 75W; 1.9 GHz 52W; 2.4 GHz 42W; 3GHz 36W
Insulation Resistance > 50 M ohms at DC 100V
DC Discharge Voltage DC 230V ± 20%
Initial Impulse Wave Discharge Voltage < 700V 1kV/microsecond
Rated Impulse Wave Discharge 10 kA for 820 microseconds 5 times
Ground connection by feedthrough or screw terminal
Operating temperature -30 C to +85 C
Dimensions 62.8 x 31 x 23 mm (2.47" x 1.22" x 0.91")
Weight 130g (4.6 oz)
