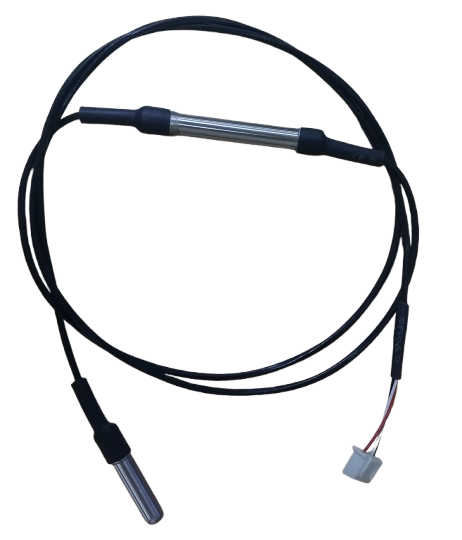

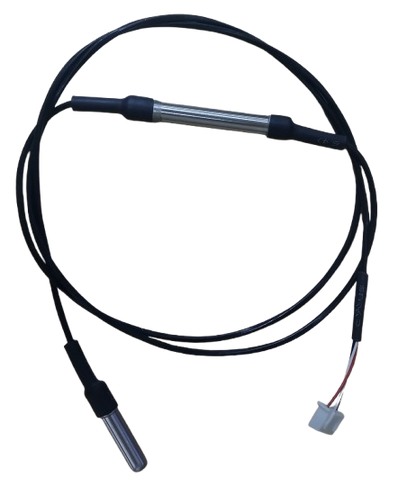

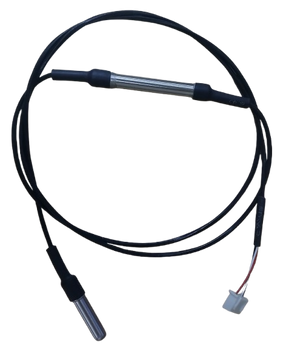

MCCI Dual One Wire DS18B20 Temperature Sensor 3ft Probe with JST-XH

MCCI Dual One Wire DS18B20 Temperature Sensor 3ft Probe with JST-XH

Regular price $ 37.14 USD
Regular price Sale price $ 37.14 USD
Sale Sold out

SKU:123002797

Out of stock — Available on backorder

The MCCI® dual one wire DS18B20 temperature sensor is a digital temperature sensor that provides 9-bit to 12-bit Celsius measurements. It features a programmable alarm function with user-defined upper and lower temperature limits. This sensor communicates using a one wire bus, requiring only one data line and ground, making it easy to integrate with a microprocessor. It can also operate in parasite power mode, drawing power directly from the data line, eliminating the need for an external power source. Each DS18B20 has a unique 64-bit serial code, allowing multiple sensors to share the same data line. This makes it ideal for distributed temperature monitoring in HVAC systems, building automation, industrial equipment, and process control applications.

A durable 860 mm PTFE cable and a genuine four‑position JST‑XH connector provide secure, direct mating with MCCI Catena® and IoT boards for wireless data transmission via LoRaWAN® networks or Sigfox.

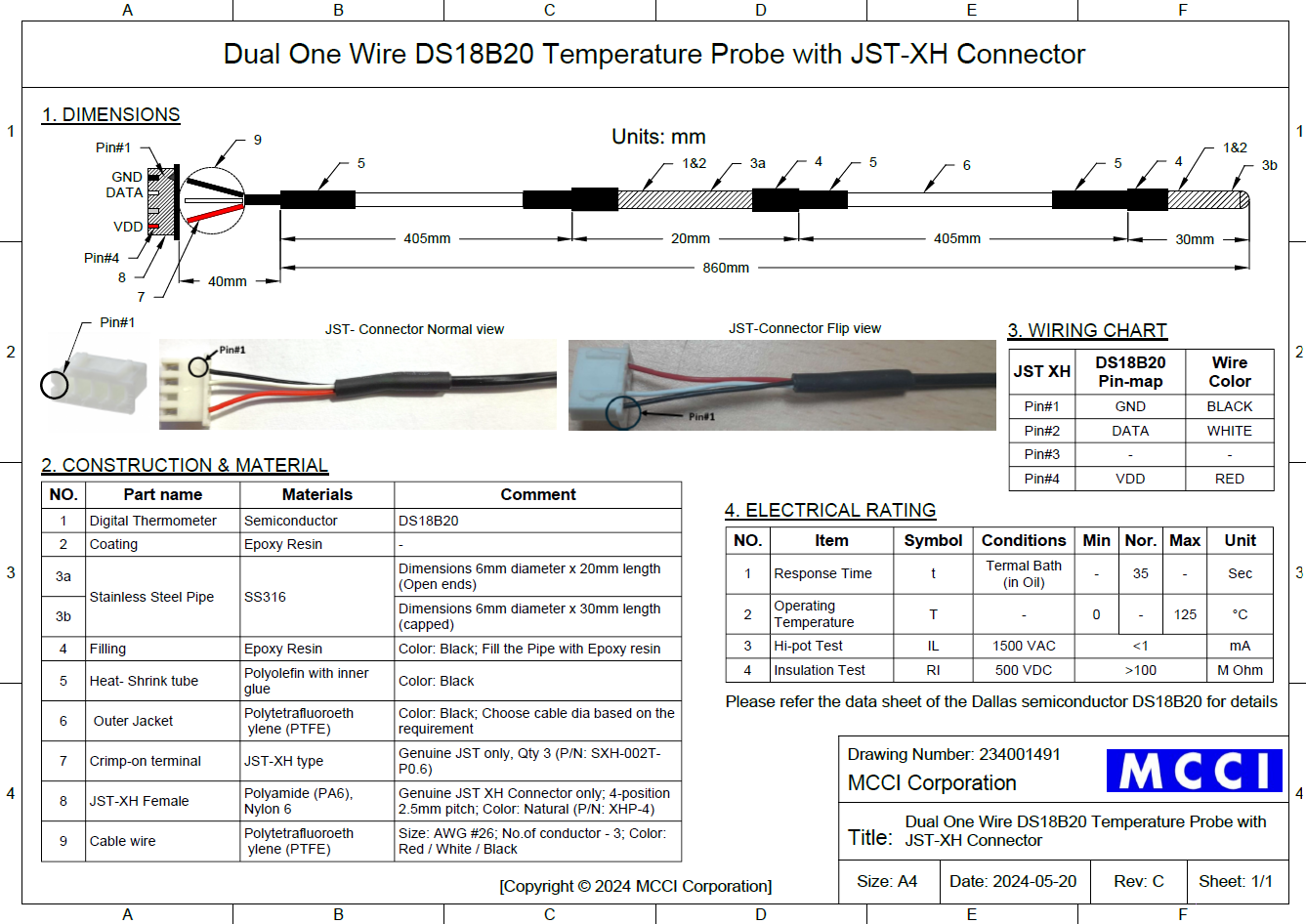

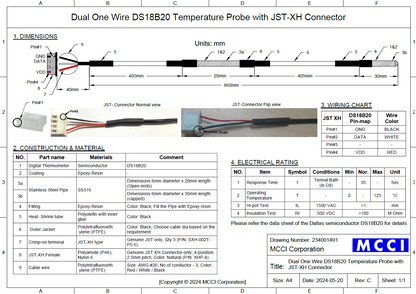

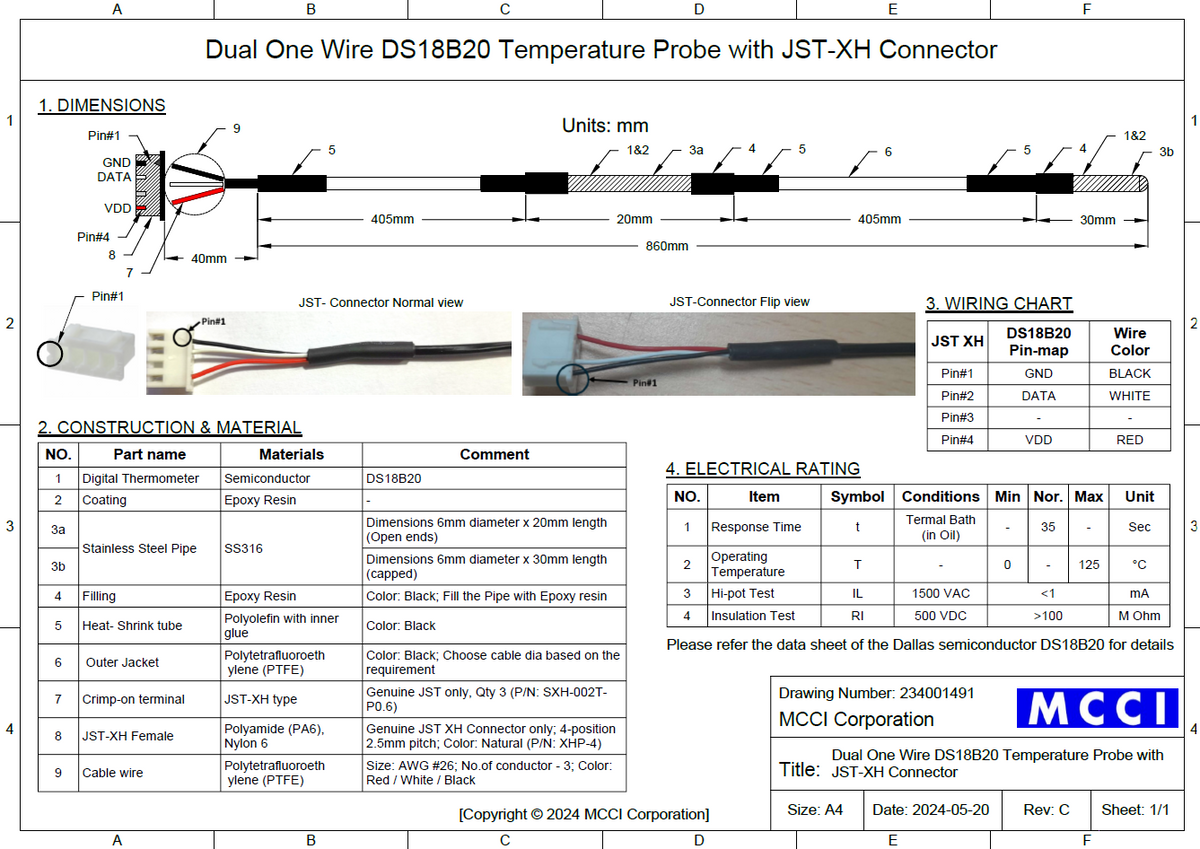

Specification:

  • Housing: SS316 Stainless Steel
  • Dimensions (Open ends): 6mm diameter × 20mm length
  • Dimensions (Capped): 6mm diameter × 30mm length
  • Coating: Epoxy Resin
  • Heat- Shrink: Polyolefin with inner glue
  • Cable Length: 860 mm
  • Cable Outer Jacket: Polytetrafluoroethylene (PTFE)
  • Termination: Genuine JST XHP-4 Connector

Volume discount and customization are available. Contact MCCI via email (sales@mcci.com) for assistance
