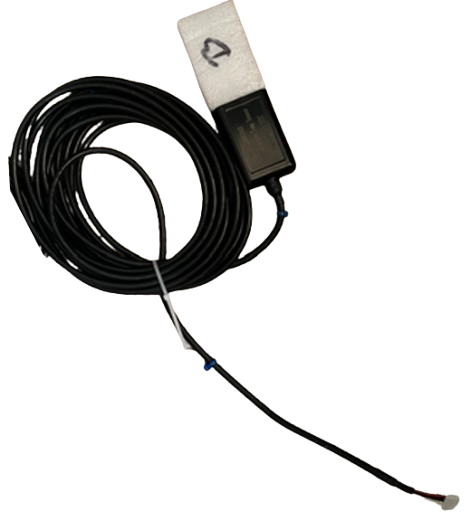

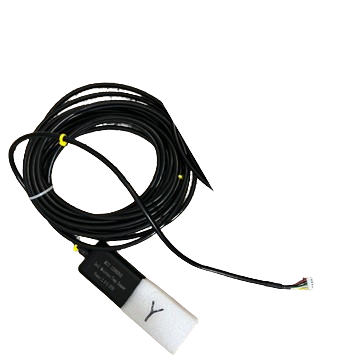

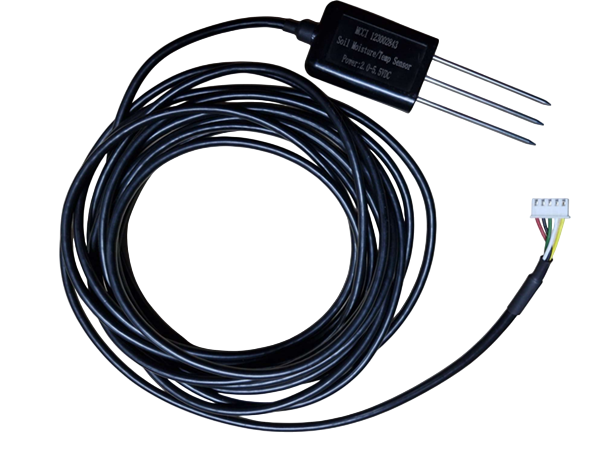

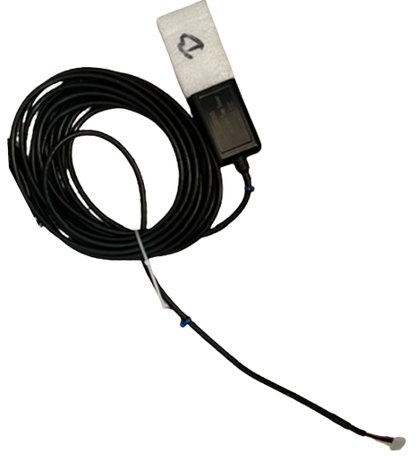

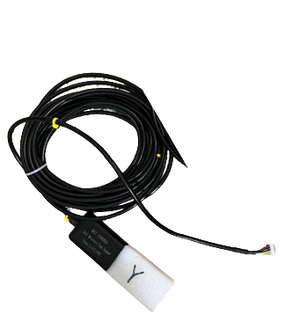

MCCI MS10 Soil Moisture and Temperature Sensor 6-meter Probe

The MCCI® customized MS10 soil moisture & temperature sensor is a high-precision device designed for accurate monitoring of soil conditions. Equipped with an RS485 interface utilizing the Modbus-RTU protocol, it ensures seamless integration into various data acquisition systems. The sensor is waterproof (IP68-rated) for reliable, long-term underground deployment and designed to cause minimal soil disturbance. Its low salinity sensitivity and robust construction make it ideal for precision farming and environmental monitoring. Additionally, built‑in reverse power protection and TVS/ESD safeguards protect against electrical damage.

A durable 6 m PTFE cable and a genuine five‑position JST‑XH connector provide secure, direct mating with MCCI Catena® and IoT boards for wireless data transmission via LoRaWAN® networks or Sigfox.

Specification:

• Output Interface: RS485, Modbus-RTU
• Power Supply: 2.0~5.5V DC (not applicable for 4~20mA
  output)
• Soil Moisture Measurement
  • Range: 0-50%, 0-100%
  • Resolution: 0-50% ±0.03%, 50-100% ±1%
  • Accuracy: 0-50% ±3%, 50-100% ±5%
• Temperature Measurement
  • Range: -40~80℃
  • Resolution: 0.1℃
  • Accuracy: ±0.5℃
• Measurement Technique: Moisture by FDR
• IP Ratings: IP68
• Operating Temperature: -40~85℃
• Sensor Rod: Stainless steel
• Sensor Sealed: Epoxy resin
• Installation: Surface or buried installation
• Cable Length: 6 Meters
• Sensor Head Dimension (L x W x H): 44mm x 15mm x 146mm

Volume discount and customization are available. Contact MCCI via email (sales@mcci.com) for assistance
