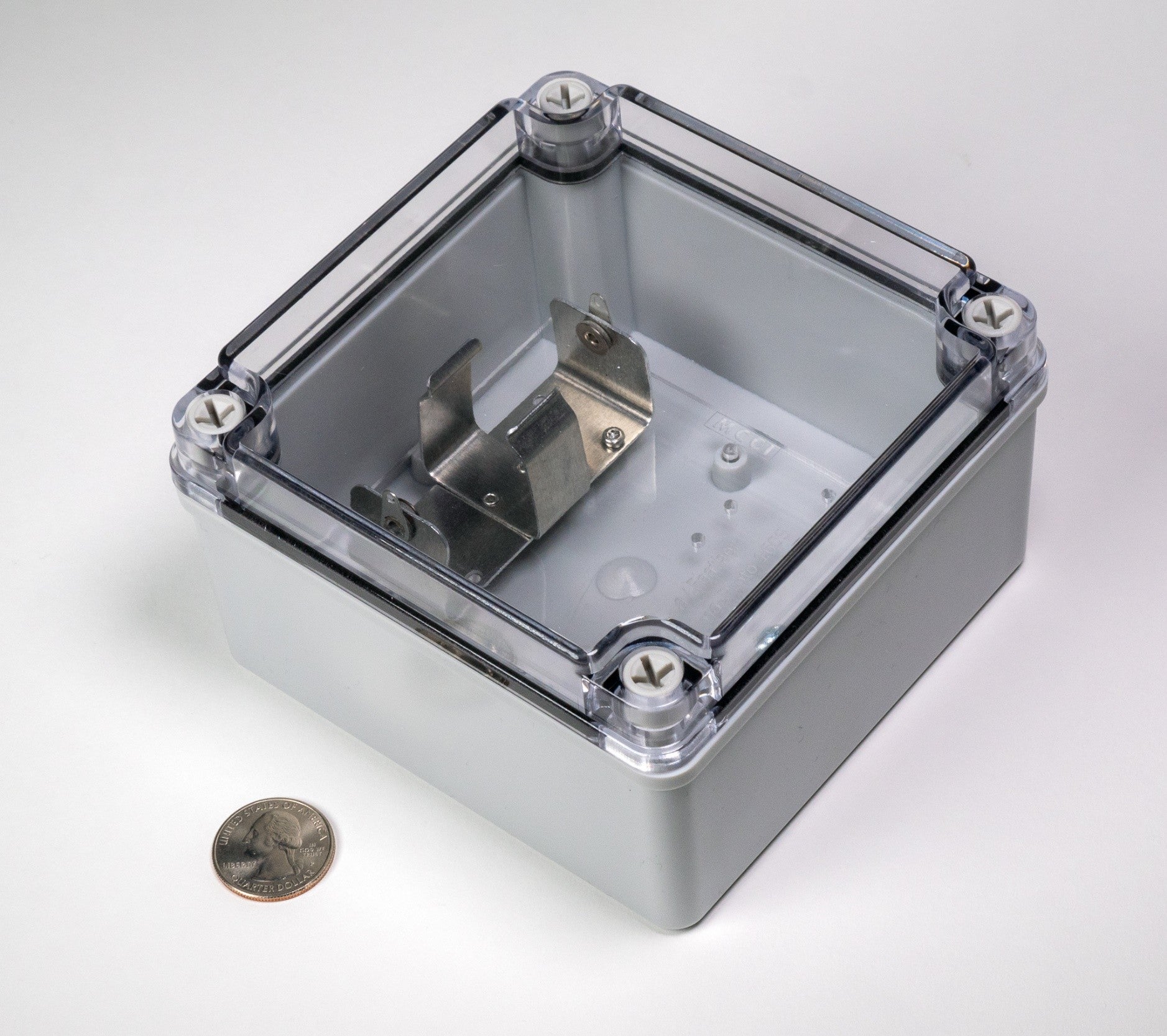

MCCI Model 4070 Weatherproof Case for Feather System Boards

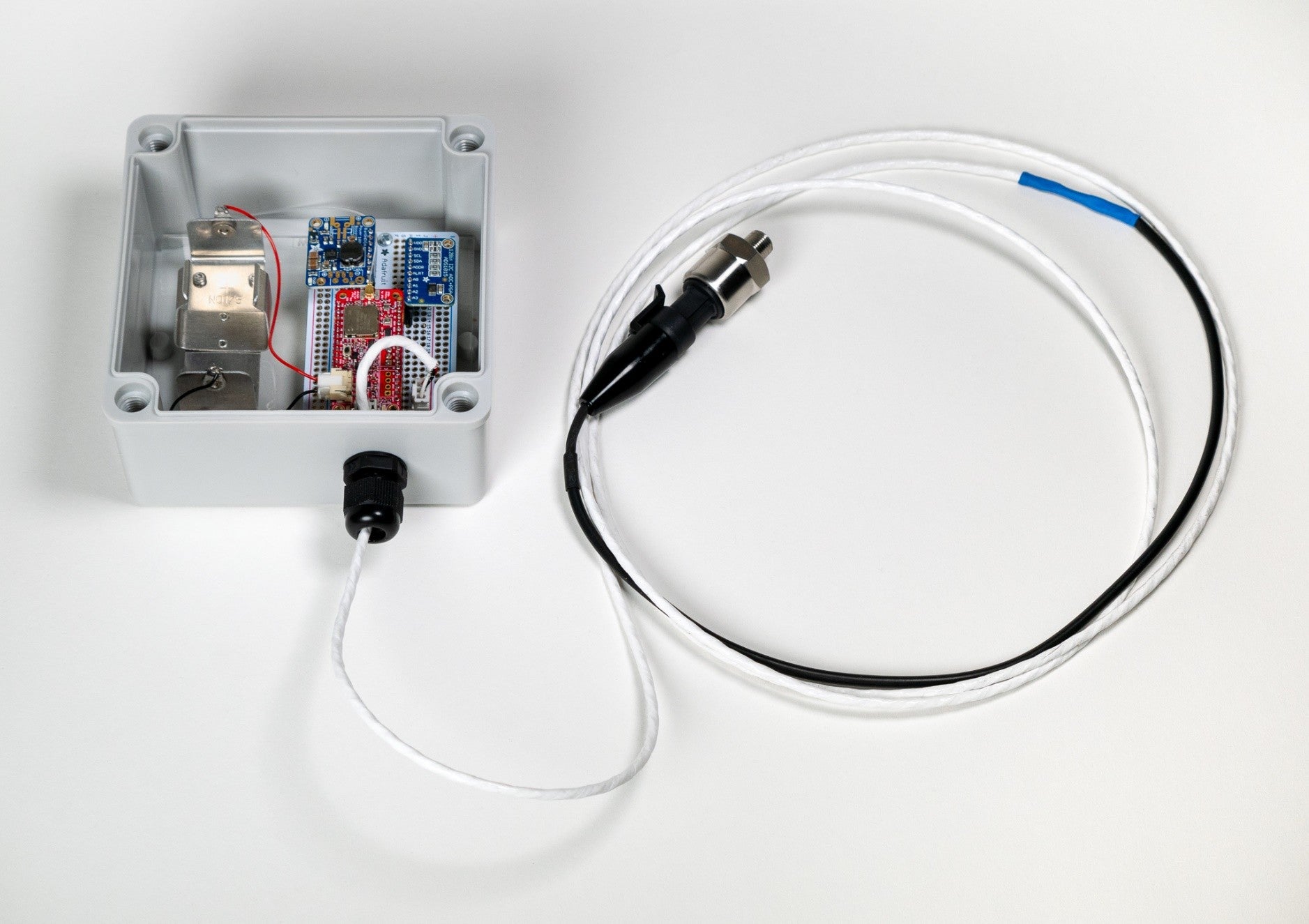

The Model 4070 Weatherproof Junction Box (LMioEtool type) is built for durability, reliability, and protection. Made from heavy-duty ABS and polycarbonate materials, this enclosure safeguards your electronic components against water, dust, and impact - making it perfect for both indoor and outdoor installations. Ideal for housing circuit boards, sensors, power supplies, or control modules, the Model 4070 ensures your equipment remains safe and stable even in harsh conditions.

Specifications

• Product Name: Junction Box
• Waterproof Protection Grade: IP67
• Certifications: CE, ROHS
• Material: ABS (Box Body), PC (Transparent Cover)
• Net Weight: 278g
• Color: Light Gray (Body) + Transparent (Cover)
• Outer Dimensions: 4.92" x 4.92" x 2.95" (125mm x 125mm x 75mm)
• Inner Dimensions: 4.41" x 4.41" x 2.8" (112mm x 112mm x 71mm)
• Thickness: 0.16" (4mm)
• Package Includes:
  • 1 × Electric Junction Box
  • 1 × Rubber Grommet
  • 4 × Screws

 Key Features

• Heavy-Duty Box: Thick and durable ABS plastic ensures superior shock resistance and long-lasting protection for your equipment.
• Built-In Gasket: Sealed design keeps your electronics clean, dry, and safe, offering excellent waterproof and dustproof performance.
• ABS Screws: Designed for easy installation and enhanced waterproof reliability.
• Backplane Wiring Hole: Convenient internal wiring hole design - perfect for mounting circuit boards, DIN rails, or control panels.
