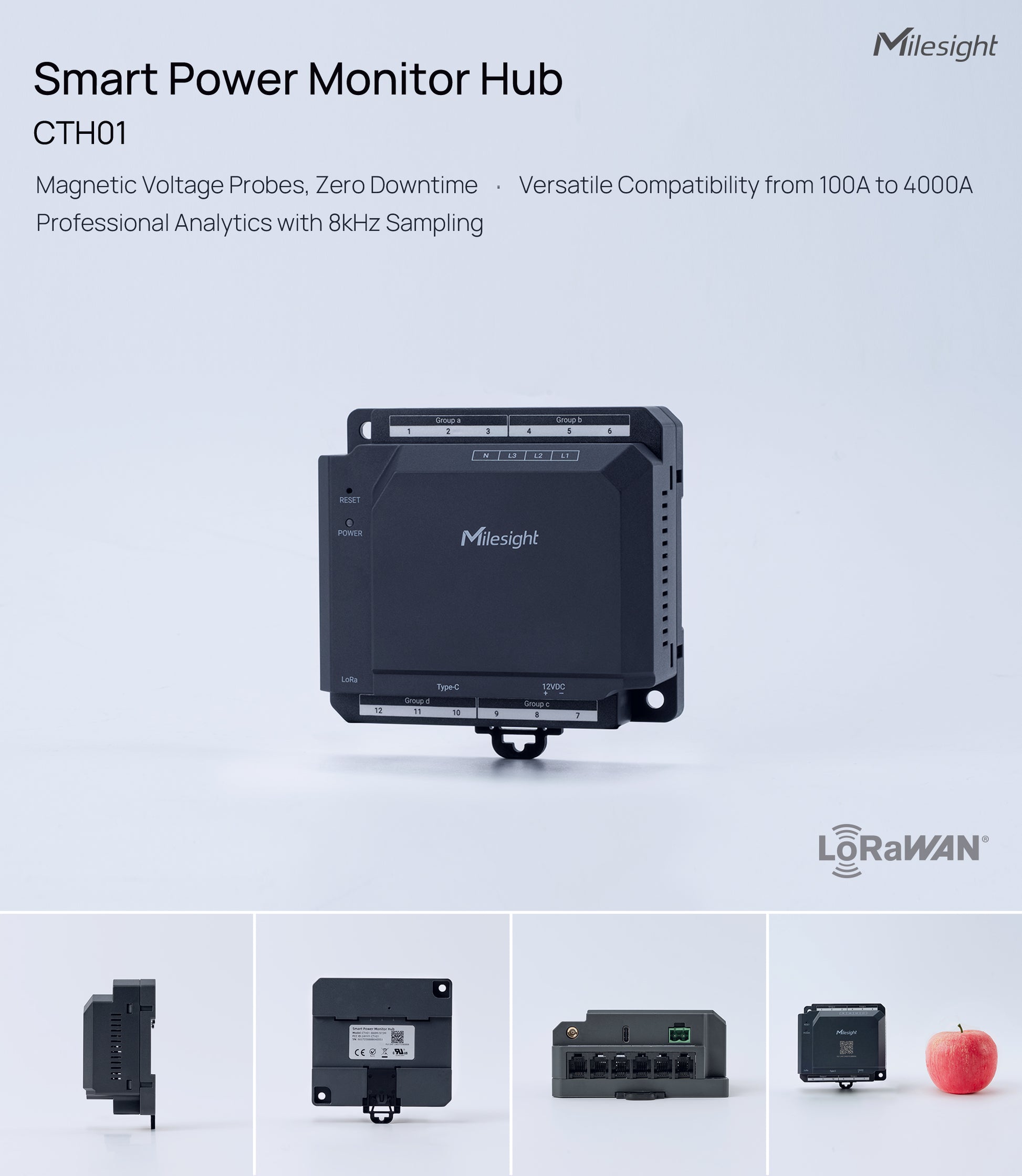

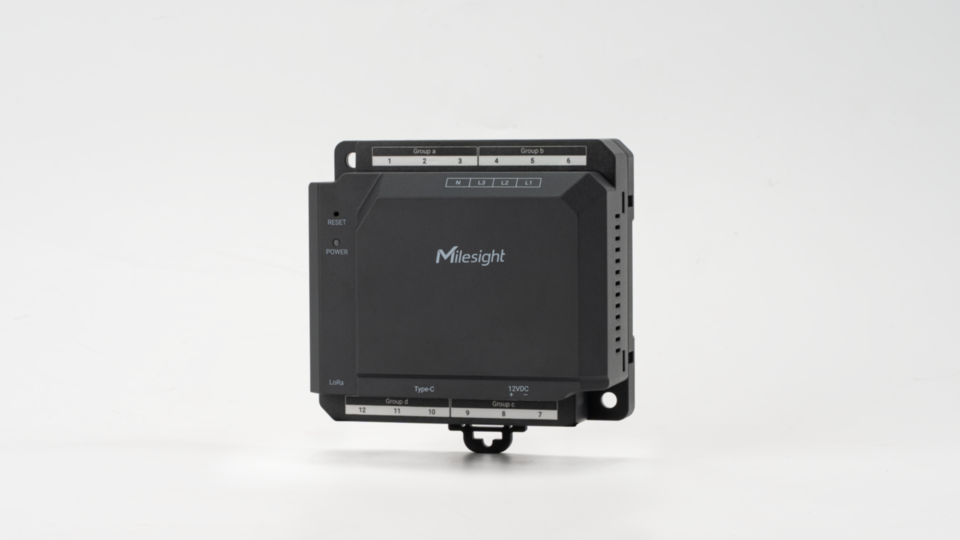

Milesight Smart Power Monitor Hub CTH01

The CTH01 Smart Power Monitor Hub is a LoRaWAN®-based multi-channel energy monitoring solution designed for industrial and commercial applications.

It enables real-time monitoring of up to 12 current channels and 3 voltage channels, delivering detailed insights into energy consumption, power quality, and system performance.

With its non-invasive installation and high-accuracy measurement, the CTH01 simplifies deployment while improving operational efficiency and reducing energy costs.

Features

• 12-Channel Energy Monitoring: Supports 12 single-phase circuits or 4 three-phase systems
• Advanced Power Analytics: Measures active, reactive, and apparent power, energy consumption, power factor, and THD
• Non-Invasive Installation: Split-core CTs and magnetic voltage probes allow installation without power shutdown
• High Accuracy Measurement: ±1% accuracy with sampling frequency up to 6-8 kHz
• LoRaWAN Connectivity: Long-range wireless transmission with global frequency support
• Bluetooth Configuration: Easy setup and calibration via mobile app
• Data Logging & Alerts: Stores historical data and supports threshold-based alarms

Specifications

Technical Documents

• Datasheet
• User Guide

Optional Accessories

• MN1605 - Magnetic Nut
• XH-SCT-T16 - Split Core CT
• RS1000 - Rogowski Coils
