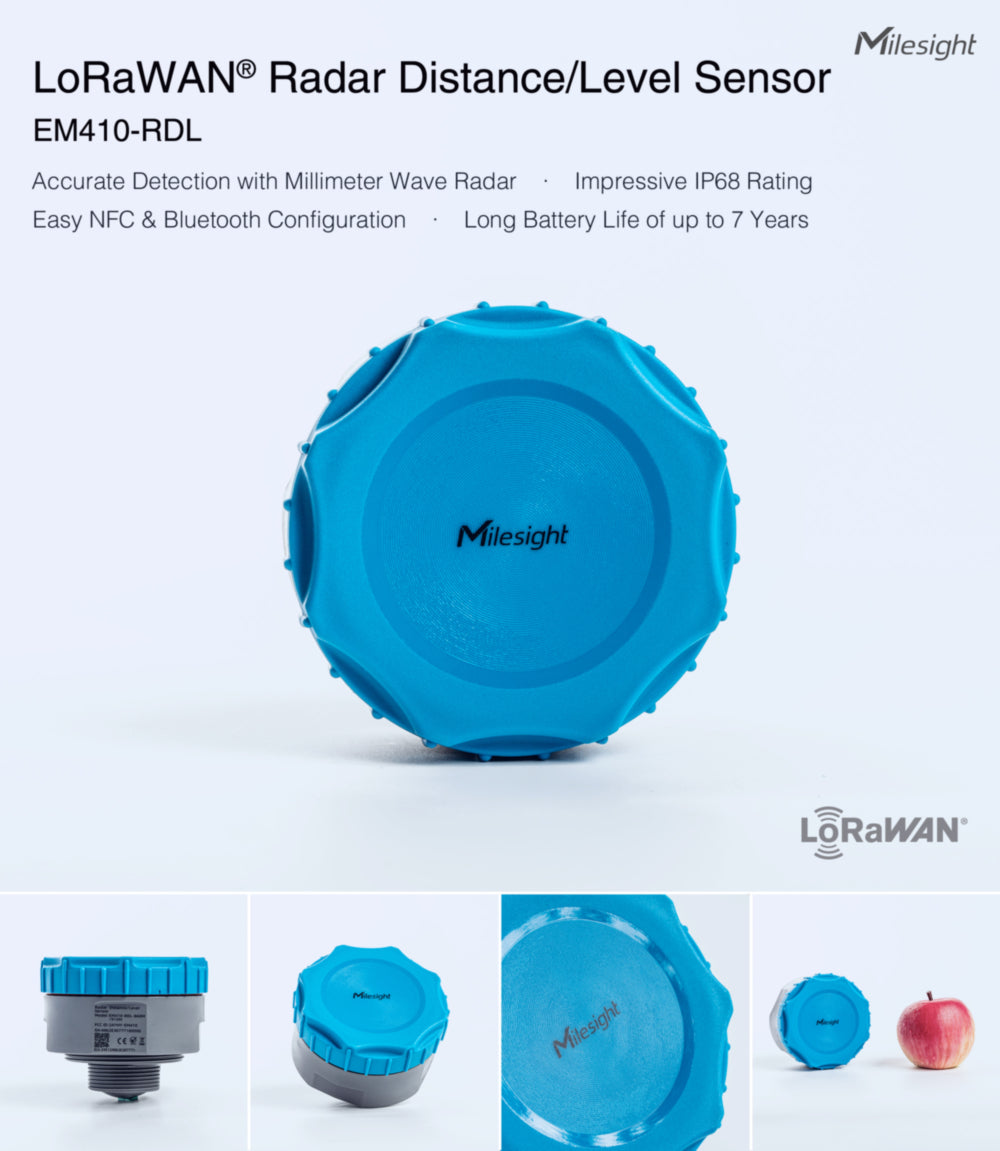

Milesight Radar Distance Level Sensor EM410-RDL

$ 375.00 USD

Sale Sold out

Backhaul Backhaul: LoRaWAN Version: KR920 / AS923 / AU915 / US915 Backhaul: LoRaWAN Version: IN865 / EU868 / RU864 Backhaul: LoRaWAN Version: CN470 Backhaul: Cellular Region: EMEA+Australia+New Zealand

Antenna Type Antenna: Internal Antenna: External

Tank Thread G 1½” Thread NPT 1½” Thread

Quantity

SKU:123003686

Low stock: 2 left

The EM41x-RDL is a high-performance non-contact radar distance and liquid level sensor based on millimeter-wave radar technology. By operating at higher frequencies, it delivers stable, accurate measurements over long distances and remains largely unaffected by challenging environmental conditions such as temperature fluctuations, dust, vapor, condensate, or acoustic noise.

Designed for harsh and demanding environments, the EM41x-RDL features an IP68 waterproof, fully sealed enclosure and a PVDF housing that provides exceptional resistance to corrosion, wear, and compression. The sensor requires no routine maintenance and supports ATEX Zone 0 compliance (EM411-RDL only), making it suitable for hazardous areas.

The EM41x-RDL accurately measures the distance between the sensor and liquids of various types, including freshwater, wastewater, seawater, and high-concentration brine. It is ideal for applications such as sewers, rivers, reservoirs, storage tanks, and high-salt mist environments.

Milesight offers both LoRaWAN® and Cellular versions to meet different connectivity requirements. The LoRaWAN version integrates seamlessly with Milesight LoRaWAN gateways and the Milesight Development Platform for remote, visualized data management, while the Cellular version supports multiple application modes for compatibility with diverse IoT platforms.

Key Features

8° narrow radar beam angle focuses precisely on target fluid for high-accuracy level measurement
Wide measuring range from 0.3 m to 12 m with a minimal blind zone
Unaffected by dust, condensate, temperature changes, or acoustic noise
Non-invasive liquid level monitoring, suitable for hazardous and non-hazardous liquids
Optional internal or external antenna to suit different installation scenarios
Built-in 3-axis accelerometer for device tilt detection and monitoring
Radar echo curve visualization and one-click diagnostics for easy calibration in varying environments
Blind zone alarm when measurements fall within the blind zone
PVDF enclosure offering excellent corrosion resistance, wear resistance, and mechanical strength
IP68 waterproof design, resistant to freshwater immersion up to 1 m for 48 hours
ATEX Zone 0 support (EM411-RDL only): Ex ia IIC T4 Ga
Threaded mounting design for easy tank installation without additional accessories
Local data storage with retransmission to prevent data loss
Easy configuration via NFC and Bluetooth
Remote device management and OTA upgrades via Milesight Development Platform
