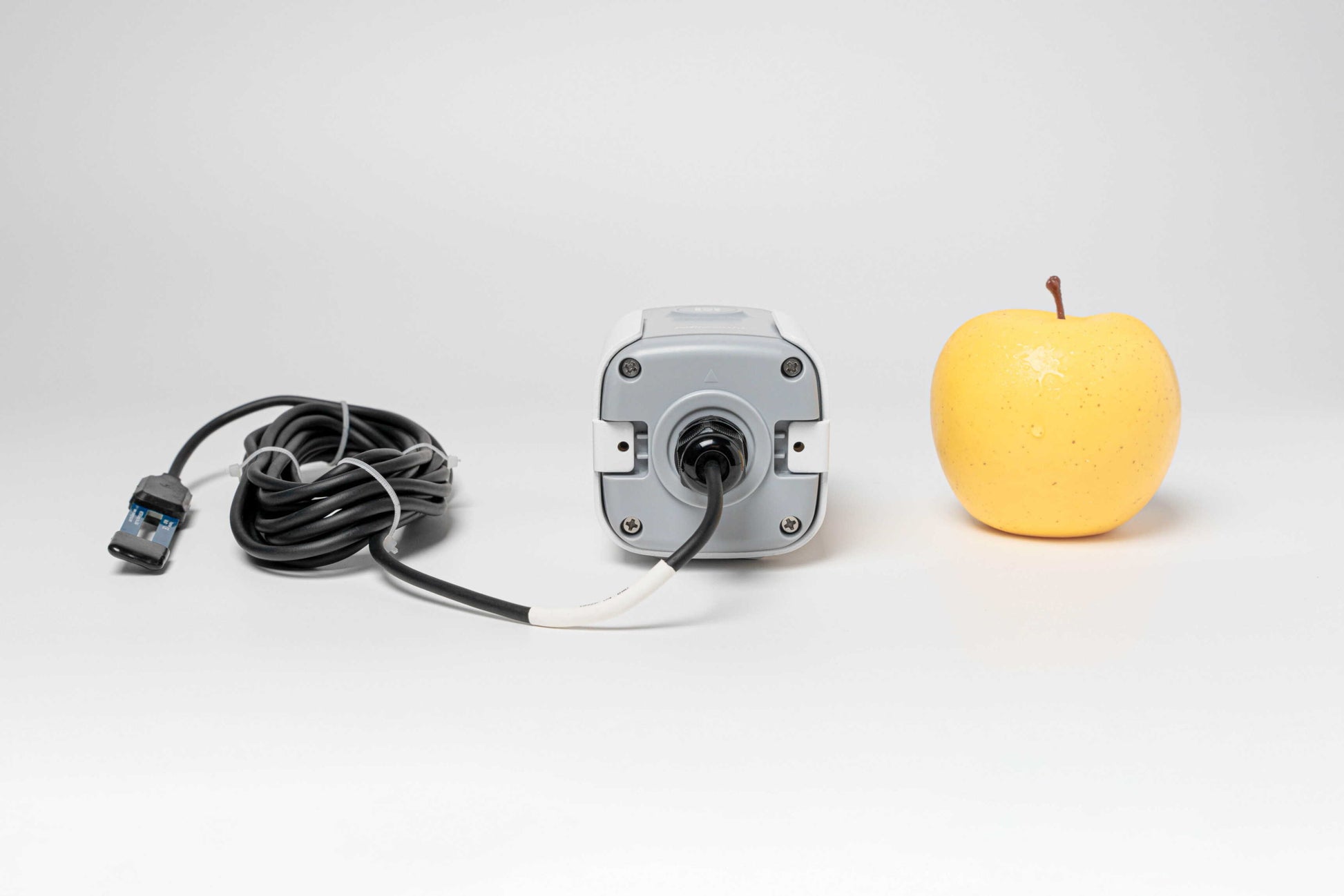

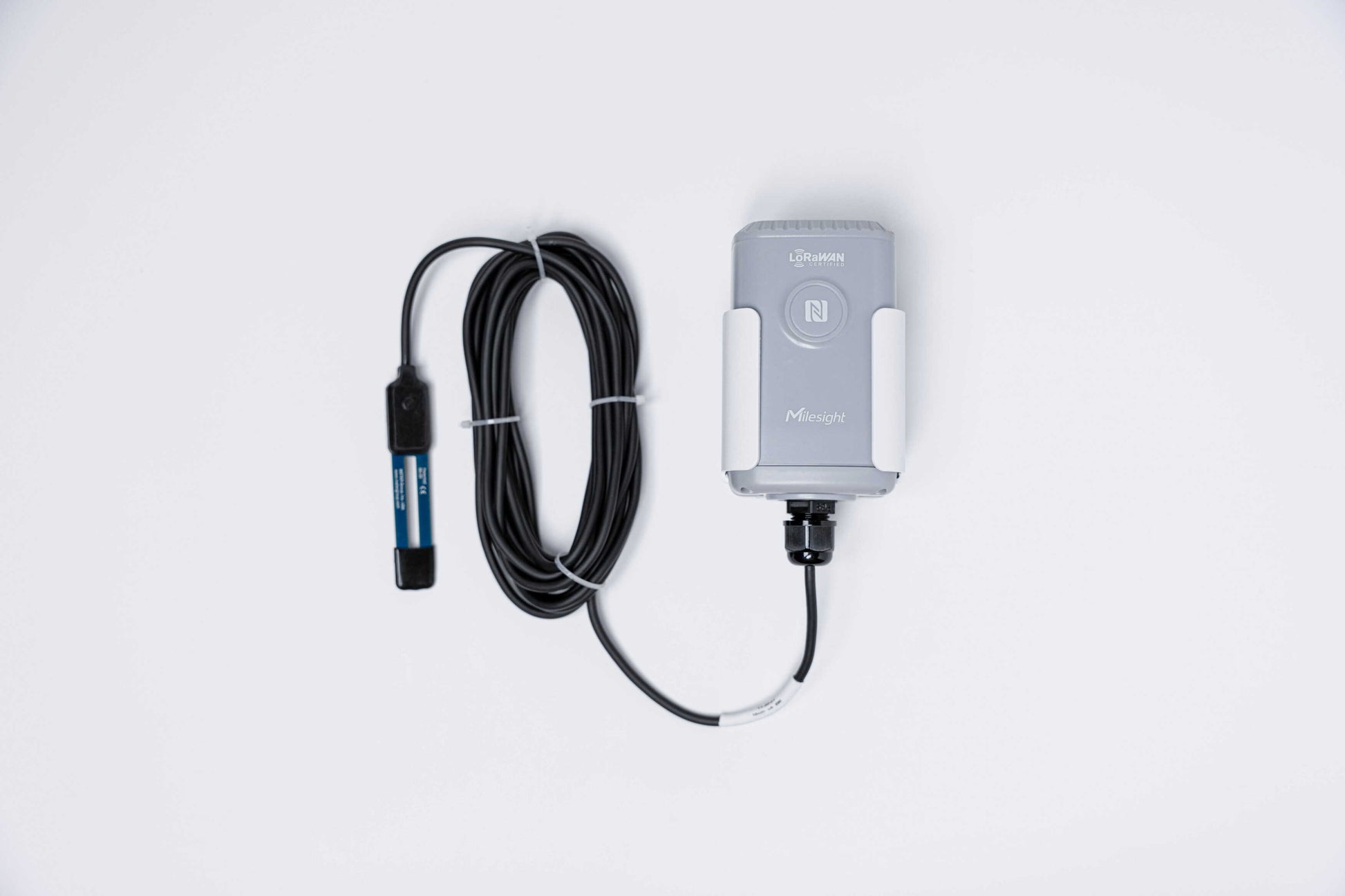

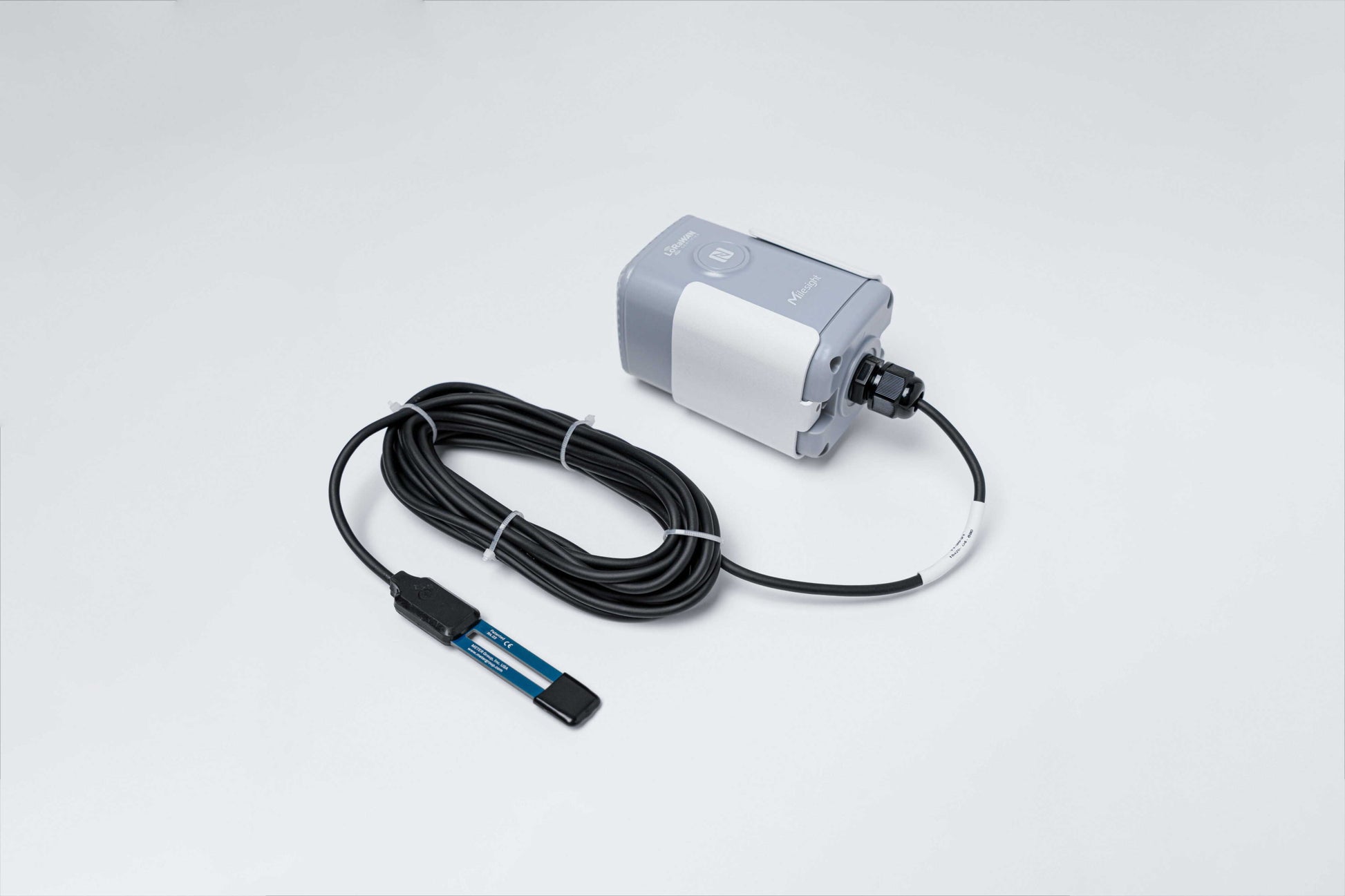

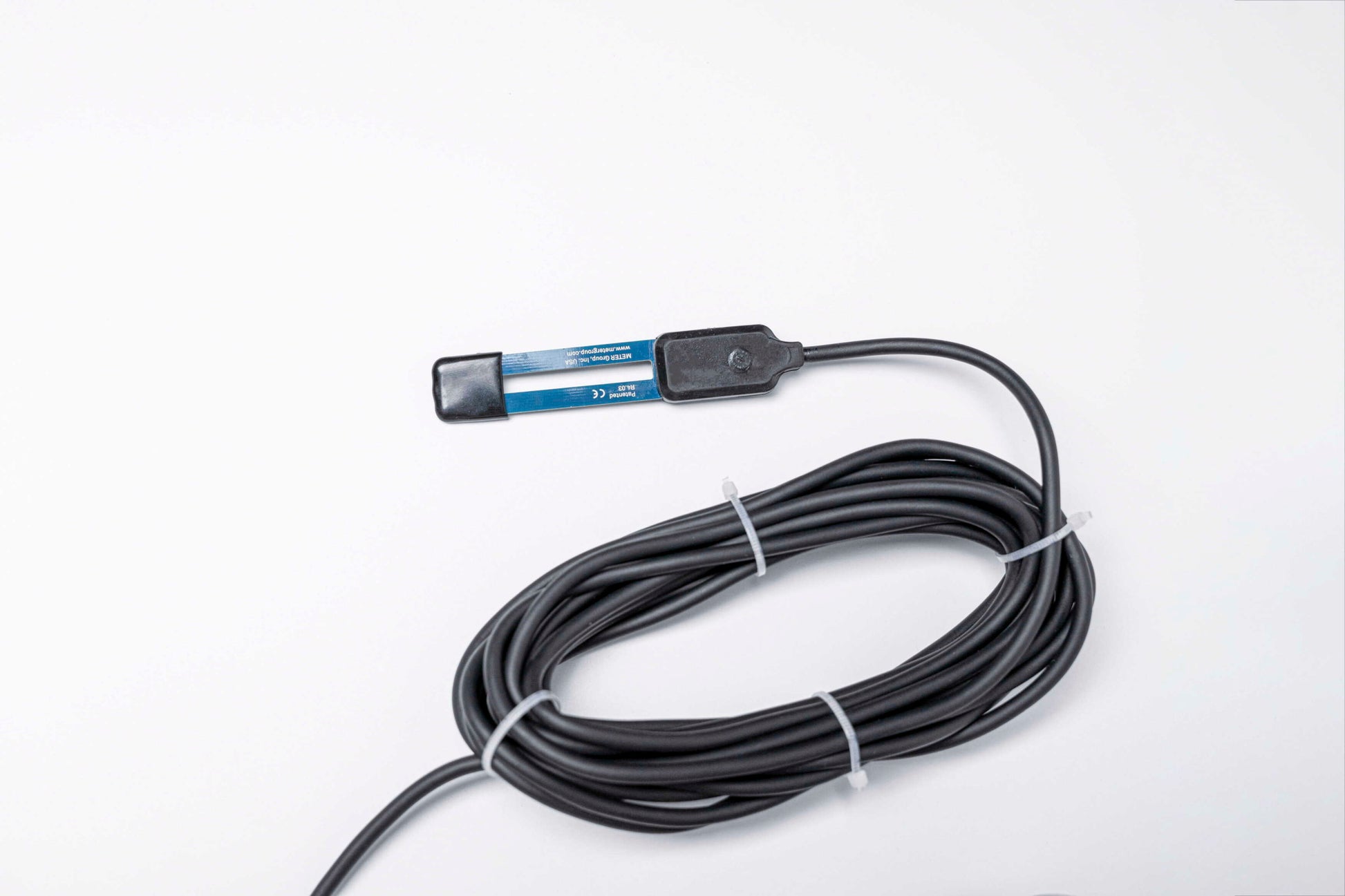

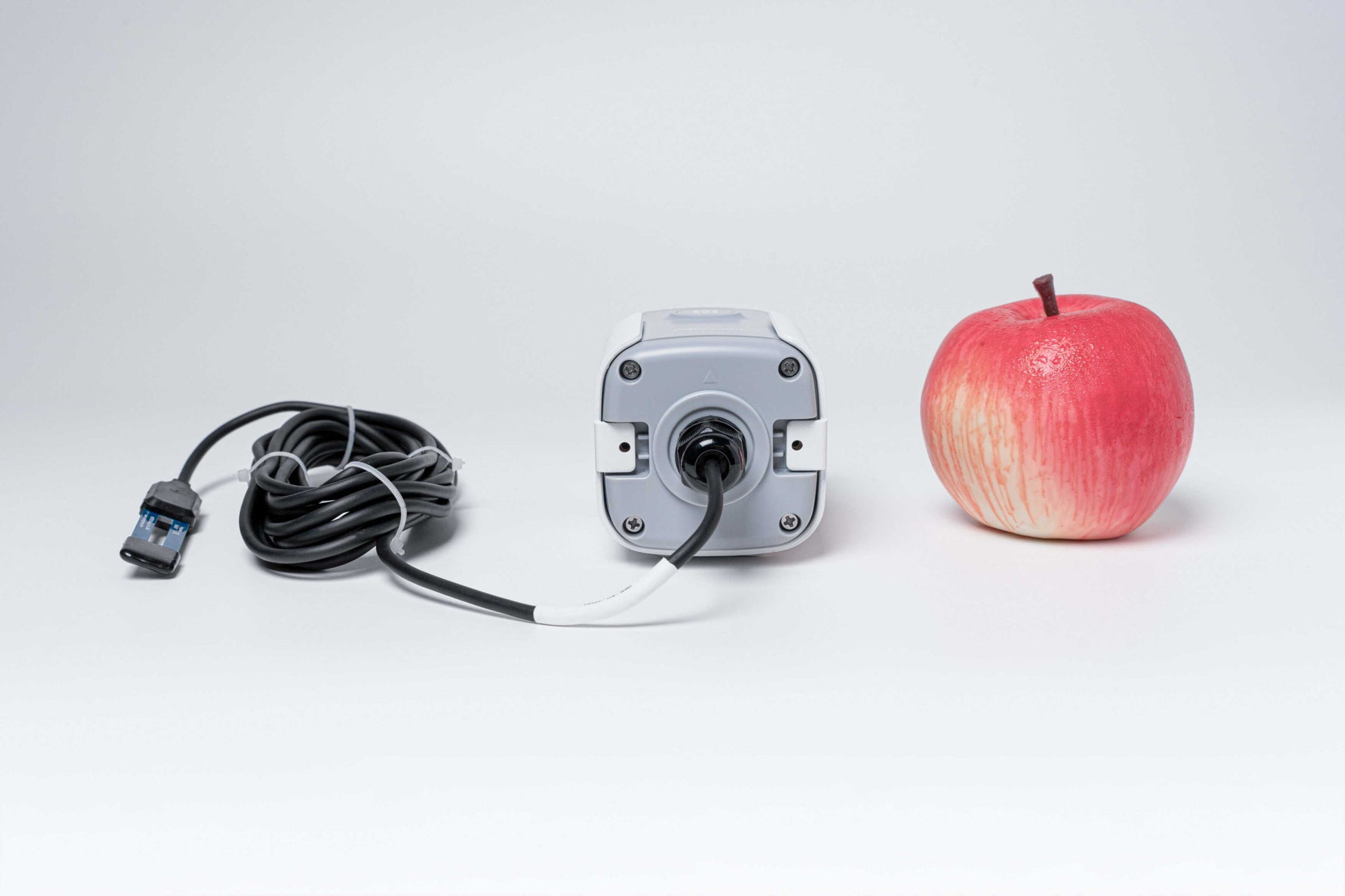

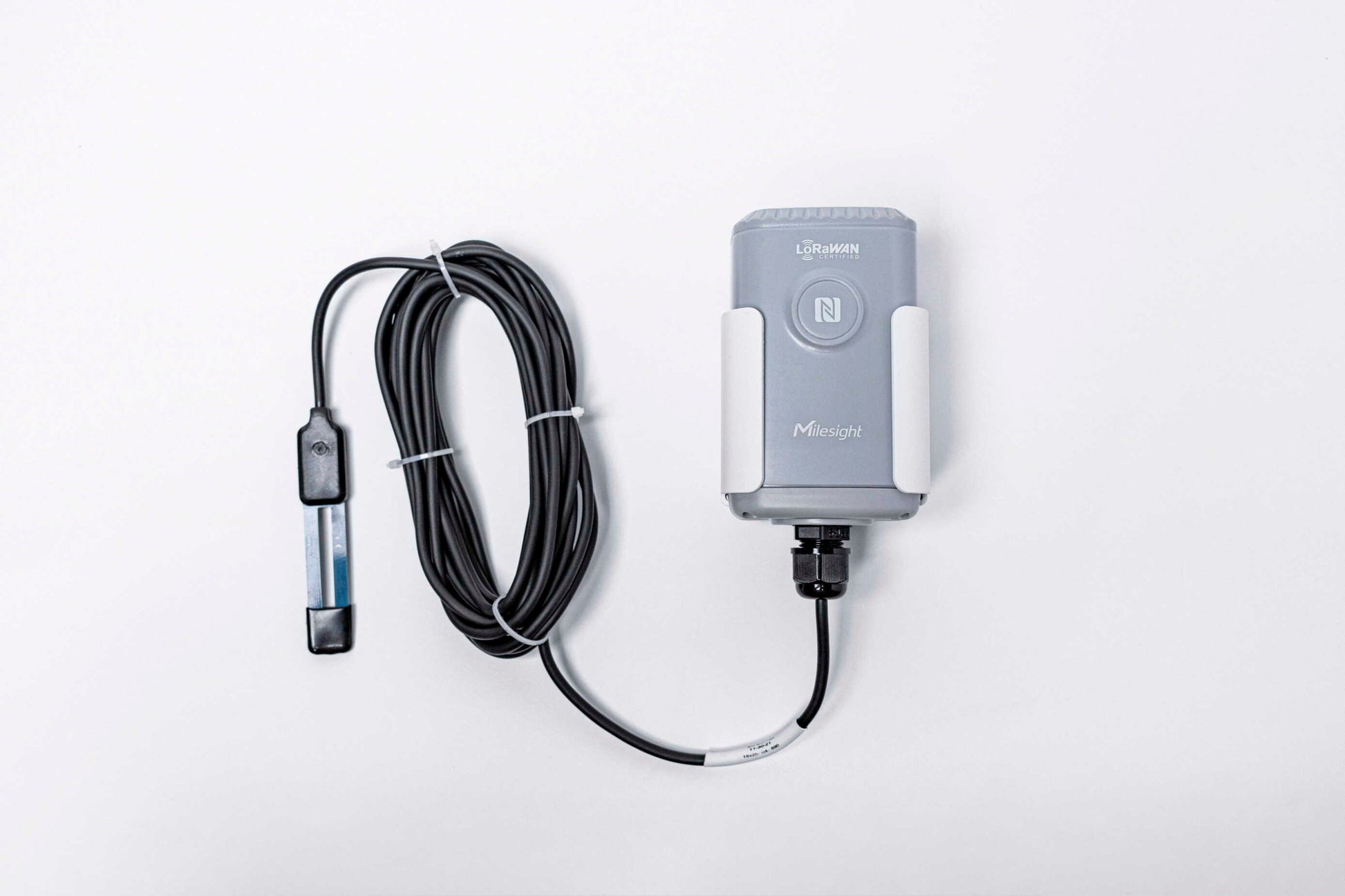

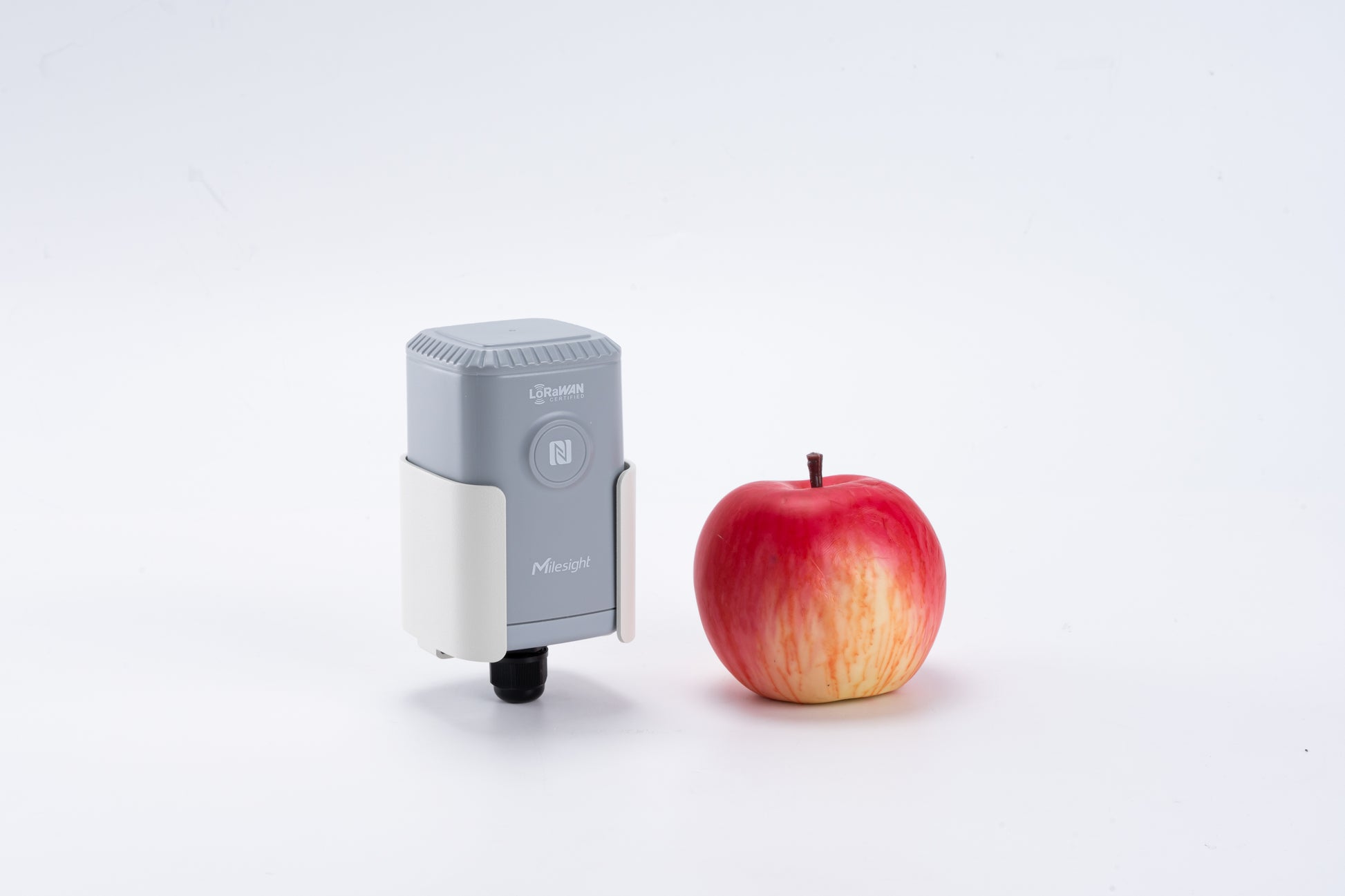

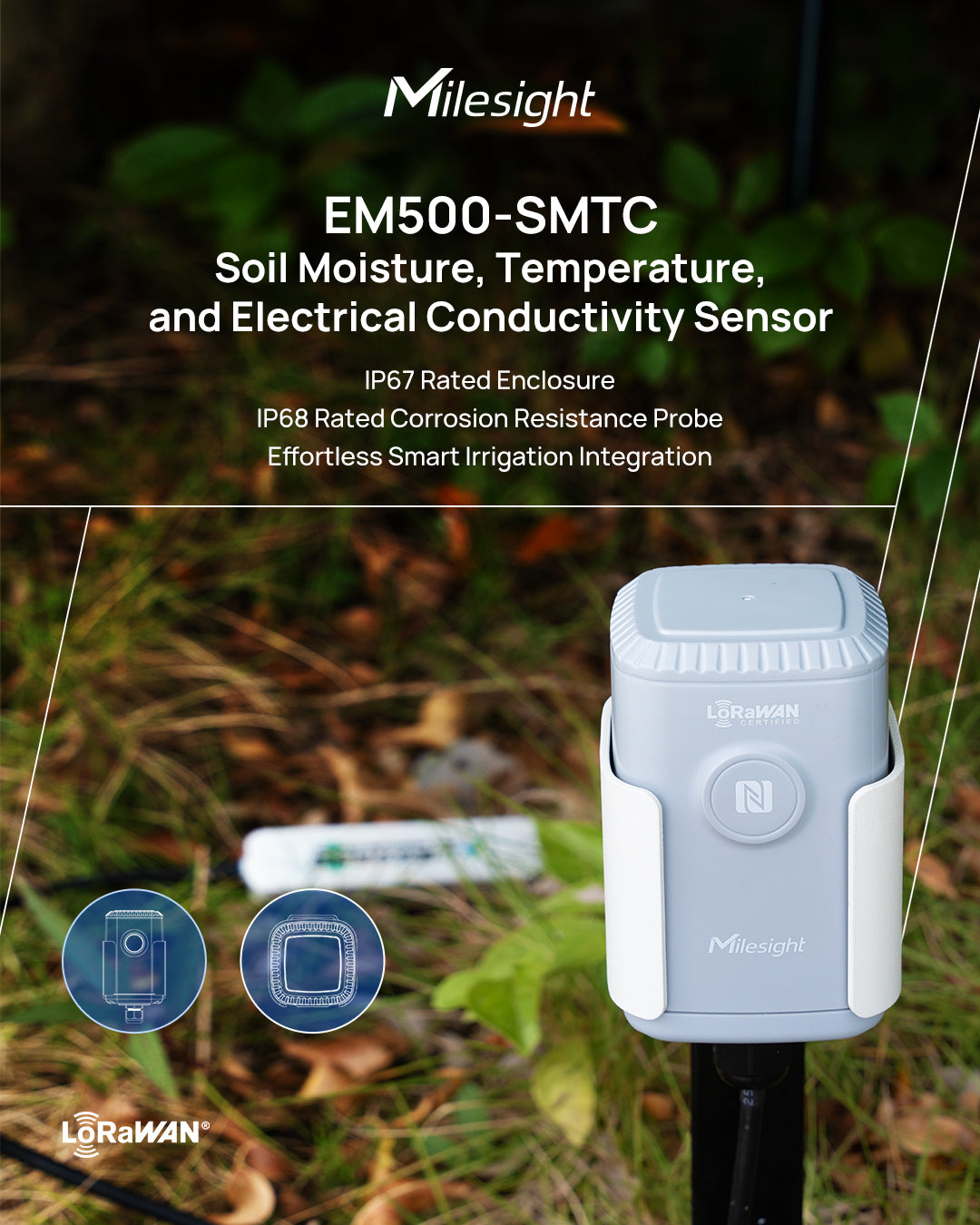

Milesight Soil Conductivity Sensor EM500-SMTC
Milesight Soil Conductivity Sensor EM500-SMTC
SKU:123002929
Low stock: 1 left
Couldn't load pickup availability

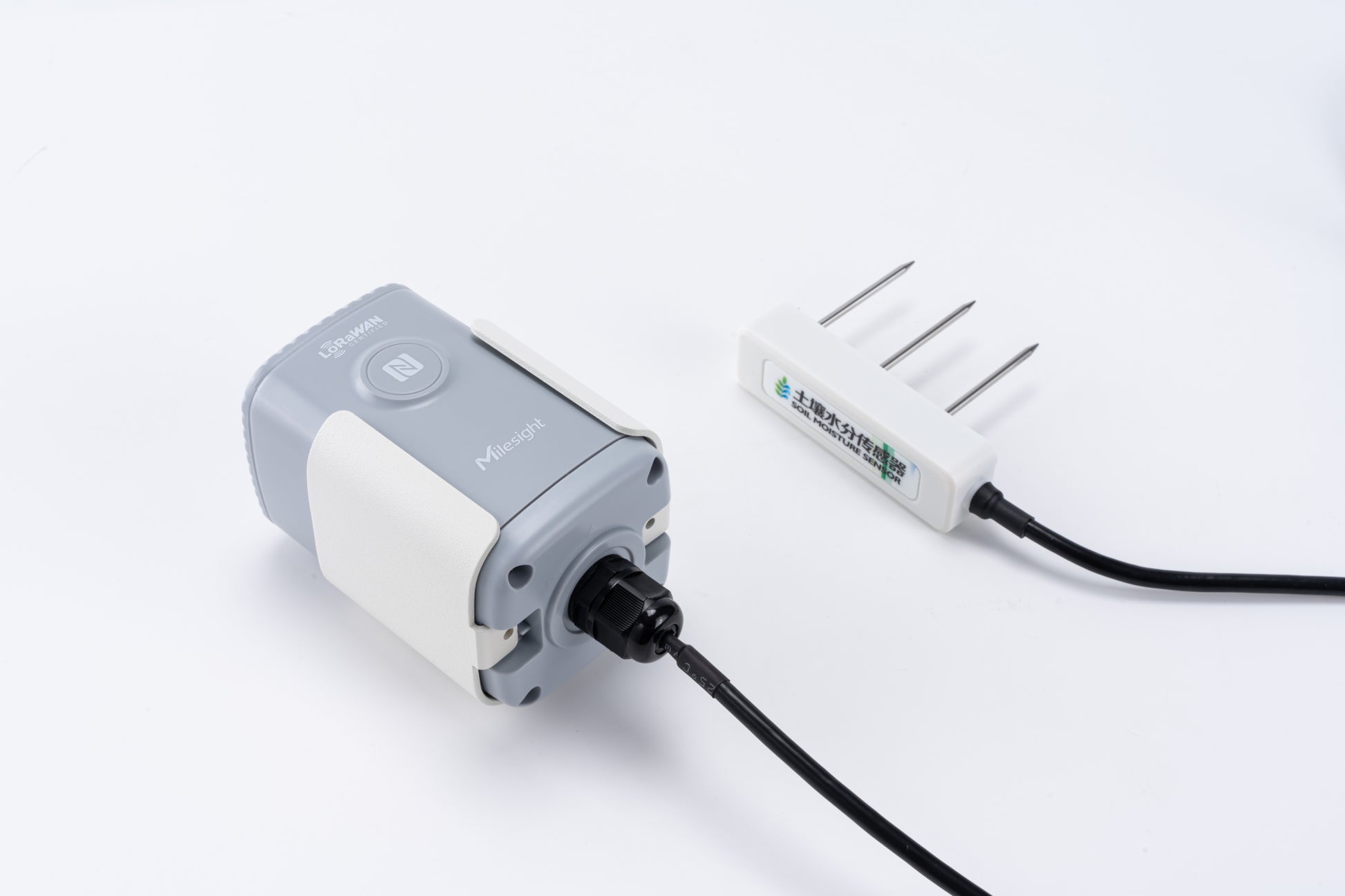

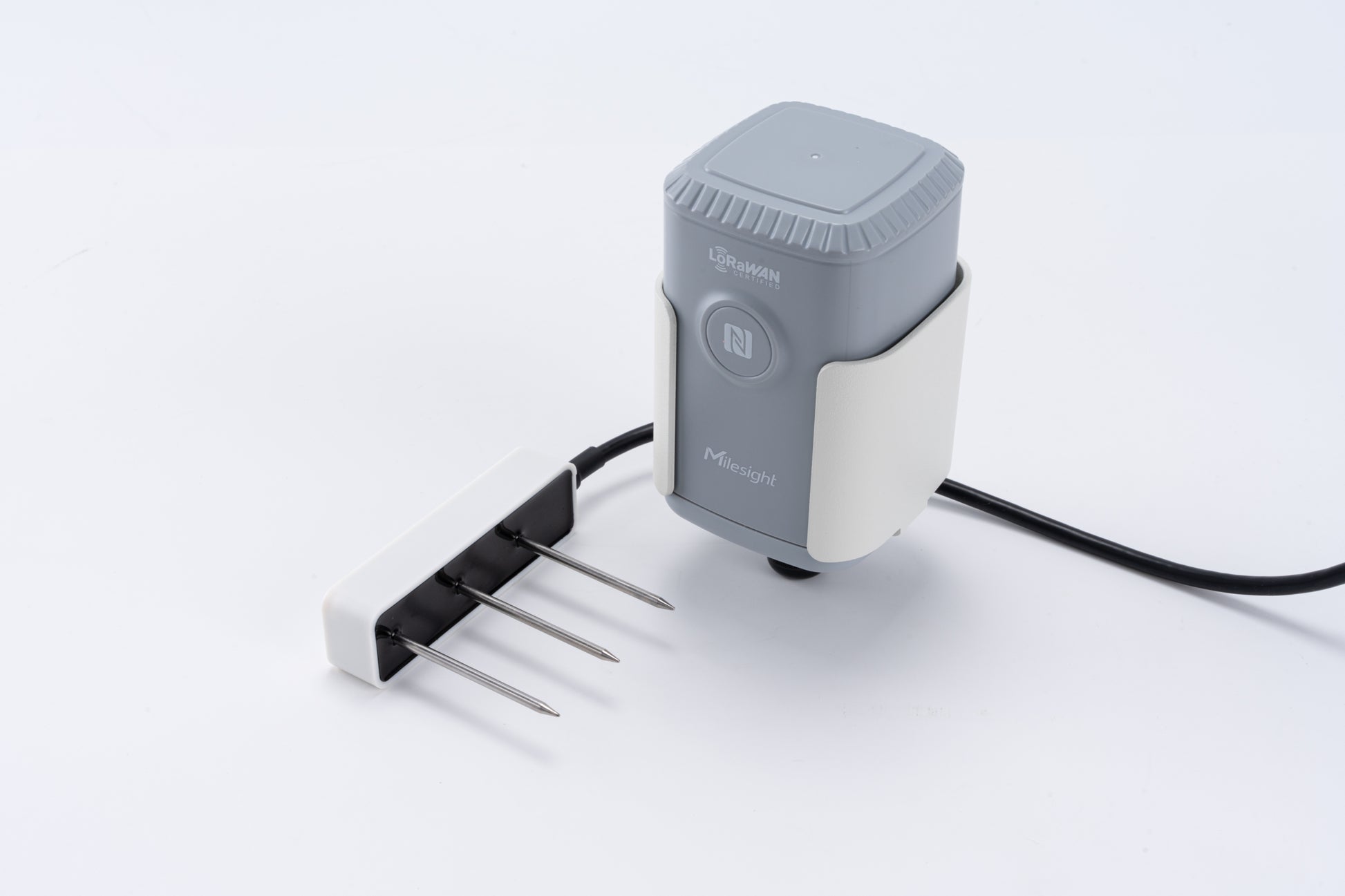

EM500-SMTC is designed for measuring soil moisture, temperature, and electrical conductivity in harsh environments and transmitting data using LoRaWAN® technology. With this low power consumption technology, EM500-SMTC can work up to 10 years with a 19000 mAh battery. Combining with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually. EM500-SMTC is widely used for outdoor applications like smart agriculture, smart horticulture, etc.
Features
- High precision for multiple kinds of soil
- Corrosion resistance and tough probe
- Ultra-wide-distance transmission up to the line of sight of 10km
- IP67 waterproof enclosure for harsh environment applications
- Built-in 19000 mAh replaceable battery and work for 10 years without replacement
- Equipped with NFC for easy configuration
- Compliant with standard LoRaWAN gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
Applications
- Irrigation Control
- Greenhouse control
- Smart agriculture
- Smart horticulture
- Golf course maintenance
Specifications
|
Wireless Transmission |
|
|
Technology |
LoRaWAN |
|
Frequency |
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
|
Tx Power |
16dBm(868)/20dBm(915)/19dBm(470) |
|
Sensitivity |
-137dBm @300bps |
|
Mode |
OTAA/ABP Class A |
|
Measurement |
|
|
Moisture |
|
|
Range |
0% ~ 100% RH |
|
Accuracy |
±2%(0~50%), ±3%(50%~100%) |
|
Resolution |
0.01% |
|
Temperature |
|
|
Range |
-40°C ~ 80°C |
|
Accuracy |
±0.5°C |
|
Resolution |
0.1°C |
|
Conductivity |
|
|
Range |
0~20000 µs/cm |
|
Accuracy |
±3%(0~10000 µs/cm), ±5%(10000~20000 µs/cm) |
|
Resolution |
1 µs/cm |
|
Operation |
|
|
Power On & Off |
NFC, Power Button (Internal) |
|
Configuration |
Mobile App(via NFC) or PC Software(via USB Type-C) |
|
Physical Characteristics |
|
|
Cable Length |
2 m |
|
Power Supply |
19000 mAh Li-SOCL2 battery (ER34615) |
|
Battery Life* |
10 years (10 min interval) |
|
Operating Temperature |
-30°C to +70°C |
|
Relative Humidity |
0% to 100% (non-condensing) |
|
Ingress Protection |
IP67 (Transceiver)/IP68(Soil Sensor) |
|
Dimension |
Transceiver: 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in) Soil Sensor: 88 × 68 × 26 mm (3.5 × 2.7 × 1.0 in) (Probe length: 50mm/1.97 in) |
|

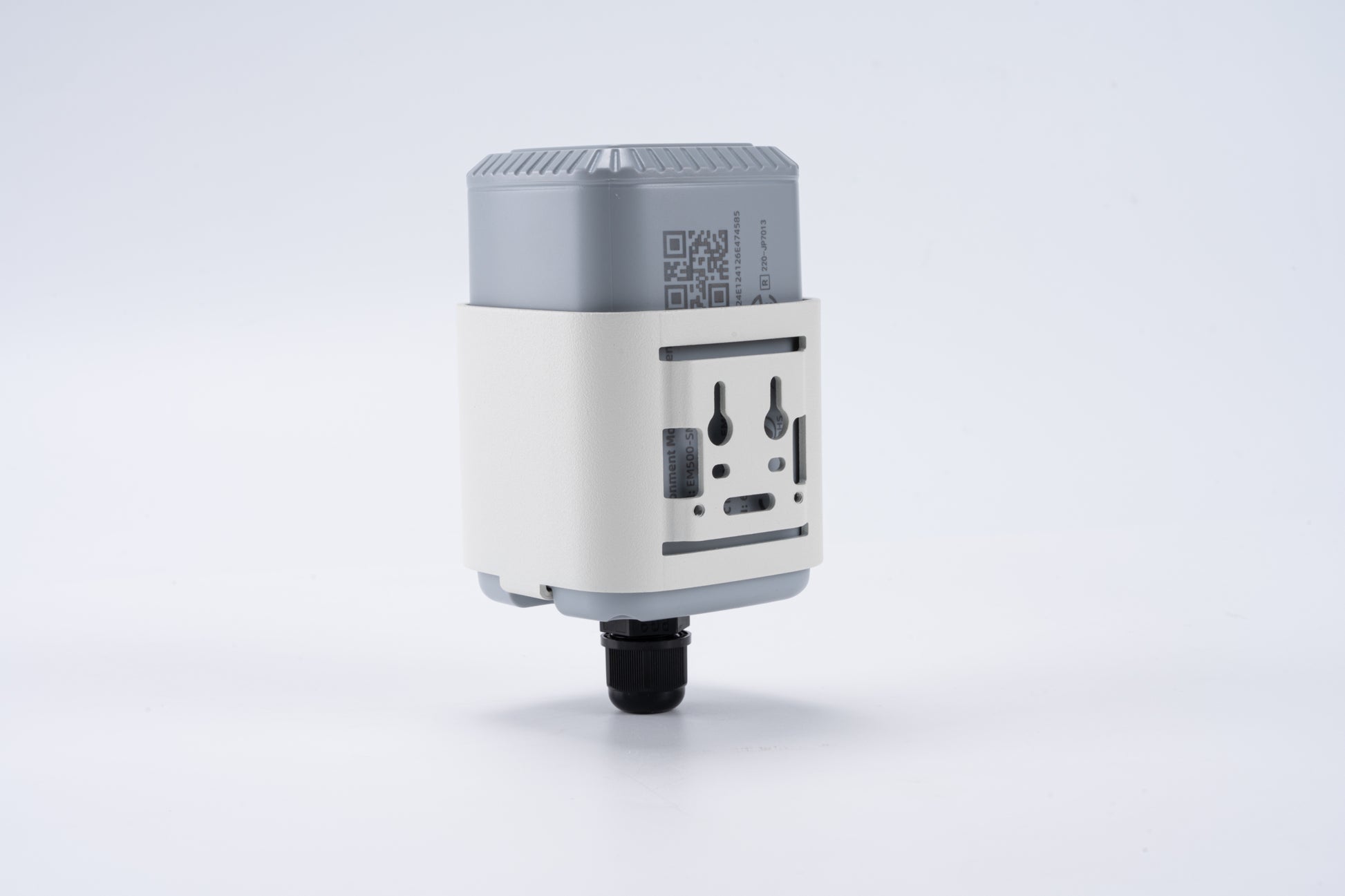

Installation |
Pole, wall or DIN Rail Mounting |
|
Approvals |
|
|
Regulatory |
CE, FCC, RoHS |
Technical Documents
