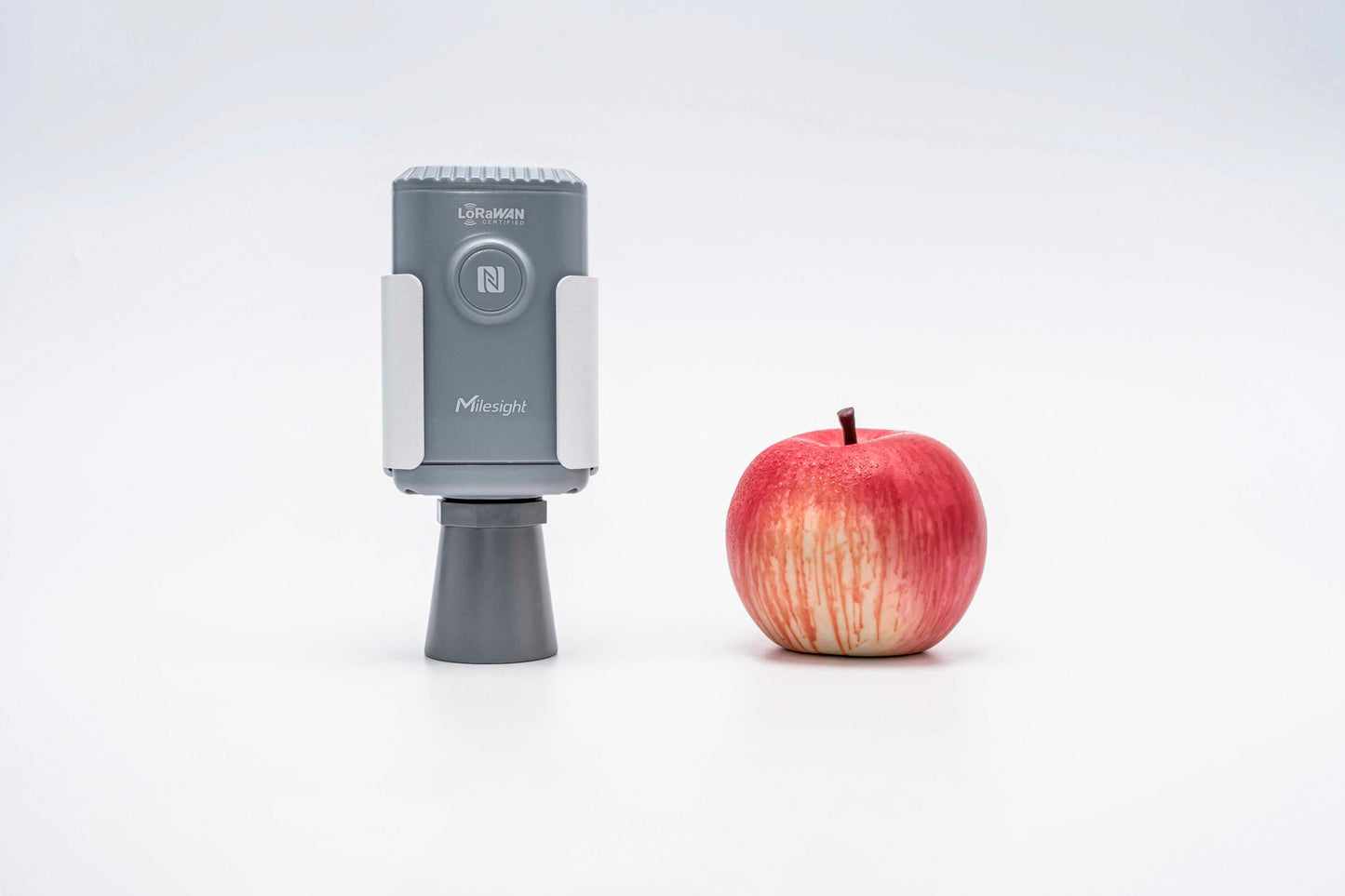

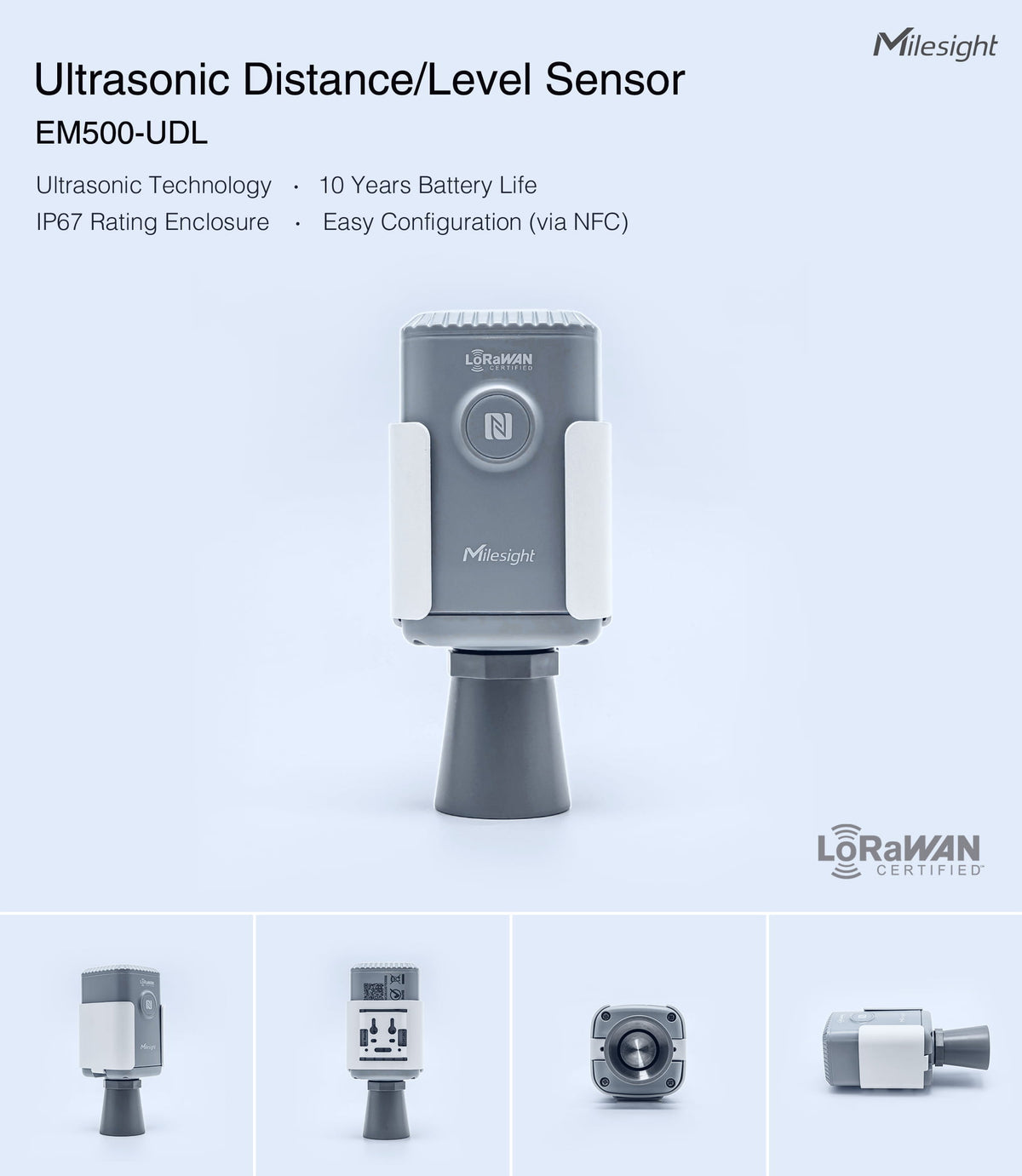

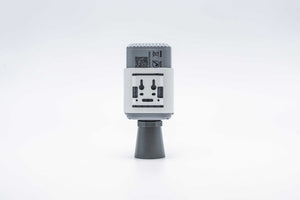

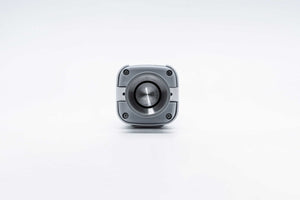

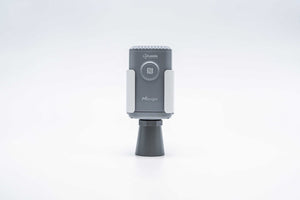

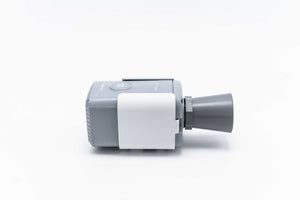

Ultrasonic Distance/Level Sensor EM500-UDL
Ultrasonic Distance/Level Sensor EM500-UDL
Ultrasonic Distance/Level Sensor EM500-UDL
Ultrasonic Distance/Level Sensor EM500-UDL
Ultrasonic Distance/Level Sensor EM500-UDL
Ultrasonic Distance/Level Sensor EM500-UDL

Ultrasonic Distance/Level Sensor EM500-UDL

Regular price $ 330.00 $ 0.00

SKU: 123002909

EM500-UDL is designed for object distance or level detection in harsh environments and for transmitting data using LoRaWAN® technology. With this low power consumption technology, EM500-UDL can work up to 10 years with a 19000mAh battery. Combining with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually. EM500-UDL is widely used for outdoor applications like flood monitoring, granary level monitoring, etc.

Features

  • Object distance or level detection without touch
  • Ultra-wide-distance transmission up to the line of sight of 10km
  • IP67 waterproof enclosure for harsh environment applications
  • Built-in 19000 mAh replaceable battery and work for 10 years without replacement
  • Equipped with NFC for easy configuration
  • Compliant with standard LoRaWAN gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution

Applications

  • Water level monitoring
  • Flood Monitoring
  • Level/depth monitoring in tanks
  • Snow level monitoring
  • Smart agriculture: fill level monitoring in grain, fertilizer, or pellets silos

Specifications

Wireless Transmission

Technology

LoRaWAN

Frequency

CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

16dBm(868)/20dBm(915)/19dBm(470)

Sensitivity

-137dBm @300bps

Mode

OTAA/ABP Class A

Measurement





Range & Accuracy

W050: 0.3 - 5 m, ±1% FS

W100: 0.5 - 10 m, ±1% FS

S050: 0.3 - 5 m (Snow Version), ±1% FS

C050: 0.25 - 5 m, ± (1+0.3%*S) cm, S=distance C100: 0.25 - 8 m, ± (1+0.3%*S) cm, S=distance

Resolution

1 mm

Operation

Power On & Off

NFC, Power Button (Internal)

Configuration

Mobile App(via NFC) or PC software(via USB Type-C)

Physical Characteristics

Power Supply

19000 mAh Li-SOCL2 battery (ER34615)

Battery Life*

10 years (10 min interval)



Operating Temperature

W050/W100/S050: -30°C to +65°C

C050/C100: -15°C to +60°C

Relative Humidity

0% to 80% (non-condensing)

Ingress Protection

IP67

Dimension

156.1 × 71 × 69.5 mm (6.1 × 2.8 × 2.7 in)

Installation

Pole, wall or DIN Rail Mounting

Approvals

Regulatory

CE, FCC, RoHS, LoRaWAN Certified

EMC

EN 55032, EN 55035

EMS

IEC 61000-4-2 Level 3, IEC 61000-4-3 Level 2, IEC 61000-4-8 Level 4



Radio Frequency

FCC Part 15B, FCC Part 15.247, EN 300 330, EN 301 489-1/3,

EN 300 220-1/2

Safety

EN62368-1

Technical Documents

LoRaWAN is a registered trademark of the LoRa Alliance. LoRa is a registered trademark of Semtech Corporation. MCCI is a trademark of MCCI Corporation. All other trademarks are the property of their respective owners.
