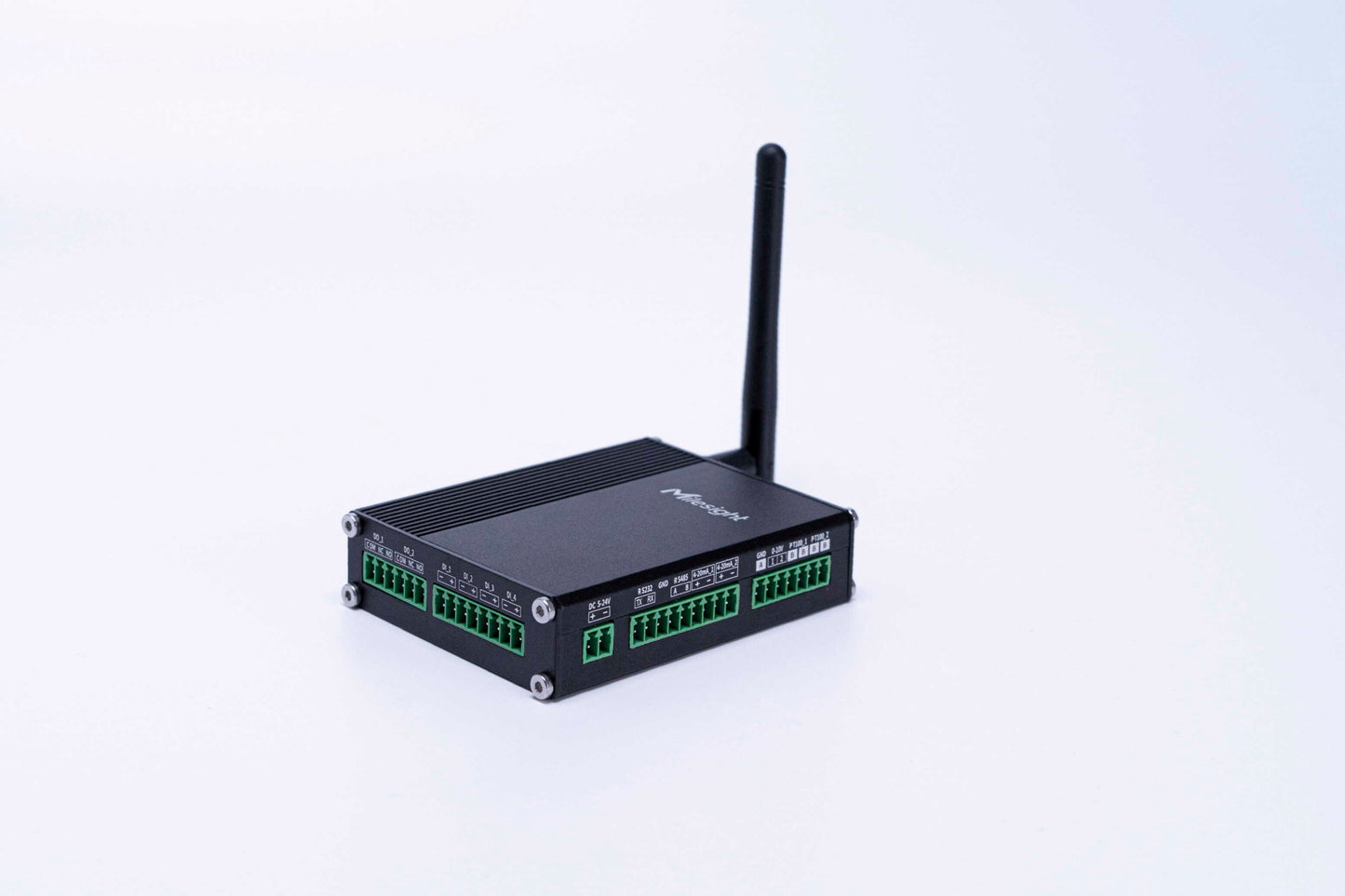

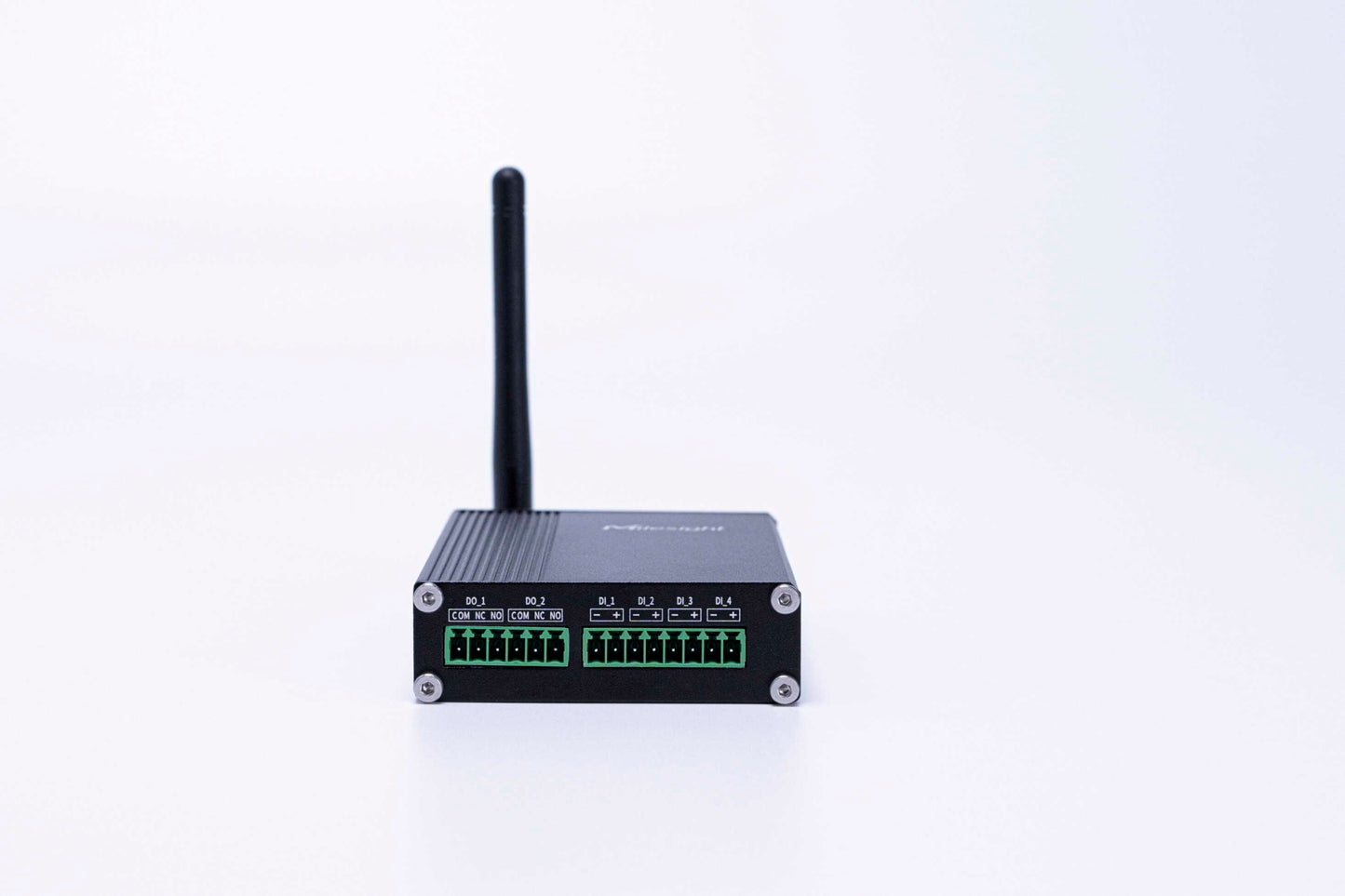

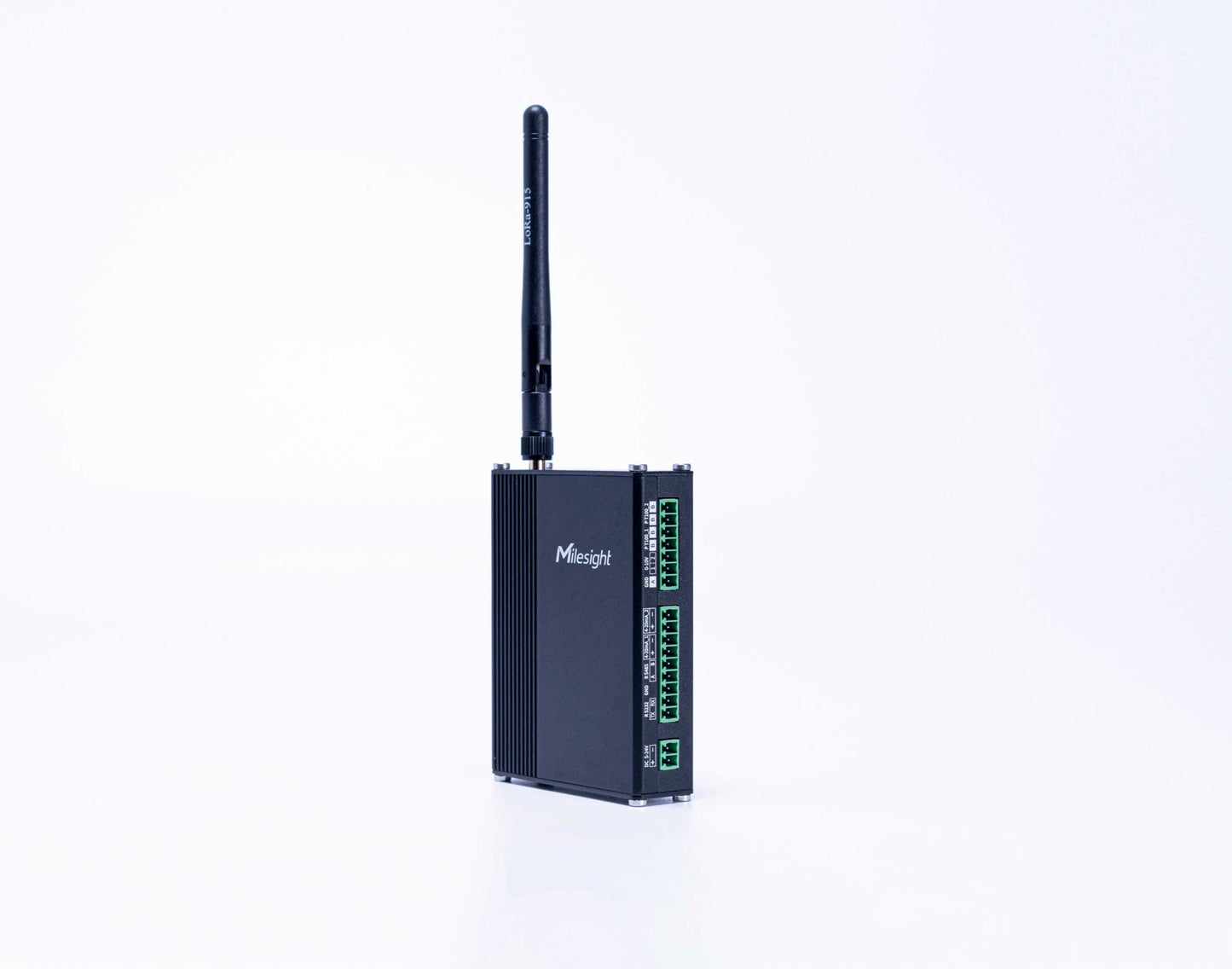

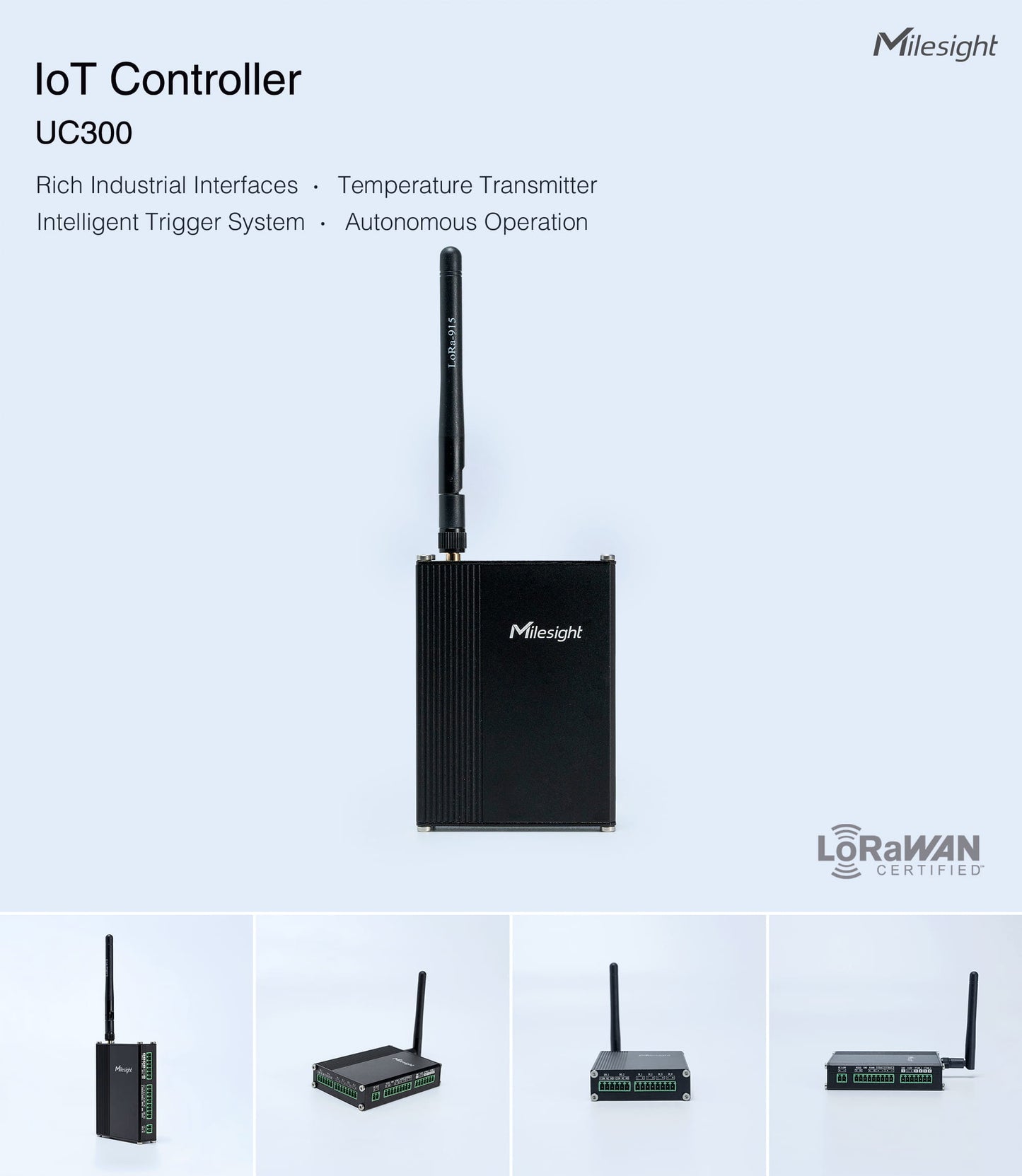

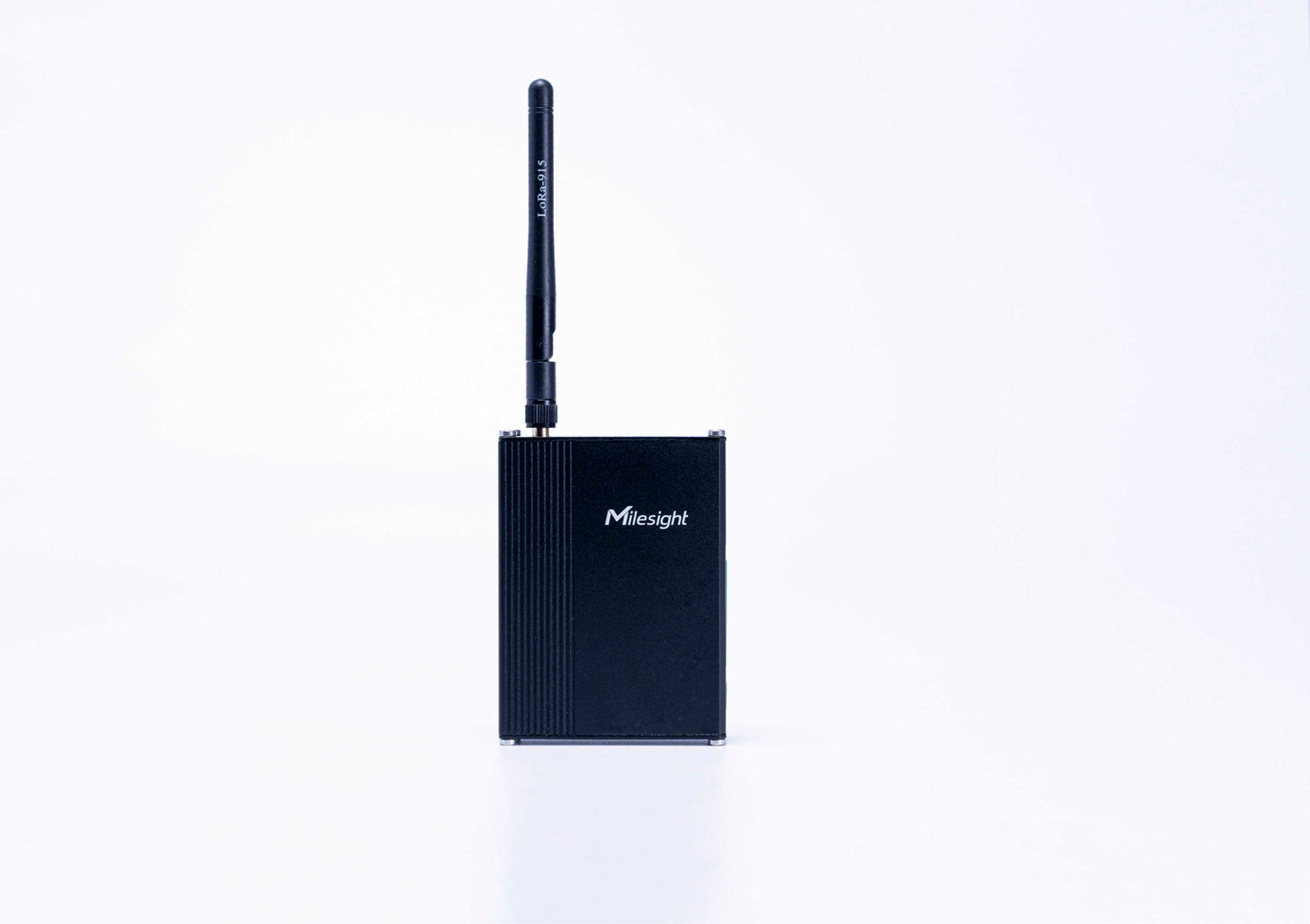

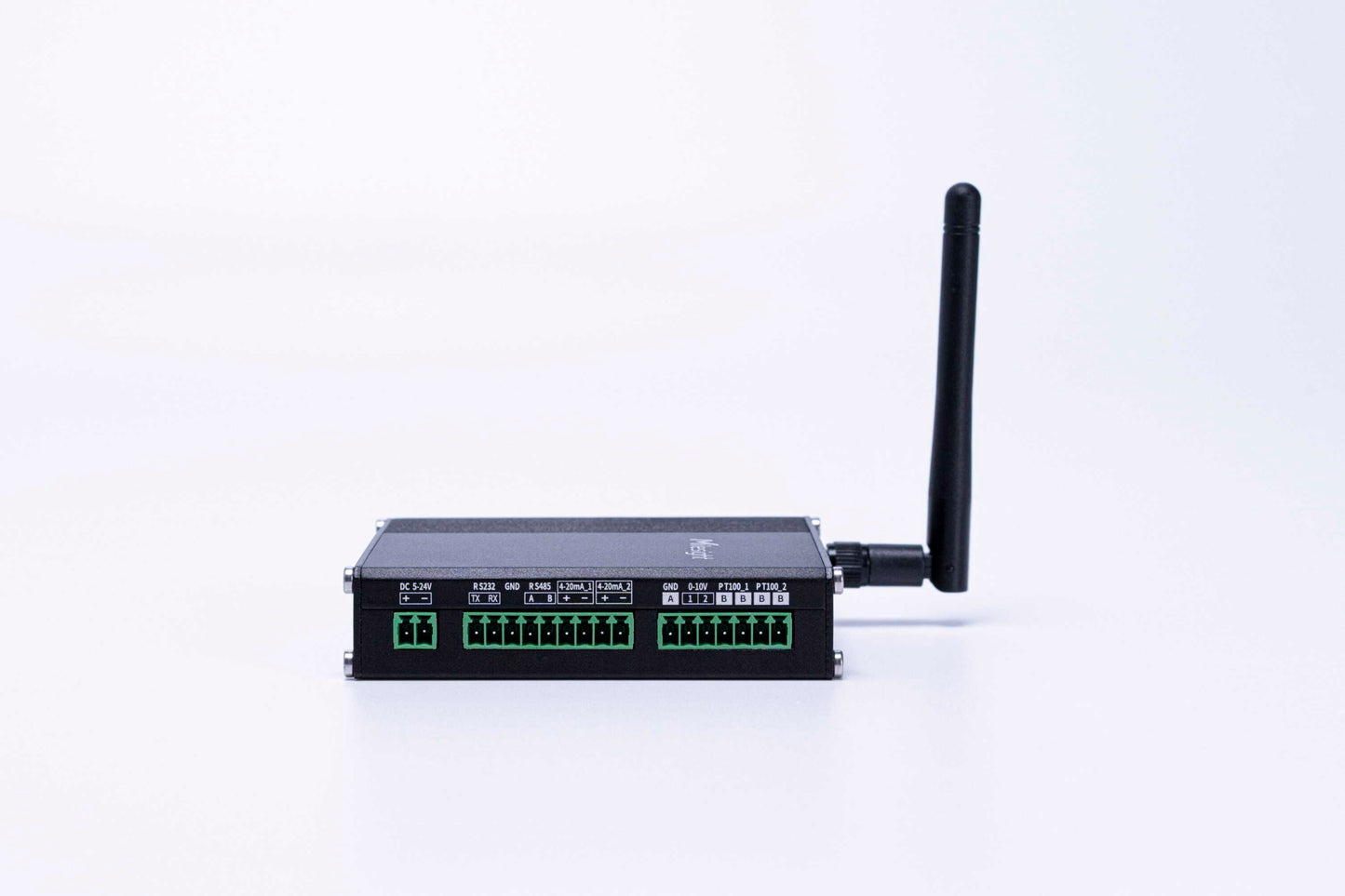

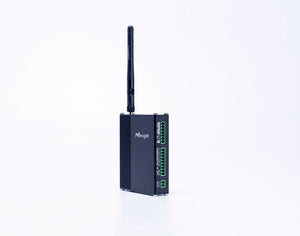

Milesight IoT controller UC300 Series

The UC300 devices from Milesight are Internet of Things (IoT) controllers, designed for remote control and data acquisition from various devices. Key features include:

Rich Industrial Interfaces:

• Analog Inputs: 6
• Digital Inputs: 4
• Digital Outputs: 2
• RS232 port: 1
• RS485 port: 1

Additionally, the UC300 supports PT100 RTD for high-accuracy temperature measurements. The RS485 interface connects up to 32 fields sensors or devices, making it a central hub for sensor data management and industrial automation.

Wireless Communication Options:

• Supports either LoRaWAN® or 3G/4G LTE for data transmission, depending on project requirements.

Intelligent Trigger System:

• Users can set up custom trigger conditions and actions (up to 16 commands) for intelligent tasks, such as timing data collection.

Autonomous Operation:

• Executes commands autonomously even when the network is unavailable.

Industrial Design:

• Features an industrial metal case design with an IP30 rating.
• Operates reliably across a wide temperature range.

Cloud Integration:

• Compatible with TCP, UDP, and MQTT protocols.
• Works seamlessly with cloud platforms like Milesight IoT Cloud and AWS (for cellular versions).

Use Cases:

• Commonly used in indoor applications, including smart factories and building automation.

Technical Documents

• UC300 IoT Controller Datasheet
• UC300 IoT Controller User Guide
