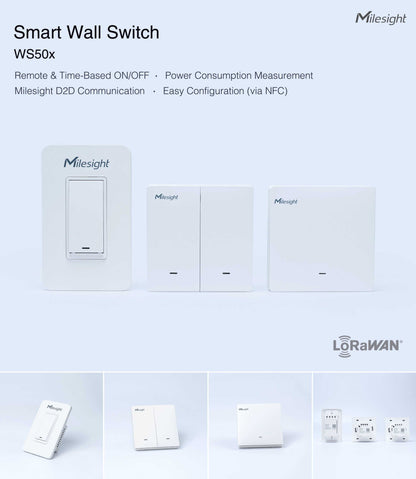

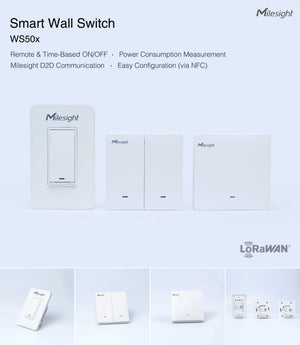

Milesight LoRaWAN Wall Switch WS50x
Regular price
$ 60.00

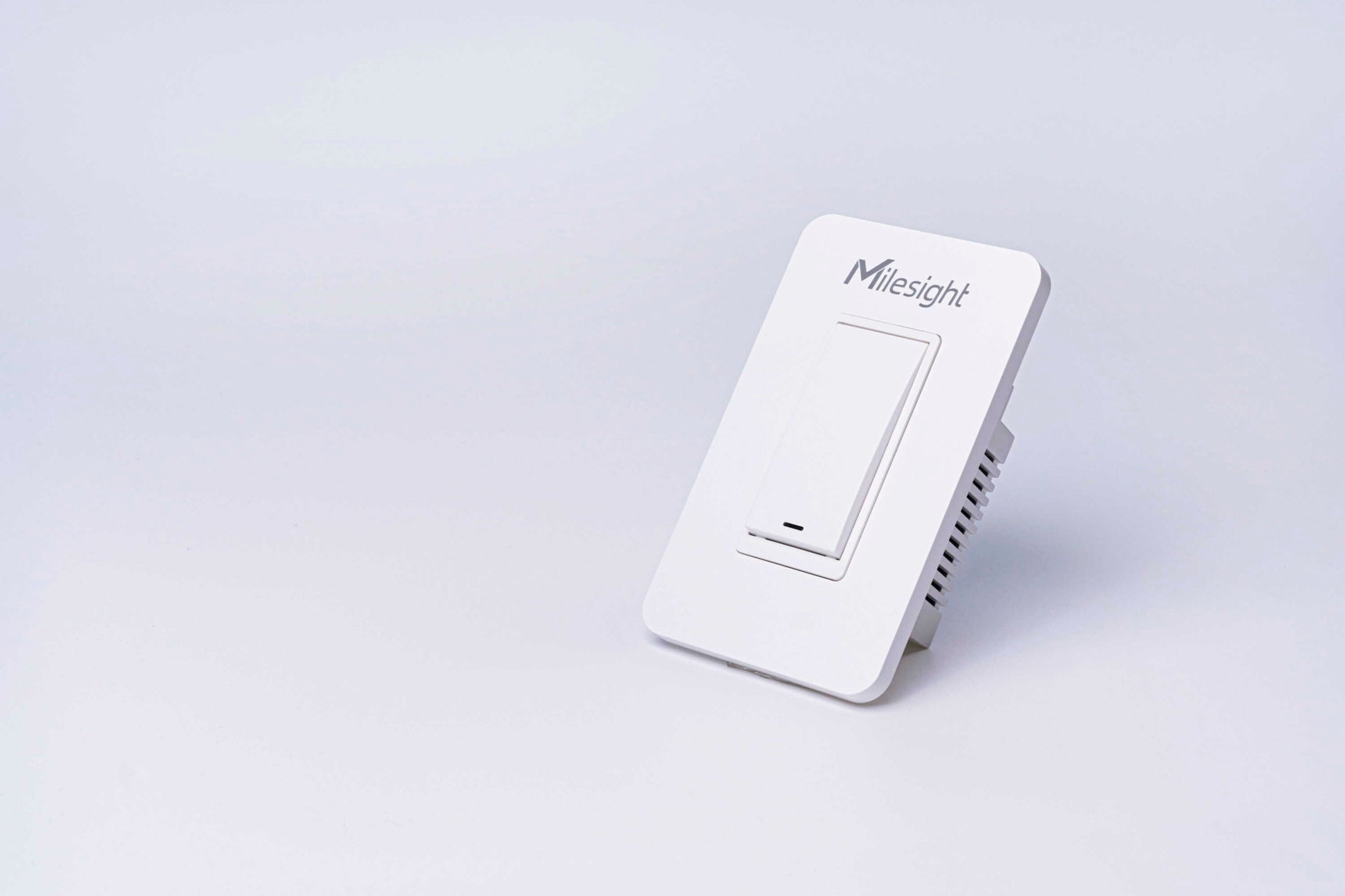

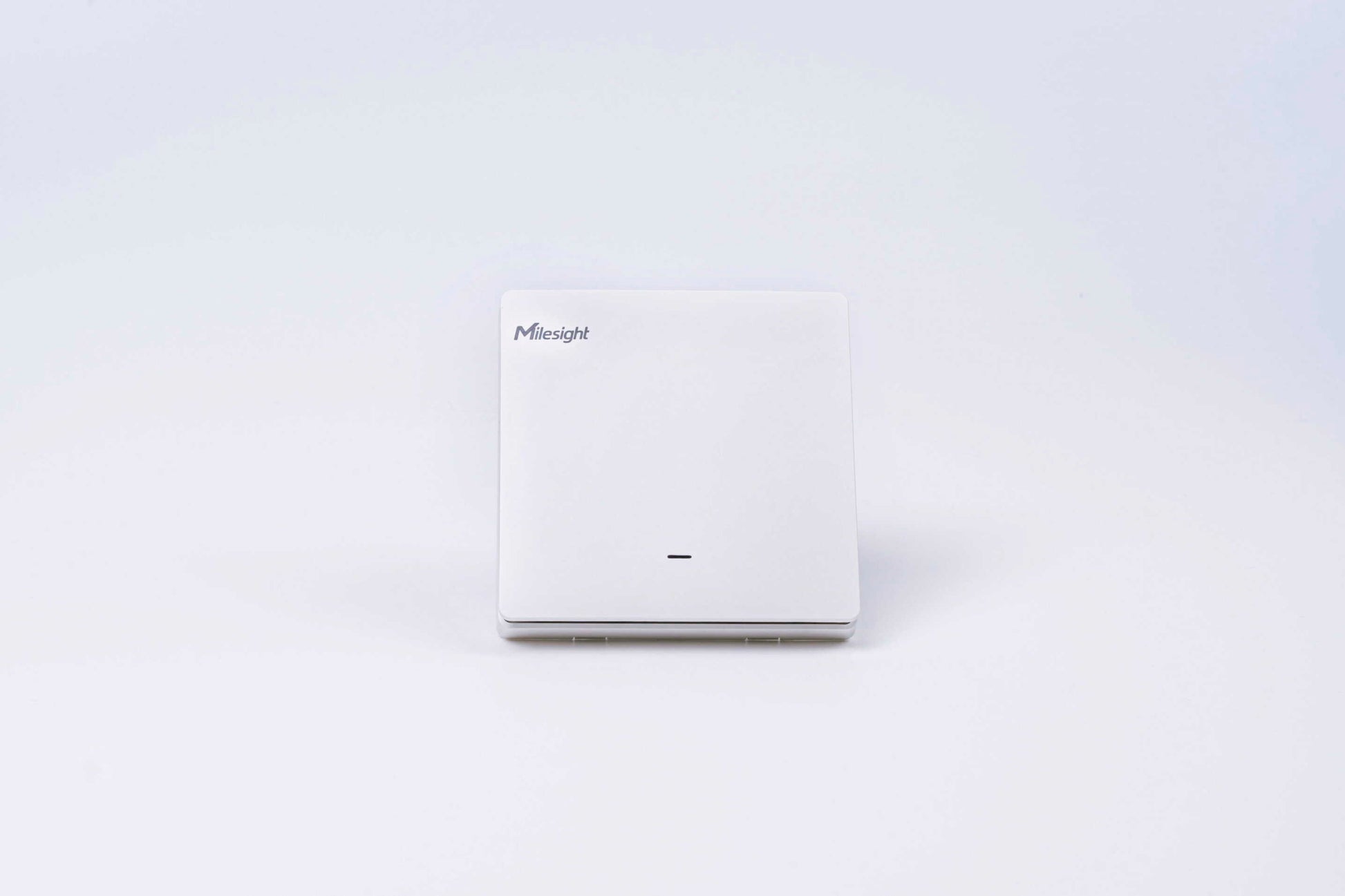

WS50x is a smart LoRaWAN® wall switch for the local and remote control of lights and electrical appliances.
It adopts standard sizes for most of the international wall switch types, which can replace the traditional wall switches directly. Compatible with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, WS50x can be monitored and controlled via webpage or mobile App remotely and triggered by other Milesight sensors.
WS50x can be widely used for indoor applications in homes, offices, hotels, museums, etc.

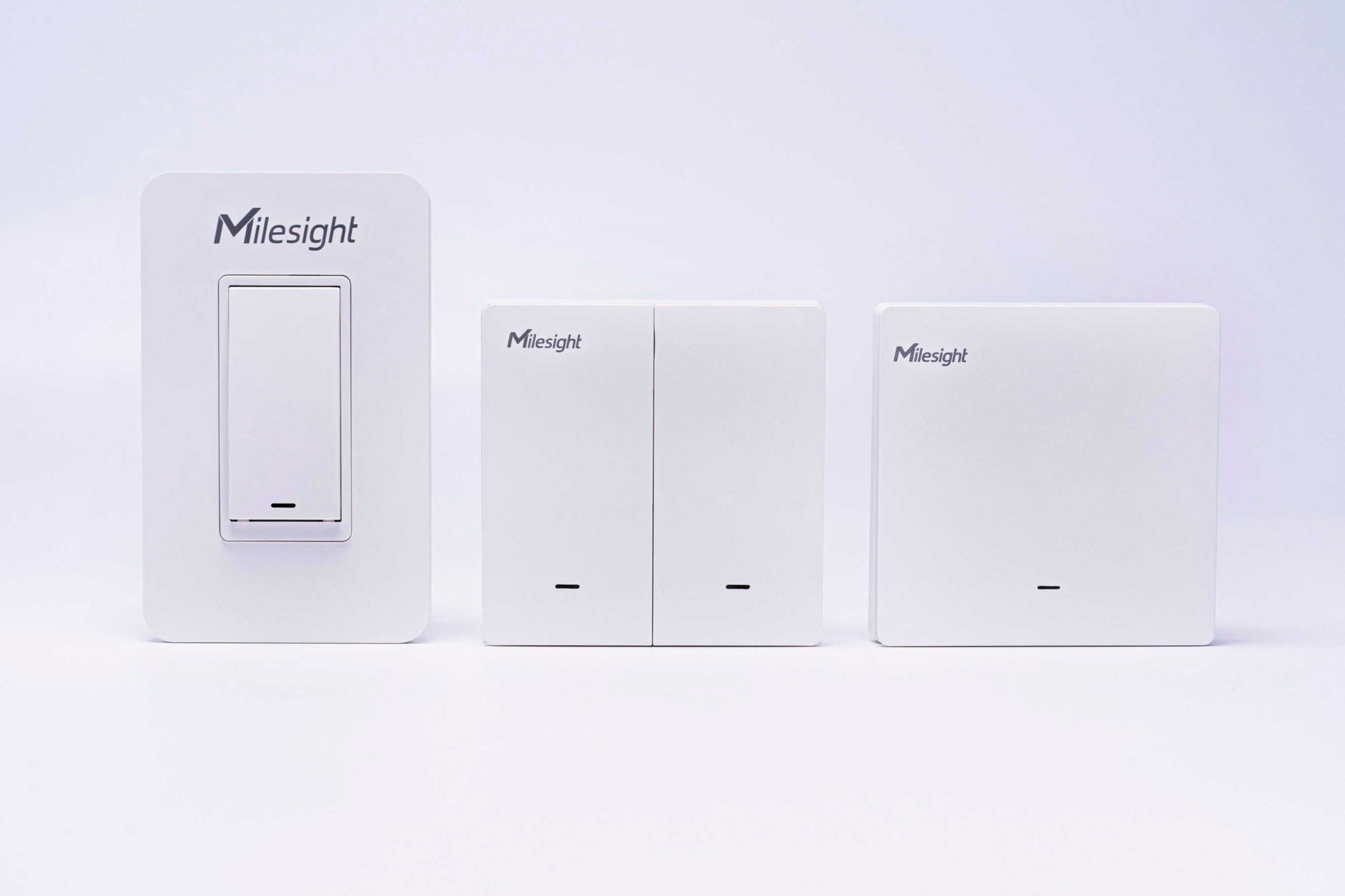

| No of Gang | LoRaWAN Region | US 3-wire | EU 2-wire | EU 3-wire |
|---|---|---|---|---|

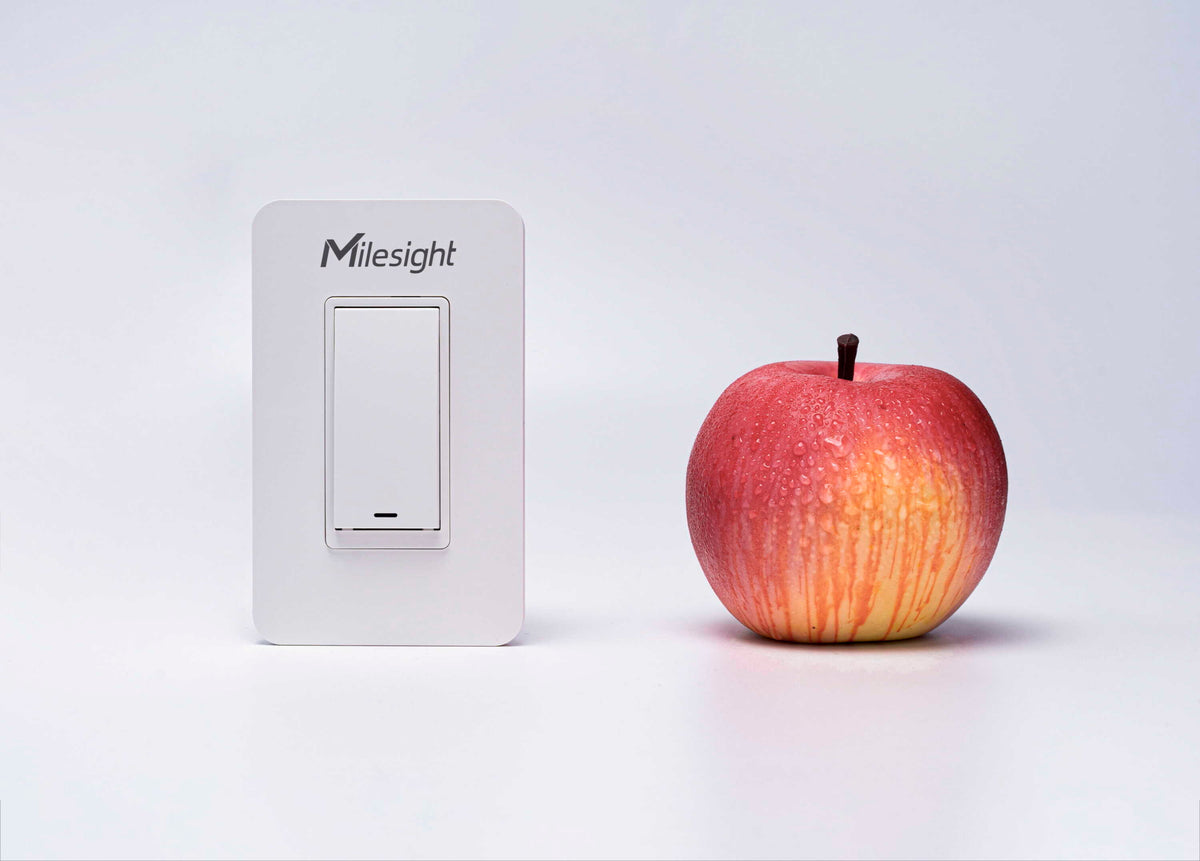

| 1 Gang | 915M | 123002782 | 123003165 | 123003157 |
| 868M | 123003154 | 123003166 | 123003159 | |
| 470M | 123003156 | 123003059 | 123003160 | |

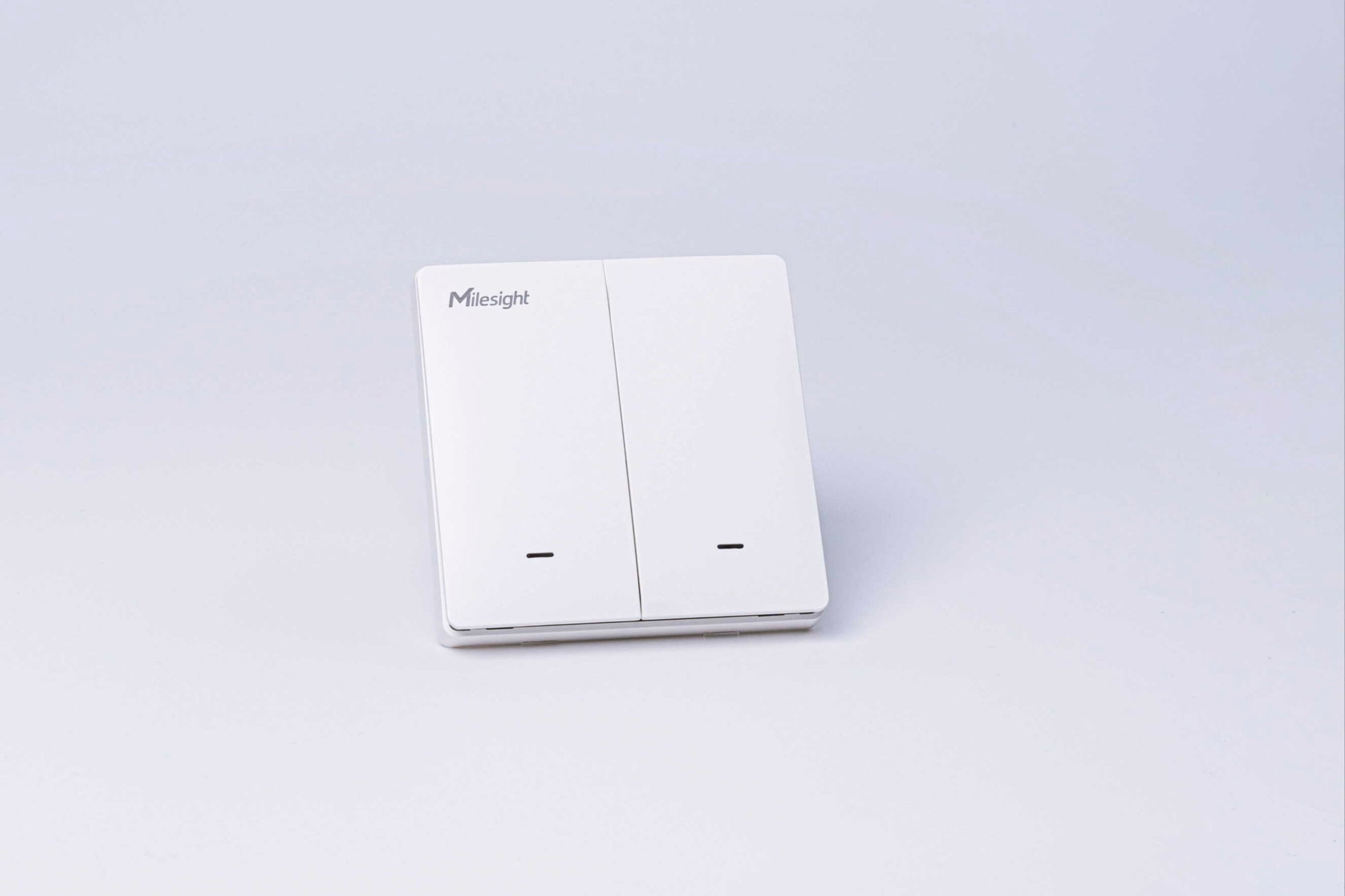

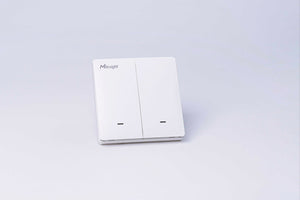

| 2 Gang | 915M | - | 123003061 | 123003162 |
| 868M | - | 123003065 | 123003163 | |
| 470M | - | 123003069 | 123003164 | |

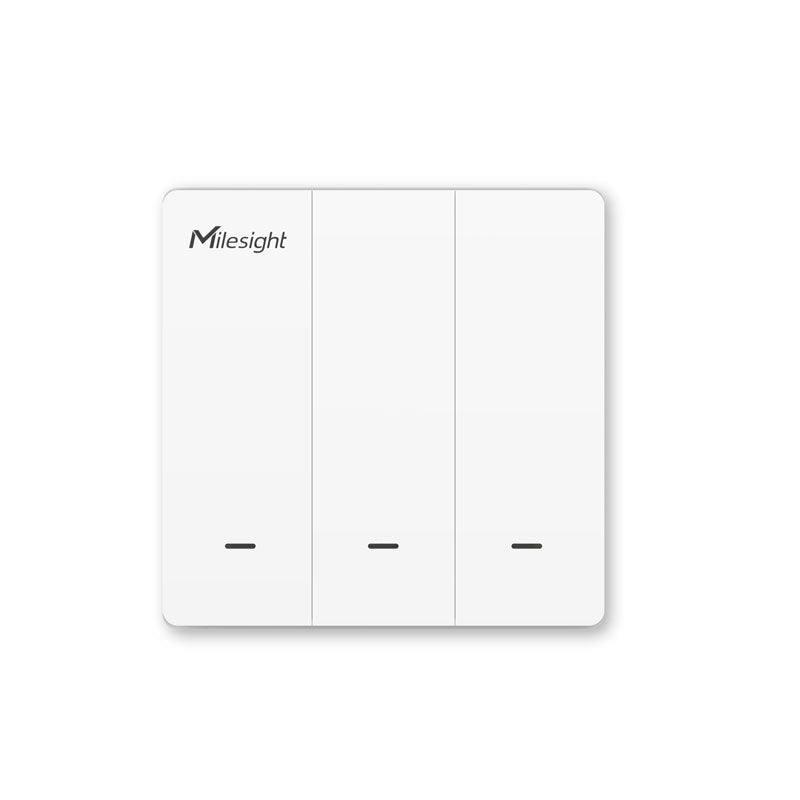

| 3 Gang | 915M | - | 123003072 | - |
| 868M | - | 123003074 | - | |
| 470M | - | 123003076 | - |
Features
- Support local or remote control via a high-reliability relay.
- Collect current, voltage, power, electrical consumption, and support overload protection.
- Built-in switch indicator, easy to use in dark environment.
- Ultra-wide-distance wireless transmission up to line of sight of 15 km
- Equipped with NFC for one-touch configuration and support card emulation mode.
- Functions well with standard LoRaWAN gateways and network servers.
- Compatible with Milesight IoT Cloud.
- Supports Milesight D2D protocol to enable ultra-low latency control without a gateway.
- Supports multicast feature to control switches in bulk.

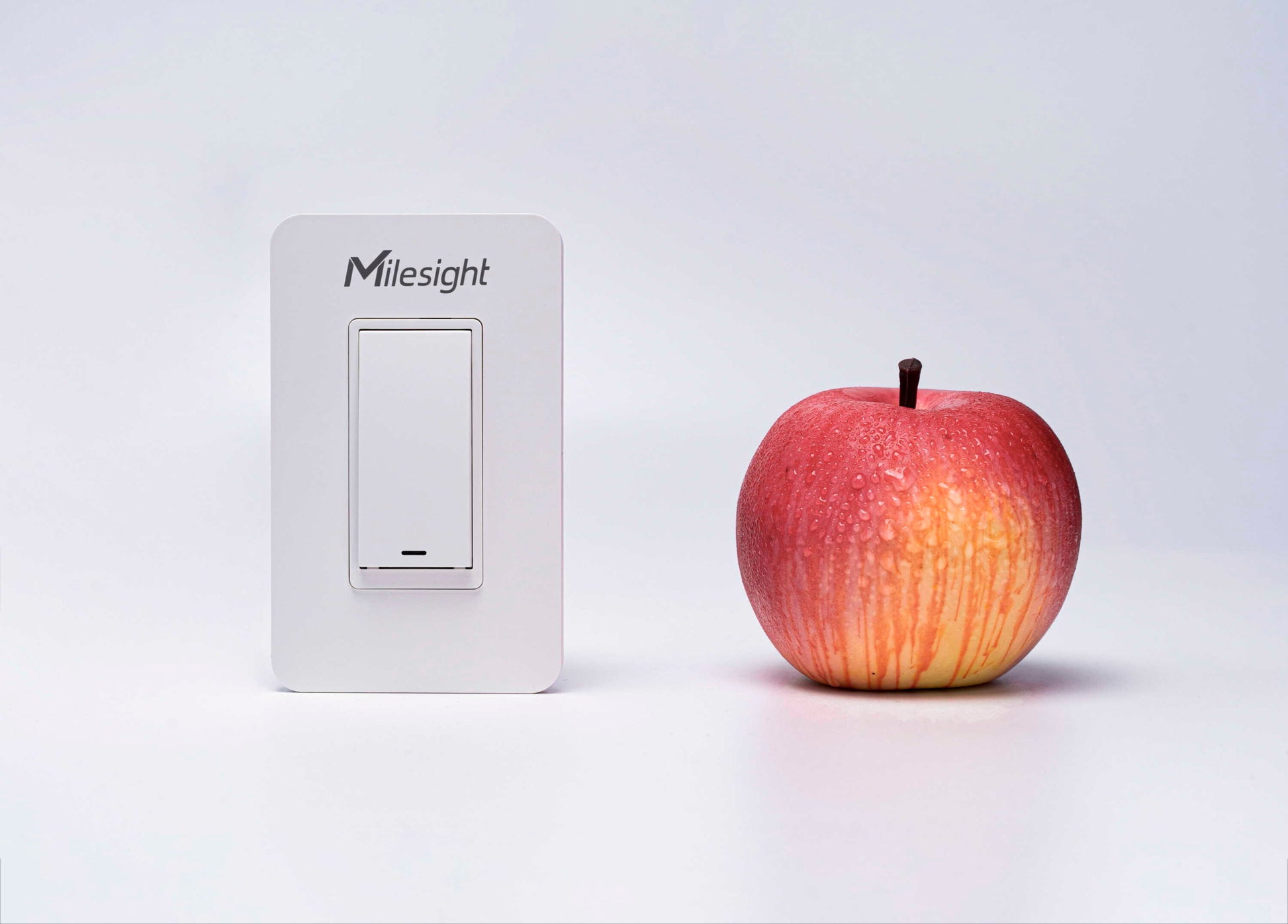

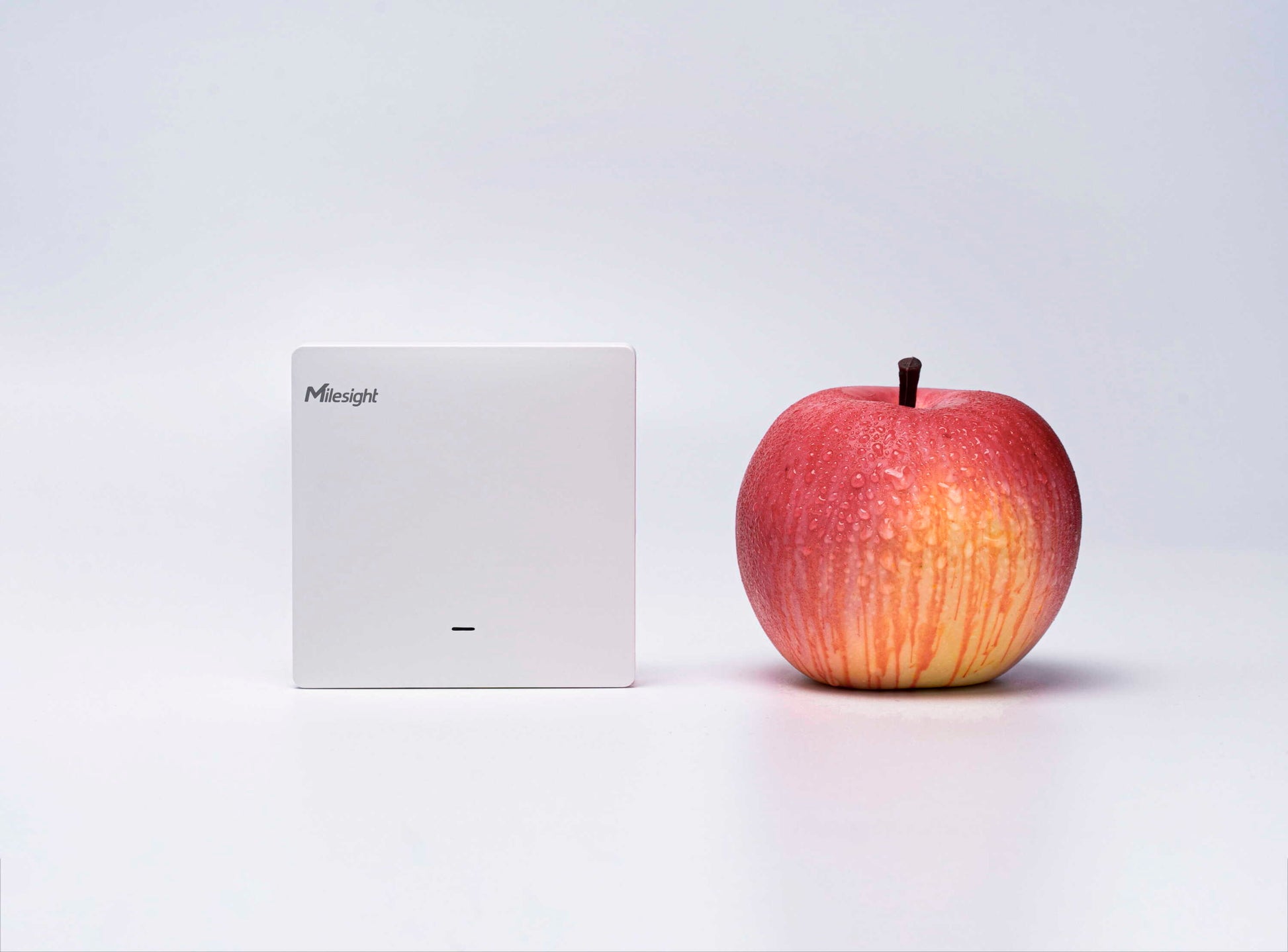

Dimensions

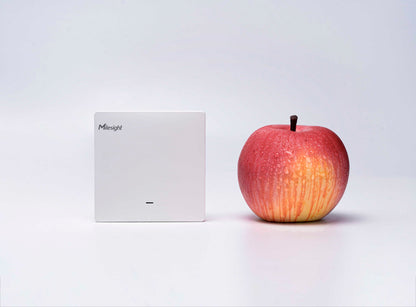

- 86 Type: 86 × 86 × 40 mm (3.39 × 3.39 × 1.57 in)
- 120 Type: 118 × 72 × 46.9 mm (4.65 × 2.83 × 1.85 in)
