Milesight 4K PoE NVR 5000 Series

Milesight 4K PoE NVR 5000 Series

$ 1,173.00 USD
$ 1,173.00 USD
Sale Sold out

123004269

Delivery within 2 weeks

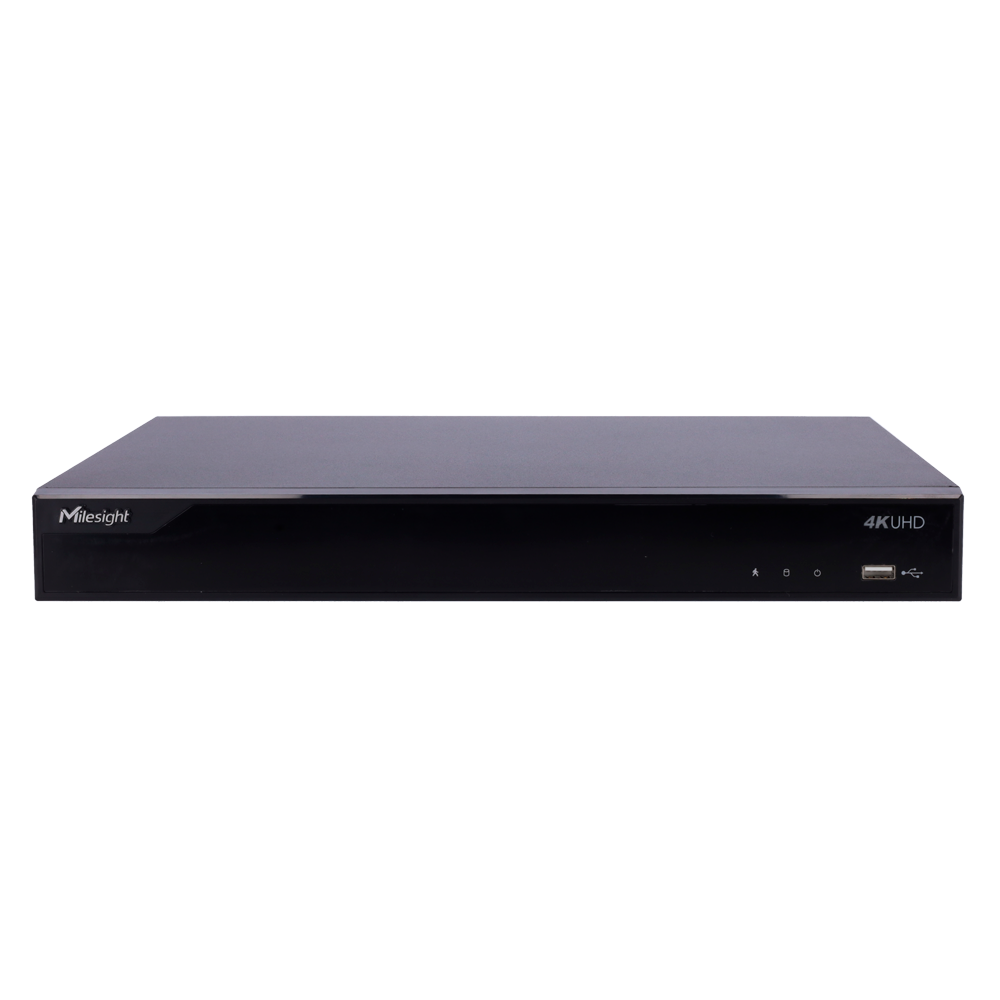

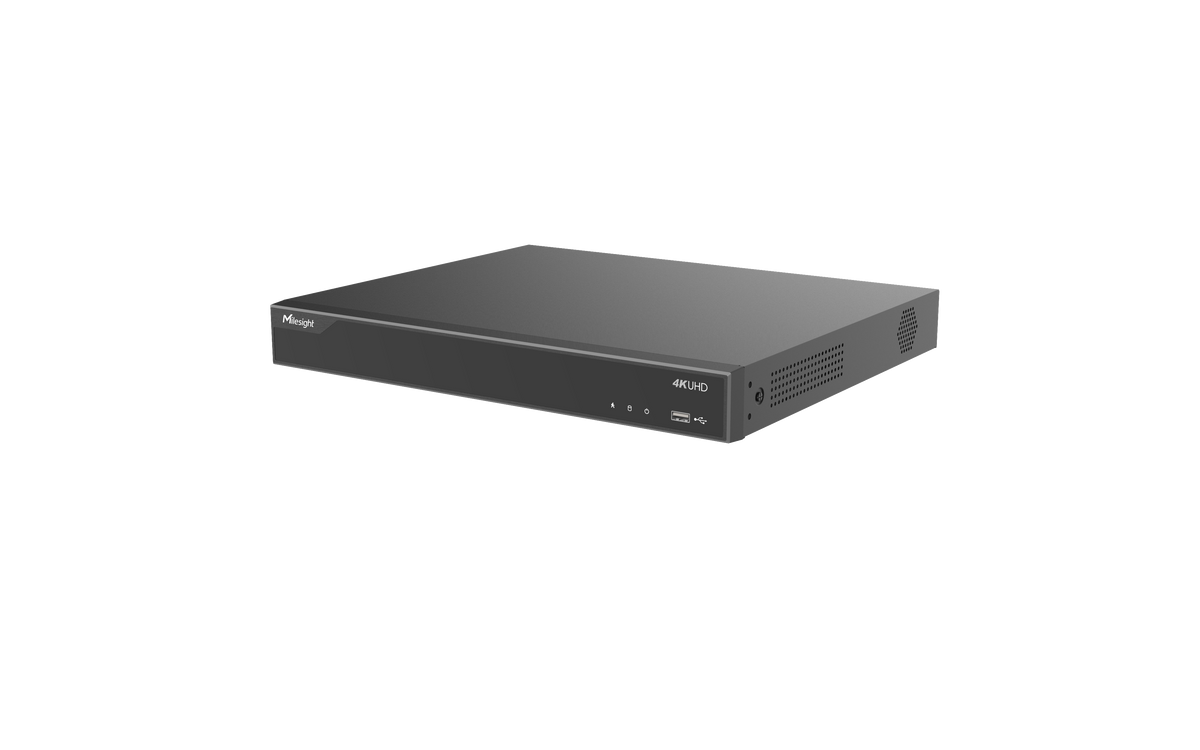

The Milesight MS-N5008-NPE is an 8-channel network video recorder with a built-in 8-port PoE switch. Plug a camera into any PoE port and the NVR powers it, finds it, and starts recording, with no separate switch or power supply at each camera. It records up to 8MP, shows 4K on HDMI, and holds two 3.5" hard drives in a compact 1U case.

Key Features:

  • True Plug & Play: Built-in independent PoE switch powers and connects cameras over one cable.
  • 8 PoE Ports: 8 x RJ45 10/100Mbps, IEEE 802.3af/at, 200W total PoE budget.
  • 4K Output: HDMI up to 3840 x 2160 at 30Hz, plus VGA up to 1920 x 1080.
  • Up to 8MP Recording: H.265 / H.264+ / H.264 compression saves bandwidth and storage.
  • Local Storage: 2 x 3.5" SATA HDD bays, up to 10TB each.
  • Smart Analytics: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed.

Models & Ports Options:

  • MS-N5008-NPE: 8-CH NVR, 8 PoE 10/100 Mbps, 200W, 2 x HDD
  • MS-N5016-NPE: 16-CH NVR, 16 PoE 10/100 Mbps, 2 x HDD

True Plug & Play

  • The built-in independent PoE switch powers each connected camera and carries its video to the NVR over the same cable, so there is no separate switch or camera power supply to install.

Video Input & Decoding

  • 8 IP channels, 80Mbps incoming and 50Mbps outgoing bandwidth. Records 8MP/6MP/5MP/4MP/3MP/1080P/720P and lower, and plays back up to 3 channels of 4MP or 6 channels of 1080P at 30fps at the same time.

Reliable Recording

  • ANR (Automatic Network Replenishment) stores video on the camera's SD card while the network is down, then copies it to the NVR once the link returns, so footage has no gaps.

Interfaces

  • 1 x HDMI, 1 x VGA, 2 x USB 2.0, 1 x RCA audio in / 1 x RCA audio out, 4 alarm inputs / 1 alarm output, 8 x PoE RJ45 ports. Works with ONVIF cameras and supports API integration.

Hardware & Environment

  • Power: AC 100-240V, 50/60Hz; 7.5W max without HDD (PoE budget 200W). Operating temperature: -10°C to +55°C, humidity 10-90%. Dimensions: 380 x 317.6 x 51.8 mm (1U). Weight: 2.7kg.

Technical Documents
