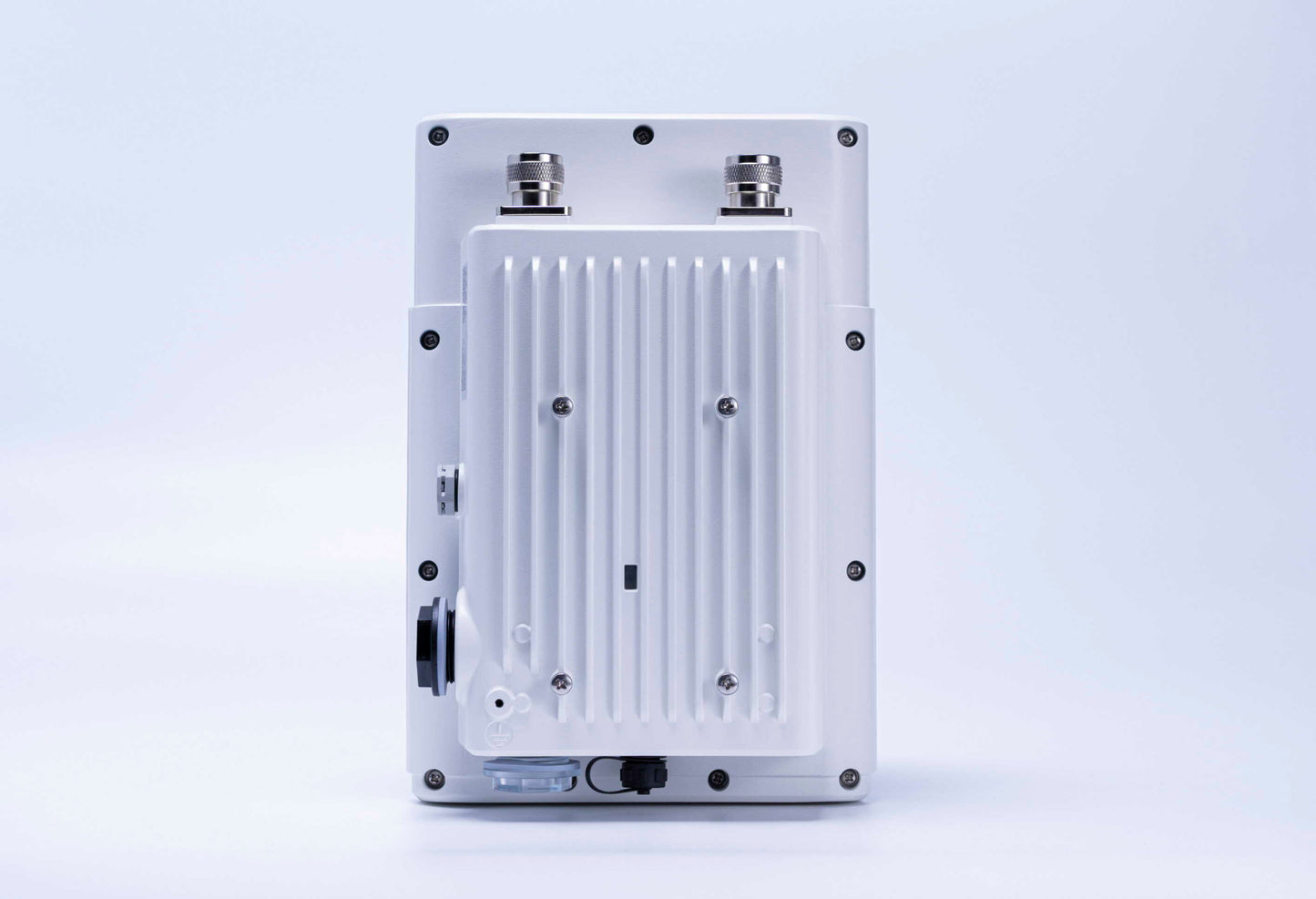

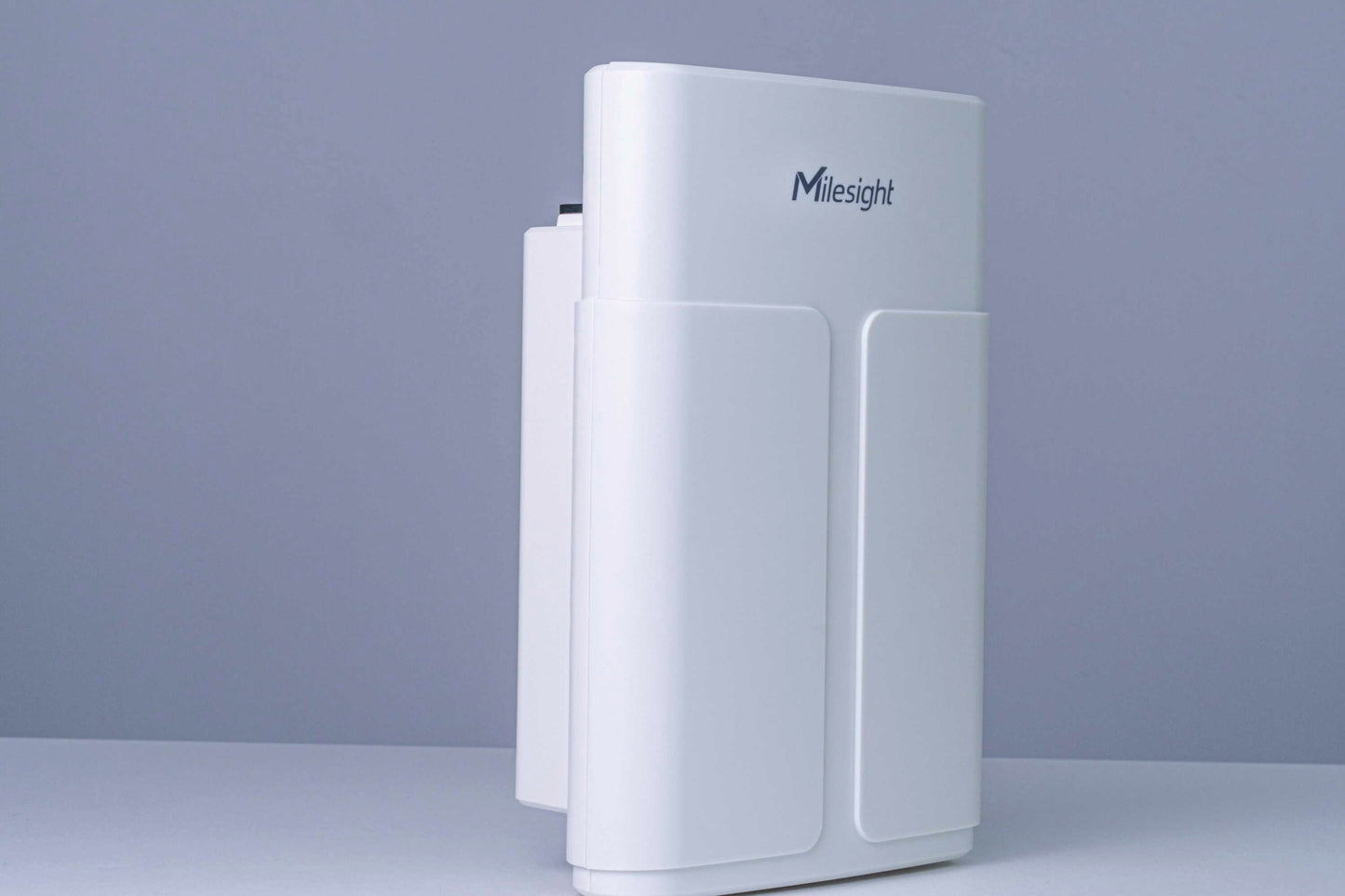

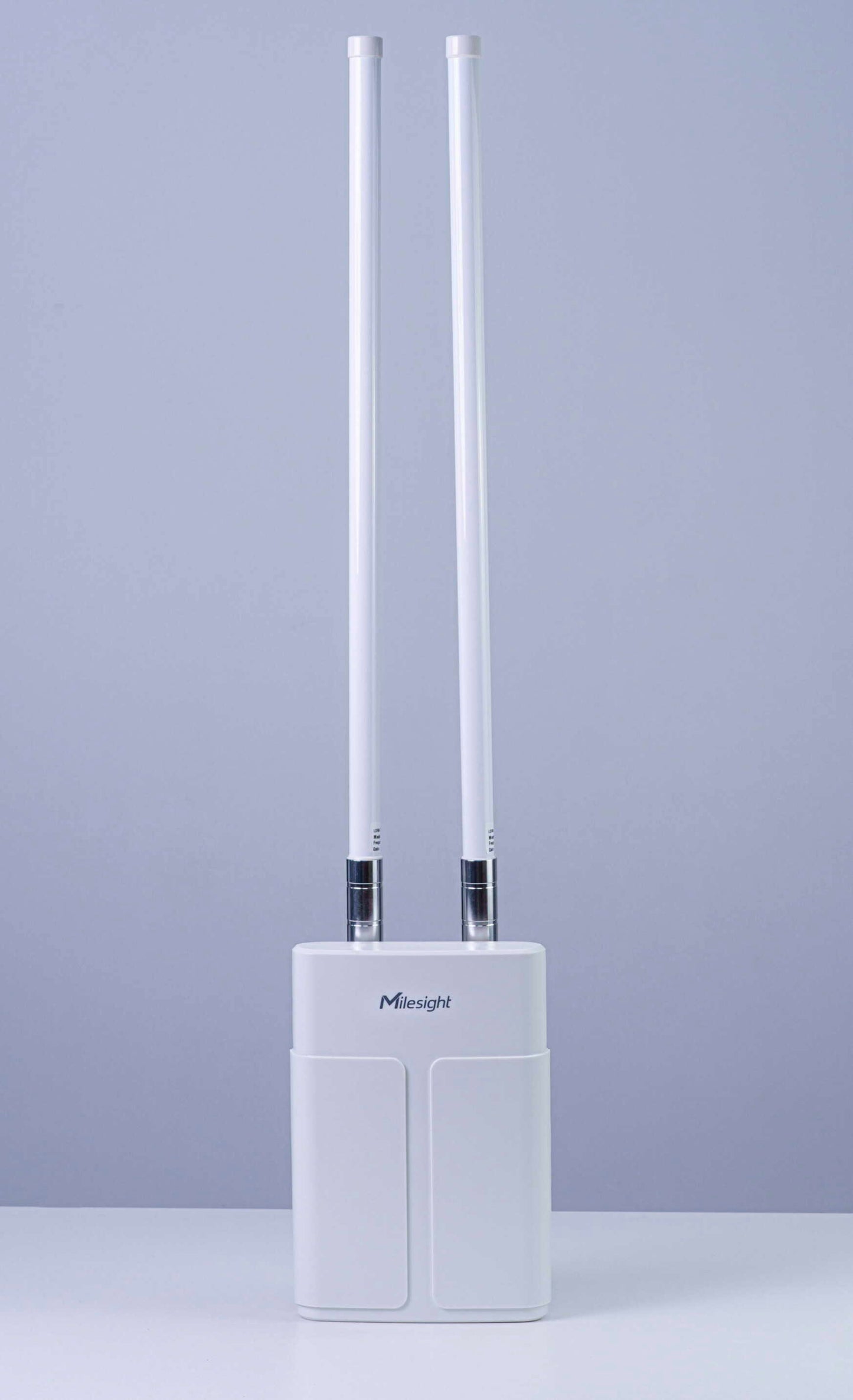

Milesight Outdoor LoRaWAN® Gateway UG67
Milesight Outdoor LoRaWAN® Gateway UG67
Milesight Outdoor LoRaWAN® Gateway UG67
Milesight Outdoor LoRaWAN® Gateway UG67
Milesight Outdoor LoRaWAN® Gateway UG67
Milesight Outdoor LoRaWAN® Gateway UG67

Milesight Outdoor LoRaWAN® Gateway UG67

Regular price $ 650.00 $ 0.00

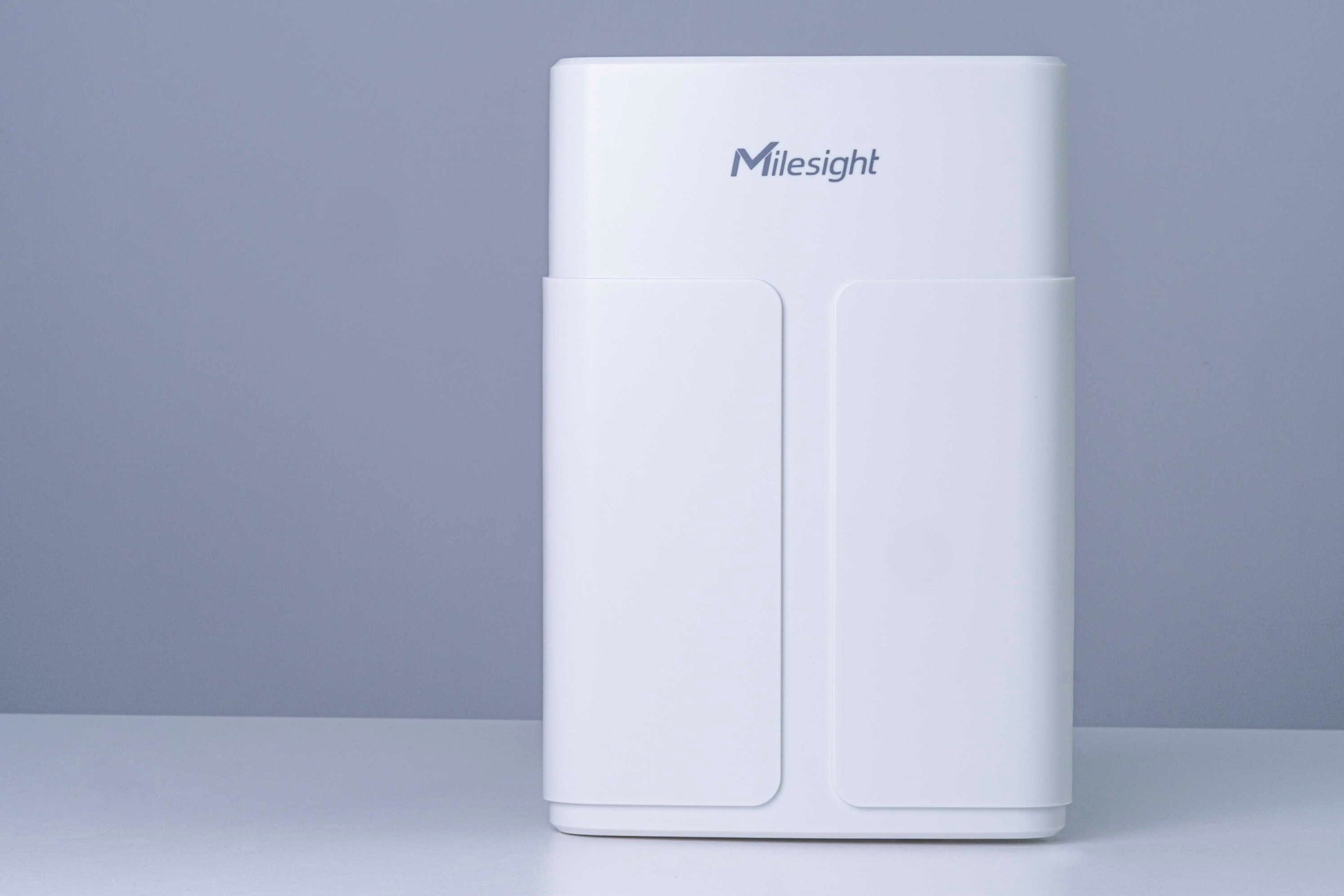

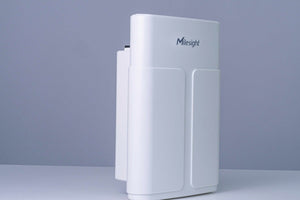

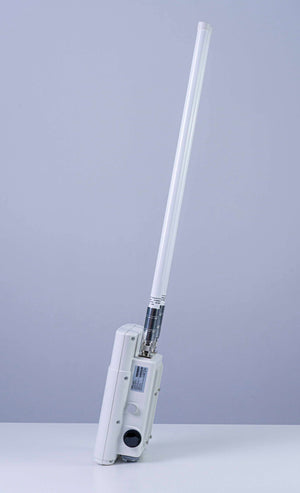

The UG67 is a robust 8-channel outdoor LoRaWAN® gateway. Adopting the SX1302 LoRa chip and high-performance quad-core CPU, the UG67 supports connection with more than 2000 nodes. The UG67 has a line of sight range of up to 15 km and IP67 waterproof case, which is ideally suited to smart agriculture, smart metering, and many other outdoor applications.

The UG67 supports multiple back-haul links with Ethernet, Wi-Fi, and optional cellular. You can use it directly with mainstream network servers (such as The Things Stack, ChirpStack, etc.); or use the built-in network server and Milesight IoT Cloud for easy deployment.

Features

  • Quad-core industrial processor with big memory
  • Uses the Semtech SX1302 chip, handling a higher amount of traffic with lower consumption
  • 8 half/full-duplex LoRa channels
  • IP67 waterproof enclosure and industrial design for applications in harsh environments
  • Wall or pole mounting (optional)
  • PoE or solar power supply (optional)
  • Capacitor for sending alarms in case of power failure
  • Multi-backhaul with Ethernet, Wi-Fi, and optional cellular (4G/3G)
  • Supports secure communication with multiple VPNs like IPsec, OpenVPN, LT2P, PPTP, and DMVPN
  • Devicehub and Milesight IoT Cloud provide easy and centralized management of remote devices
  • Compatible with mainstream network servers like The Things Industries, ChirpStack, Actility, Everynet
  • The web interface displays radio noise level with an intuitive diagram for deployment
  • Built-in network server and MQTT/HTTP/HTTPS API for easy integration
  • Supports BACnet/IP to integrate LoRaWAN data to the BMS system easily
  • Embedded Python SDK for user's secondary development
  • Fast and user-friendly programming using the embedded Node-RED development environment
