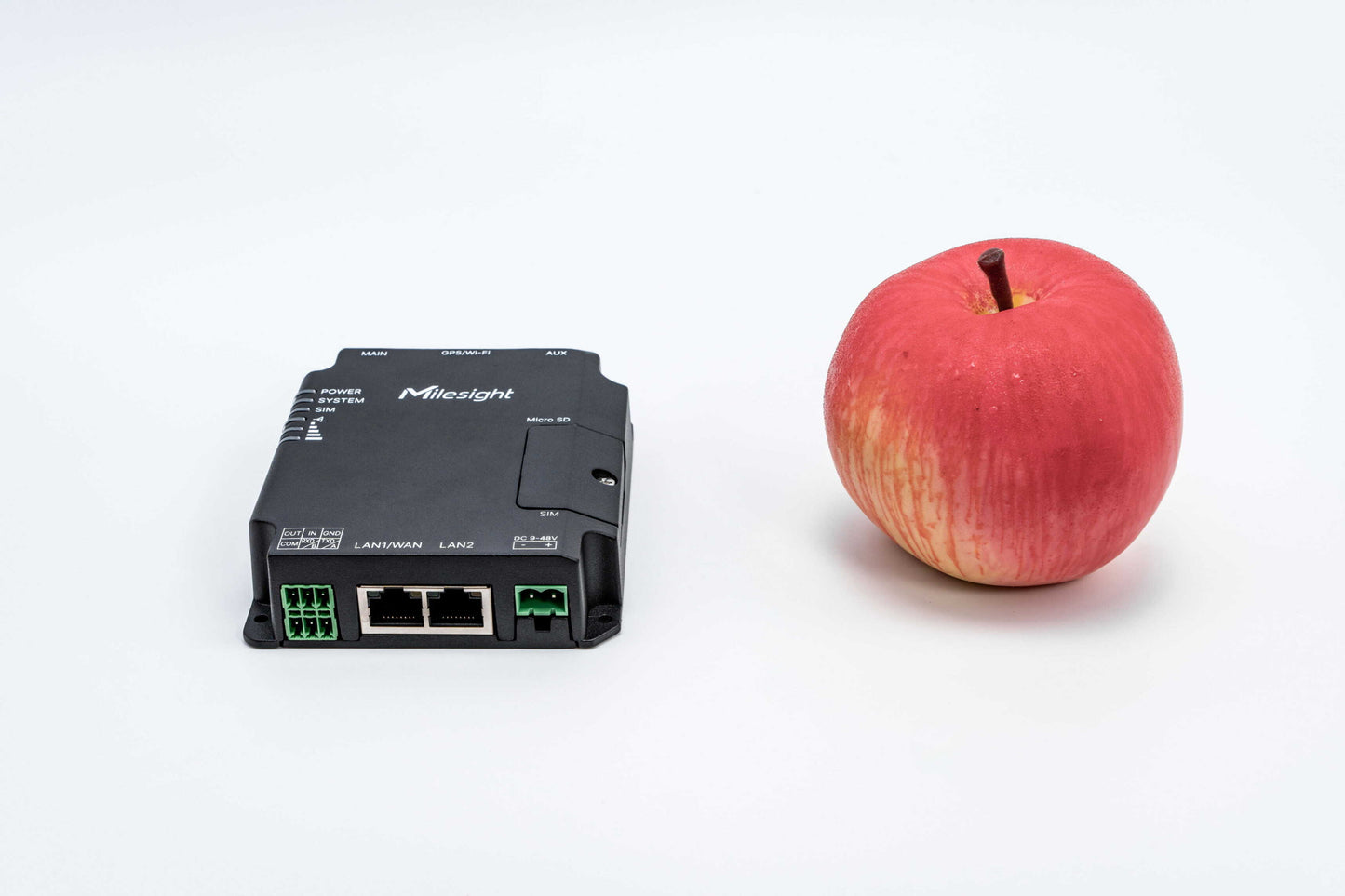

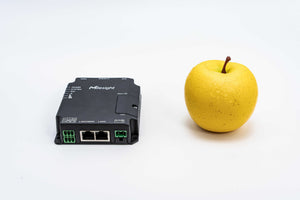

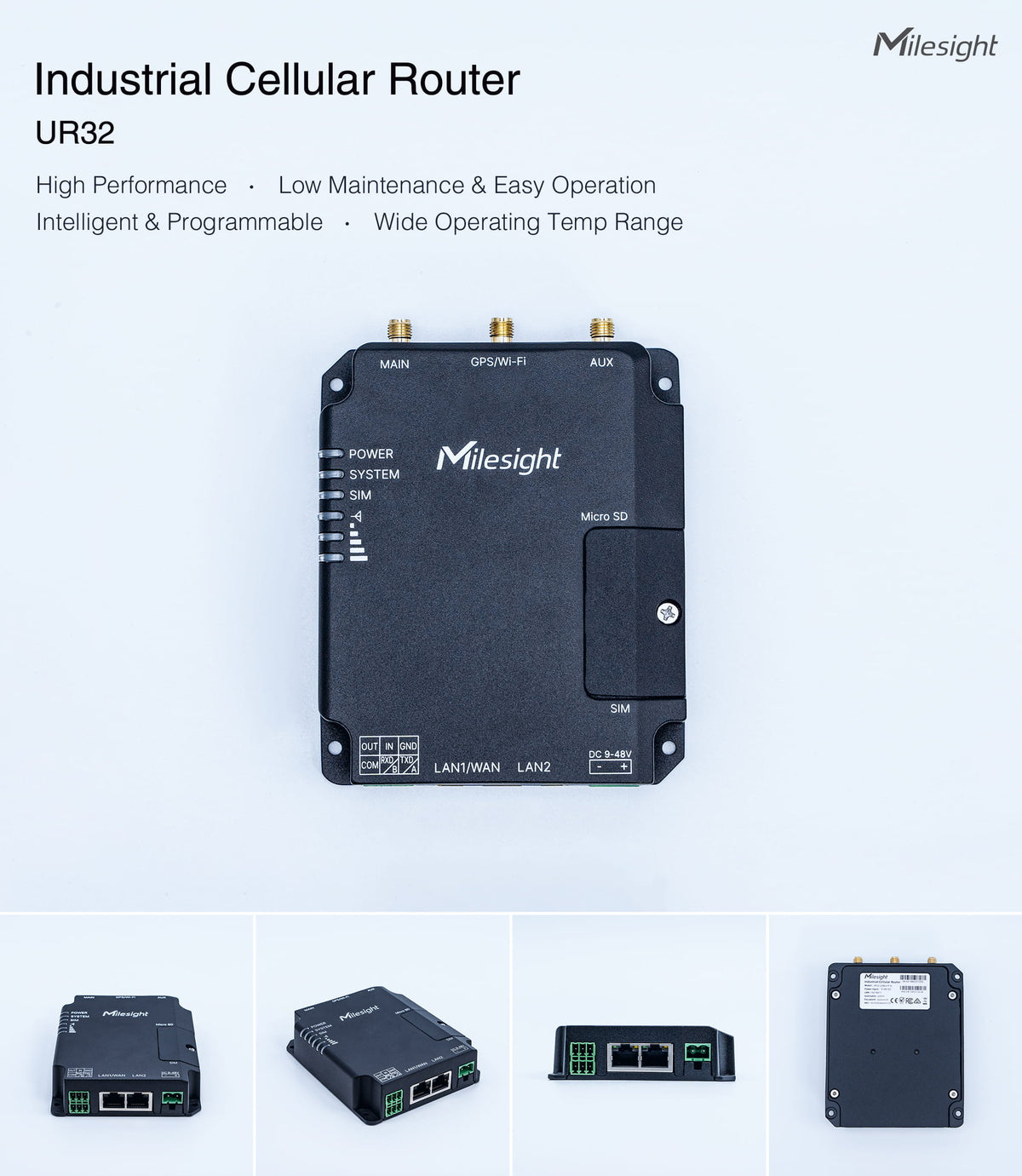

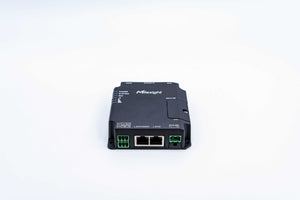

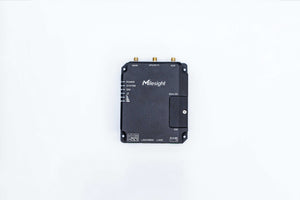

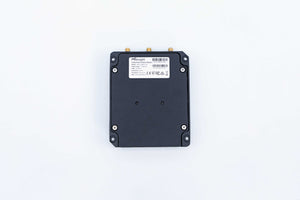

Milesight Pro Series Industrial Cellular Router UR32

Milesight UR32 is a cost-effective industrial cellular router with embedded intelligent features that are designed for multifarious M2M/IoT applications. Global WCDMA and 4G LTE carrier support make this drop-in connectivity a great help for operators in maximizing uptime.

 Integrating an embedded cellular modem and dual SIM function, the UR32 provides a 3G/4G cellular network with 150 Mbps download and 50 Mbps uplink, it also has 2 fast Ethernet ports and supports Wi-Fi that compliance with 802.11b/g/n standard. All these capabilities deliver users uninterrupted internet access.

 Easy deployment and comprehensive remote device management make UR32 versatile in most IoT/M2M applications.

Benefits

• NXP industrial-grade processor
• Global 4G LTE CAT4/3G network with dual SIM cards for backup between multiple carrier networks
• Embedded Python SDK for secondary development
• Flexible modular design provides users with different connection modules like Ethernet, I/O, serial port, Wi-Fi, and GPS for connecting diverse field assets
• Rugged enclosure, optimized for DIN rail or shelf mounting
• 3-year warranty included

Capabilities

• Link remote devices in an environment where communication technologies are constantly changing
• Support 802.11 b/g/n, as AP or client mode, to establish a versatile wireless network or be the backup WAN link for 4G/3G
• Support rich protocols like SNMP, TR069, MQTT, Modbus bridging, RIP, OSPF
• Support wide operating temperature ranging from -40°C to +70°C/-40℉ to +158℉

Security & Reliability

• Automated failover/failback between Ethernet, Cellular (dual SIM), and Wi-Fi
• Secure transmission with VPN tunnels like IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
• Embeds hardware watchdog to automatically recover from various failures, ensure the highest level of availability
• Establishes a secured mechanism for centralized authentication and authorization of device access by supporting AAA (Radius, TACACS+, LDAP, local Authentication) and multiple levels of user authority

Easy Maintenance

• DeviceHub provides easy setup, mass configuration, and centralized management of remote devices
• The user-friendly web interface design and more than one option of upgrade help the administrator to manage the device as easily as pie
• WEB GUI and CLI enable the admin to achieve simple management and quick configuration among a large number of devices
• Efficiently manage the remote routers on the existing platform through the industrial standard SNMP and TR069

Technical Documents

• UR32 Datasheet
• UR32 User Guide
• Payload Decoder
