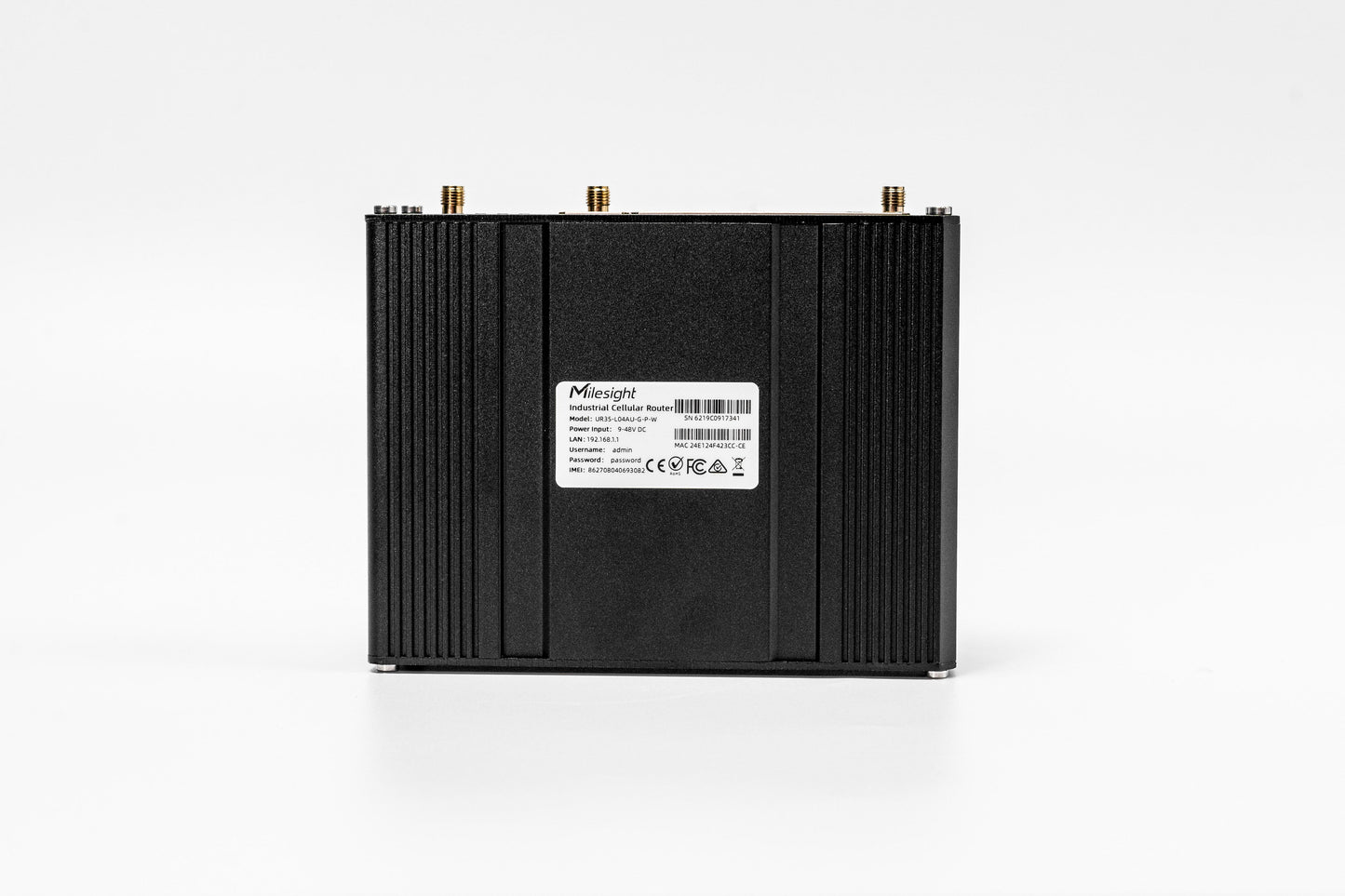

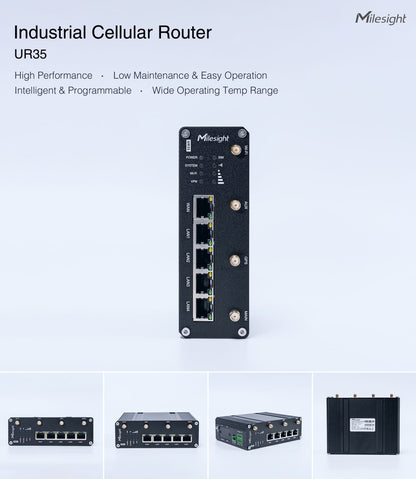

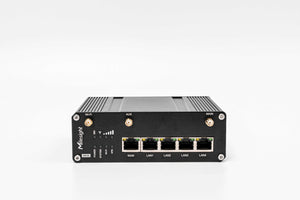

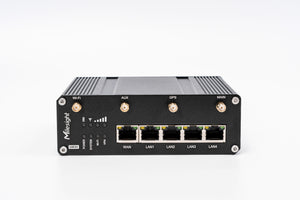

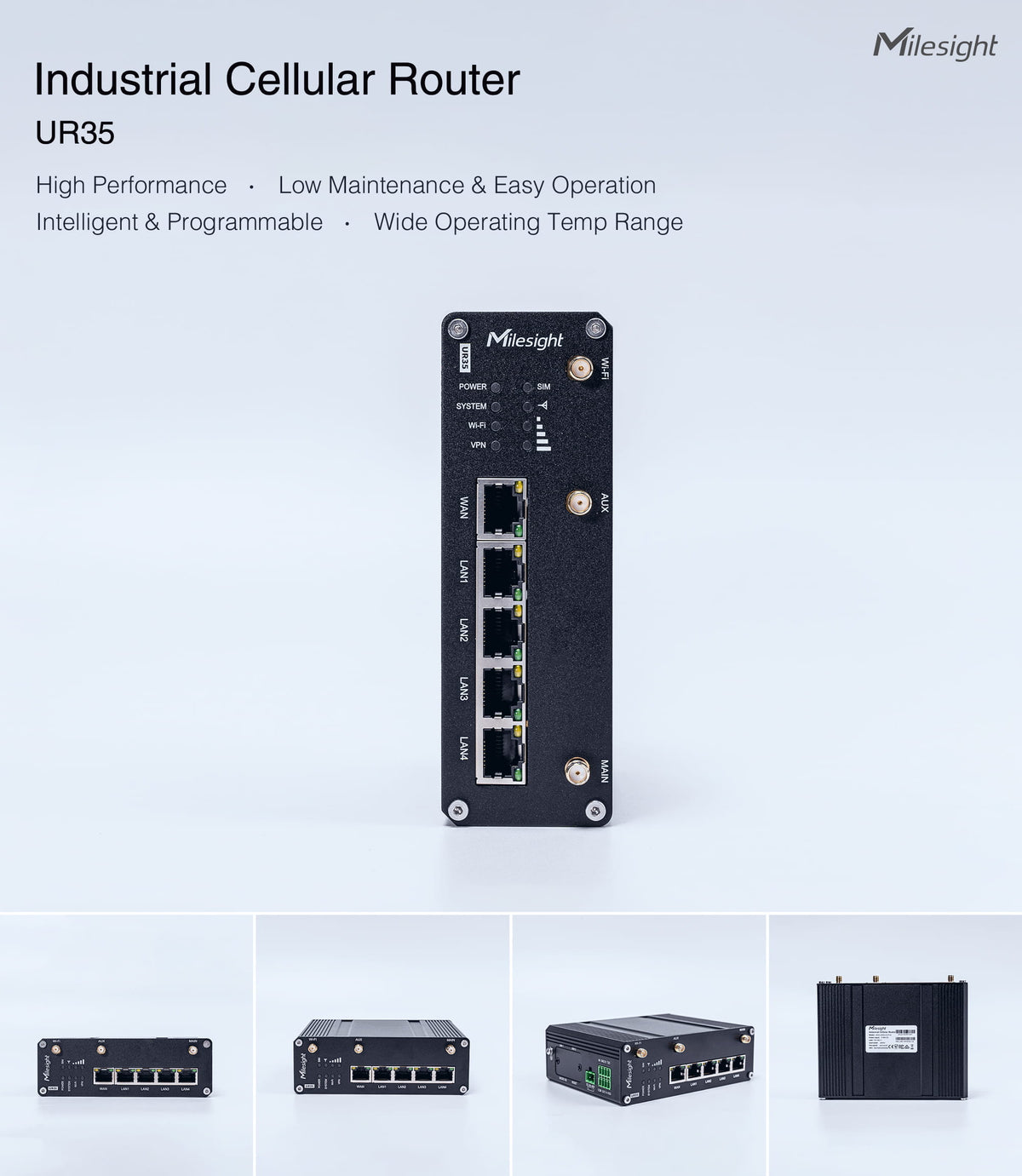

Milesight Pro Series Industrial Cellular Router UR35

UR35 is a cost-effective industrial cellular router with embedded intelligent features that are designed for multifarious M2M/IoT applications. Global WCDMA and 4G LTE carrier supported make this drop-in connectivity a great help for operators in maximizing uptime. Integrating embedded cellular modem and dual SIM function, the UR35 provides 3G/4G cellular network with 150 Mbps download and 50 Mbps uplink, it also has 5 fast Ethernet ports and supports Wi-Fi that compliance with 802.11b/g/n standard. All these capabilities deliver users an uninterrupted internet access. Easy deployment and comprehensive remote device management makes UR35 versatile in most of IoT/M2M applications.

Benefits

• NXP industrial grade processor
• Global 4G LTE CAT4/3G network with dual SIM cards for backup between multiple carrier networks
• Embedded Python SDK for secondary development
• Flexible modular design provides users with different connection modules like Ethernet, I/O, serial port, Wi-Fi, GPS for connecting diverse field assets
• Rugged enclosure, optimized for DIN rail or shelf mounting
• 3-year warranty included

Easy Maintenance

• DeviceHub provides easy setup, mass configuration, and centralized management of remote devices
• The user-friendly web interface design and more than one option of upgrade help administrator to manage the device as easy as pie
• WEB GUI and CLI enable the admin to achieve simple management and quick configuration among a large quantity of devices
• Efficiently manage the remote routers on the existing platform through the industrial standard SNMP

Security & Reliability

• Automated failover/failback between Ethernet, Cellular (dual SIM) and Wi-Fi
• Secure transmission with VPN tunnels like IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
• Embeds hardware watchdog to automatically recover from various failure, ensure highest level of availability
• Establishes a secured mechanism on centr alized authentication and authorization of device access by supporting AAA (Radius, TACACS+, LDAP, local Authentication) and multiple levels of user authority

Capabilities

• Link remote devices in an environment where communication technologies are constantly changing
• Support 802.11 b/g/n, as AP or client mode, to establish versatile wireless network or be the backup WAN link for 4G/3G
• Support rich protocols like SNMP, Modbus bridging, RIP, OSPF
• Support wide operating temperature rangi ng from -40°C to +70°C/-40℉ to +158℉

Technical Documents

• UR35 Datasheet
• UR35 User Guide
• Firmware & SDK
