Regular price $ 84.00 $ 0.00

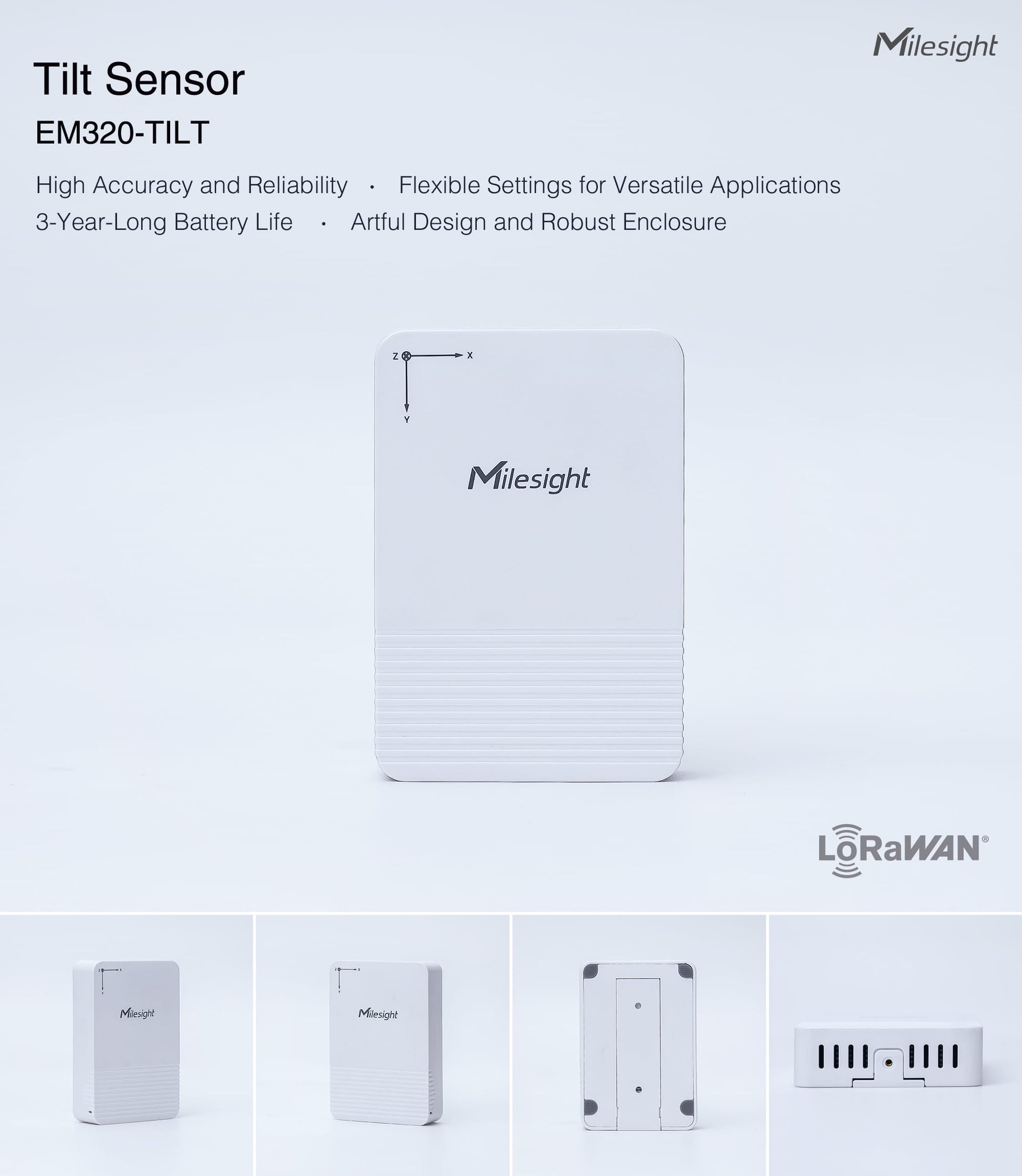

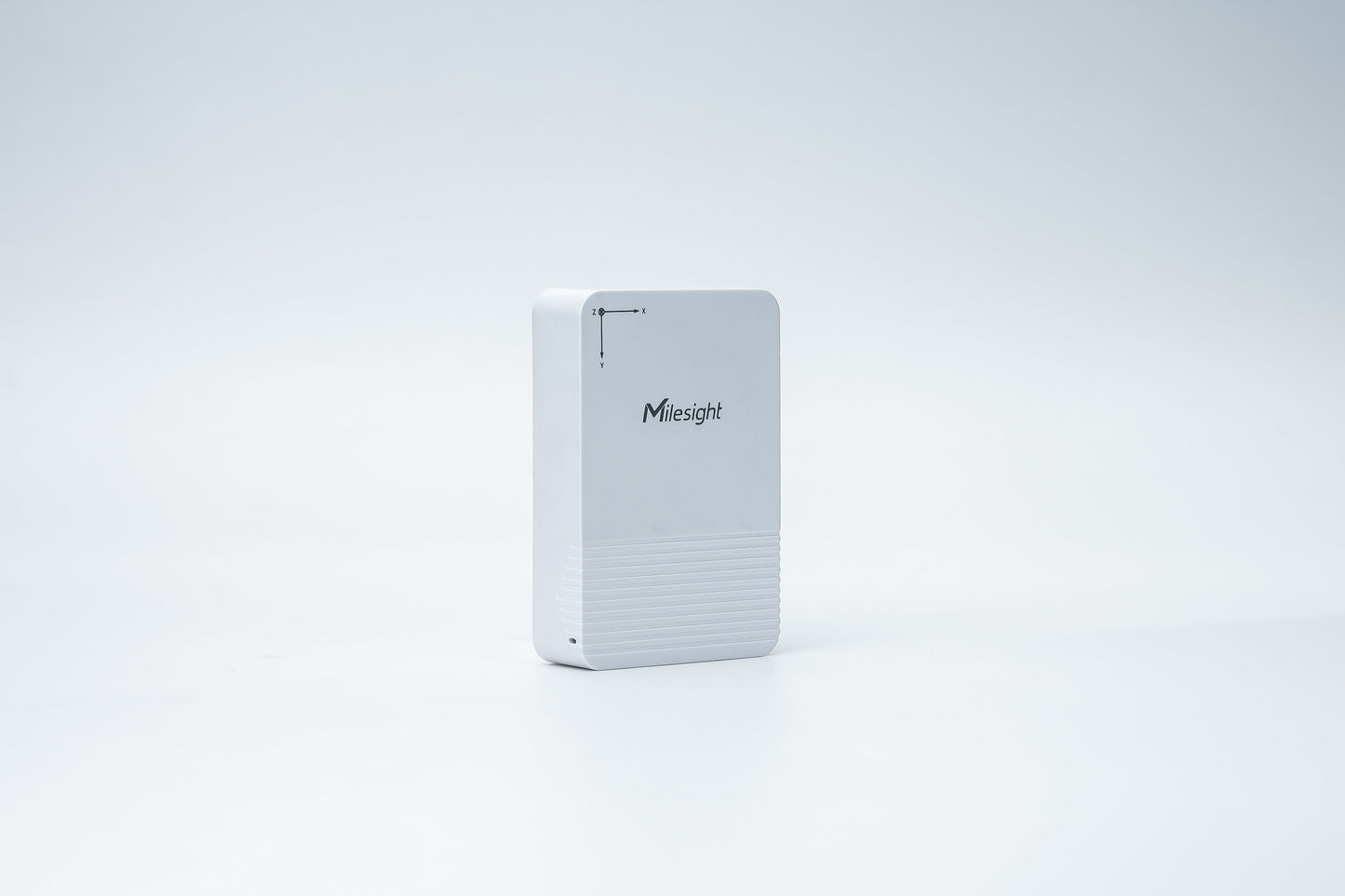

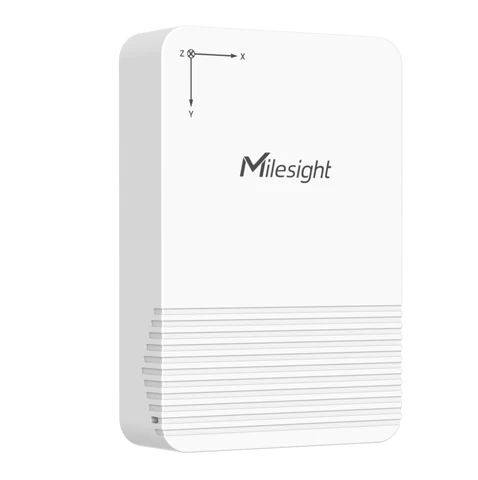

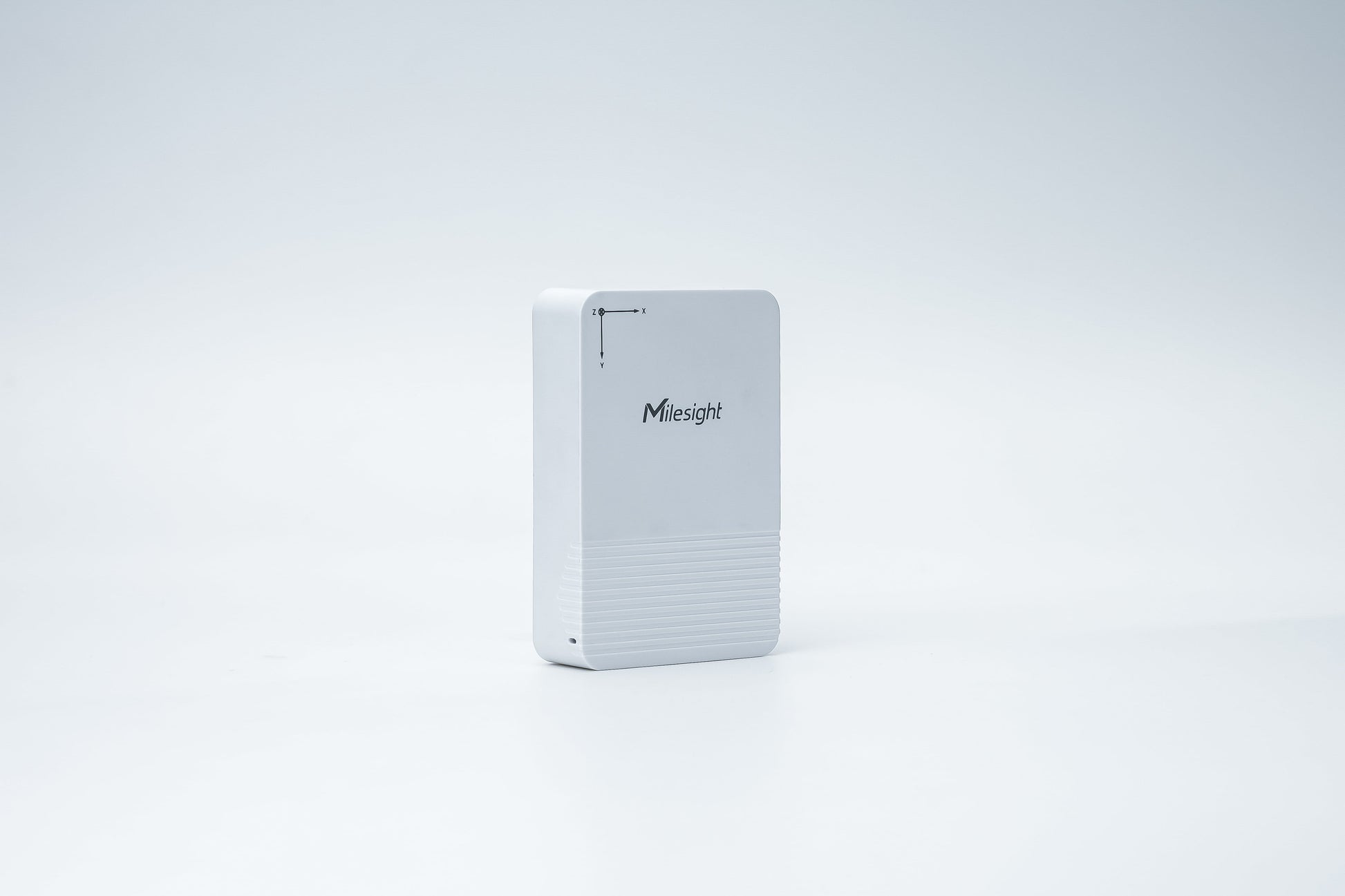

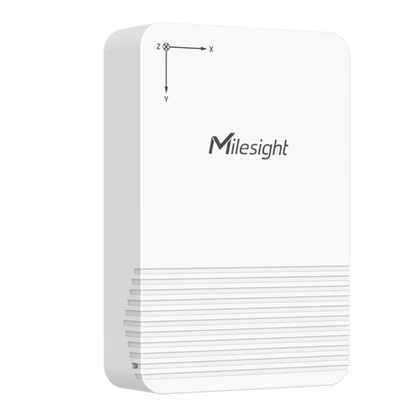

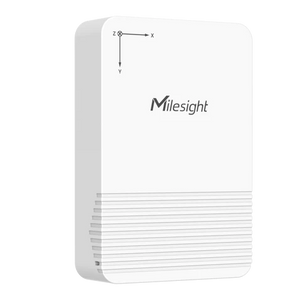

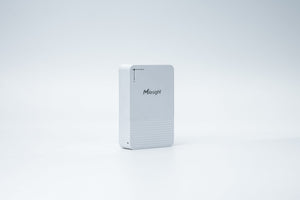

EM320-TILT is a LoRaWAN® tilt sensor mainly for angle measurement and asset movement detection. With a compact size and 3-axis accelerometer, EM320-TILT can be installed on objects easily to measure its X, Y, Z tilt angles. In addition, EM320-TILT supports customizing the initial position to detect movement based on angle changes and send threshold alarms. Compliant with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can know the angles and tilt threshold alarms in real-time via browser or mobile app remotely. EM320-TILT can be widely used in tree monitoring, pole lean detection, landslide monitoring, etc.

Features

  • Built-in MEMS accelerometer sensor to measure the 3-axis angles of any objects
  • Flexible threshold condition settings, suitable for different kinds of applications
  • Easy to install, suitable for various types of objects as trees, poles, grounds,
  • IP67 waterproof enclosure for outdoor applications

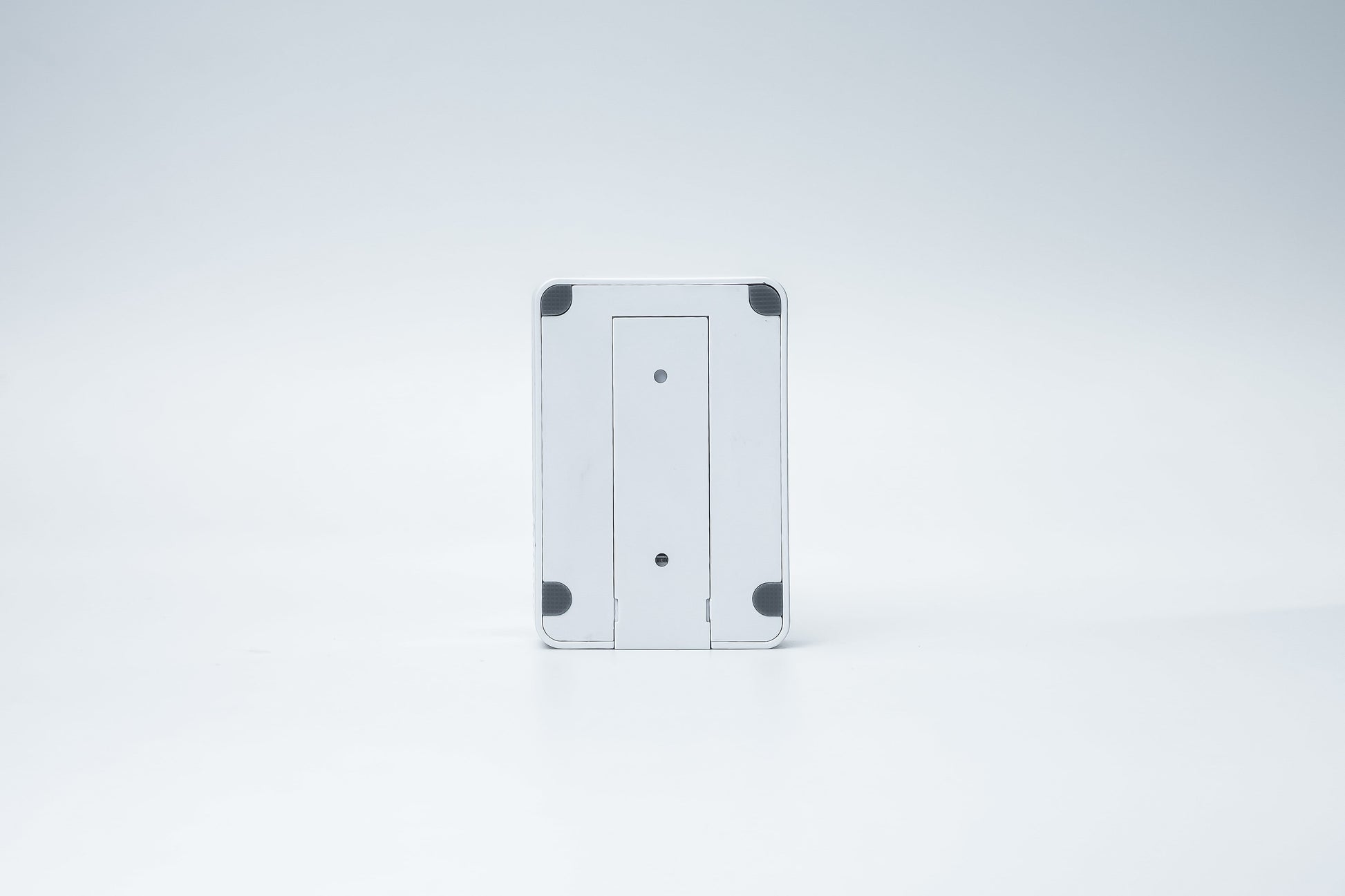

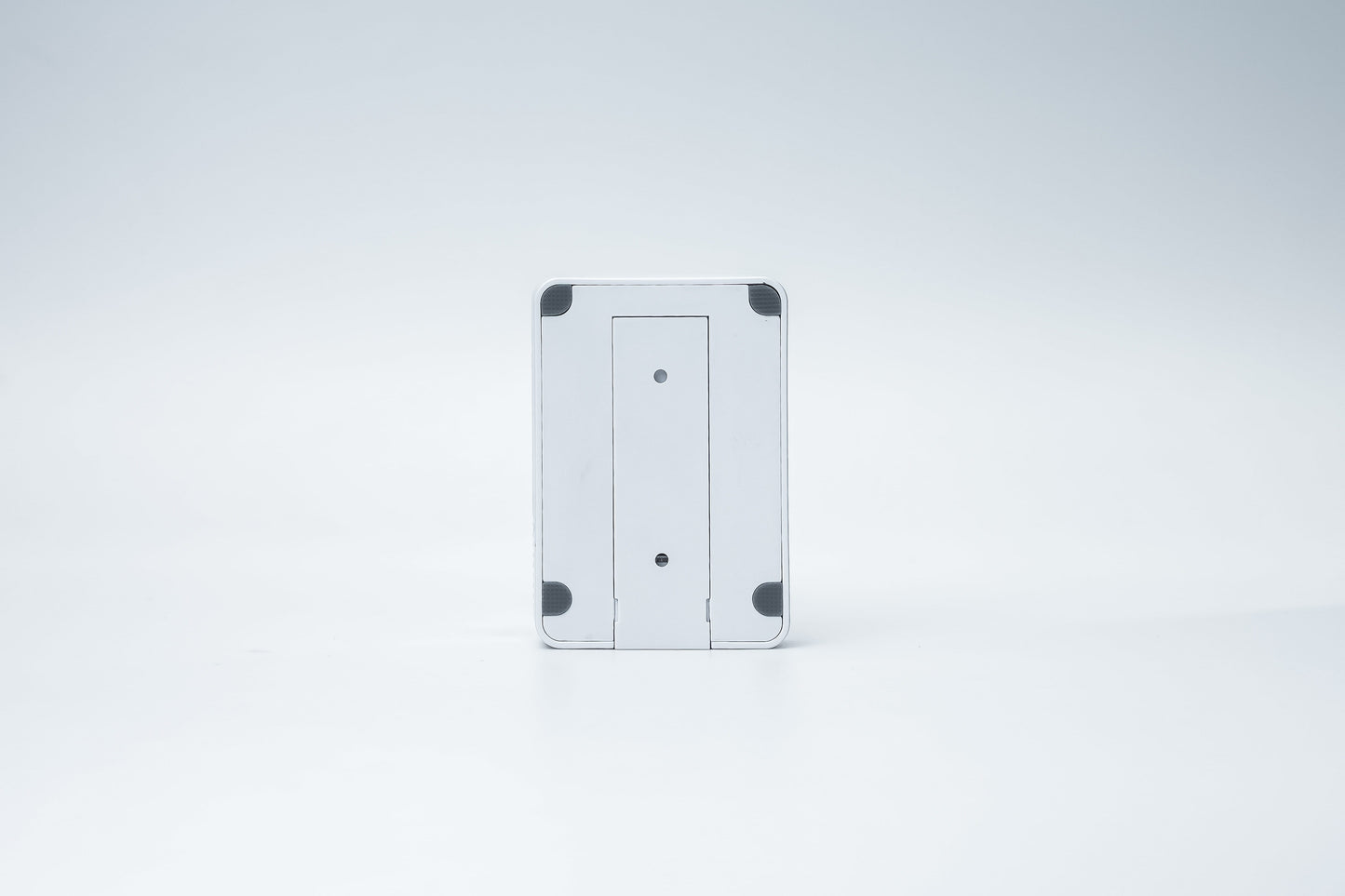

  • Anti-theft design on back cover to secure firm and sturdy installation
  • Ultra-wide-distance wireless transmission up to line of sight of 15 km
  • Equipped with NFC for one touch configuration
  • Function well with standard LoRaWAN® gateways and network servers
  • Compliant with Milesight IoT Cloud

Specifications

Wireless Transmission

Technology

LoRaWAN®

Frequency

CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)

Sensitivity

-137 dBm @300bps

Mode

OTAA/ABP Class A

Measurement

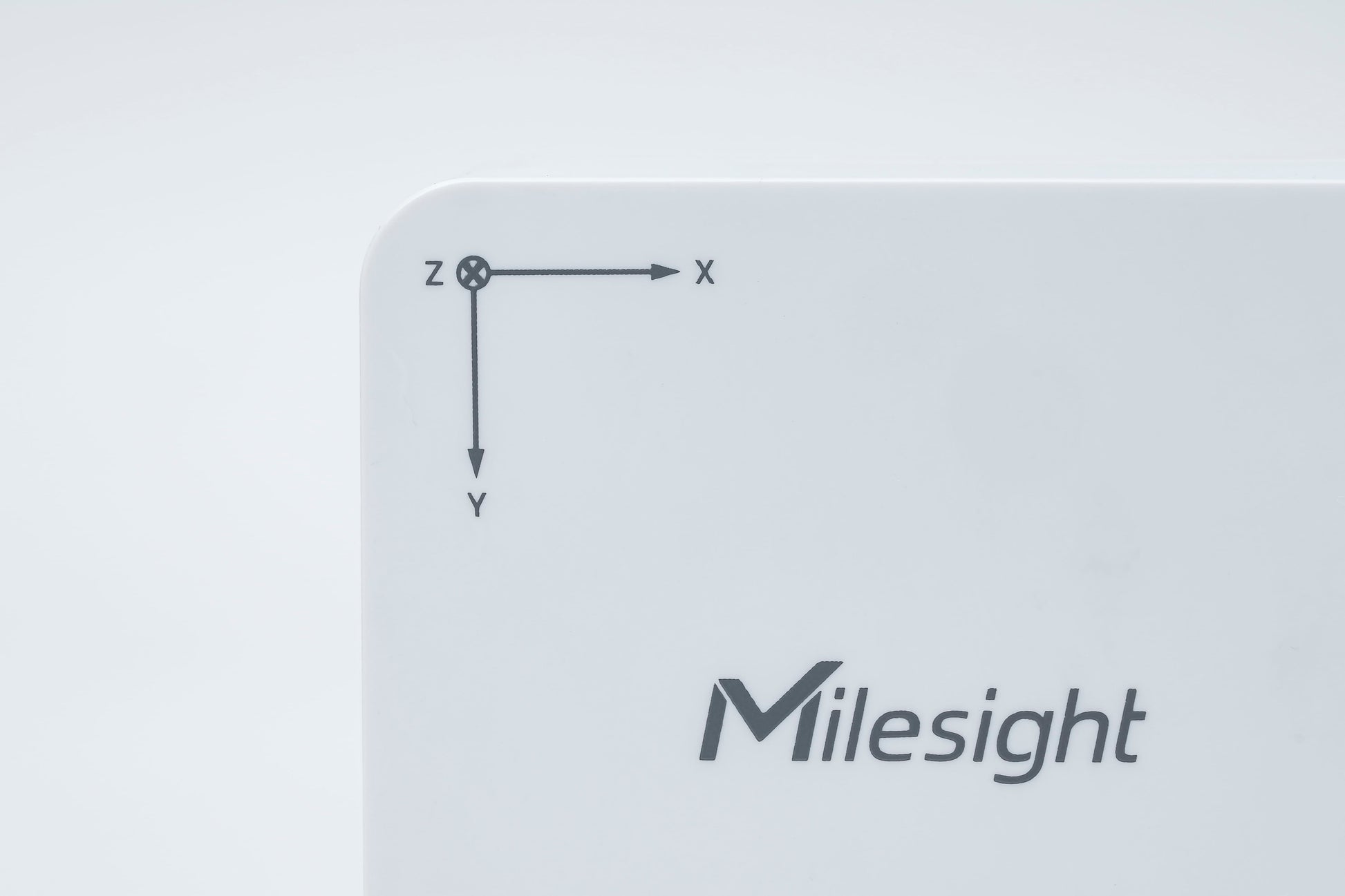

Axis

X, Y, Z

Range

- 90° ~ +90°

Accuracy

± 1°

Resolution

0.01°

Others

Power On & Off

NFC Configuration via Mobile App, Power Button (Internal)

Configuration

NFC Configuration via Mobile App

Physical Characteristics

Power Supply

2 × 2700 mAh ER14505 Li-SOCl2 Batteries

Battery Life*

≥3 Years (10min reporting interval, SF10)

Operating Temperature

-30°C to +60°C

Relative Humidity

≤95% (non-condensing)

Ingress Protection

IP67

Dimension

85 × 58 × 18 mm (3.34 × 2.28 × 0.70 in)

Material & Color

PC + ABS, White

Installation

Wall Mounting
