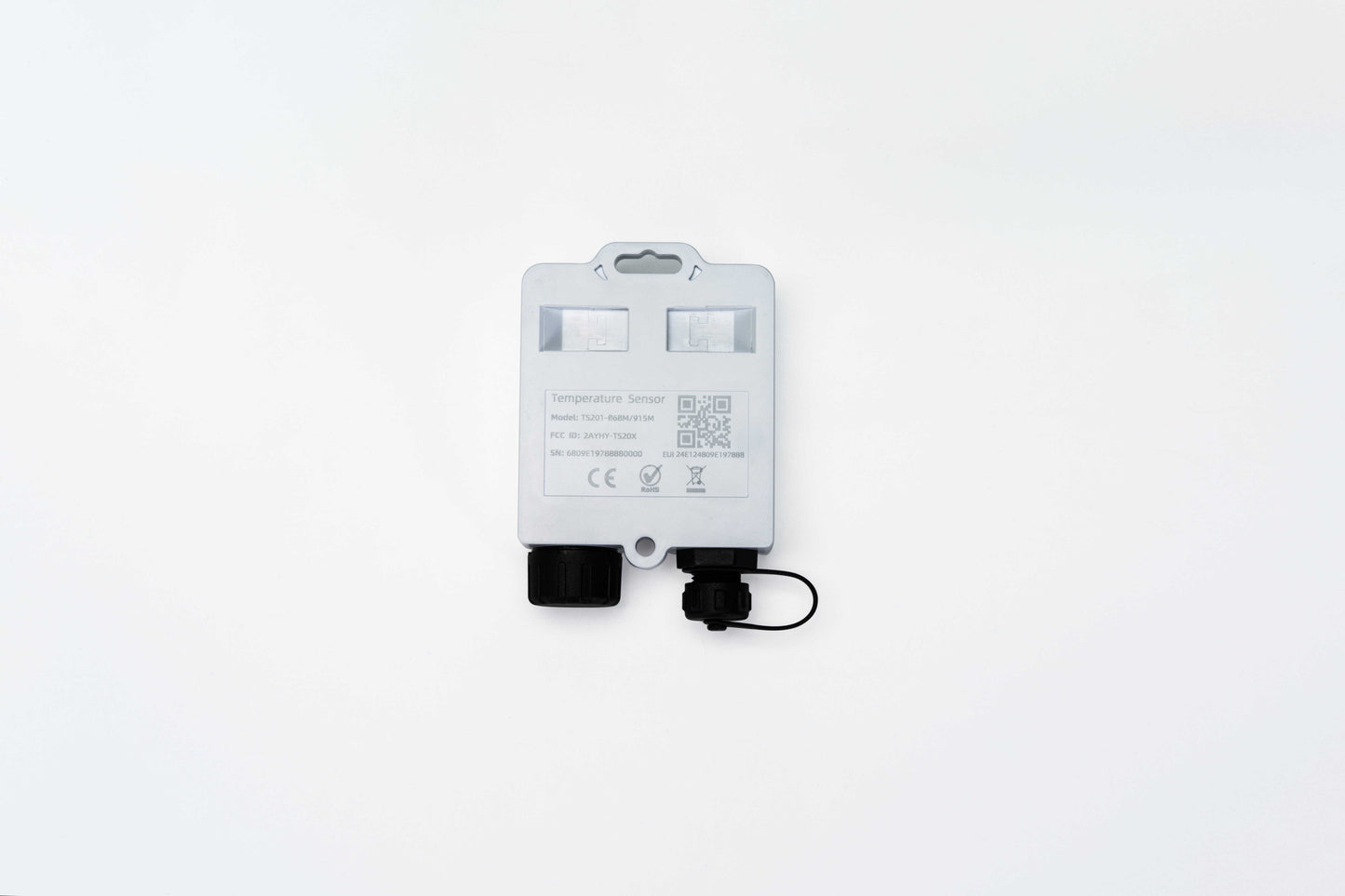

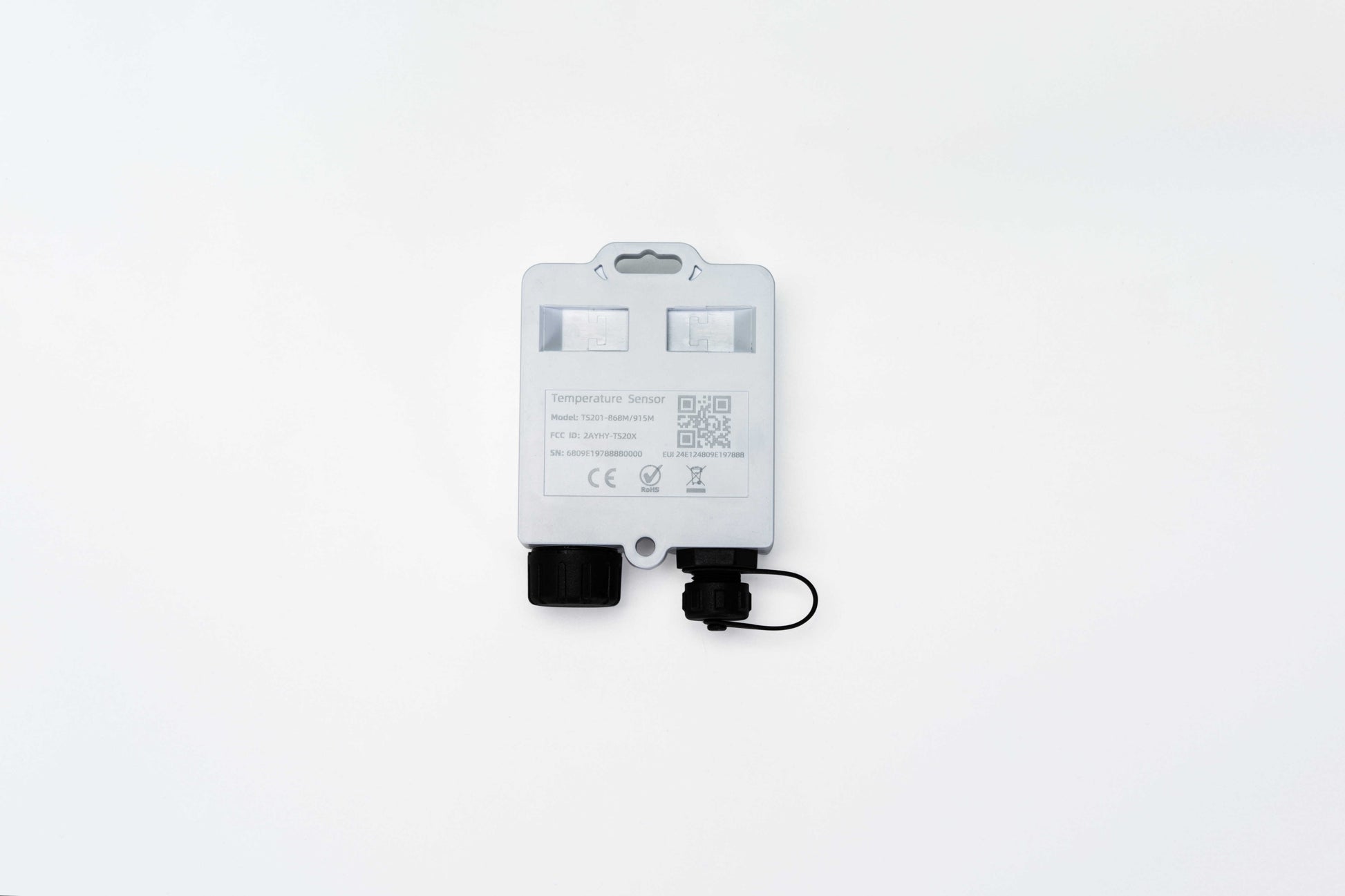

Milesight Temperature Sensor TS201
Milesight Temperature Sensor TS201
SKU:123003633
Low stock: 1 left
Couldn't load pickup availability

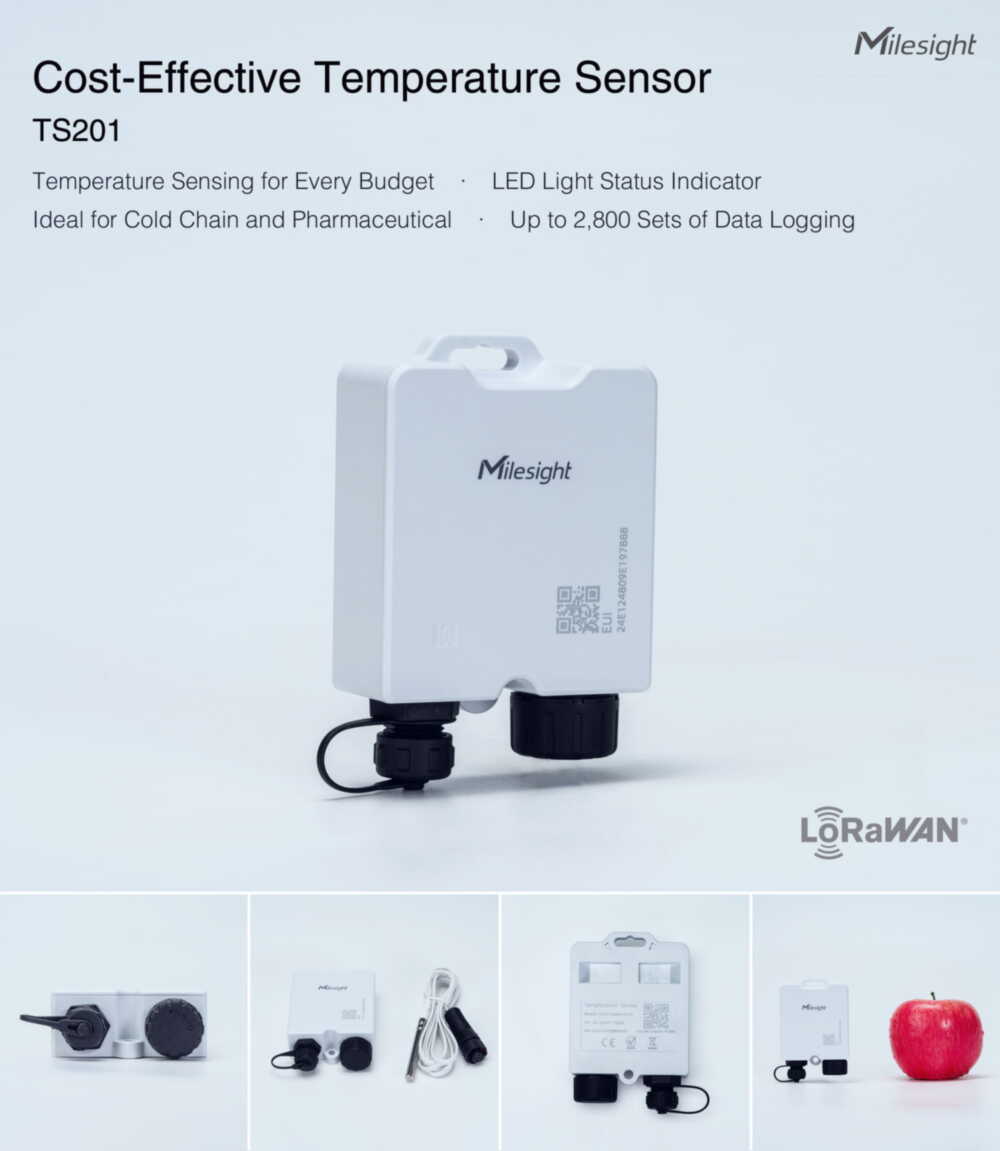

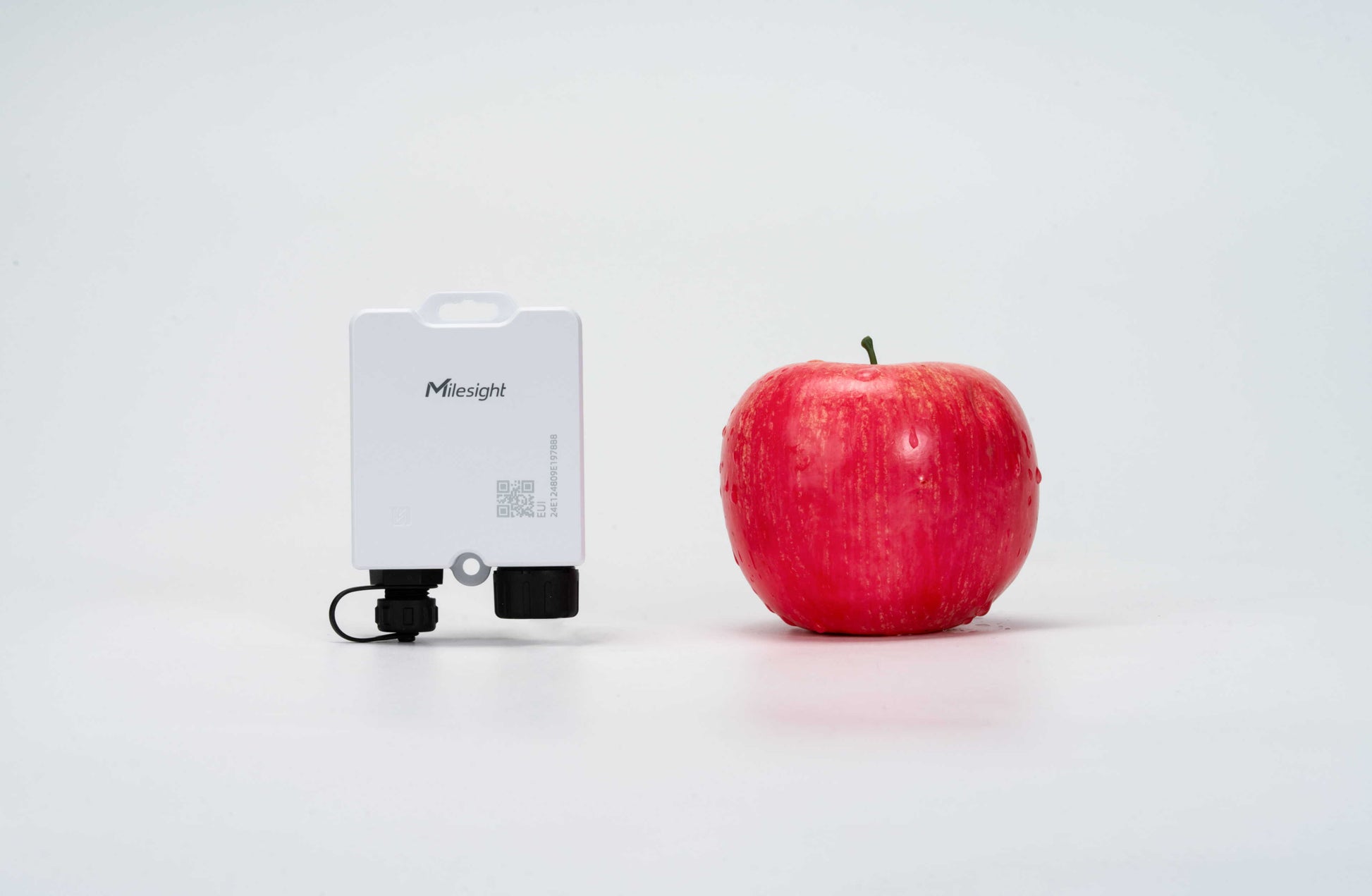

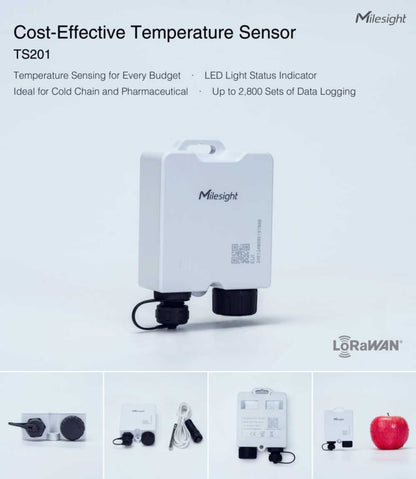

The Milesight TS201 is a compact, high-precision temperature and humidity sensor designed for reliable data detection in harsh environments. The device features an IP67-rated waterproof design and low power consumption technology, enabling a long operational life on its internal battery. TS201 supports LoRaWAN® technology for efficient wireless communication and is compatible with the Milesight Development Platform, allowing for remote monitoring and management of temperature and humidity data. Its robust construction and compliance with EN12830 certification make it suitable for demanding use cases such as cold chain storage of food or medicines, industrial monitoring.
Features

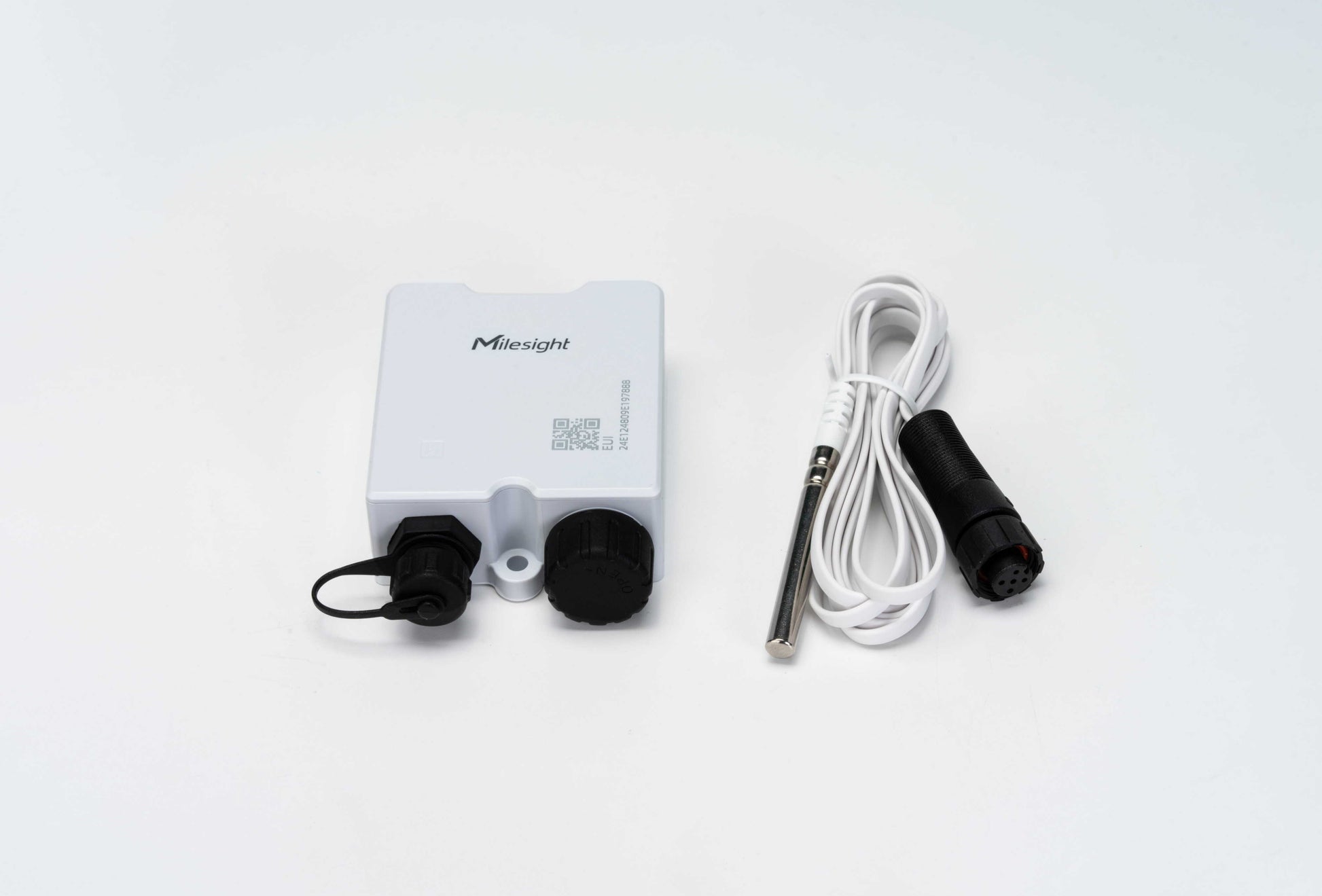

- High-Accuracy Sensor Equipped with a DS18B20 temperature probe (for temperature-only version) or a temperature-humidity (TH) probe, ensuring accurate data collection.
- Detachable Probe Enables self-calibration and easy maintenance.
- IP67 Waterproof Rating Specialized waterproof design and battery compartment make it ideal for harsh and wet environments.
- Indicator LED provides device status and threshold alarms (available on the TH version).
- Multiple Mounting Options Flexible installation options: wall screw mounting, cable-tie mounting, and optional magnetic mounting.
- EN12830 Certification Compliant for cold-chain applications, ensuring reliability in food and pharmaceutical logistics.
- Local Data Storage and Retransmission Stores up to 2,800 (temperature version) or 4,000 (TH version) historical records and supports retransmission to prevent data loss.
- NFC Configuration Allows for quick and easy setup using a mobile app.
- Long Battery Life Operates from a 2,700mAh Li-SOCl2 battery, offering up to 10 years of life under optimal conditions.
- Firmware Update Over the Air (TH Version Only)
- Wireless Communication LoRaWAN® connectivity, with support for standard gateways and various global frequency bands.
- Enhanced Features Supports abrupt change alarms, data recoverability, and direct low-latency control via Milesight D2D protocol (TH version).
Technical Highlights
| Feature | Temperature Version | TH Version |
|---|---|---|
| Sensor Type | DS18B20 | Digital CMOSens® technology (MEMS) |
| Temperature Range | -40°C ~ 125°C | -40°C ~ 125°C |
| Temperature Accuracy | ±0.5°C (10°C~85°C), ±2°C elsewhere | ±0.3°C ~ ±0.5°C (see datasheet) |
| Humidity Range & Accuracy | N/A | 0% ~ 100% RH, ±2% |
| Data Storage | 2,800 entries | 4,000 entries |
| Battery Life (typical, 10min interval) | 8.2–10 years (SF7) | 9–10 years (SF7) |
| Wireless Protocol | LoRaWAN® | LoRaWAN®, Milesight D2D |
| Ingress Protection | IP67 | IP67 |
Technical Documents
