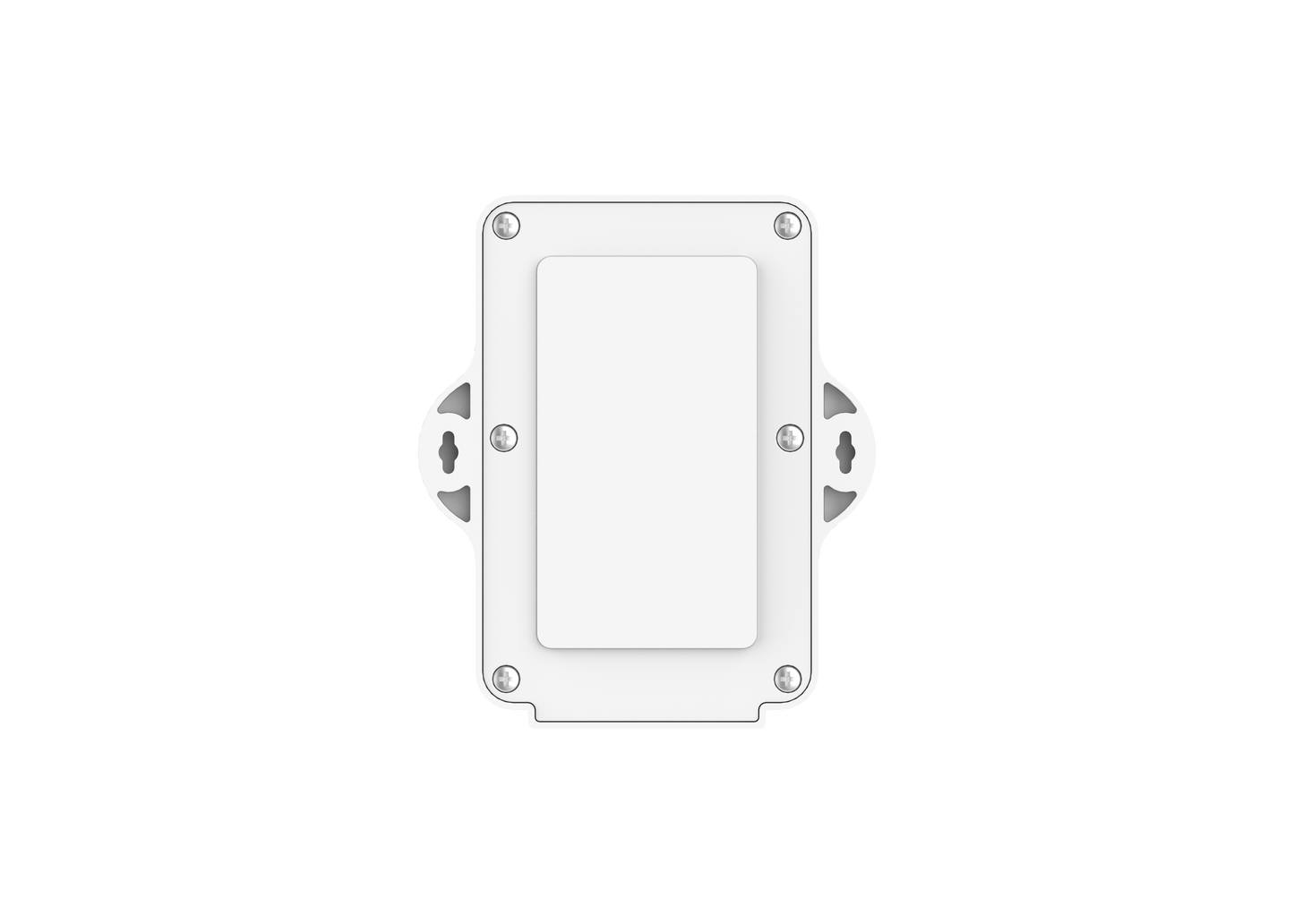

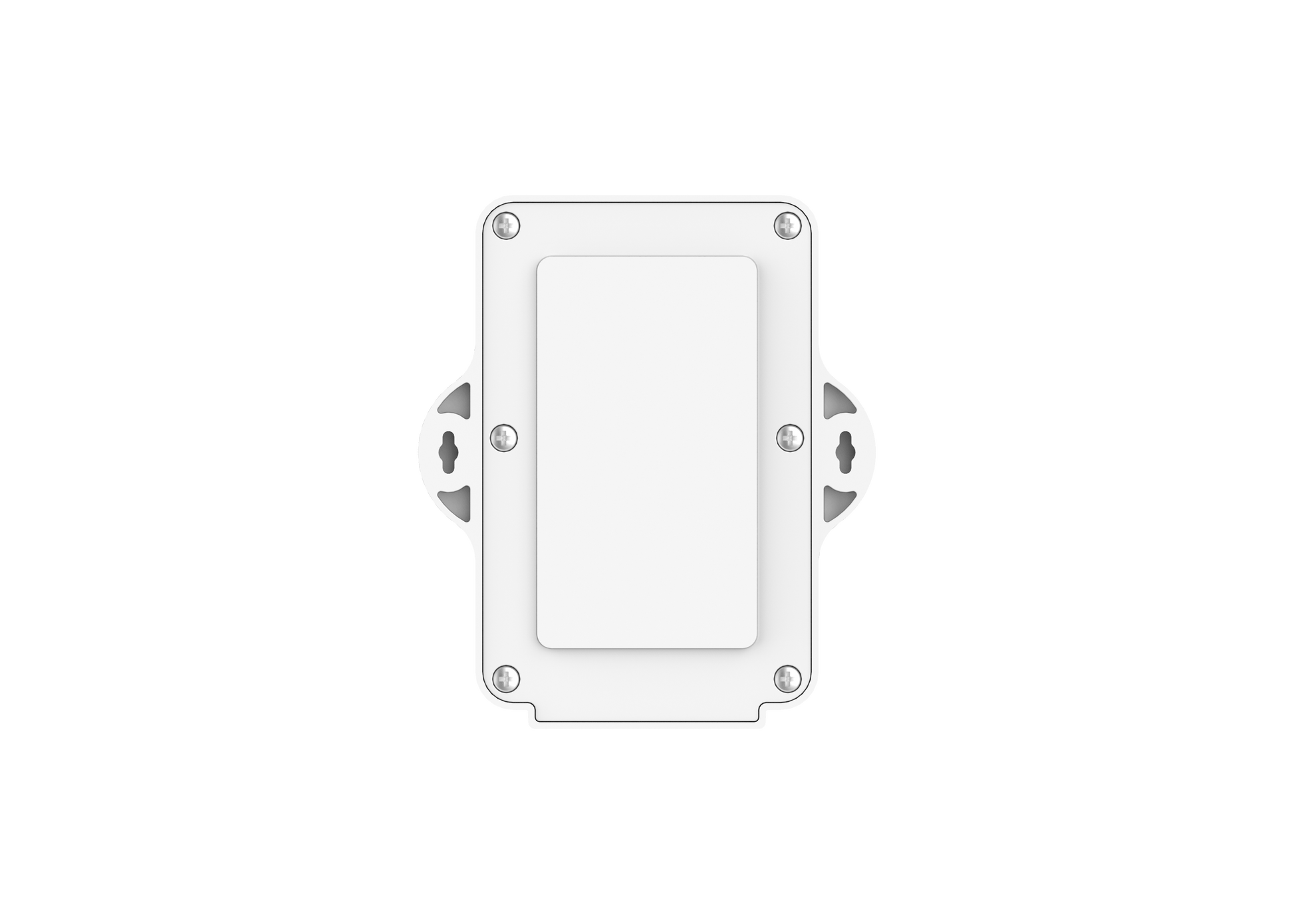

Milesight Temperature & Humidity Sensor (TS601 & TS602)

The Milesight TS60x series is a high‑precision temperature and humidity monitoring solution engineered for cold‑chain environments, food storage, pharmaceuticals, and harsh industrial conditions. With IP67 waterproof protection, multiple sensing capabilities, optional probes, and advanced reporting modes, it ensures accurate environmental data across demanding scenarios.

Key Features

• IP67 waterproof design with a sealed battery compartment suitable for harsh environments.
• Locally stores historical sensor data and retransmits automatically to prevent data loss.
• Built‑in 3‑axis accelerometer for tilt and movement detection.
• Integrated light sensor for detecting cargo box door openings.
• Supports flight mode for aviation‑safe transportation.
• Supports OTA upgrades through compatible management platforms.
• NFC support for fast and easy configuration.
• Flexible mounting options include wall mount, tape, magnetic mounting, or cable ties.
• Base‑station positioning for accurate tracking and security monitoring.
• One‑click reporting and cumulative reporting features for optimized power consumption.

Model-Specific Features

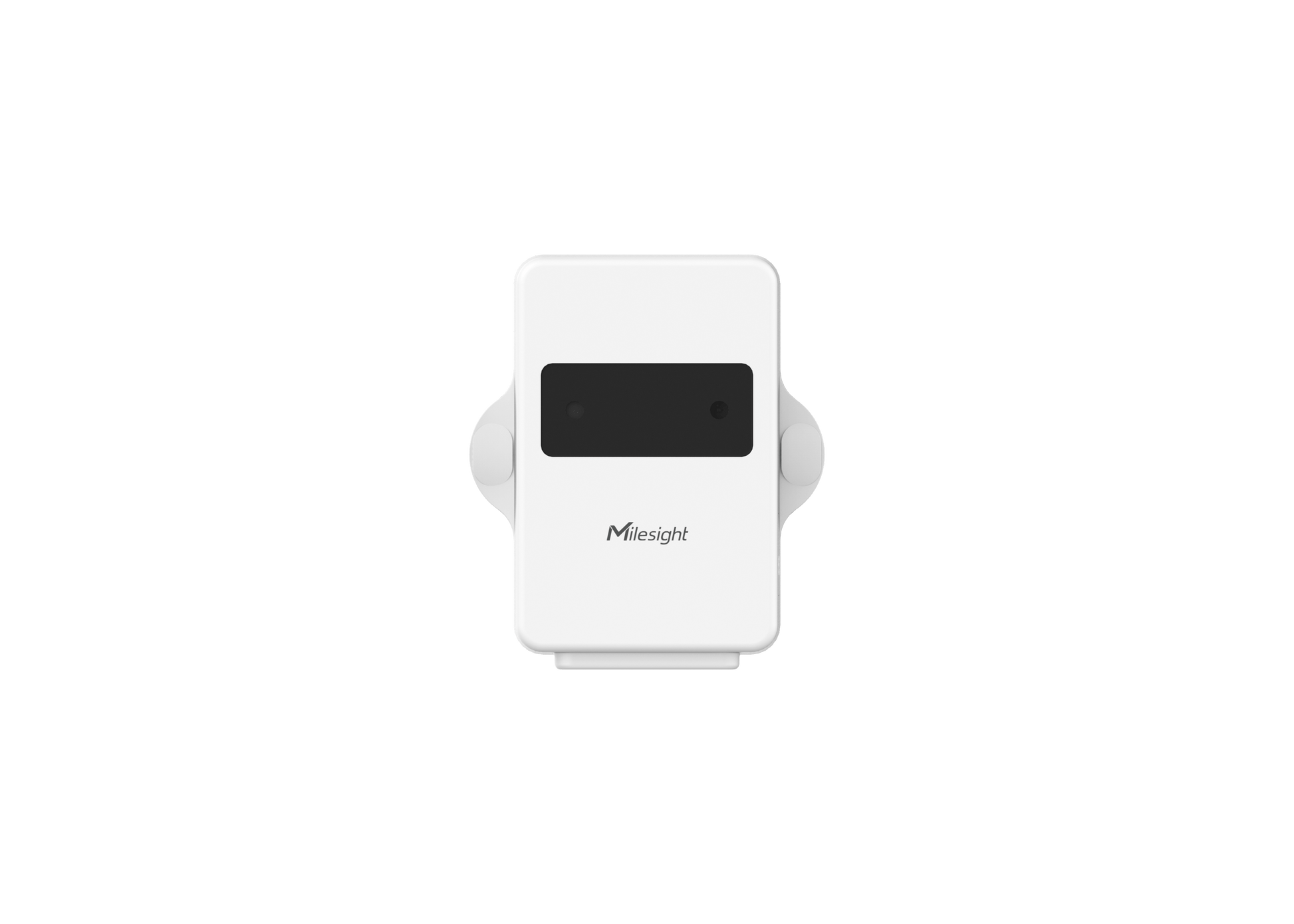

TS601

• Includes built‑in status indicator for alarms and device state.

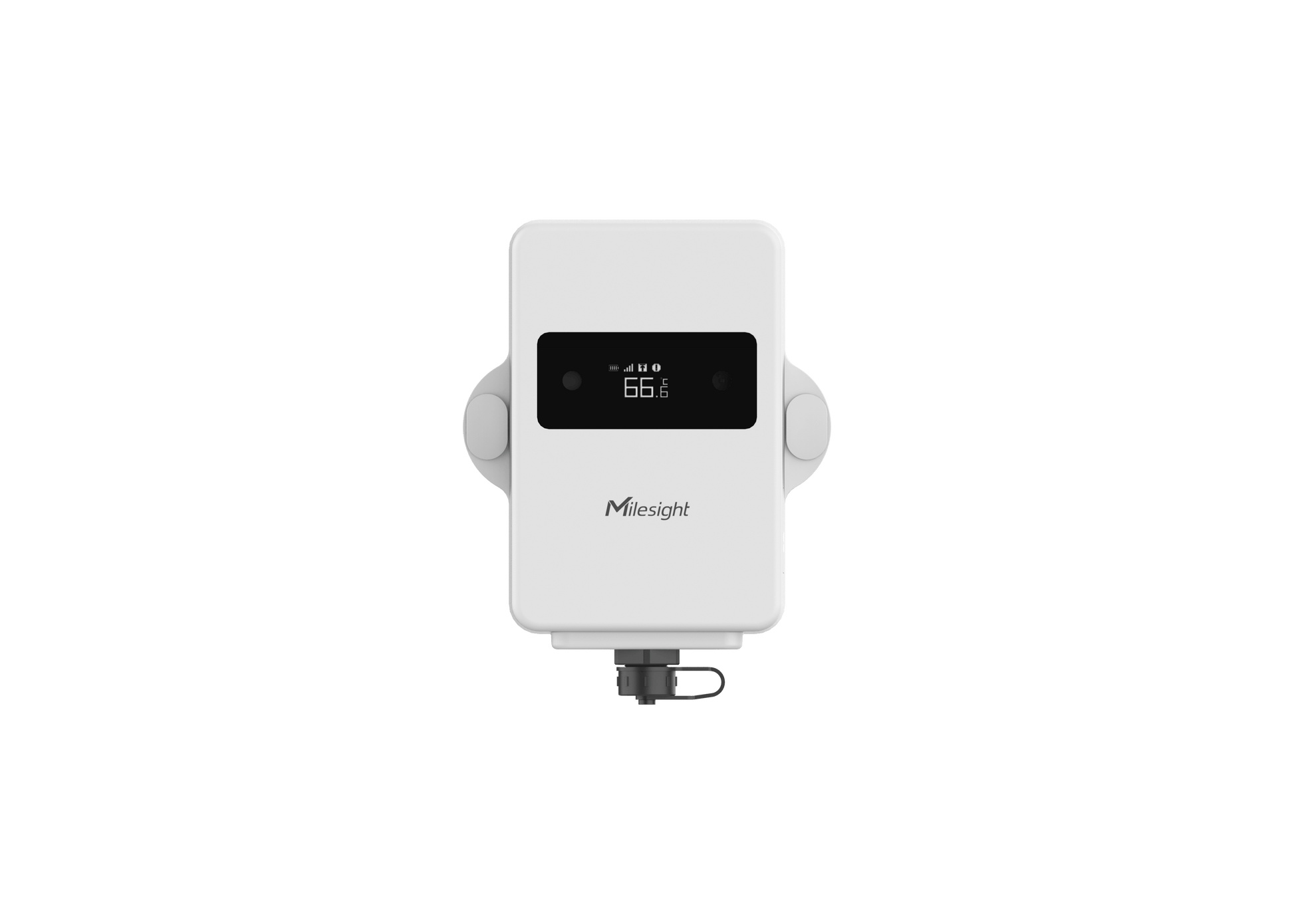

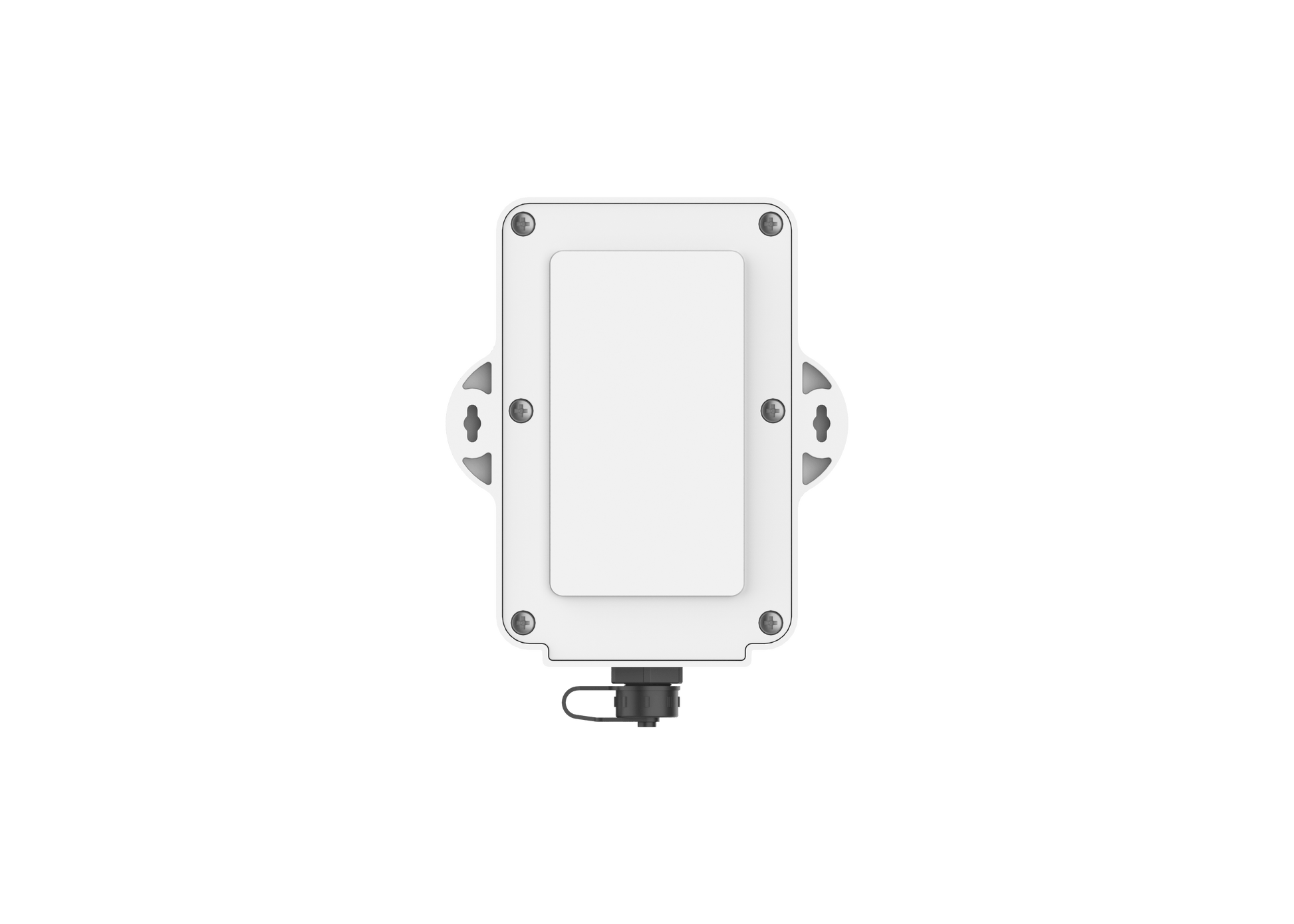

TS602

• Supports external probe options: PT100, DS18B20, or combined temperature‑humidity probe.
• Features a high‑resolution 0.96-inch OLED display for easy live data reading.

Wireless & Connectivity

• 4G LTE Cat‑1 wireless communication.
• Supports multiple communication modes: TCP, UDP, MQTT, AWS IoT, and Milesight platform.
• Micro‑SIM (3FF) slot with support for 1.8V/3V SIM cards.

Environmental Sensing

• Temperature range: -35°C to +70°C (internal sensor; extended for external probes).
• Humidity range: 0% to 100% RH.
• Temperature accuracy: ±0.3°C to ±0.5°C depending on range.
• Humidity accuracy: ±2% RH typical.
• Light detection range: 0 to 600 lux.
• Tilt sensing range: -90° to +90° across all axes.

Hardware & Interface

• Durable, food‑grade enclosure suited for contact with food and medical goods.
• 5‑pin M12 A‑coded connector for external probes (TS602 only).
• Internal battery providing long multi‑year operation.

Typical Applications

• Cold chain transport: perishables, pharmaceuticals, vaccines.
• Refrigerated storage units and freezers.
• Industrial warehouses and environmental monitoring.
• Smart logistics and cargo condition tracking.
