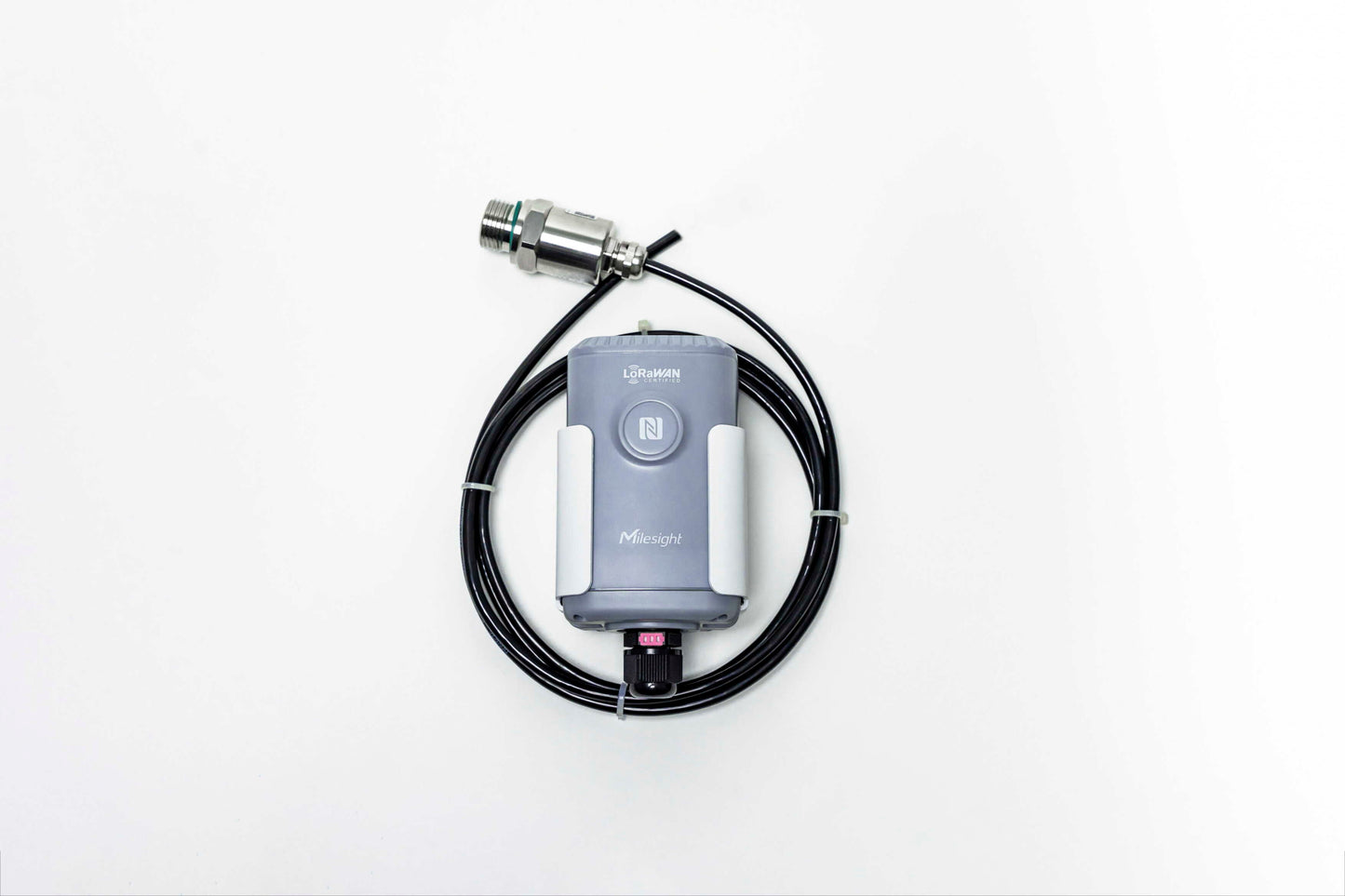

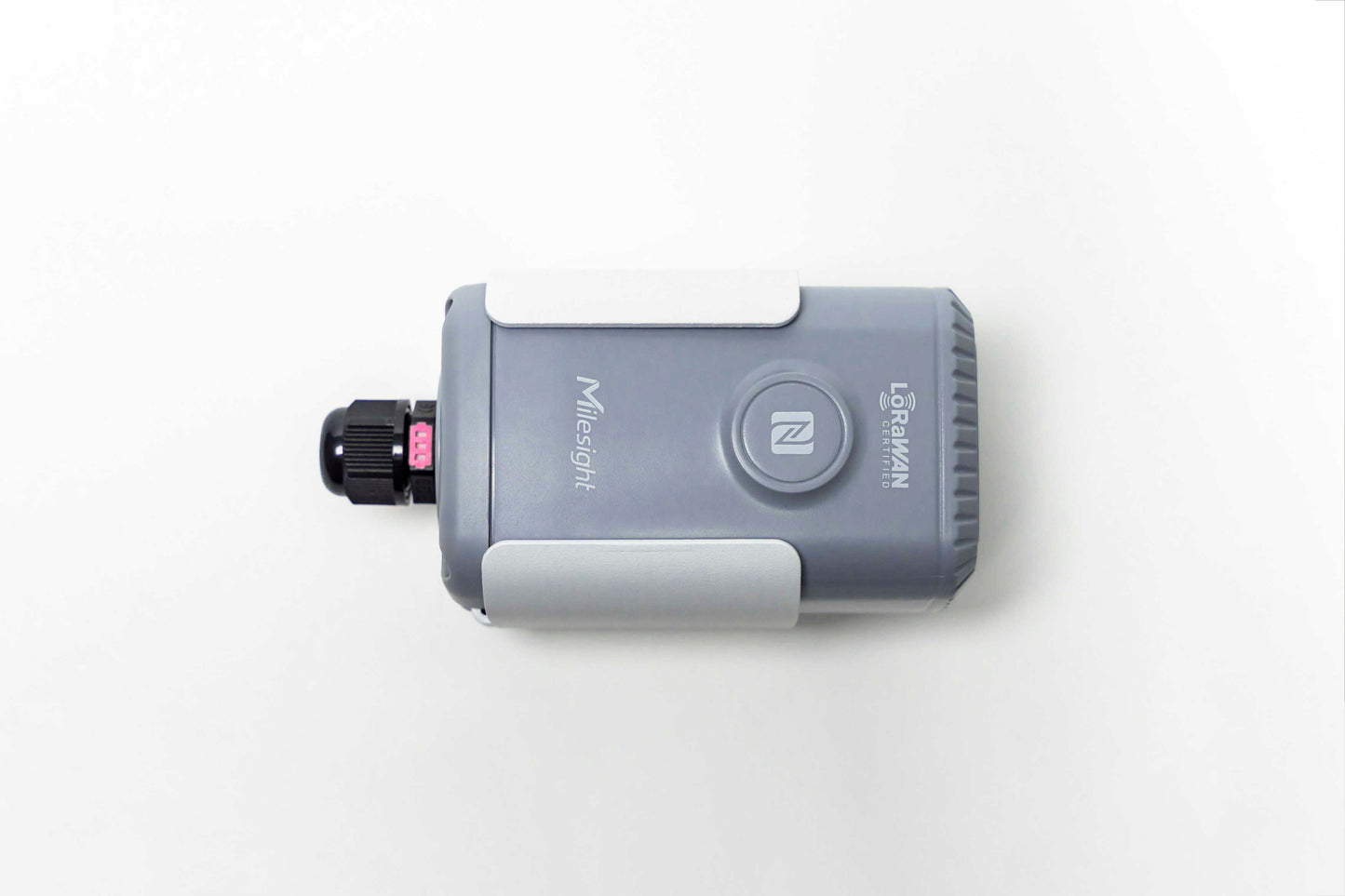

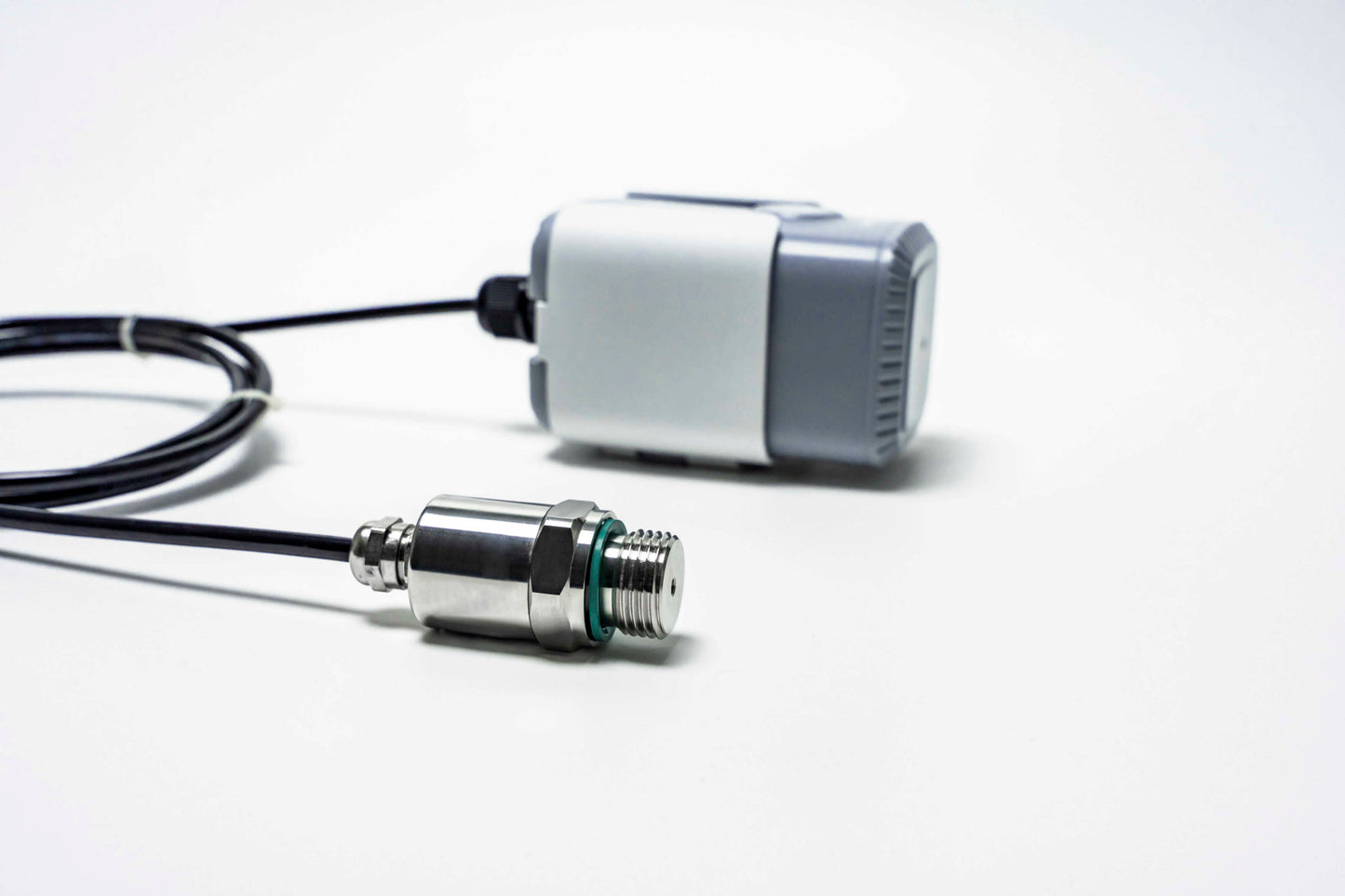

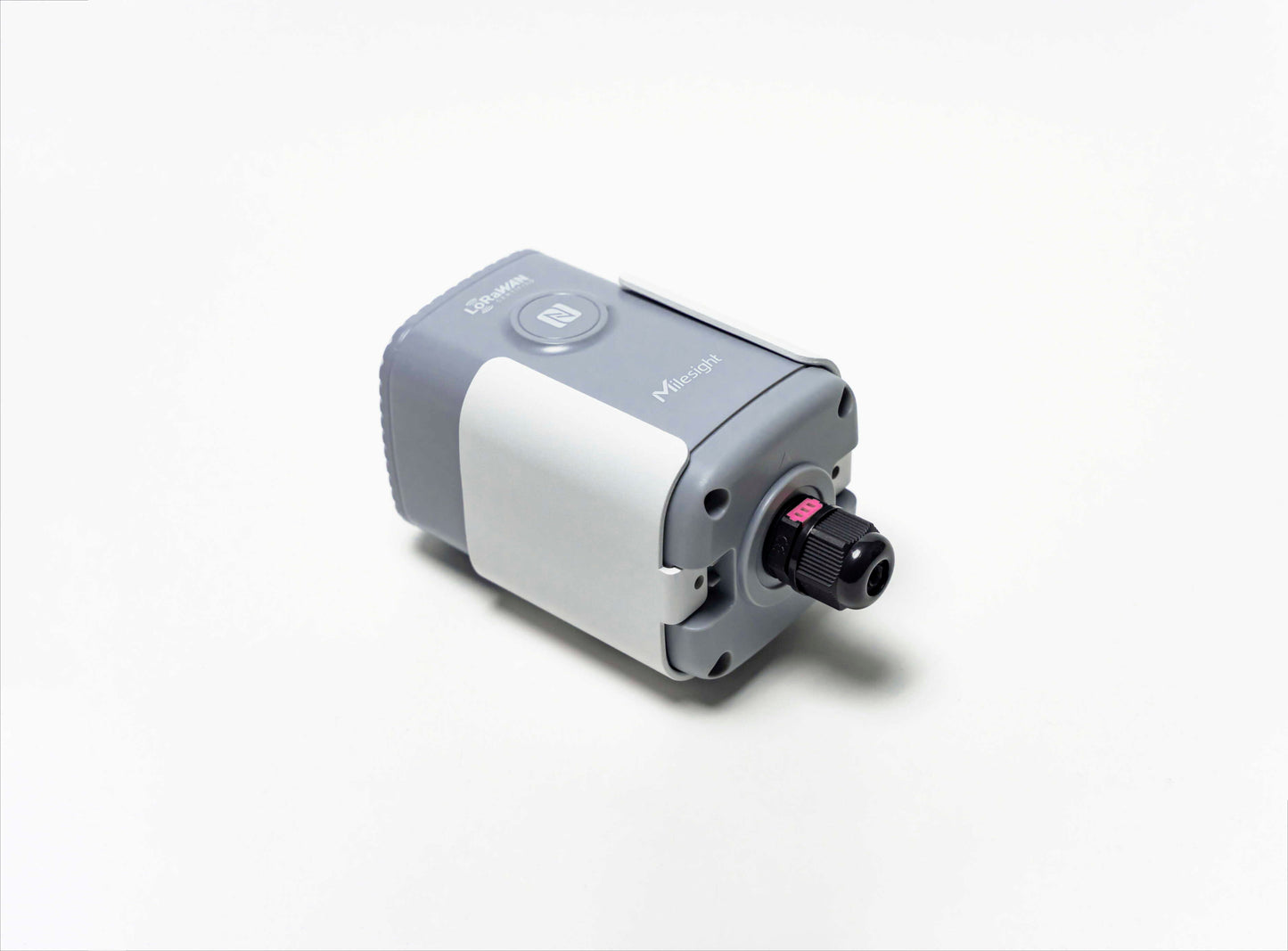

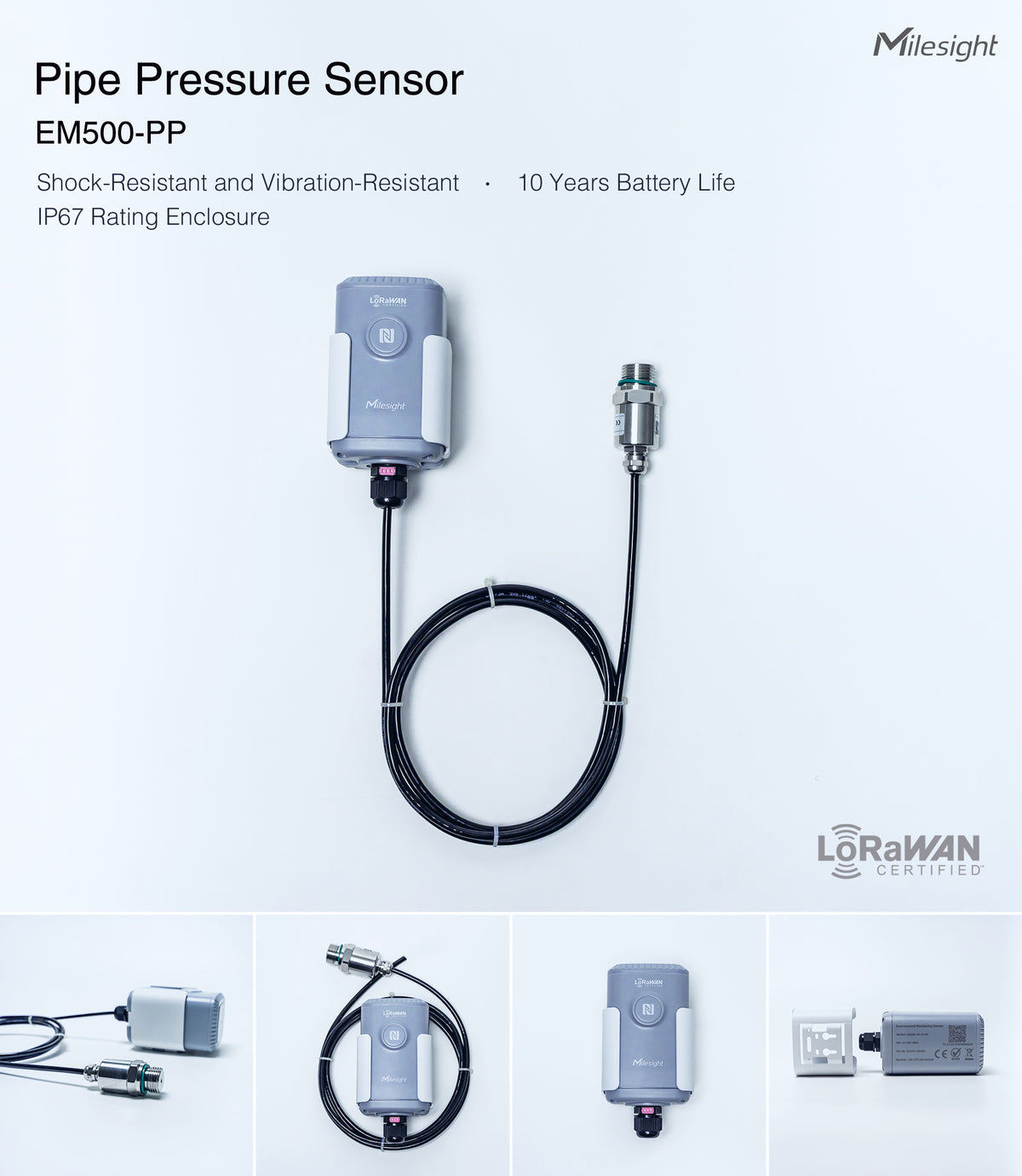

Milesight Pipe Pressure Sensor EM500-PP
EM500-PP is designed for measuring pipe pressure in harsh environments and transmitting data using LoRaWAN® technology. With this low power consumption technology, EM500-PP can work up to 10 years with 19000 mAh battery. Combining with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually.
EM500-PP is widely used for applications like smart buildings, pipeline and tank systems monitoring, etc.
Features
- High precision and corrosion resistance
- Ultra-wide-distance transmission up to line of sight of 10km
- IP67 waterproof enclosure for harsh environment applications
- Built-in 19000 mAh replaceable battery and work for 10 years without replacement
- Equipped with NFC for easy configuration
- Compliant with standard LoRaWAN gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
Applications
- Pipes and tanks pressure monitoring
- Oil & Gas monitoring
- Water leak detection
- Pump monitoring
Specifications
|
Wireless Transmission |
|
|
Technology |
LoRaWAN® |
|
Frequency |
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
|
Tx Power |
16dBm(868)/20dBm(915)/19dBm(470) |
|
Sensitivity |
-137dBm @300bps |
|
Mode |
OTAA/ABP Class A |
|
Measurement |
|
|
Pressure Type |
Gauge Pressure |
|
Range |
0 - 1600 kPa (16 Bar) |
|
Accuracy |
± 0.5% FS |
|
Resolution |
1 kPa (0.01 Bar) |
|
Overload |
150% FS |
|
Long-term Stability |
± 0.3% FS/year |
|
Process Connection |
G 1/2” Male |
|
Operation |
|
|
Power On & Off |
NFC, Power Button (Internal) |
|
Configuration |
Mobile App (via NFC) or PC software(via USB Type-C) |
|
Physical Characteristics |
|
|
Cable Length |
1.5 m |
|
Power Supply |
19000 mAh Li-SOCL2 battery (ER34615) |
|
Battery Life* |
10 years (10 min interval) |
|
Operating Temperature |
-30°C to +70°C (Transceiver)/-10°C to +70°C (Pipe Pressure Sensor) |
|
Relative Humidity |
0% to 100% (non-condensing) |
|
Ingress Protection |
IP67(Transceiver)/IP65(Pipe Pressure Sensor) |
|
Dimension |
Transceiver: 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in) Pipe Sensor: 67.5 × ф27 mm (2.7 × ф1.1 in) |
|

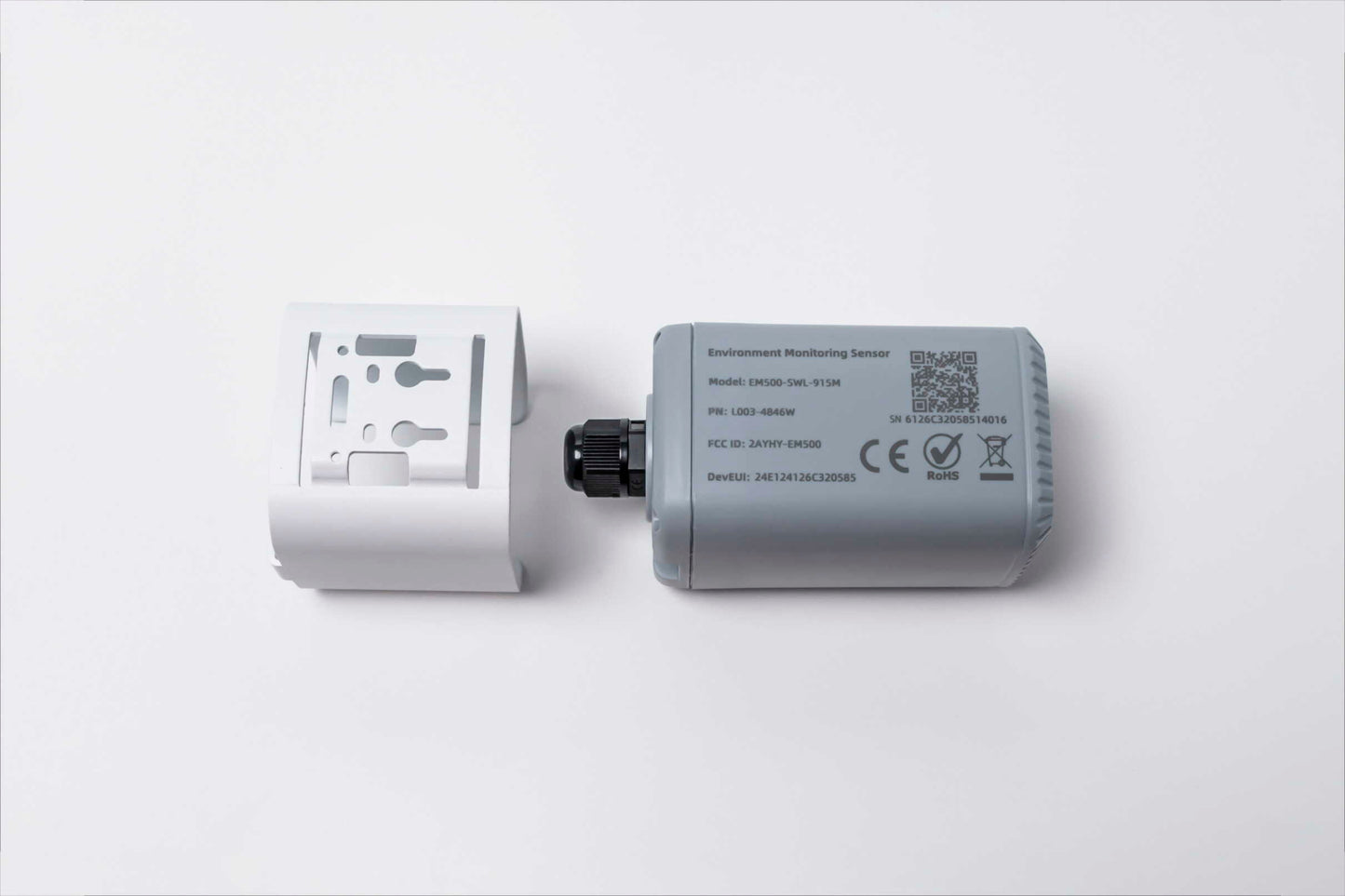

Installation |
Pole, wall or DIN Rail Mounting |
|
Approvals |
|
|
Regulatory |
CE, FCC, RoHS |
