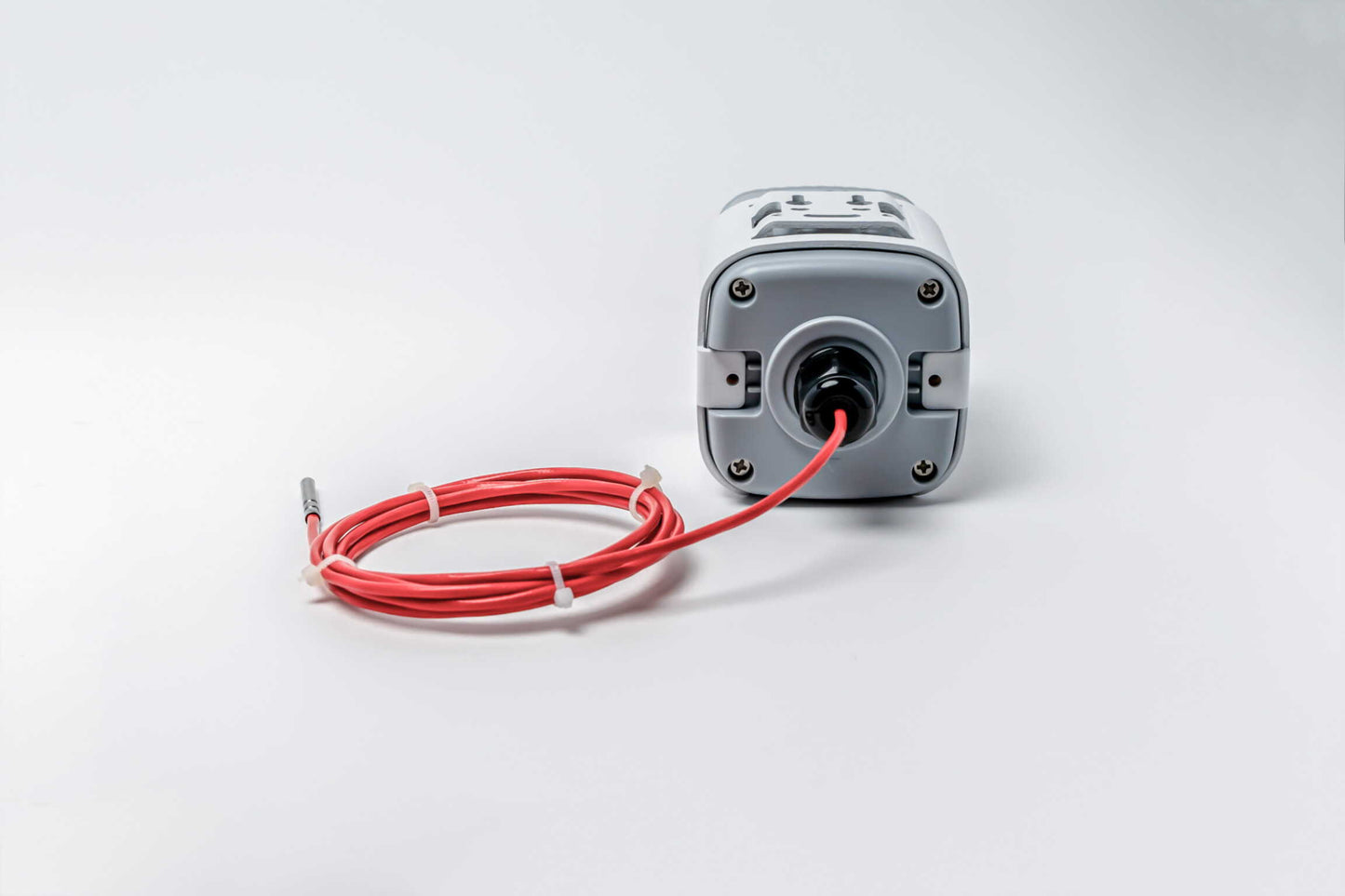

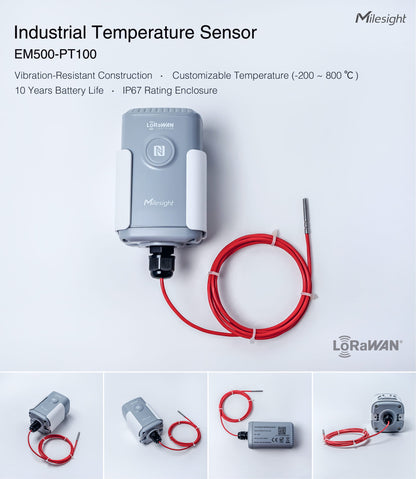

Milesight Industrial Temperature Sensor EM500-PT100
The Milesight EM500-PT100 is designed for precise temperature measurement in challenging environments, using LoRaWAN® technology for data transmission. With its low power consumption, the sensor operates for up to 10 years on a 19000 mAh battery. Seamlessly integrate it with Milesight LoRaWAN gateways and the Milesight IoT Cloud for remote and visual data management. Ideal for applications such as industrial machinery, ovens, pipes, and more.
Features:
- Durable Construction: Corrosion-resistant cable and customizable probe options.
- High Precision: 3-wire connections for accurate readings.
- Ultra-Wide-Range Transmission: Up to 10km line of sight.
- Robust Protection: IP67 waterproof enclosure for harsh environments.
- Extended Battery Life: 19000 mAh replaceable battery lasts up to 10 years.
- Easy configuration: Equipped with NFC for straightforward setup.
- LoRaWAN Compatibility: Works with standard LoRaWAN gateways and network servers.
- Remote Management: Quick and easy data management with the Milesight IoT Cloud solution.
Applications
- Liquid or gas temperature monitoring
- Industrial machine temperature tracking
- Oven and cooking temperature control
- Chimney and boiler temperature monitoring
- Medical or laboratory temperature measurements
Specifications
|
Wireless Transmission |
|
|
Technology |
LoRaWAN |
|
Frequency |
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
|
Tx Power |
16dBm(868)/20dBm(915)/19dBm(470) |
|
Sensitivity |
-137dBm @300bps |
|
Mode |
OTAA/ABP Class A |
|
Measurement |
|
|
Connection Type |
3-wire connection |
|
Range |
T050: -200 °C to +50 °C T200: -50 °C to +200 °C T500: -50 °C to +500 °C T800: -50 °C to +800 °C (Customizable from -200 °C to +800 °C) |
|
Accuracy |
±0.5°C |
|
Resolution |
0.1°C |
|
Operation |
|
|
Power On & Off |
NFC, power button (Internal) |
|
Configuration |
Mobile App(via NFC) or PC software(via USB Type-C) |
|
Physical Characteristics |
|
|
Cable Length |
1.5 m (Customizable) |
|
Probe Type |
Straight tube (Customizable) |
|
Power Supply |
19000 mAh Li-SOCL2 battery (ER34615) |
|
Battery Life* |
10 years (10 min interval) |
|
Operating Temperature |
-30°C to +70°C |
|
Relative Humidity |
0% to 100% (non-condensing) |
|
Ingress Protection |
Transceiver: IP67, Sensor: differ based on temperature ranges |
|
Dimension |
105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in) |
|
Installation |
Pole, wall or DIN Rail Mounting |
|
Approvals |
|
|
Regulatory |
CE, FCC, RoHS |
