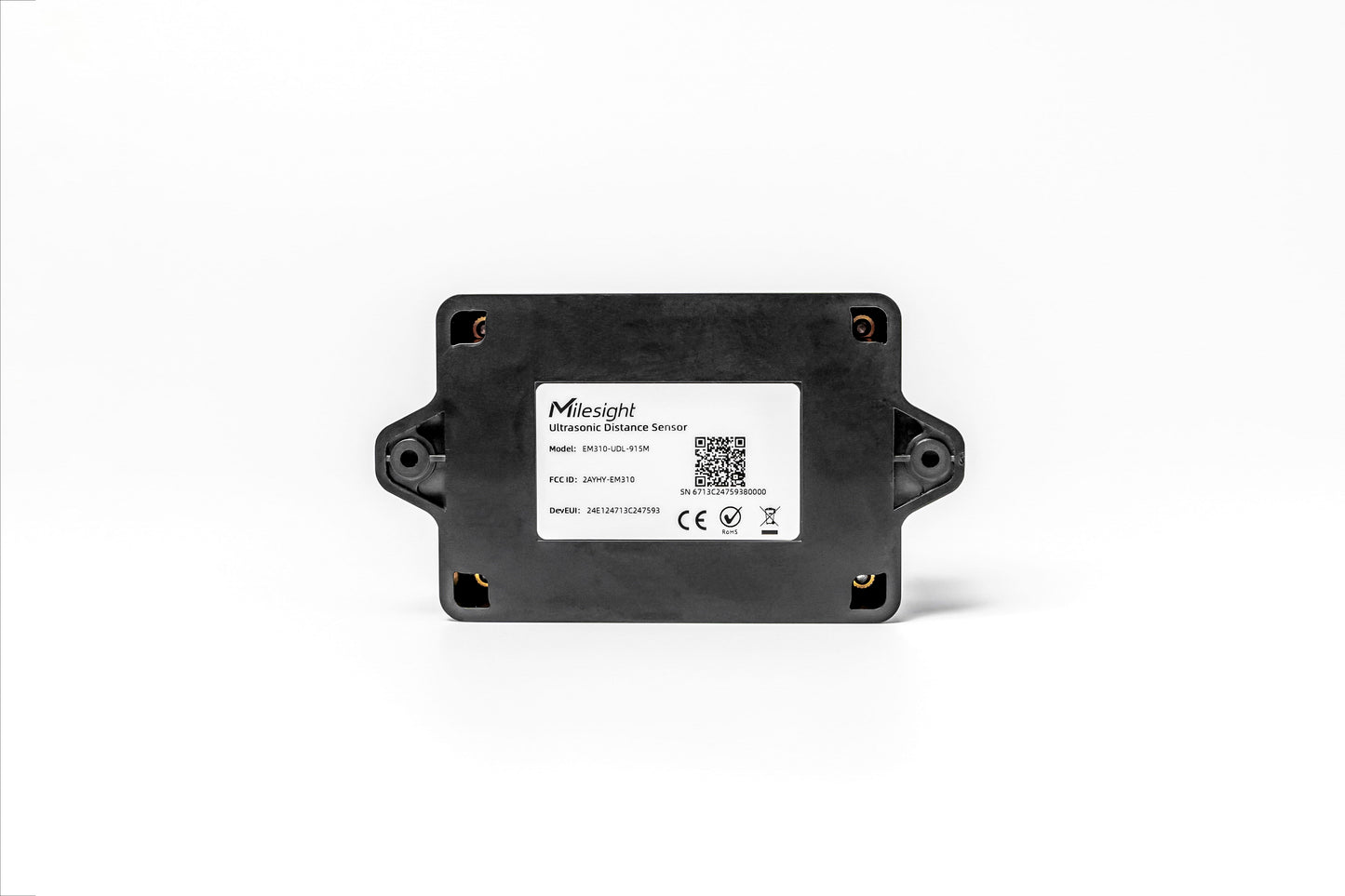

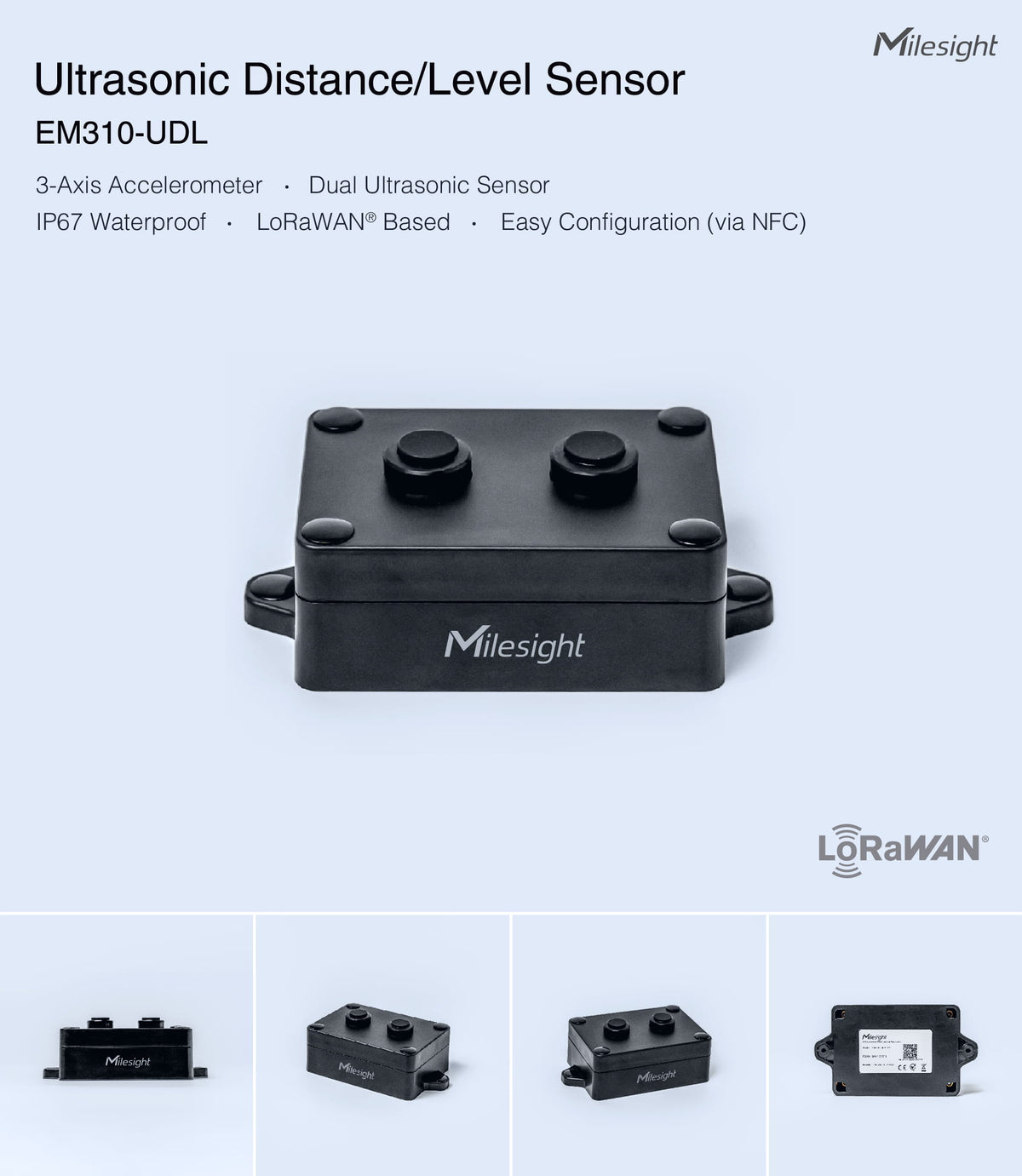

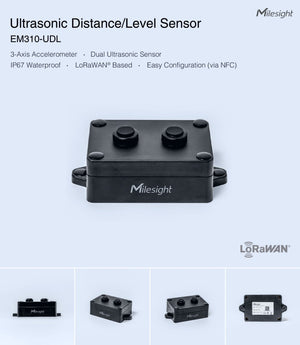

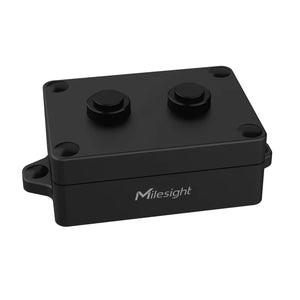

Milesight Ultrasonic Distance Sensor EM310-UDL
This product is no longer being manufactured and will not be restocked once the current inventory is depleted.
Due to the product’s end-of-life status, MCCI and Milesight recommend the EM400-MUD as a substitute.
Milesight EM310-UDL is a LoRa ultrasonic distance sensor mainly for the detection of waste bin and other container’s fill levels. With a compact size and wide measurement range, EM310-UDL can be installed to any types of waste bins or containers to monitor solid or liquid levels. Besides, EM310-UDL equips with 3-axis accelerometer to detect the status of container cover. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can know the container status and fill-in level in real-time via browser or mobile App remotely. EM310-UDL can be widely used in waste management, water tank monitoring, manhole cover monitoring, etc.
Features
- 3-450 cm wide measuring range with a short blind zone
- Easy to install, suitable for various types of waste bins or containers
- Built-in 3-axis accelerometer sensor to monitor device tilt status
- IP67 waterproof and salt spray resistant enclosure for outdoor applications and easy to clean
- Ultra-wide-distance wireless transmission up to the line of sight of 15 km
- Equipped with NFC for one-touch configuration, support card emulation mode
- Function well with standard LoRaWAN® gateways and network servers
- Compliant with Milesight IoT Cloud
- Batteries included
Specifications
|
Wireless Transmission |
|
|
Technology |
LoRaWAN® |
|
Frequency |
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
|
Tx Power |
16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
|
Sensitivity |
-137 dBm @300bps |
|
Mode |
OTAA/ABP Class A |
|
Measurement |
|
|
Distance |
|
|
Detection Range |
3 - 450 cm |
|
Detection Accuracy |
± (1+0.3%*S) cm, S=distance |
|
Distance Resolution |
1 mm |
|
Device Position |
|
|
Status |
Normal/Tilt |
|
Operation |
|
|
Configuration |
NFC Configuration via Mobile App |
|
Physical Characteristics |
|
|
Power Supply |
2 × 3500 mAh ER17505 Li-SOCl2 battery |
|
Battery Life* |
≥10 years (10 min interval + 20 triggers per day) |
|
Operating Temperature |
-15°C to +60°C |
|
Relative Humidity |
≤90% (non-condensing) |
|
Ingress Protection |
IP67 |
|
Dimension |

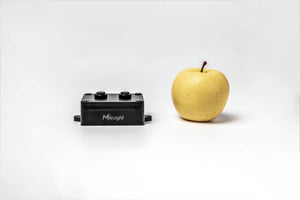

111 × 62 × 40 mm (4.37 × 2.44 × 1.57 in) |
|
Weight |
168g |
|
Material & Color |
ABS, Black |
|
Installation |
On the flat surfaces with screws |
