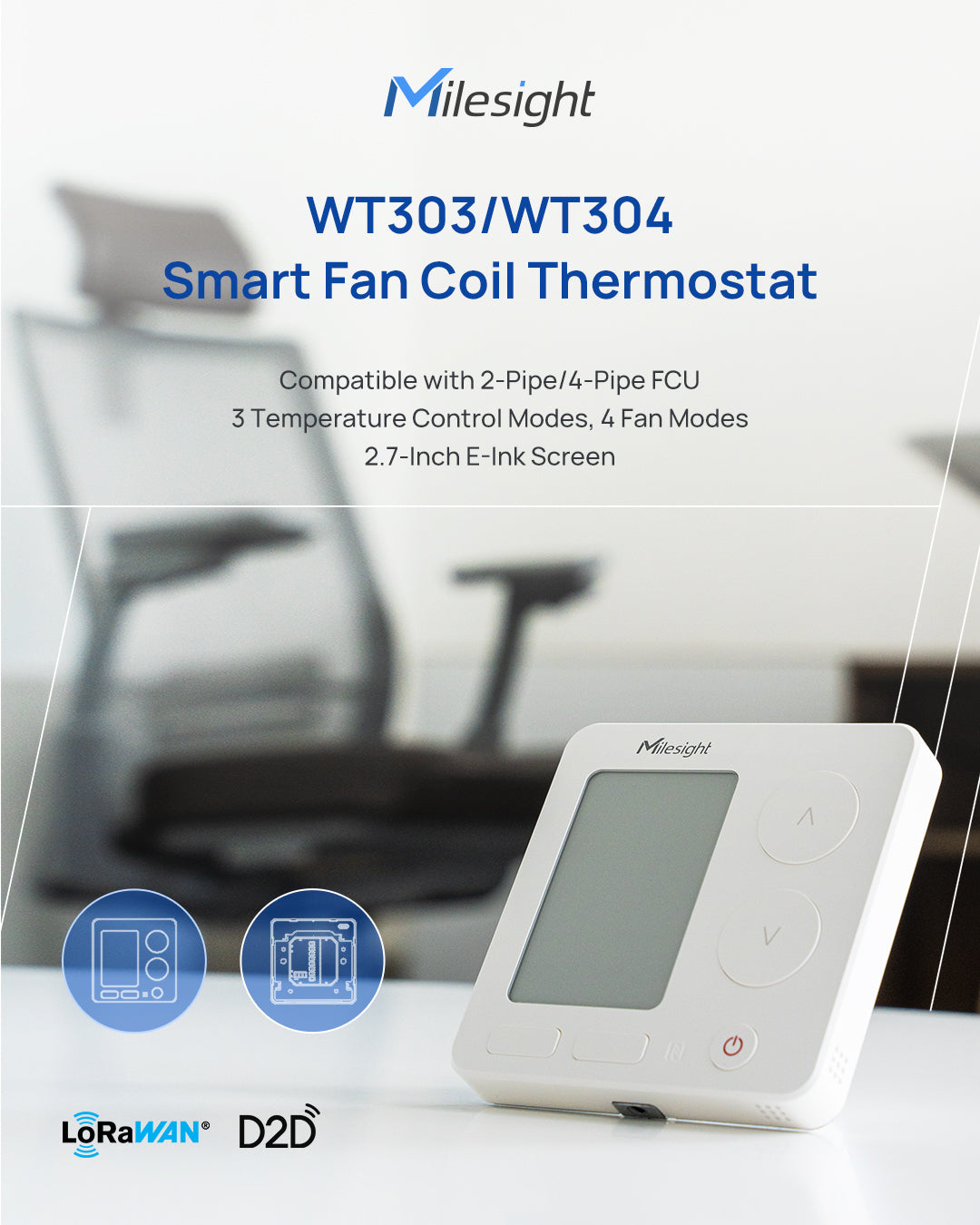

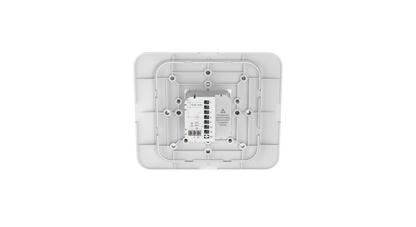

Milesight Smart Fan Coil Thermostat WT303 & WT304

$ 120.00 USD

Sale Sold out

Model WT303 WT304

LoRaWAN Region KR920 / AS923 / AU915 / US915 IN865 / EU868 / RU864 CN470

Quantity

SKU:123003842

Out of stock — Available on backorder

The Milesight WT303 and WT304 are advanced LoRaWAN® Smart Fan Coil Thermostats designed for efficient, flexible, and intelligent climate control of commercial and residential spaces. These thermostats support both 2-pipe and 4-pipe fan coil units (FCUs) and are engineered to optimize comfort, energy use, and remote management in HVAC systems. The WT303 is suited for switch-type electric valves, while the WT304 supports both 0-10V proportional valves and 3-speed EC/AC fans, offering broad compatibility for diverse climate scenarios. A minimalist, eco-friendly design, 2.7-inch E-Ink display, built-in and external sensing capabilities, local scheduling, and comprehensive connectivity make them ideal for new builds and smart building retrofits.

Stylish Intelligent Display

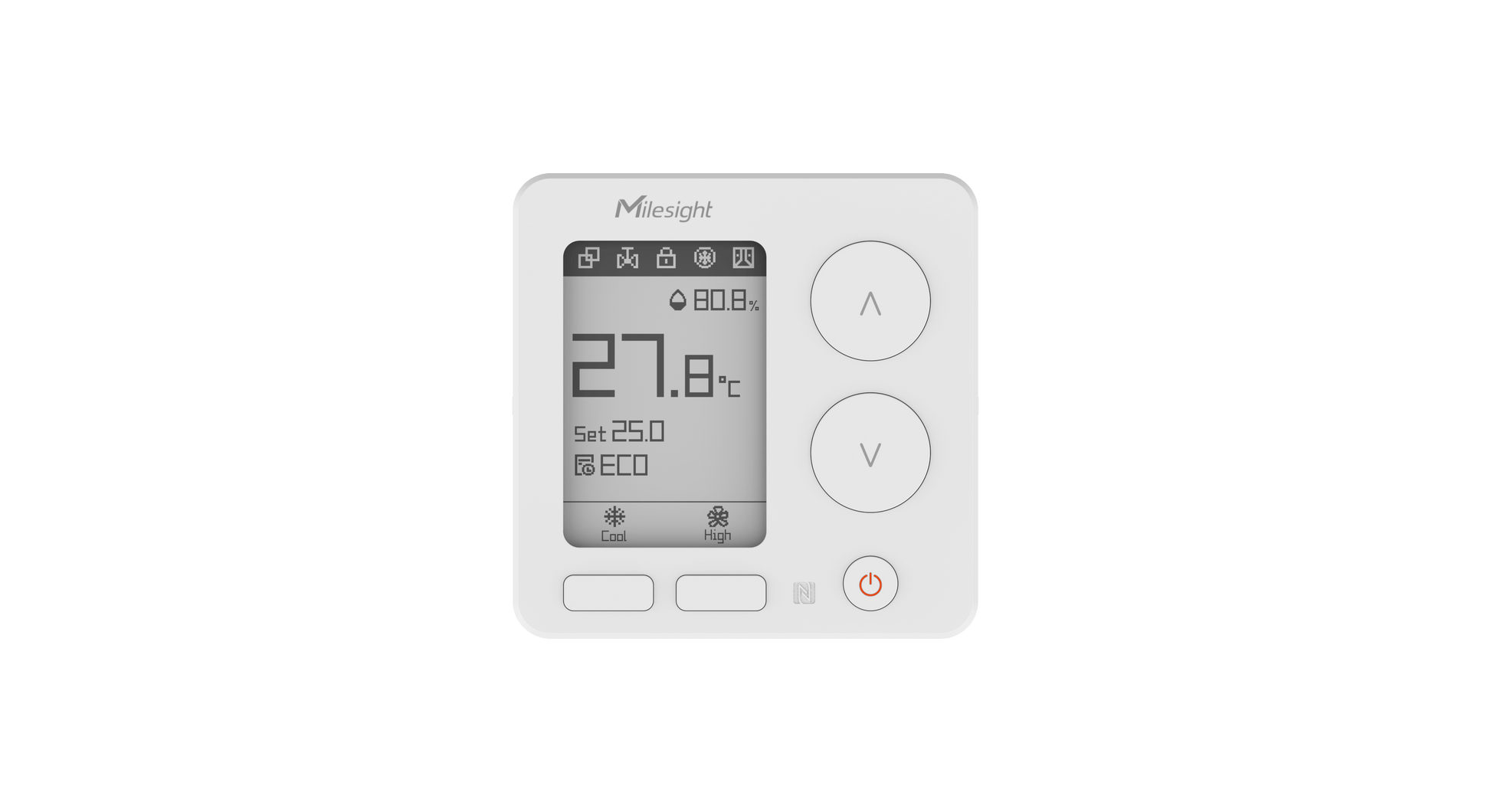

2.7-inch E-Ink Display – Shows real-time temperature, humidity, and working status clearly
Built-in Sensors – Continuously monitors ambient temperature and humidity

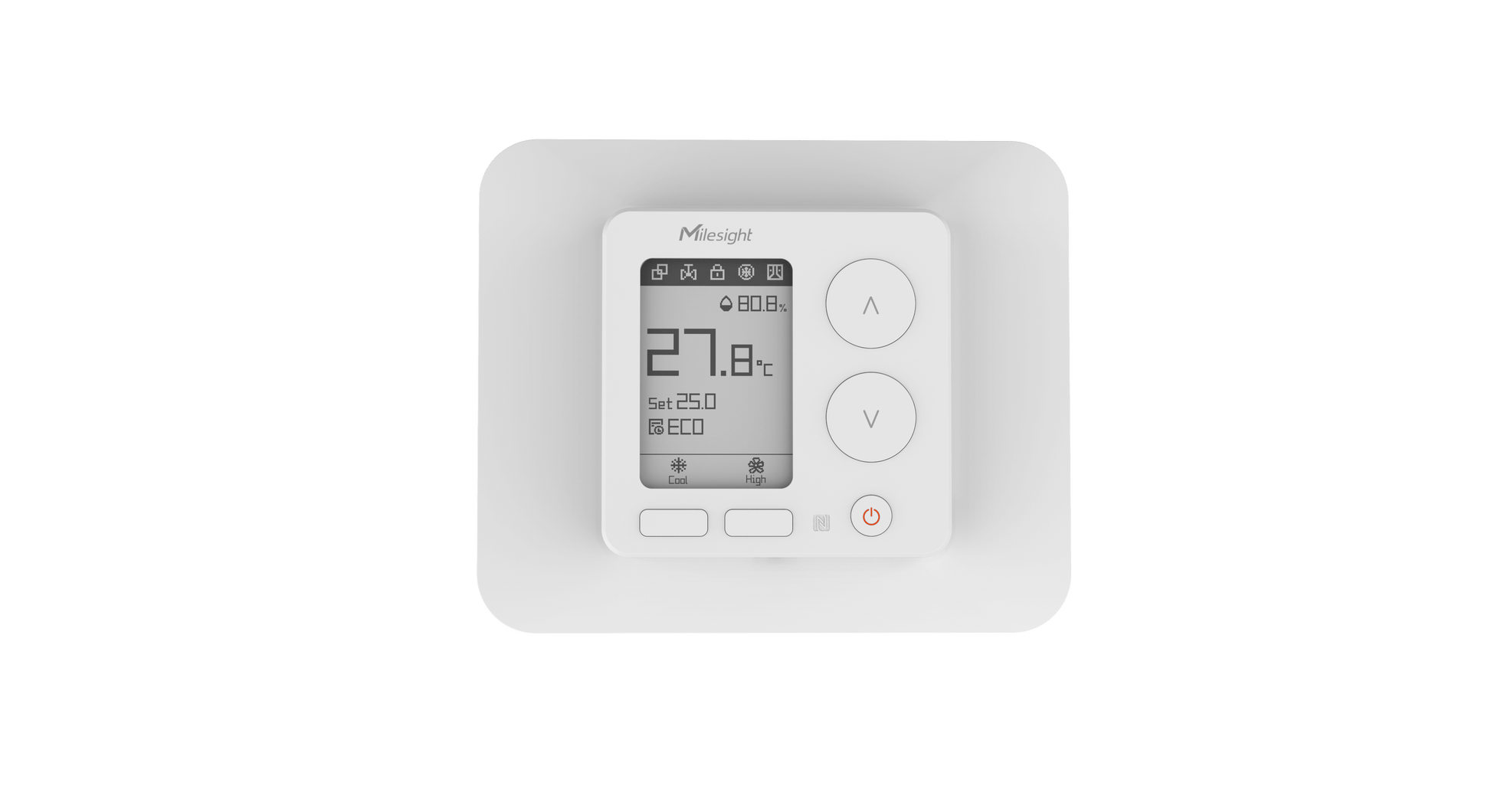

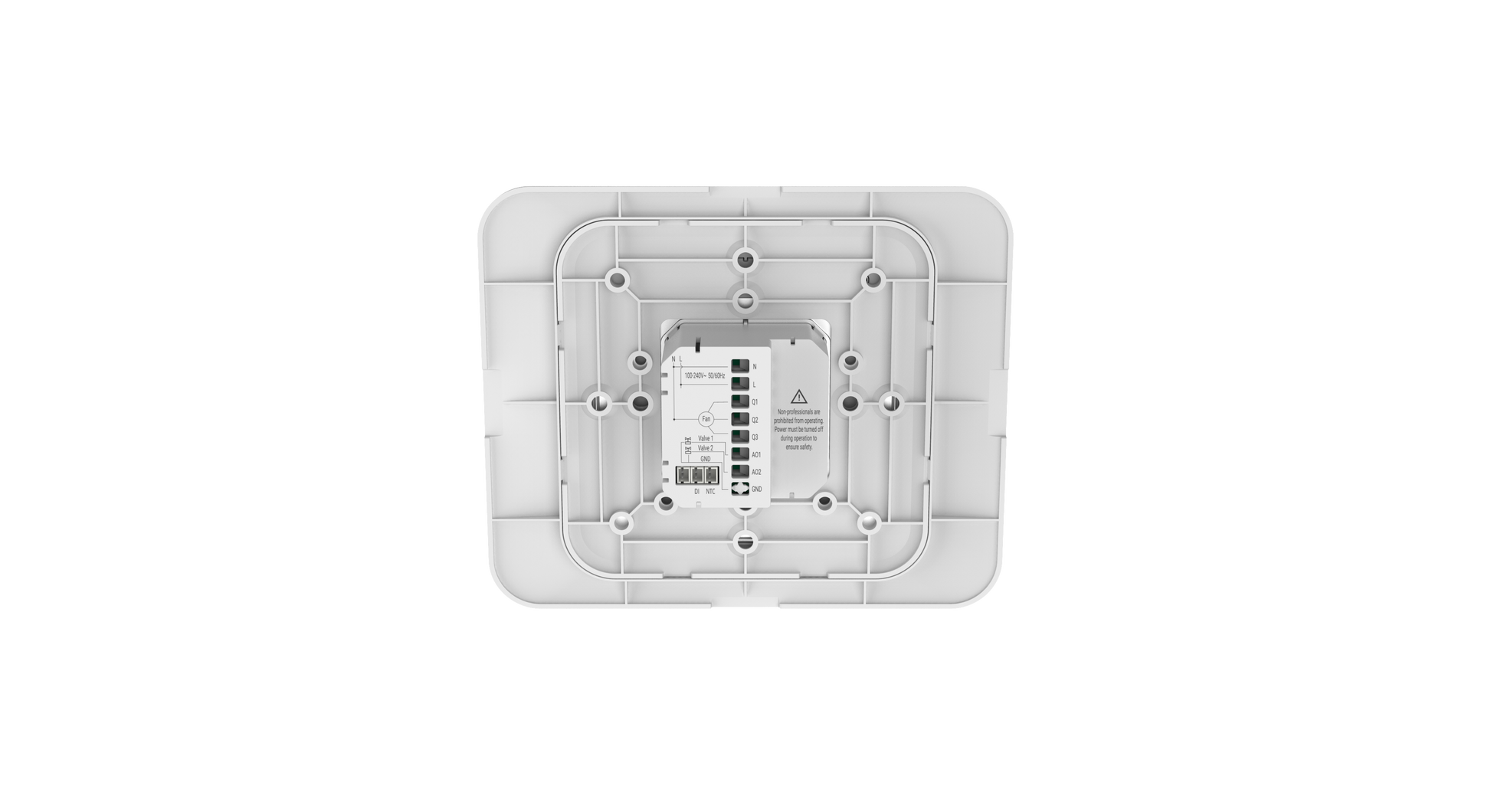

Sleek Design – Fits modern interiors and supports multiple back box sizes: 60mm / 86mm / 118mm / 120mm

Features

Versatile FCU Compatibility: Supports both 2-pipe and 4-pipe fan coil configurations with 1–3 speed and ECM (0-10V) fans for maximum flexibility.
Smart Multi-Source Control: Operates via built-in temperature/humidity sensors, external NTC probes, LoRaWAN® remote commands, and Milesight D2D device-to-device collaboration for integrated, responsive climate control.
Scheduling and Local Automation: 8 custom schedules with up to 16 execution times each allow highly granular, time-based climate management.
Multiple Control Modes: Three temperature control modes (Heat, Cool, Ventilation) and four fan modes (Low, Medium, High, Auto) address various comfort and operational needs.
High Measurement Accuracy: Temperature measurement range: -20°C to 60°C (±0.5°C accuracy from 0°C to 60°C, ±1°C from -20°C to 0°C), Humidity measurement: 0-100% RH (±2% typical accuracy), both displayed with 0.1 resolution.
Advanced Features: Local control scheduling, freeze protection, open window detection, fan delay, temperature control, dehumidification, and child lock.
Alerts and Security: Supports threshold alarms, child lock, and open window detection for enhanced safety, comfort, and efficiency.
Communication: LoRaWAN® and Milesight D2D protocols, supporting multiple global frequencies and high sensitivity for robust wireless monitoring and control.
User Interface: 2.7-inch black-and-white E-Ink screen for low power and clear, eye-friendly viewing. Five external ergonomic buttons for intuitive operation.
Easy Configuration & Updates: Supports NFC configuration via a mobile app or downlink, external sensor mode, and firmware updates over-the-air (FUOTA).

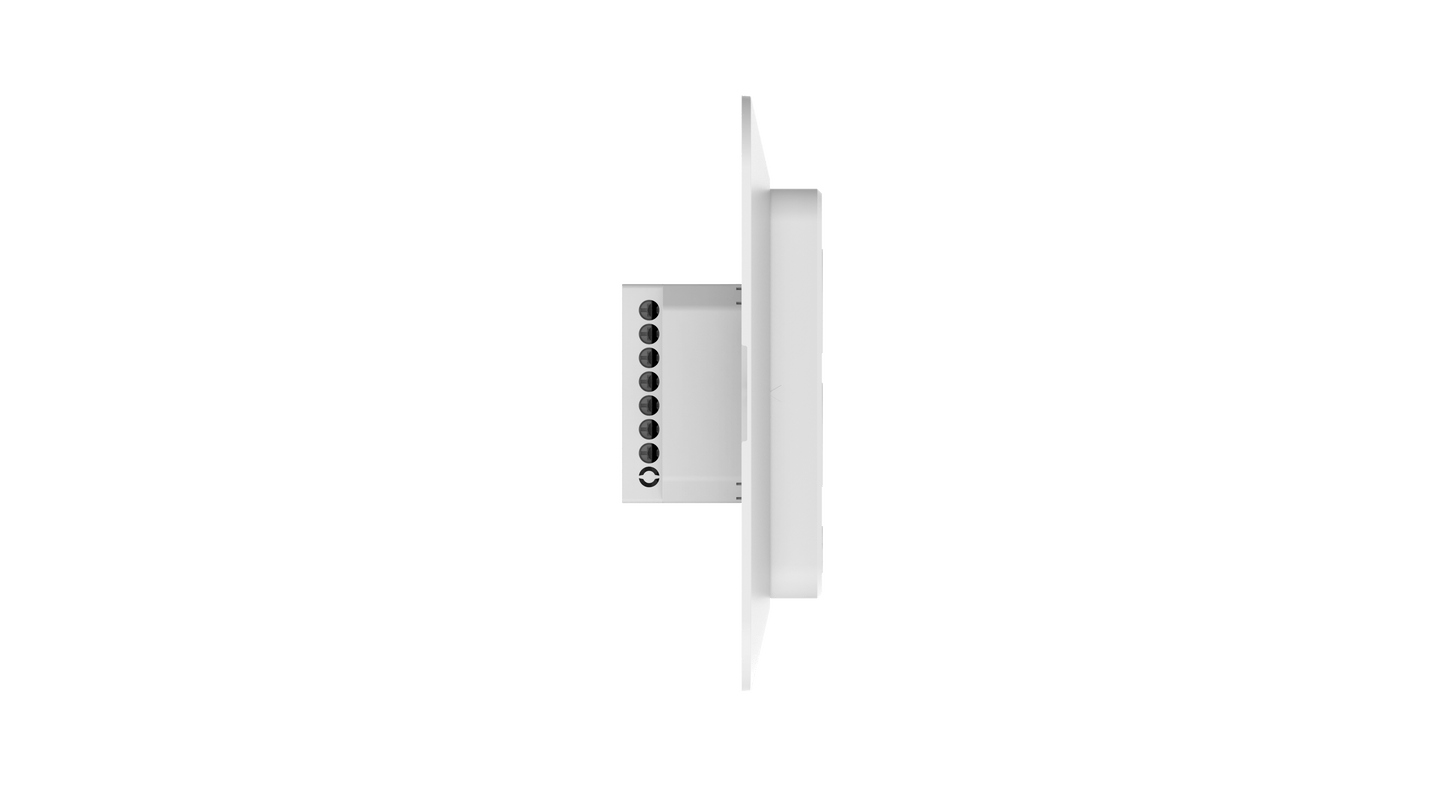

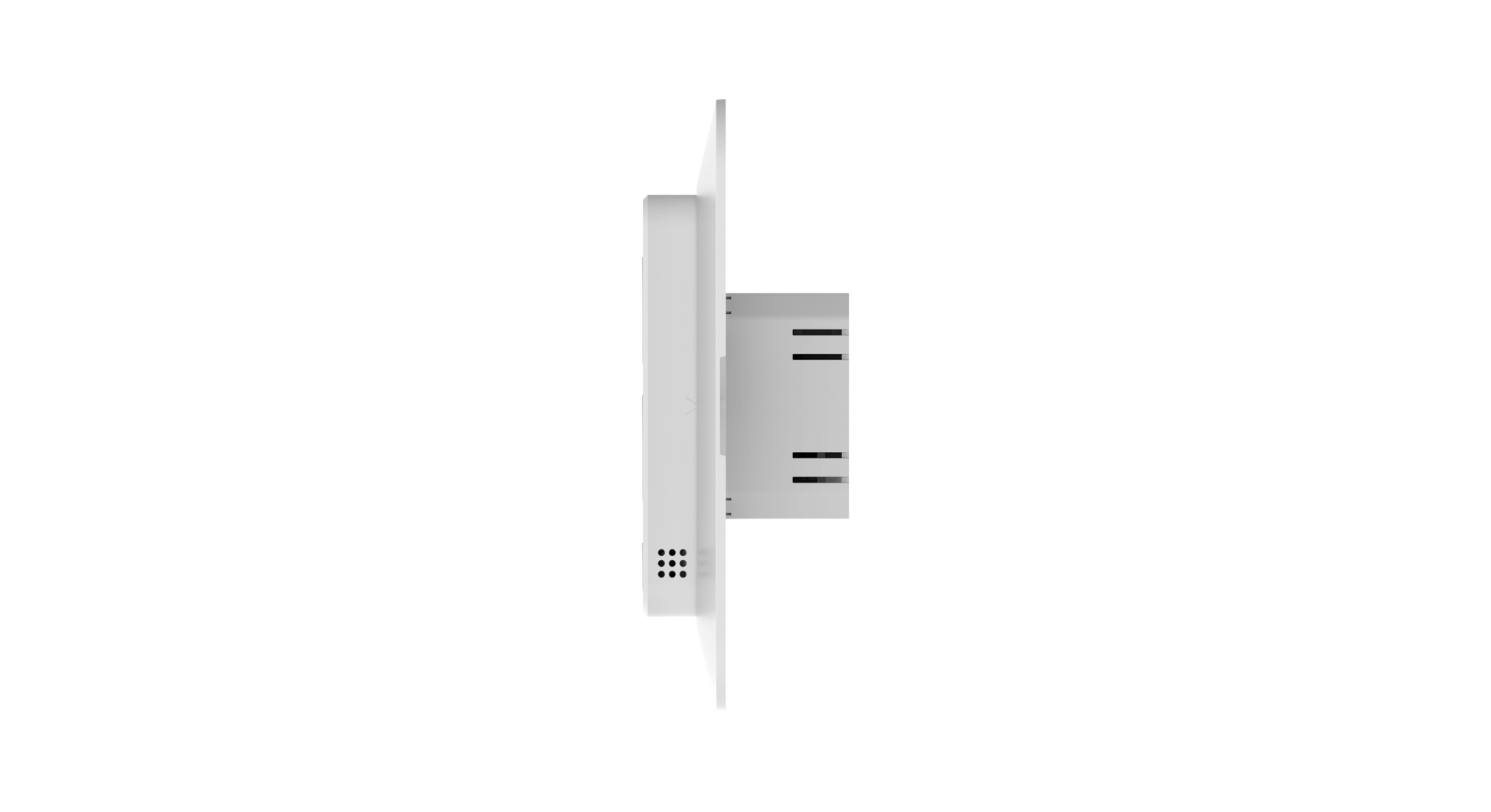

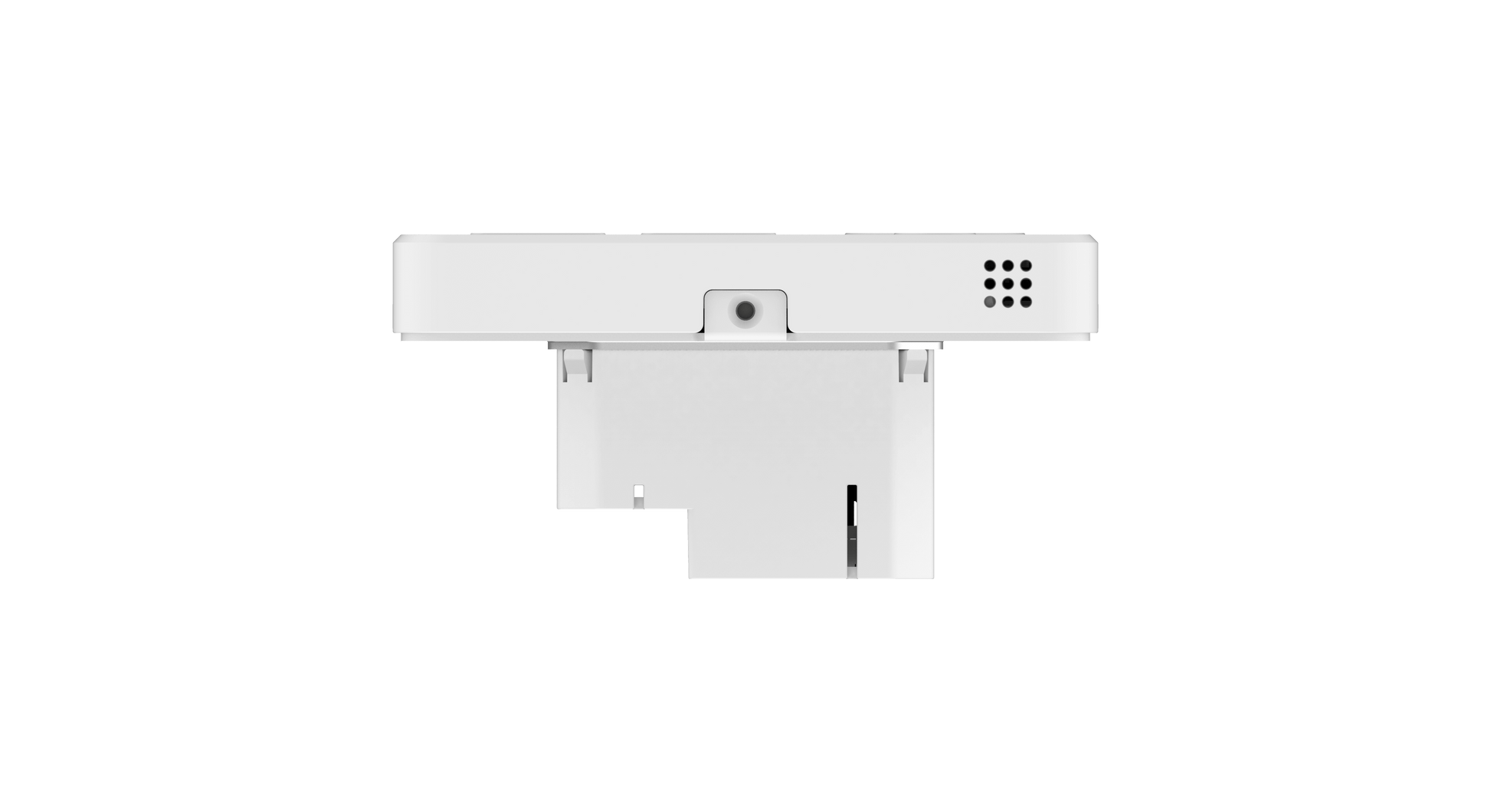

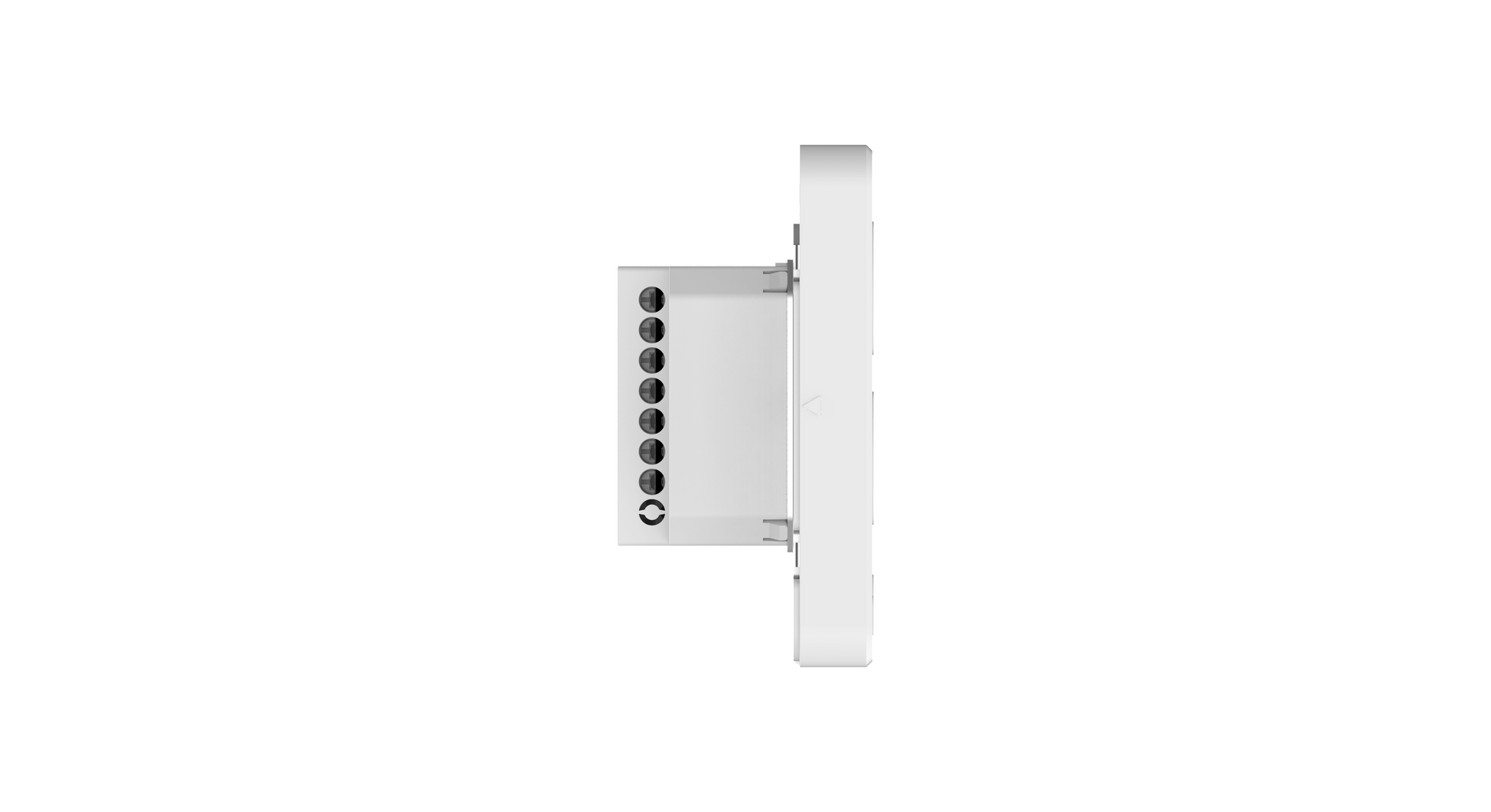

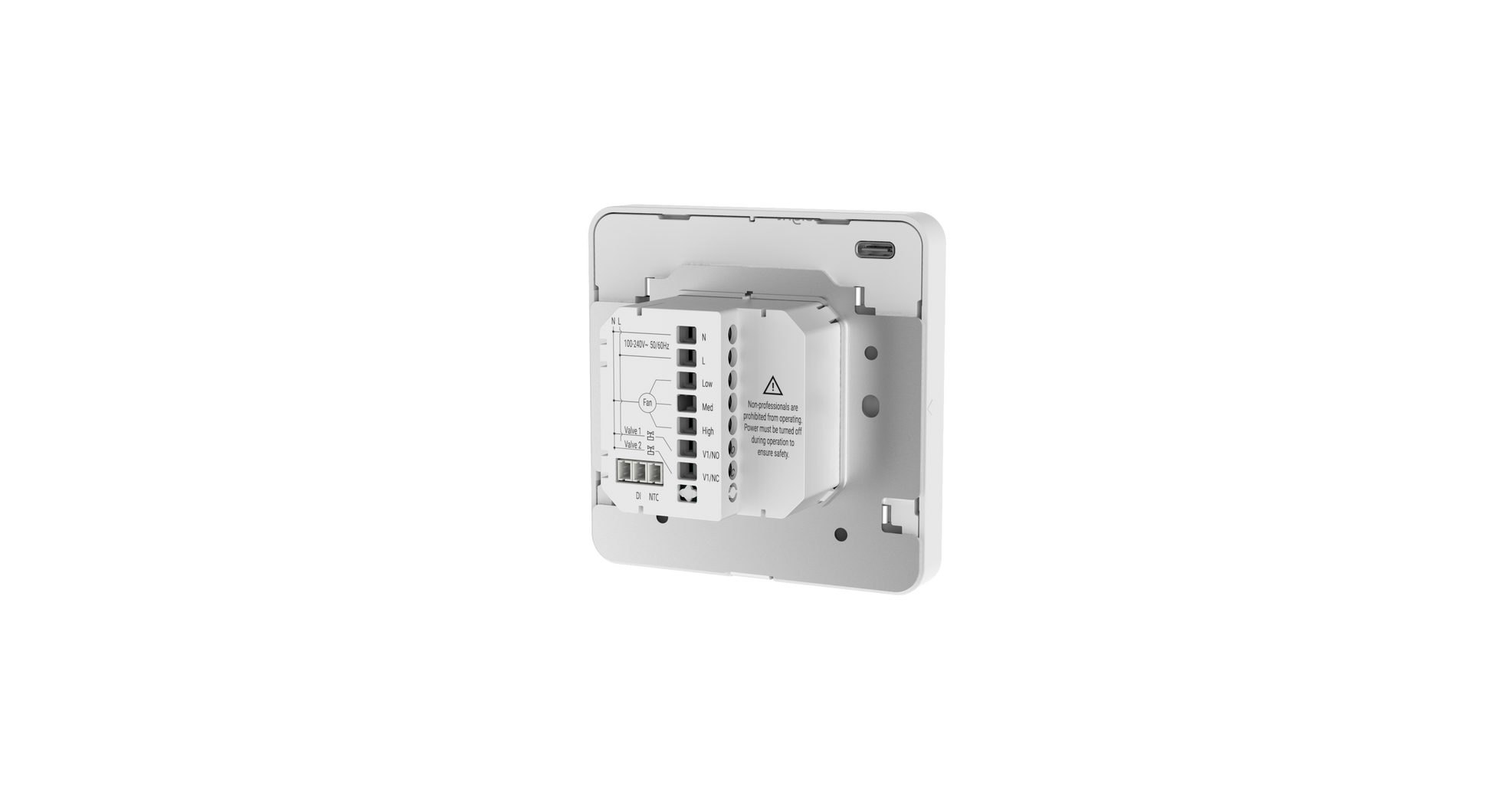

Flexible Installation: Compact dimensions (86 × 86 × 42 mm), fits standard square or European round wall boxes.
Rugged and Efficient: Power supply: 100–240 VAC, robust PC+ABS housing (UL94 V0 flame retardant), ingress protection IP20, and operation in -20°C to 60°C environments.
WT303 Highlights: Switch-type electric valve support for general applications.
WT304 Highlights: Supports 0–10V proportional valves and 3-speed EC/AC fans for advanced building scenarios.
